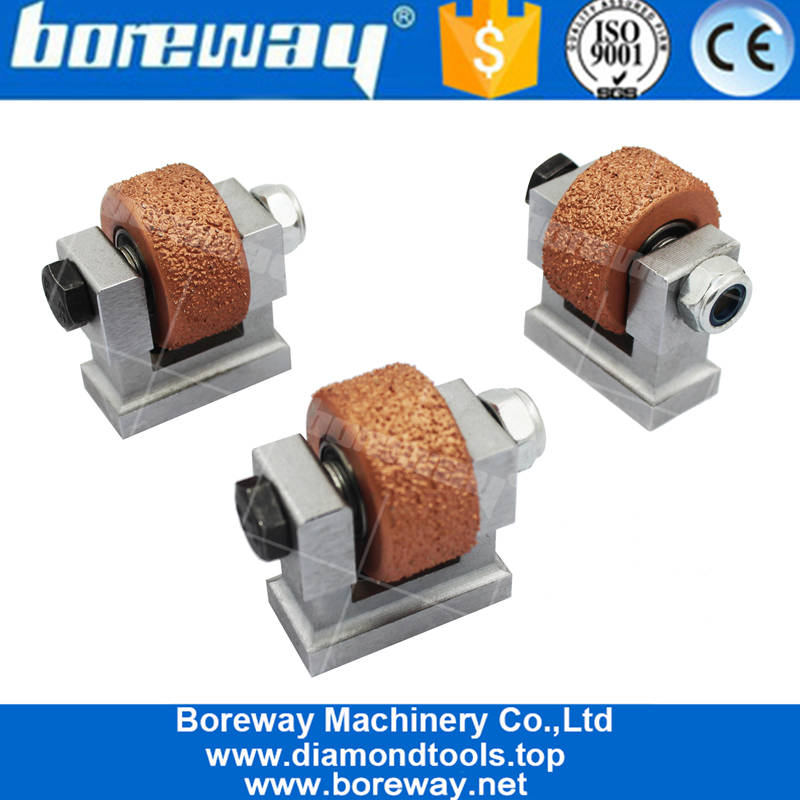

China Vacuum Brazed Rotary Bush Hammer Roller U Support

  • Brand: Boreway
  • Roller Width: 22mm
  • Model: BW-BHR-UVB2
  • Roller Diameter: 43mm
  • Machine: For Hand Held Grinder
  • Application: 125mm Bush Hammer Plate
  • Grinding Effect: For Sandblasted Surface
  • Roller Type: Vacuum Brazed Bush Hammer Roller With Support
  • Grinding Material: For Marble Sandstone Concrete Asphalt Pavement Stone
Product Description:

Bush hammer roller with u support for manufacturer,sandblasting finish is a popular profile on granite, marble or other natural stones. Among the various bush hammer tools, we use vacuum brazed diamond to create sandblasting finish.

U shape rotary bush hammer roller are mainly designed for texturing and roughening of smooth surfaces and is especially important for performing operations to create anti-slip surfaces on stone floors and steps, etc.

Vacuum brazed bush hammer roller with support,is scrollable and highly efficient, for example, a roller of 200mm diameter can fabricating more than 150 square meters stone surface per day.

The vacuum brazed diamond has a range of different diamond grit to choose from, for coarse grinding, medium grinding or fine grinding. It has good sharpness and can do the grinding job efficiently.


1.Good sharpness and high performance.

2.Rotary bush hammer roller,a wide range of diamond grit to choose from.

3.Provide 30 teeth, 45 teeth, 60 teeth, 72 teeth, 99 teeth, star teeth, hundreds of teeth multi-point, steel multi-point, brazed grinding wheel.

4.Specifically designed for 125mm bush hammer plate designed with a vacuum brazed diamond roller, for creating sandblast finish on granite, marble or other natural stones.

Product Specification:

The Followings Are The Normal Specifications Of Our Bush Hammer Roller With U Support:

 Roller Diameter  43mm
 Roller Width  22mm
 Brand Boreway
 Support Shape  U Shape
 Segment Type  Vacuum Brazed
 Application  125MM Rotary Bush Hammer Plate
 Name  Bush Hammer Roller With U Support
 Grinding Material  For Granite, Marble Sandstone,Concrete Floor, Asphalt Pavement

The above specifications are for reference, other specifications can be ordered by customers.

Product show

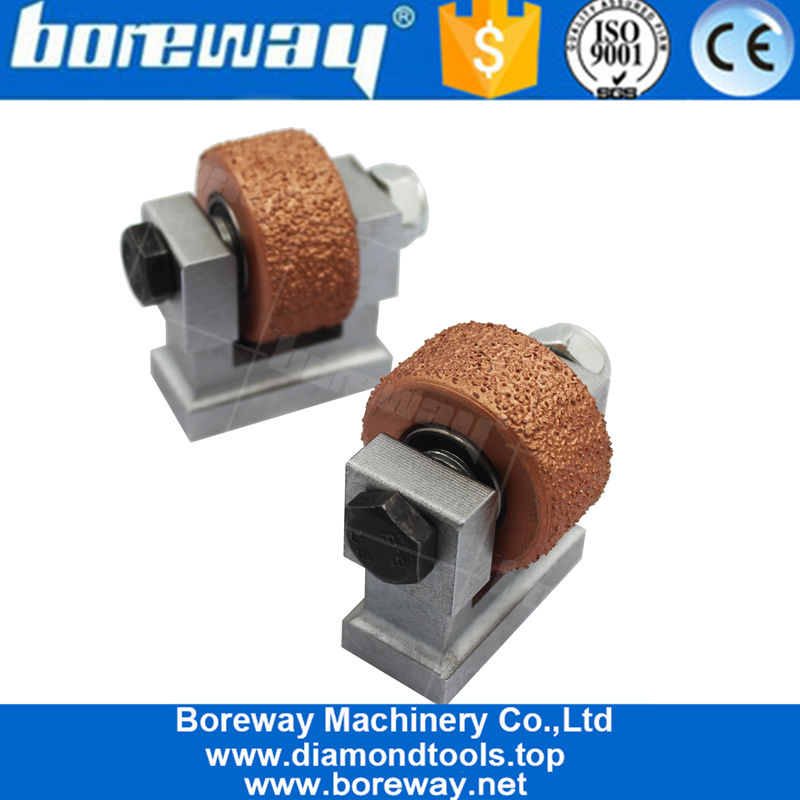

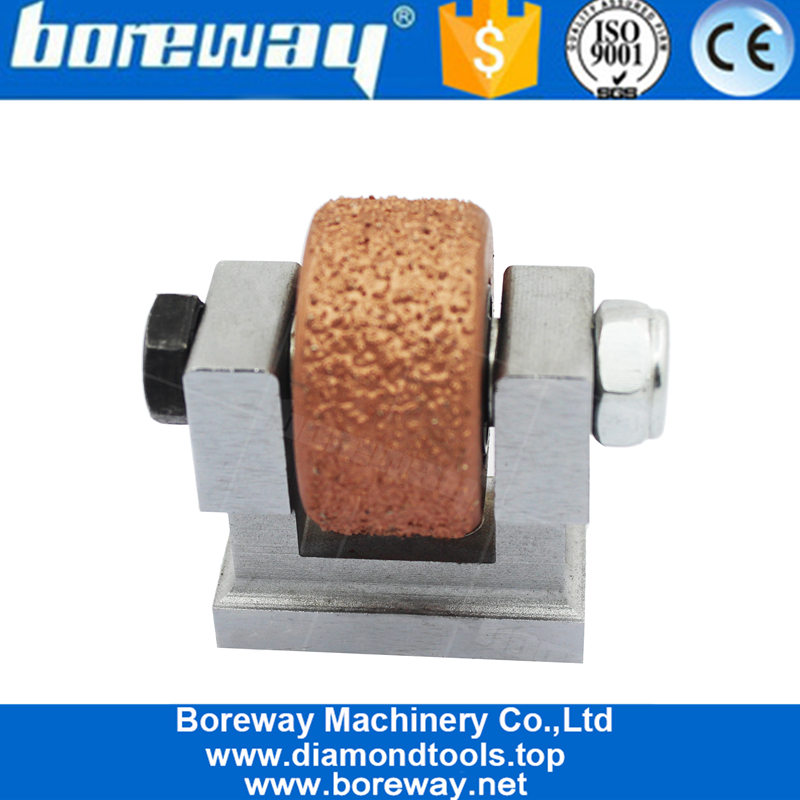

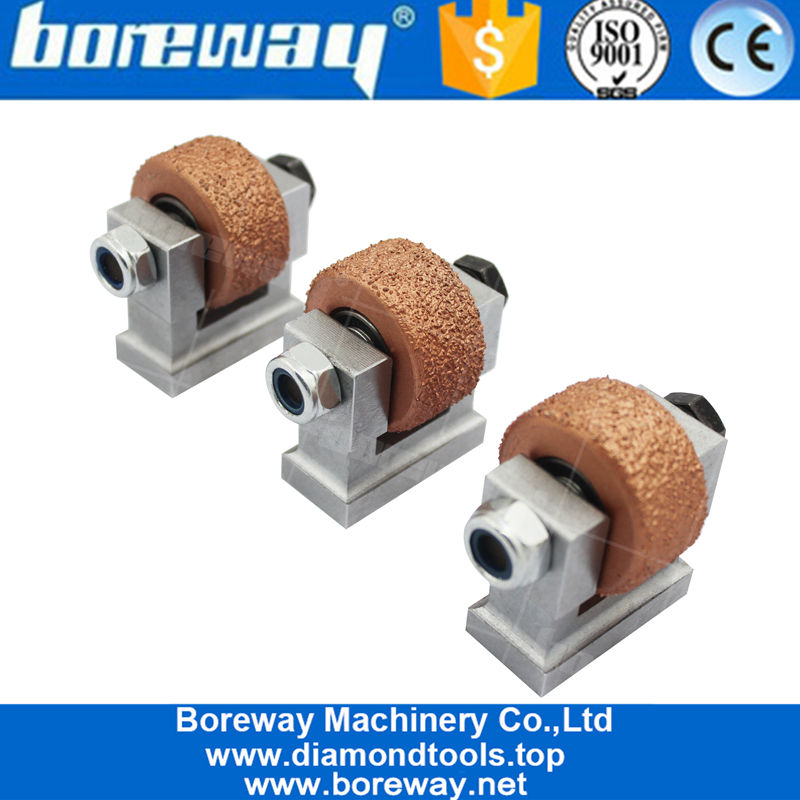

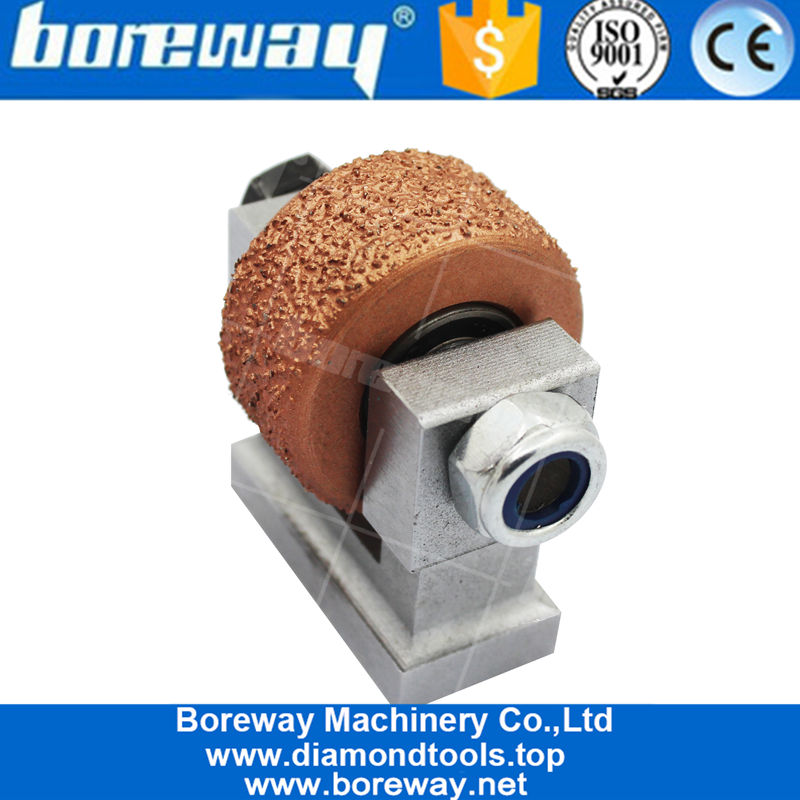

China Vacuum Brazed Rotary Bush Hammer Roller U Support

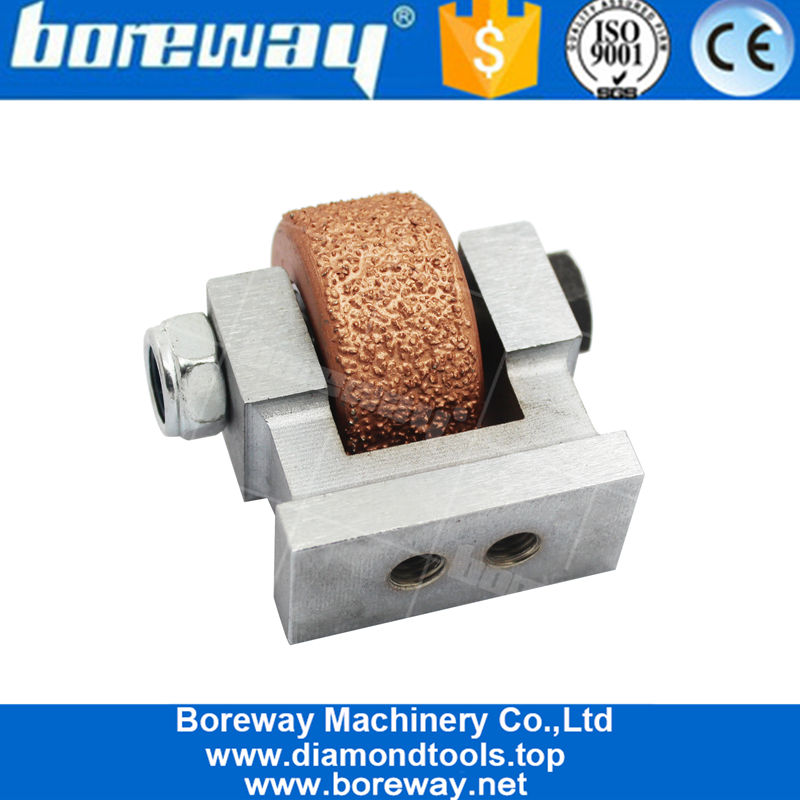

China Vacuum Brazed Rotary Bush Hammer Roller U Support 74China Vacuum Brazed Rotary Bush Hammer Roller U Support22

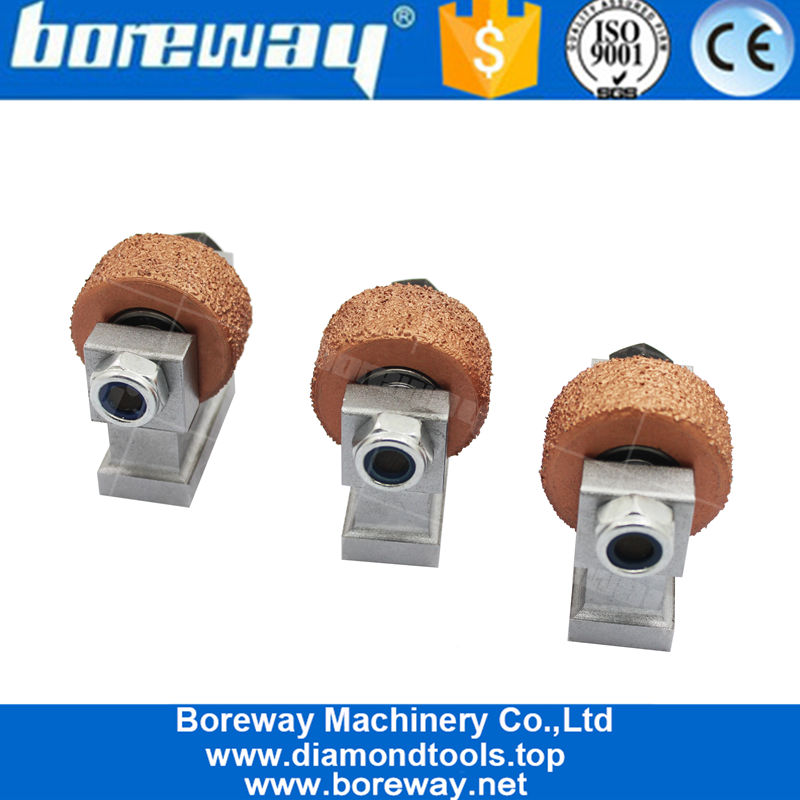

China Vacuum Brazed Rotary Bush Hammer Roller U Support 11China Vacuum Brazed Rotary Bush Hammer Roller U Support 12


Bush hammer bit for sandblasting surface.

Bush hammer nozzle for marble sandstone concrete asphalt pavement stone

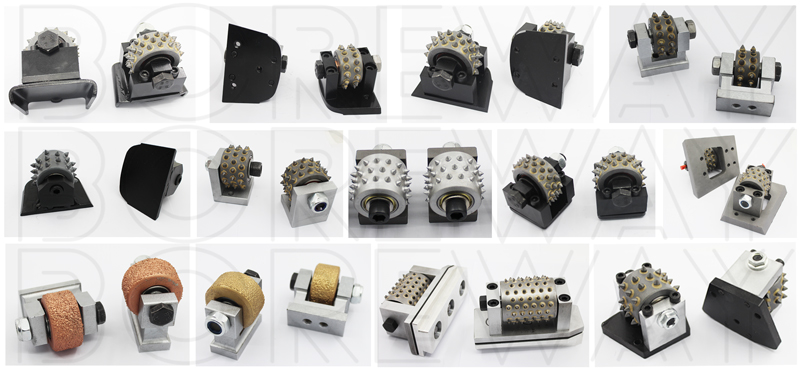

Bush hammer roller for hand grinder.a separate bush hammer roller can be provided, 30 teeth,vacuum brazed bush hammer roller.

Kindly Noted, When Place Order Please Inform The Following:

1.Stone Effect(Sandblasted Surface/Litchi Surface)

2. Use Object (Marble, Granite Or Other Stone, Concrete And Other Stone)

3. Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)

4. Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)

5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)

6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)

Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
China Frankfurt Bush Hammer Manufacturer
China Frankfurt Bush Hammer Manufacturer


1.What is the lychee noodle tool?

Bush Hammers have been around a long time and have proven the easiest way to texturize stone, concrete & asphalt.

2. What can bush Hammers do?

Surface Prep for coatings.
Quickly expose large aggregate.
Remove hard coatings and overlays.

3.How to use and maintain bush hammer tool?

Do not apply too much pressure on the bush hammer. This will prevent the roller from stopping and thus decrease the life span of the tungsten steel.
After each use, please clean up rollers, dry and apply oil to the spindles. It will be ideal to submerge the rollers in oil to prevent spindle rust.
Roller tips can be re-dressed with diamond blades when they become inefficient.

To reduce other unnecessary costs.
To find good agents for lower shipping fees.
To find the right suppliers of product materials.
It will never reduce the quality of the product. We can optimize the product process and take some measures to protect the quality of the product.

Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours
