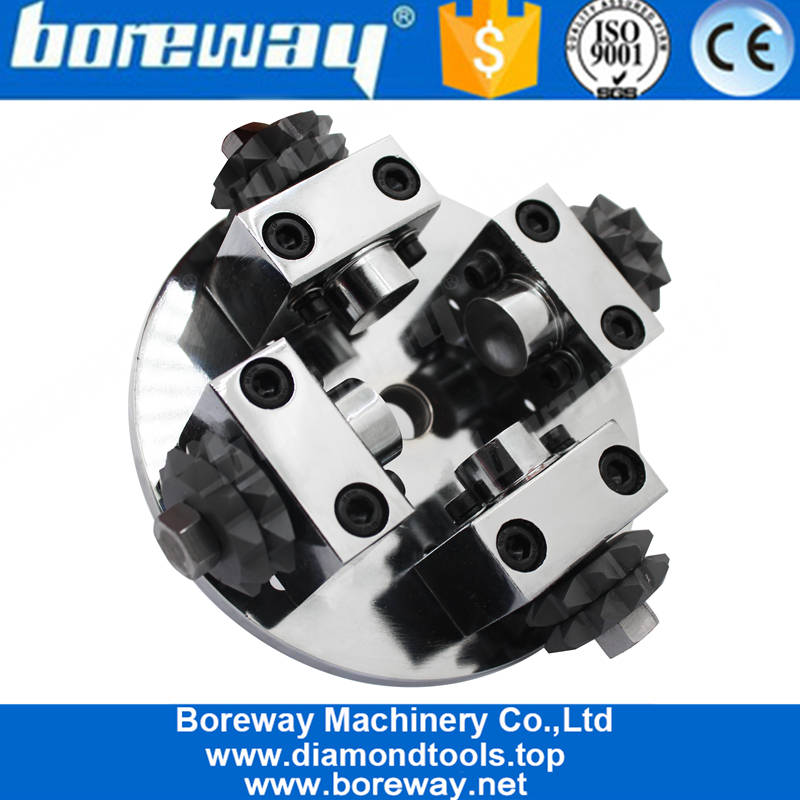

125mm 4 Rollers Star Bush Hammer Plate For Angle Grinder
- Brand :Boreway
- Roller No.:4 Roller
- Model:BW-BH-12520
- Connection Hole: M14
- Segment Of Roller:20 Tip
- Machine: For Angle Grinder
- Diameter (Mm):125mm,5 Inch
- Material:Carbide Alloy And Steel
- Type: Knurling Type Bu Hammer Plate
- Application: Fine Grinding For Granite,Marble,Concrete,Asphalt
Descriptions: |
Professional design125mm bush hammer plate,free bush hammering on flat surface and easy to be operated.high quality tungsten carbide tip.

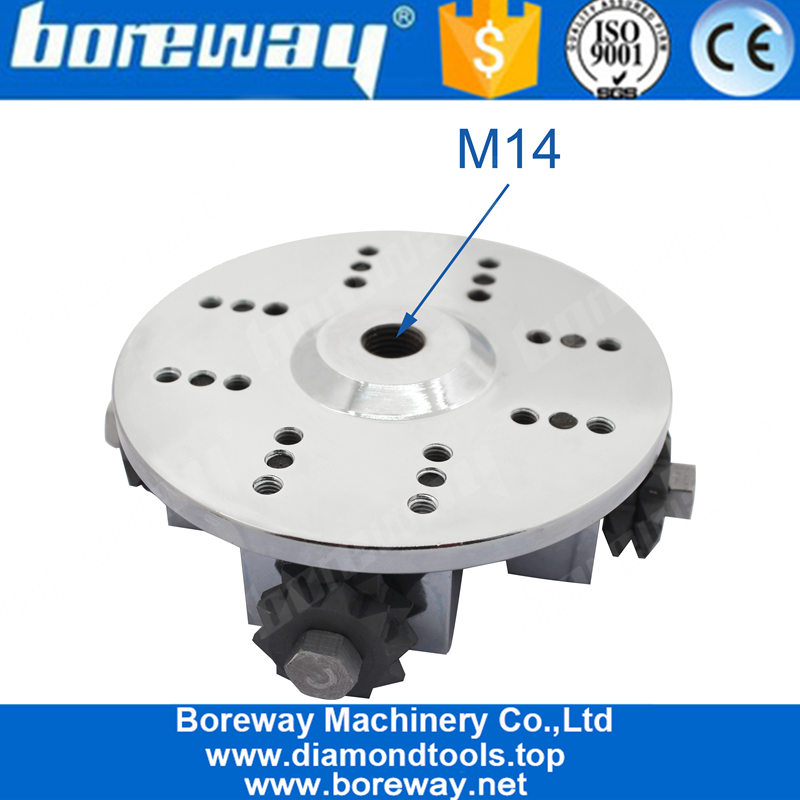

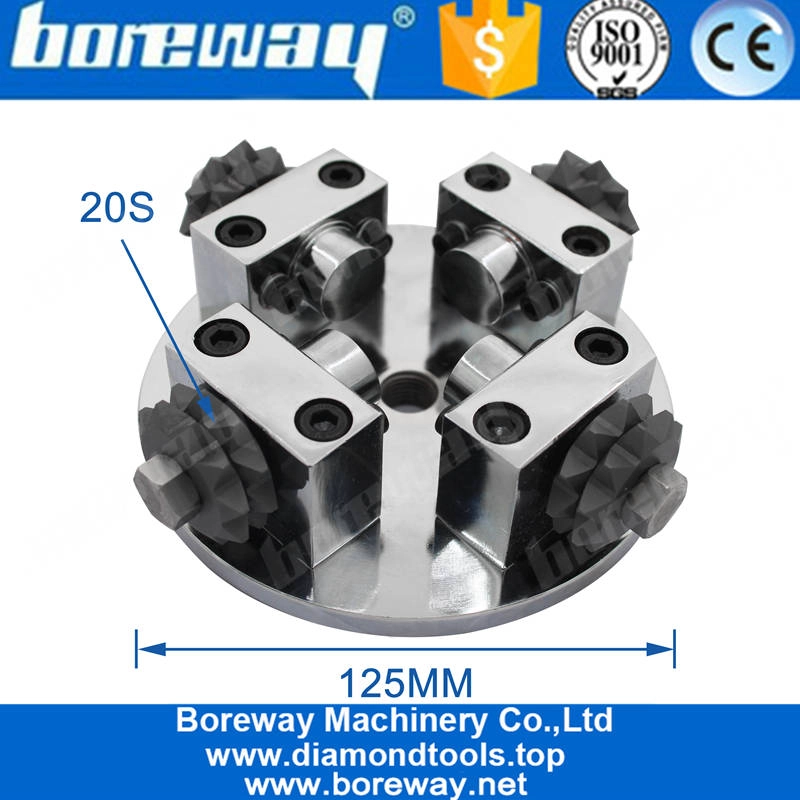

20 tip segment star roller, installed on 125mm single layer bush hammer plate,With M14 inner hole.
D: means the size of adaptor decide to machine
T: means the roller quantity in per bush hammer
S: means the segment quantity in per roller
Specifications: |
The Followings Are The Normal Specifications Of Star Bush Hammer Plate For Angle Grinder:
Diameter | Roller Quantity | Segment Quantity | Connection |
125mm (5 Inch) |
4T | 20 Teeth | M14 |
More normal specification of rotary bush hammer roller:
Model |
Out Diameter |
Wheel Width
|
Segment Quantity |
Segment Diameter |
Remark |
BW-BHR4530 |
45 |
22 |
30 |
3.6 4.5 4.6 4.7 6.0 8.0
|
With Stand Without Stand
|
BW-BHR5330 |
53 |
30 |
30 |
||
BW-BHR5530 |
55 |
22 |
30 |
||
BW-BHR5545 |
55 |
22 |
45 |
||
BW-BHR5545 |
55 |
30 |
45 |
||
BW-BHR5545 |
55 |
39 |
45 |
||
BW-BHR5545 |
55 |
53 |
45 |
||
BW-BHR5545 |
55 |
55 |
45 |
||
BW-BHR5560 |
55 |
43 |
60 |
||
BW-BHR8060 |
80 |
55 |
60 |
||
BW-BHR5972 |
59 |
53 |
72 |
||
BW-BHR6077 |
60 |
53 |
99 |
||
BW-BHR3307 |
33 |
6 |
7 |
Star Type |
|
BW-BHR3310 |
33 |
6 |
10 |
||
BW-BHR4910 |
49 |
6 |
10 |
||
BW-BHR4915 |
49 |
6 |
15 |
||
BW-BHR4920 |
49 |
6 |
20 |
Product Details: |
125mm 4 Rollers Star Bush Hammer Plate For Angle Grinder

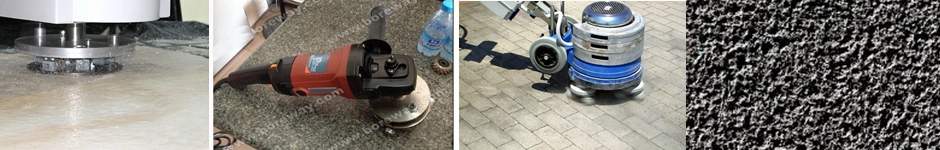

Applications: |
Fine processing of granite, marble, concrete and asphalt.
Use for angle grinder.

Kindly Noted, when place order please inform the following:
1.Stone Effect(Sandblasted Surface/Litchi Surface)
2.Use Object (Marble, Granite Or Other Stone, Concrete And Other Stone)
3.Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)
4.Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)
5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)
Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.
Tailor your tools to your specific needs.
Our service: |
1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
FAQ: |
Bush Hammers have been around a long time and have proven the easiest way to texturize stone, concrete & asphalt.
2. What can Bush Hammers do?
Surface Prep for coatings.
Quickly expose large aggregate.
Remove hard coatings and overlays.
3.How to use and maintain bush hammer tool?
Do not apply too much pressure on the bush hammer. This will prevent the roller from stopping and thus decrease the life span of the tungsten steel.
After each use, please clean up rollers, dry and apply oil to the spindles. It will be ideal to submerge the rollers in oil to prevent spindle rust.
Roller tips can be re-dressed with diamond blades when they become inefficient.
Please note: |
1. Please provide items before purchase.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
