5 inch Double Layer Vacuum Brazing Bush Hammer Plate For Hand Held Machine
- Brand Name: Boreway
- Plate Size: 125x3TxM14
- Type:Bush Hammer Plate
- Layer Numbers:Double Layer
- Model Number:BW-VBBH-12501
- Place of Origin:Fujian, China
- Application:Sandblasting Surface
- Grinding Material:Stone,Granite,Marble
- Connecting:M14,M16,5/8''-11,Quick Coupling,etc
- Applicable Machine:Angle Grinder,Hand Held Machine
- Teeth Numbers:20Pin,30 Pins,45 Pins,60 Pins,Or Customized
| Descriptions: |
Double layer vacuum brazing bush hammer plate is Widely used on granite, marble sandstone to make rough surface.

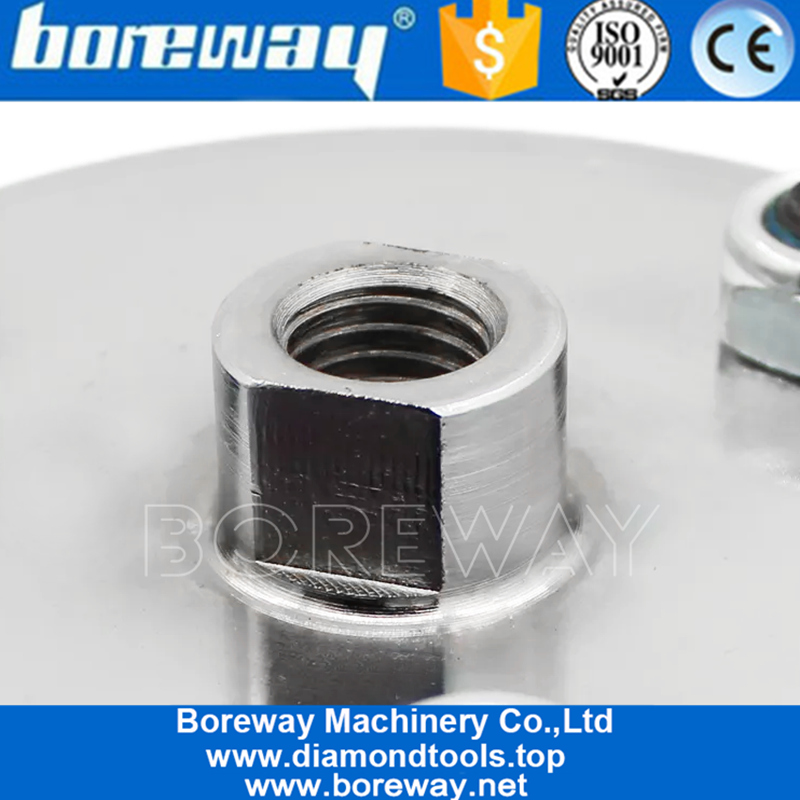

Connecting: M14
Diameter: D125mm
Number of Roller: 3T
This Type of double layer vacuum brazing bush hammer plate is used sophisticated welding technology and selecting high quality aluminum alloy to casting, bush hammered's grit can be changed through the adjustment of spring elasticity on bush hammer, manual grinding machine press.
Both enlarging spring's interval to reduce spring elasticity and reducing machine's press can enhance bush hammer vibration to make bush hammered face rough.
It is suitable for surface machining and grinding the rough effect on the surface. We can sell the Bush hammer roller separately, and the grinding roller can also be customized as required
Bush hammer plate for portable machine,angle grinder.
Bush hammer concrete finish,fine processing of granite, marble, concrete and asphalt to make sandblasting surface.
1.Stone Effect（Sandblasted Surface/Litchi Surface）
2.Use Object (Marble, Granite Or Other Stone, Concrete And Asphalt)
3.Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)
4.Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)
5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 10 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.
2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.
3.Does your company accept custom-made?
Surely, we accept it. Including different color, grit etc. We also can mark your own logo and brand on the pad. Any new products you want us to produce for you, just send us your drawing or sample, we will roduce the same one. We will not sell this kind of products to other customers only if we get your permission.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
No.605 Huahui Center, Shuitou Town 362342 Quanzhou, Fujian, China
TEL: (+86)595-86990206 /
Fax: (+86)595-86990220
Mobile/WhatsApp/Wechat: (+ 86) 18650679939
Lyon Chang
Number of Roller: 3T
This Type of double layer vacuum brazing bush hammer plate is used sophisticated welding technology and selecting high quality aluminum alloy to casting, bush hammered's grit can be changed through the adjustment of spring elasticity on bush hammer, manual grinding machine press.
Both enlarging spring's interval to reduce spring elasticity and reducing machine's press can enhance bush hammer vibration to make bush hammered face rough.
It is suitable for surface machining and grinding the rough effect on the surface. We can sell the Bush hammer roller separately, and the grinding roller can also be customized as required
| Feature: |
1. Great for removing any flexible coatings or most epoxies.
2. Create a very rough and anti-slip surface,rollers can be ordered separately for replacement.
3. Profile a surface to provide a good bonding surface,good for removal of thin coatings on floors.
4. Vacuum double layer bush hammer plate is for making coarse sandblasting surface. Bush hammers produce a bush-hammered profile on floor.
5. Both enlarging spring's interval to reduce spring elasticity and reducing machine's press can enhance bush hammer vibration to make bush hammered face rough.
| Specifications: |
The Followings Are The Normal Specifications Of Single Layer Vacuum Brazing Bush Hammer Plate:
| Diameter | Roller Quantity | Connection | Machine |
| 125mm (5 Inch) |
3T | M14 |
Angle Grinder,Hand Held Machine |
More normal specification of rotary bush hammer plate:
| Model | Out Diameter | Wheel Width | Segment Quantity | Connection | Remark | |
| Inch | mm | |||||
| BW-BH12514 | 5 | 125 | 3 | 14 | M10 M12 M16 5/8"-11 40H-50H Φ74-3*m8 Fast Connection |
Singer Layer Double Layer |
| BW-BH12514 | 4 | 14 | ||||
| BW-BH12520 | 3 | 20 | ||||
| BW-BH12520 | 4 | 20 | ||||
| BW-BH12530 | 5 | 125 | 3 | 30 | ||
| BW-BH15014 | 6 | 150 | 4 | 14 | ||
| BW-BH12520 | 6 | 150 | 4 | 20 | ||
| BW-BH15045 | 6 | 150 | 3 | 45 | ||
| BW-BH15030 | 4 | 30 | ||||
| BW-BH20045 | 8 | 200 | 4 | 45 | ||
| BW-BH20030 | 6 | 30 | ||||
| BW-BH25045 | 10 | 250 | 5 | 45 | ||
| BW-BH25030 | 6 | 30 | ||||
| BW-BH30045 | 12 | 300 | 6 | 45 | ||
| BW-BH30030 | 9 | 30 | ||||
| BW-BH35045 | 14 | 350 | 9 | 45 | ||
| BW-BH35030 | 12 | 30 | ||||
| Product Details: |
5 inch Double Layer Vacuum Brazing Bush Hammer Plate For Hand Held Machine
| Applications: |
Bush hammer concrete finish,fine processing of granite, marble, concrete and asphalt to make sandblasting surface.
Kindly Noted, when place order please inform the following:
1.Stone Effect（Sandblasted Surface/Litchi Surface）
2.Use Object (Marble, Granite Or Other Stone, Concrete And Asphalt)
3.Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)
4.Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)
5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)
Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.
Tailor your tools to your specific needs.
| Our service: |
1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
| FAQ: |
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 10 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.
2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.
3.Does your company accept custom-made?
Surely, we accept it. Including different color, grit etc. We also can mark your own logo and brand on the pad. Any new products you want us to produce for you, just send us your drawing or sample, we will roduce the same one. We will not sell this kind of products to other customers only if we get your permission.
| Please note: |
1. Please provide items before purchase.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
