5 Inch Satellite Type Bush Hammer Plate With 3 Heads For Stone Marble Grinding
- Type: Plate
- Brand: Boreway
- Diameter: 125mm
- Technology: Sintering
- Connection Hole: M14
- Segment Quantity: 20 Grains
- Layer Number: Double Layers
- Material: Carbide Alloy + Steel
- Working Condition: Wet Or Dry Use
- Applicable Machine: Hand-Held Grinding Machines
| Product Description： |
Satellite type bush hammer plate, polished to a medium rough finish.
20S bush hammer plate are usually used in hand-held chisel machines and act on concrete, asphalt and other materials.
Double layer bush hammer plate are spring loaded to reduce hand injury and can be adjusted to vary the pressure applied.
It can be applied to wall chiseling before wall decoration.
| Feature: |
1.High quality and stable performance.
2.Beautiful package and fast delivery.
3.Competitive price and low cost.
| Product Specification: |
The Followings Are The Normal Specifications Of Satellite type bush hammer plate.
| Diameter | Roller Quantity | Segment Quantity | Arbor |
| 125mm/5 inch | 4T | 20 teeth | M14 |
More normal specification of rotary bush hammer plate:
| Model | Out Diameter | Roller Quantity | Segment Quantity | Connection | Remark | |
| Inch | mm | |||||
| BW-BH12514 | 5 | 125 | 3 | 14 | M10 M12 M16 5/8"-11 40H-50H Φ74-3*m8 Fast Connection |
Single Layer Double Layer |
| BW-BH12514 | 4 | 14 | ||||
| BW-BH12520 | 3 | 20 | ||||
| BW-BH12520 | 4 | 20 | ||||
| BW-BH12530 | 5 | 125 | 3 | 30 | ||
| BW-BH15014 | 6 | 150 | 4 | 14 | ||
| BW-BH12520 | 6 | 150 | 4 | 20 | ||
| BW-BH15045 | 6 | 150 | 3 | 45 | ||
| BW-BH15030 | 4 | 30 | ||||
| BW-BH20045 | 8 | 200 | 4 | 45 | ||
| BW-BH20030 | 6 | 30 | ||||
| BW-BH25045 | 10 | 250 | 5 | 45 | ||
| BW-BH25030 | 6 | 30 | ||||
| BW-BH30045 | 12 | 300 | 6 | 45 | ||
| BW-BH30030 | 9 | 30 | ||||
| BW-BH35045 | 14 | 350 | 9 | 45 | ||
| BW-BH35030 | 12 | 30 | ||||
| Product show |

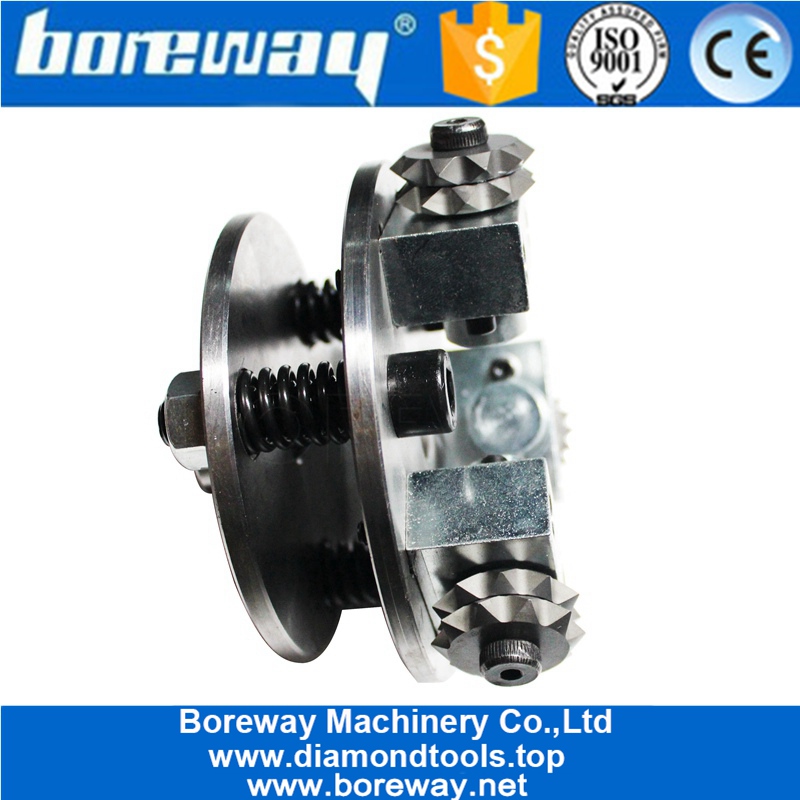

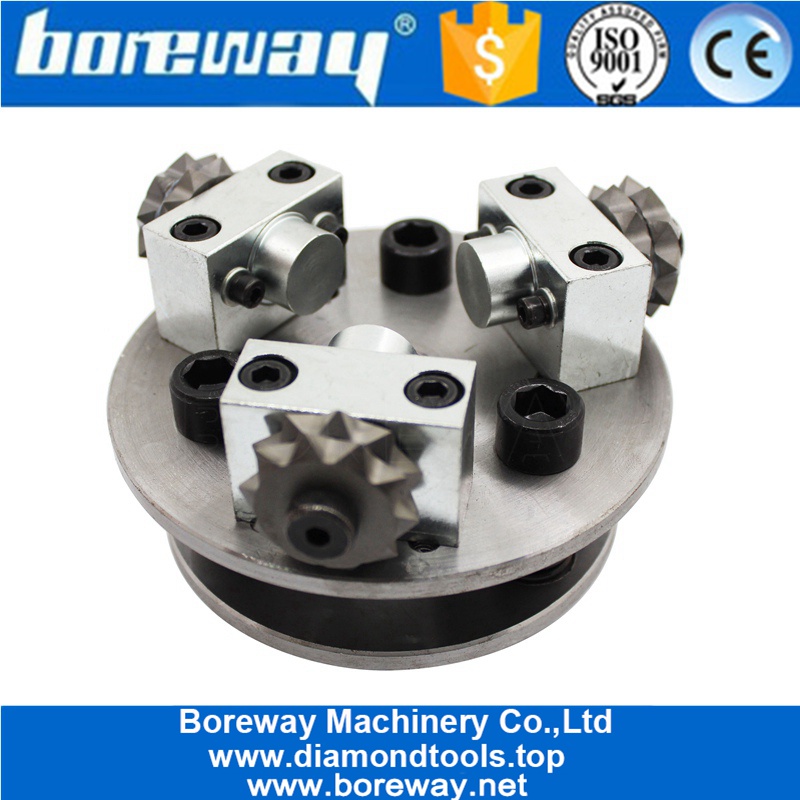

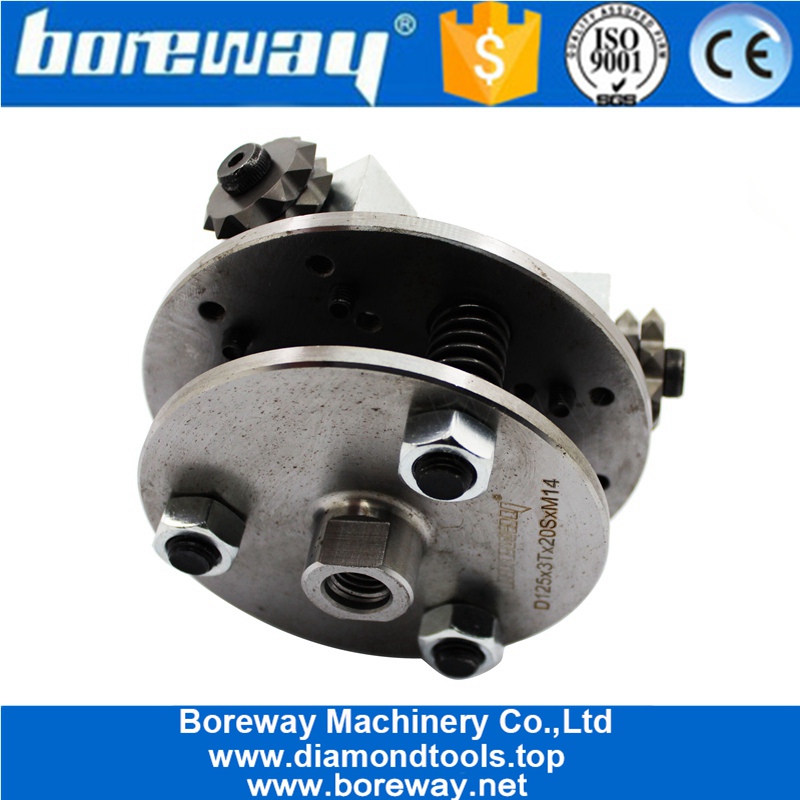

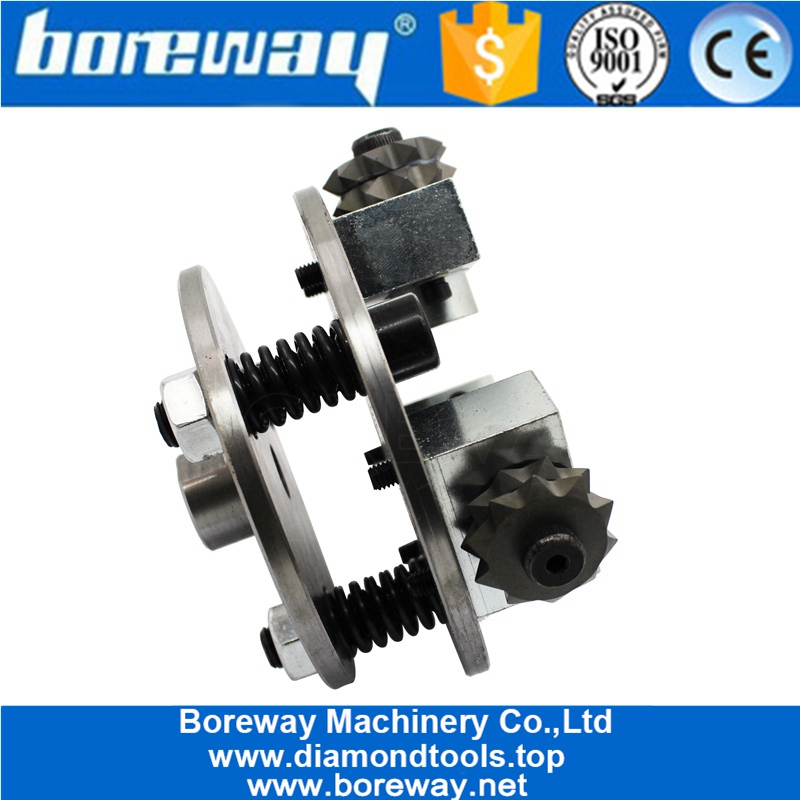

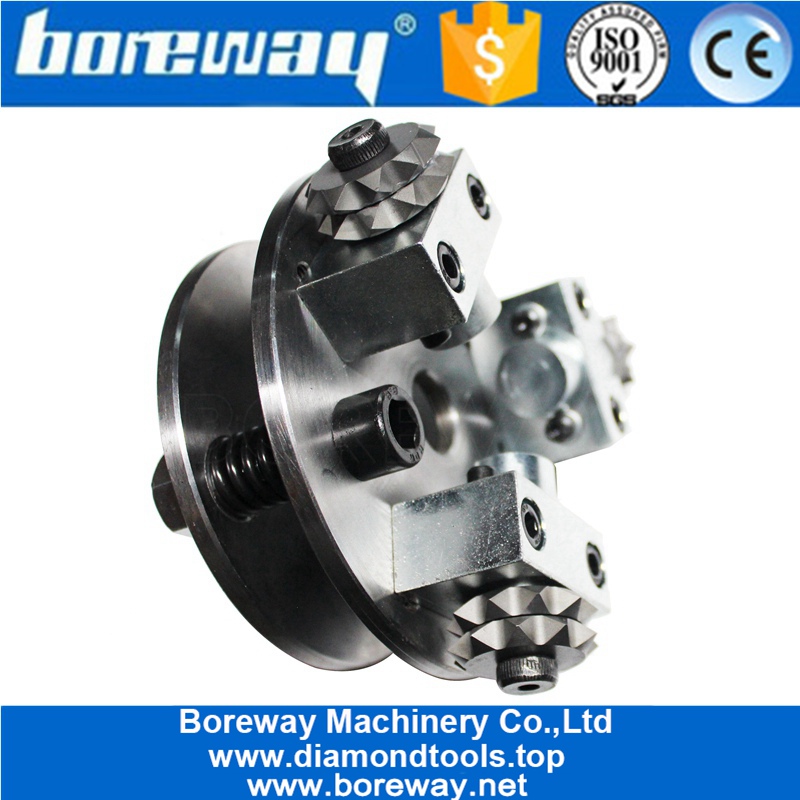

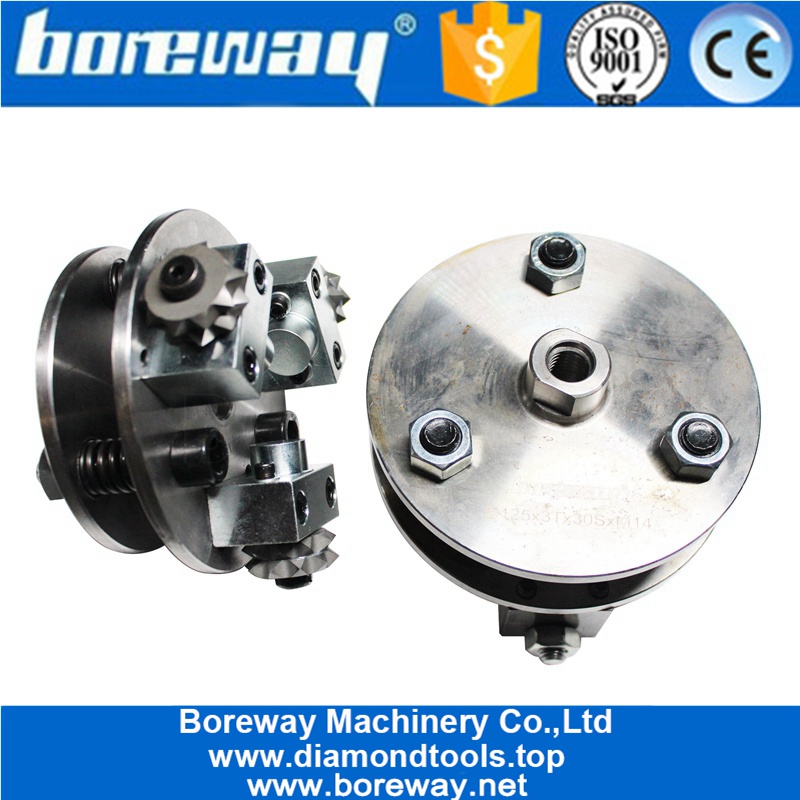

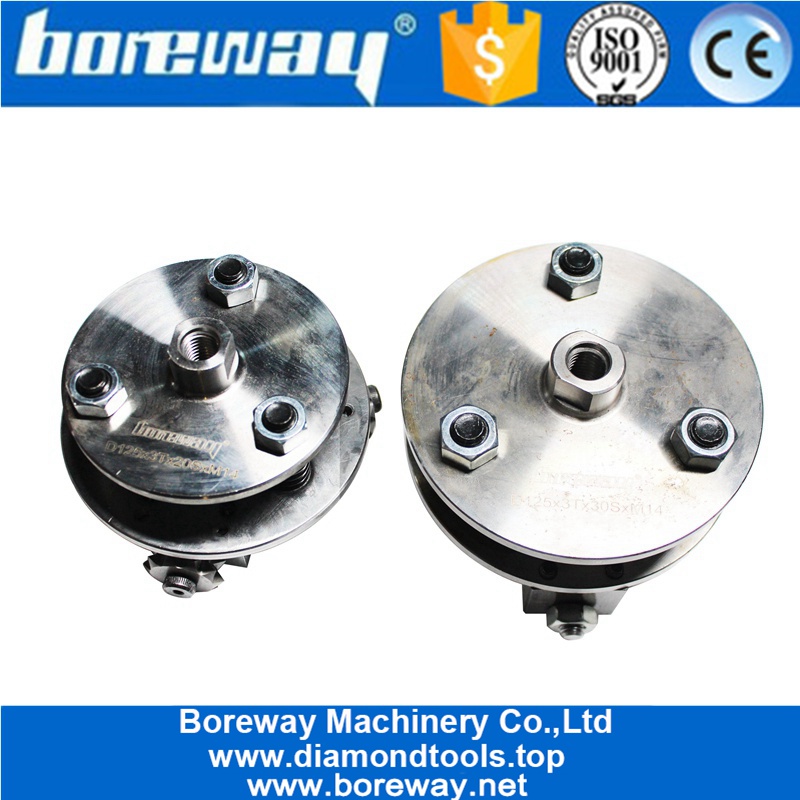

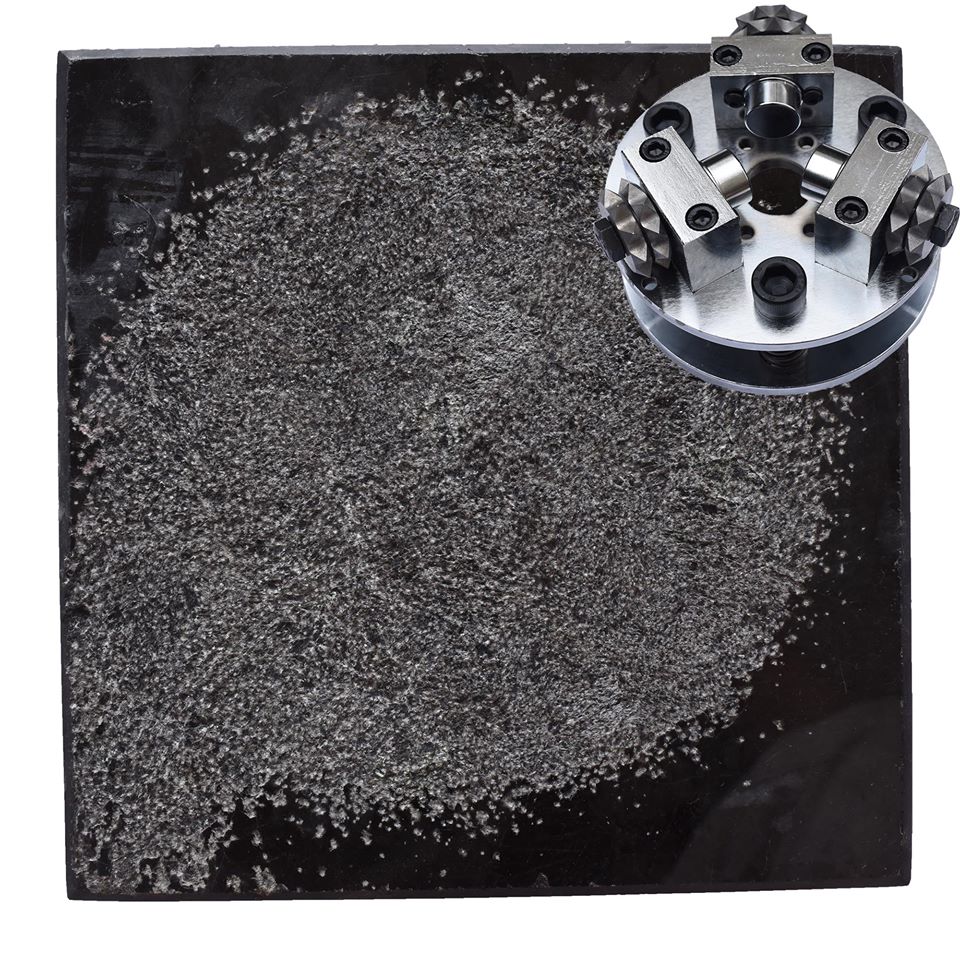

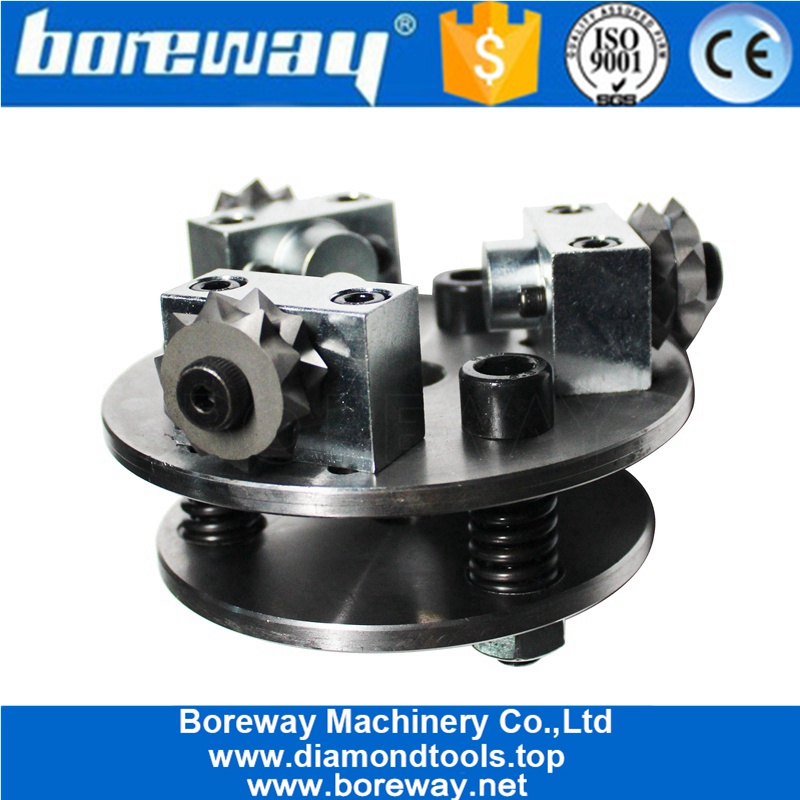

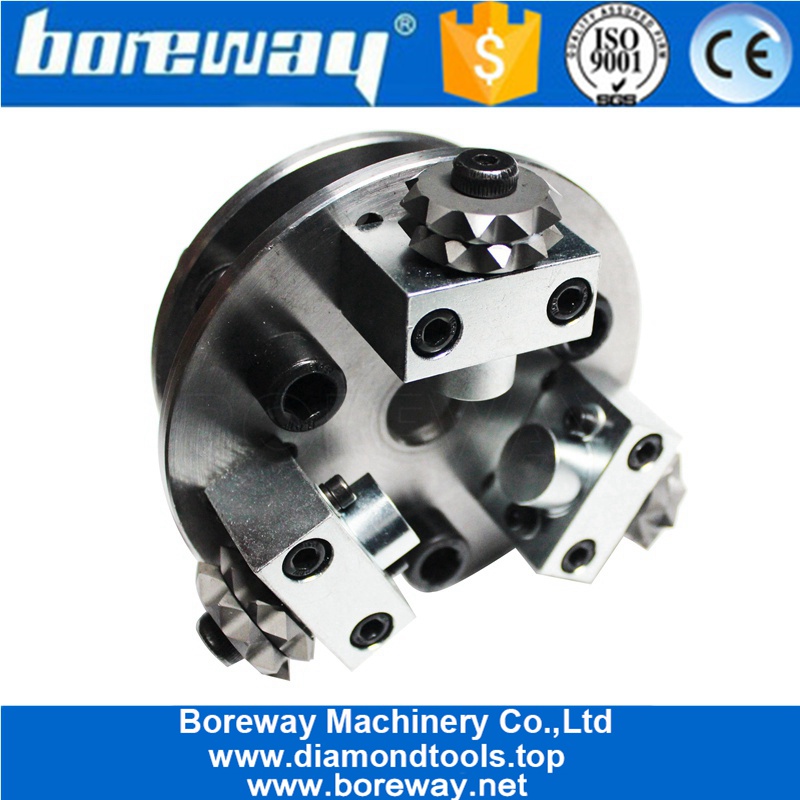

Satellite type bush hammer plate
| Application: |
Fine processing of granite, marble, concrete and asphalt.

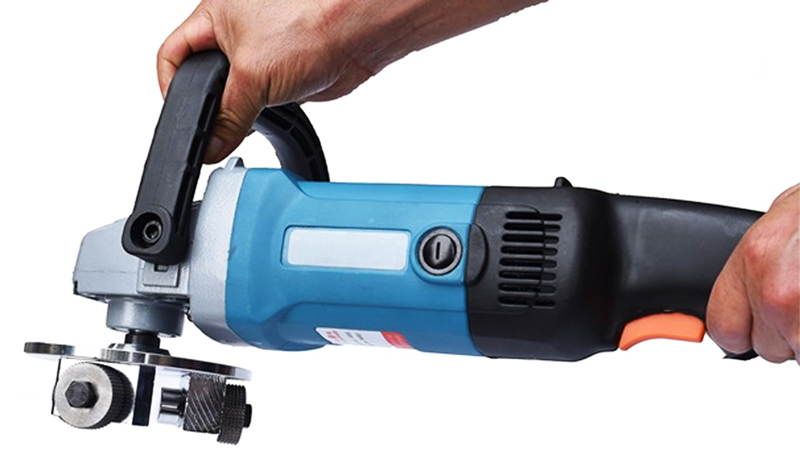

Use for angle grinder.
| FAQ |
1.What is the lychee noodle tool?
Bush Hammers have been around a long time and have proven the easiest way to texturize stone, concrete & asphalt.
2. What can Bush Hammers do?
Surface Prep for coatings.
Quickly expose large aggregate.
Remove hard coatings and overlays.
3.How to use and maintain bush hammer tool?
Do not apply too much pressure on the bush hammer. This will prevent the roller from stopping and thus decrease the life span of the tungsten steel.
After each use, please clean up rollers, dry and apply oil to the spindles. It will be ideal to submerge the rollers in oil to prevent spindle rust.
Roller tips can be re-dressed with diamond blades when they become inefficient.
