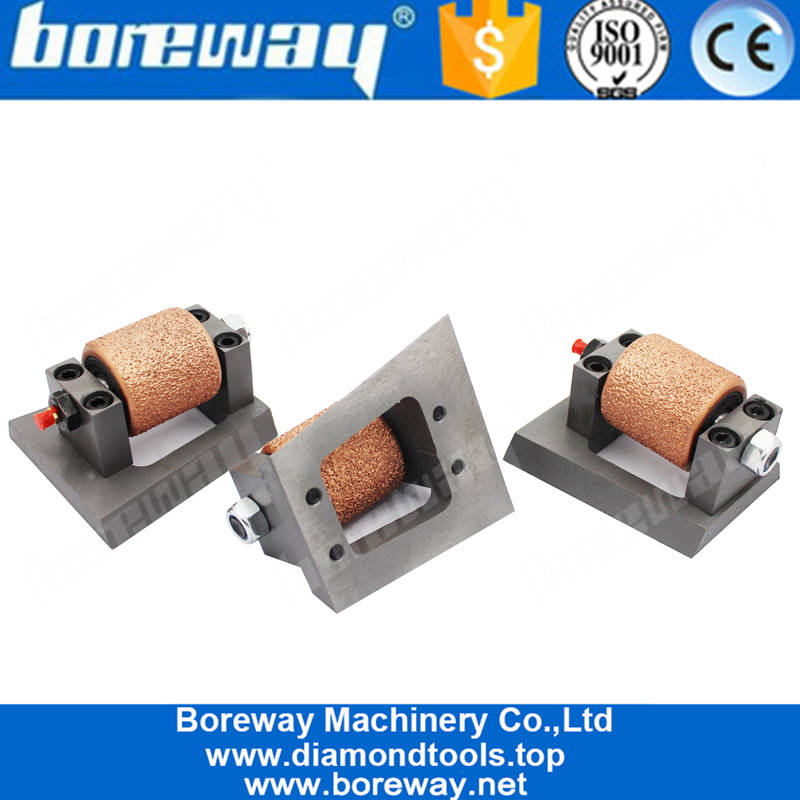

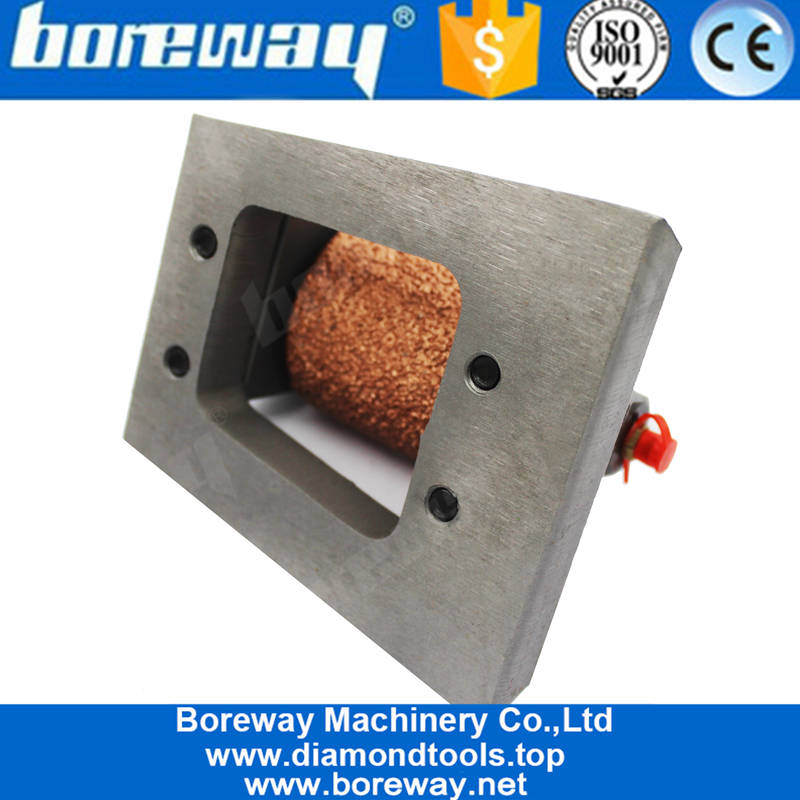

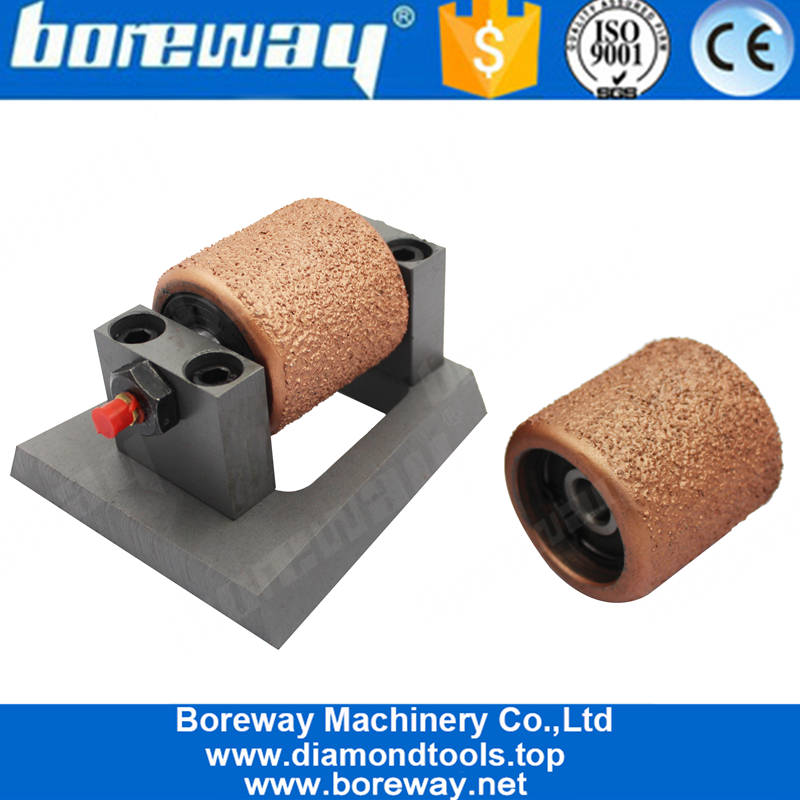

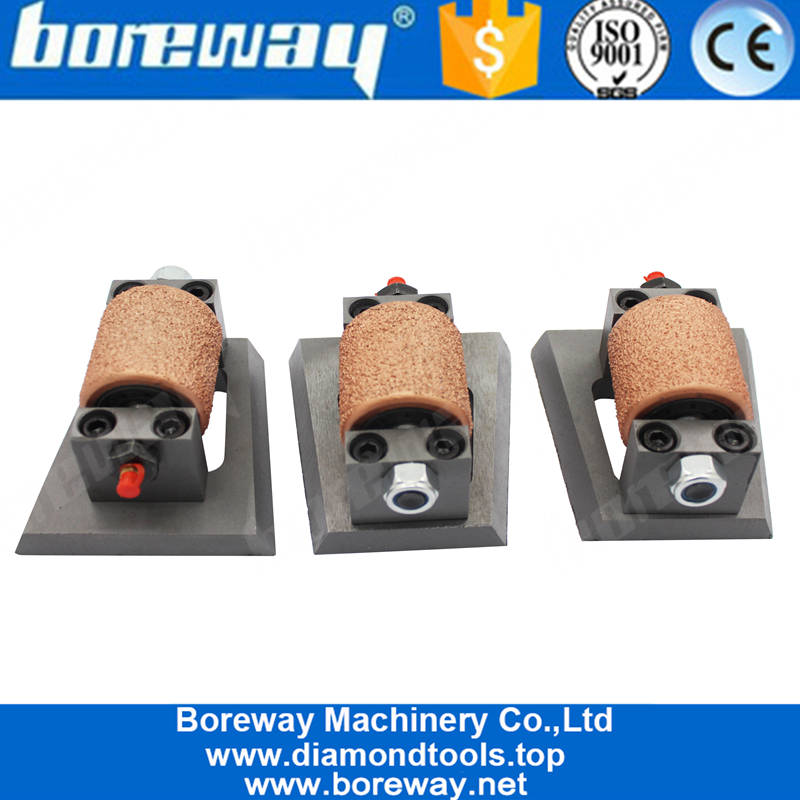

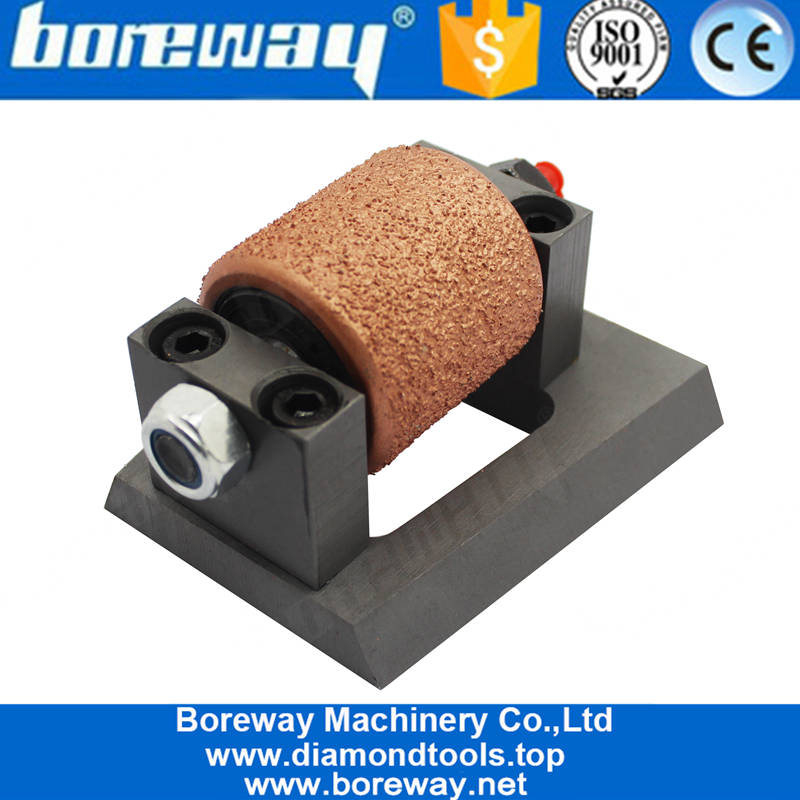

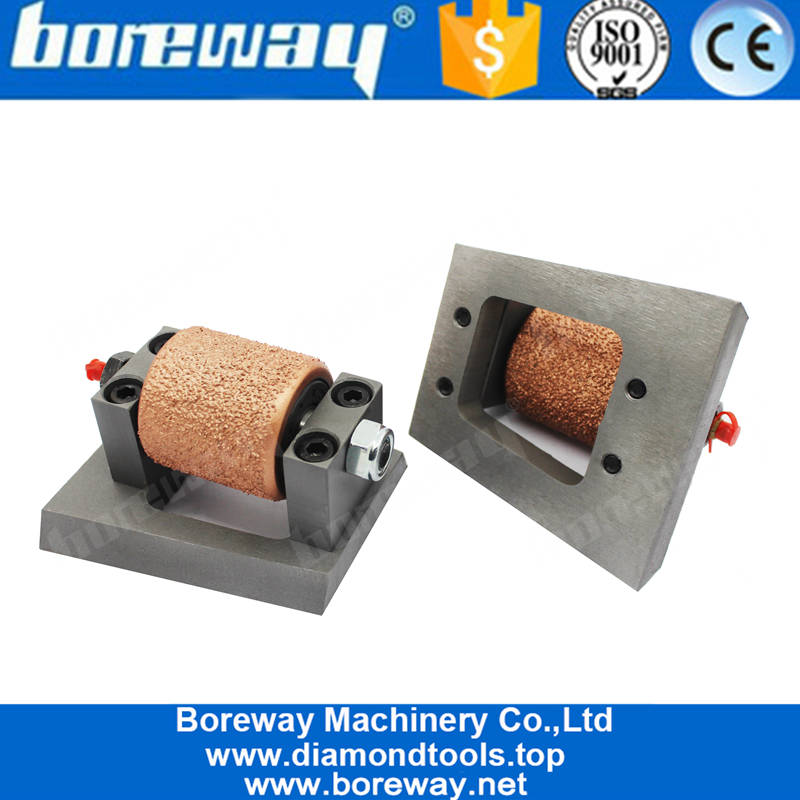

Vacuum Brazing Rotary Bush Hammer Roller With Frankfurt Base Manufacturer & Suppliers
- Brand: Boreway
- Base: Frankfurt
- Roller Length: 46mm
- Roller Diameter: 50mm
- Model: BW-BHR-VBBH-F4650S
- Roller Process: Vacuum Brazed
- Application: Sandblasting Surface
- Material: Diamond And Steel, Metal
- Machine: Automatic Grinding Machine
- Grinding Material : Granite,Marble,Sandstone,Concrete Floor
Product Description: |
Design with bush hammer roller with Frankfurt base, horseshoe shaped base design helps to replace after a certain period of use is very convenient, used in automatic bush hammer machine.Create a safety slip surface.

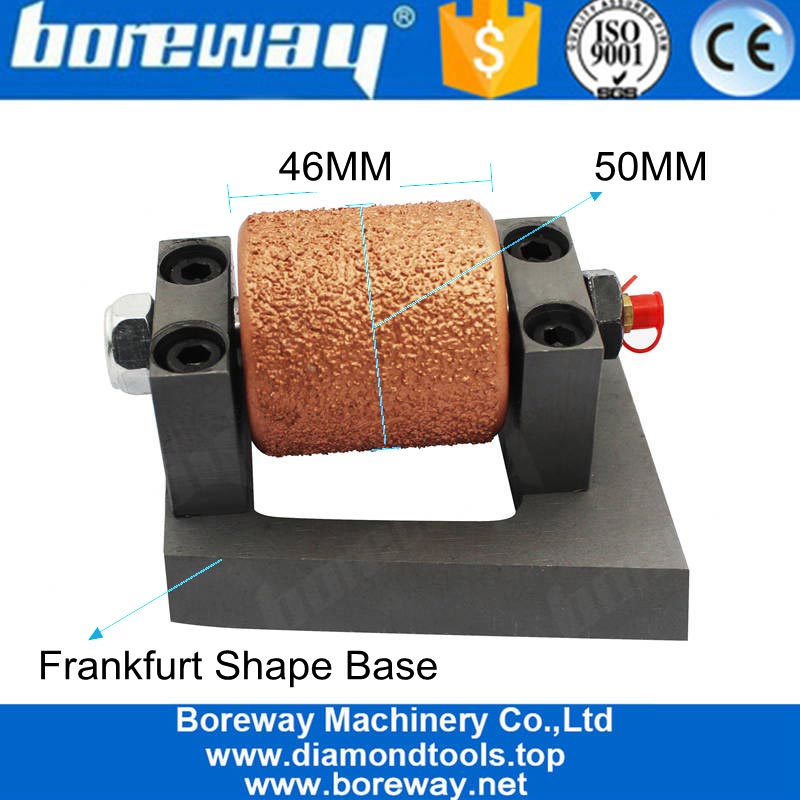

The bush hammer roller supplier china of this product is a vacuum brazing grinding wheel with a length of 46mm and an outer diameter of 50mm.
Different particle sizes can be selected, and the polished surfaces of different particle sizes are also different.
The number of teeth of rotary bush hammer roller can be adjusted, including 30pcs, 45pcs, 60pcs, 99pcs, etc.
New layer of playing hair with high efficiency and high efficiency, scabbler can make your construction quality has an unprecedented effect.
1.Ground to do anti-slip surface.
2.China Bush Hammer Roller Manufacturer,adhere to continuous improvement to meet.
3.China bush hammer roller manufacturer,chisel hair is made of high quality tungsten steel alloy.
4.Single head on a variety of old ground to do before the renovation of the floor treatment; remove damaged ground raised part; epoxy floor chisel.
The Following Are Normal Specifications Bush Hammer Roller With Frankfurt Base:
The bush hammer roller supplier china of this product is a vacuum brazing grinding wheel with a length of 46mm and an outer diameter of 50mm.
Different particle sizes can be selected, and the polished surfaces of different particle sizes are also different.
The number of teeth of rotary bush hammer roller can be adjusted, including 30pcs, 45pcs, 60pcs, 99pcs, etc.
New layer of playing hair with high efficiency and high efficiency, scabbler can make your construction quality has an unprecedented effect.
Feature: |
1.Ground to do anti-slip surface.
2.China Bush Hammer Roller Manufacturer,adhere to continuous improvement to meet.
3.China bush hammer roller manufacturer,chisel hair is made of high quality tungsten steel alloy.
4.Single head on a variety of old ground to do before the renovation of the floor treatment; remove damaged ground raised part; epoxy floor chisel.
Product Specification: |
The Following Are Normal Specifications Bush Hammer Roller With Frankfurt Base:
Roller Length | Roller Diameter | Effect | Type |
46mm | 50mm | Sandblasting Finish |
Frankfurt Vacuum Brazed Bush Hammer Roller |
The above specifications is only for reference, other specifications may be available as per customer's demand.
More Normal Specification Of Rotary Bush Hammer Roller:
Model | Out Diameter | Wheel Width | Segment Quantity | Segment Diameter | Remark |
BW-BHR4530 | 45 | 22 | 30 | 3.6 4.5 4.6 4.7 6.0 8.0 |
With Stand Without Stand |
BW-BHR5330 | 53 | 30 | 30 | ||
BW-BHR5530 | 55 | 22 | 30 | ||
BW-BHR5545 | 55 | 22 | 45 | ||
BW-BHR5545 | 55 | 30 | 45 | ||
BW-BHR5545 | 55 | 39 | 45 | ||
BW-BHR5545 | 55 | 53 | 45 | ||
BW-BHR5545 | 55 | 55 | 45 | ||
BW-BHR5560 | 55 | 43 | 60 | ||
BW-BHR8060 | 80 | 55 | 60 | ||
BW-BHR5972 | 59 | 53 | 72 | ||
BW-BHR6077 | 60 | 53 | 99 | ||
BW-BHR3307 | 33 | 6 | 7 | Star Type | |
BW-BHR3310 | 33 | 6 | 10 | ||
BW-BHR4910 | 49 | 6 | 10 | ||
BW-BHR4915 | 49 | 6 | 15 | ||
BW-BHR4920 | 49 | 6 | 20 |
More Normal Specification Of Rotary Bush Hammer Plate:
Model | Out Diameter | Wheel Width | Segment Quantity | Connection | Remark | |
Inch | mm | |||||
BW-BH12514 | 5 | 125 | 3 | 14 | M10 M12 M16 5/8"-11 40H-50H Φ74-3*m8 Fast Connection |
Singer Layer Double Layer |
BW-BH12514 | 4 | 14 | ||||
BW-BH12520 | 3 | 20 | ||||
BW-BH12520 | 4 | 20 | ||||
BW-BH12530 | 5 | 125 | 3 | 30 | ||
BW-BH15014 | 6 | 150 | 4 | 14 | ||
BW-BH12520 | 6 | 150 | 4 | 20 | ||
BW-BH15045 | 6 | 150 | 3 | 45 | ||
BW-BH15030 | 4 | 30 | ||||
BW-BH20045 | 8 | 200 | 4 | 45 | ||
BW-BH20030 | 6 | 30 | ||||
BW-BH25045 | 10 | 250 | 5 | 45 | ||
BW-BH25030 | 6 | 30 | ||||
BW-BH30045 | 12 | 300 | 6 | 45 | ||
BW-BH30030 | 9 | 30 | ||||
BW-BH35045 | 14 | 350 | 9 | 45 | ||
BW-BH35030 | 12 | 30 |
Can customize the size of other rotary bush hammers roller as required.

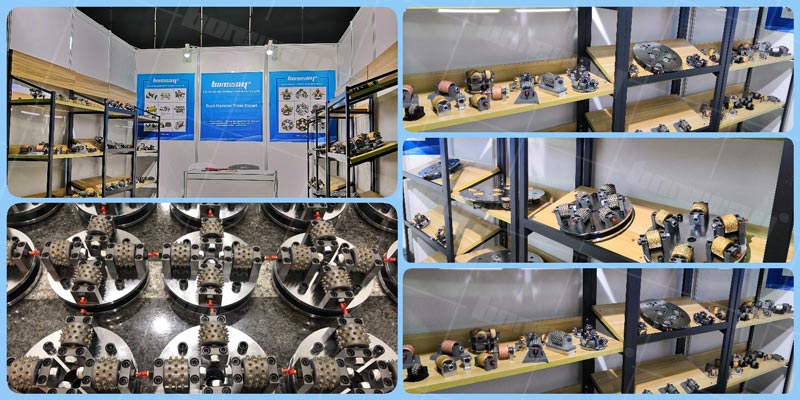

Product show |
Vacuum Brazing Rotary Bush Hammer Roller With Frankfurt Base Manufacturer & Suppliers




Application: |
The surface effect of the sandblasted surface can be polished by the vacuum brazed bush hammer roller. the lychee surface effect can be created by carbide alloy bush hammer roller.
China Frankfurt Bush Hammer Manufacturer wet for Frankfurt grinding machine and automatic grinding machine.


FAQ |
1. What can Bush Hammers do?
● Make a safe non-slip surface on natural stones.
● Remove old glue and resin coatings, especially thick resins.
● Eliminate any surface and create an antique surface.
● Prepare the floor before laying a new coating.
● Expose the aggregate to the concrete floor to prepare for concrete polishing.
2.1.Will the teeth of the bush hammer roller fall off?
of course not,We use high-strength flux to weld the carbide tip to the grinding wheel. The grinding wheel is sturdy and durable, with a long life, and the tip is not easy to fall off.
3.Do you provide many kinds of Bush hammer tool?
We provide 30s, 45s, 60s and other various bush hammer wheels, as well as multi-brand floor lychee surface grinding blocks and grinding discs.
