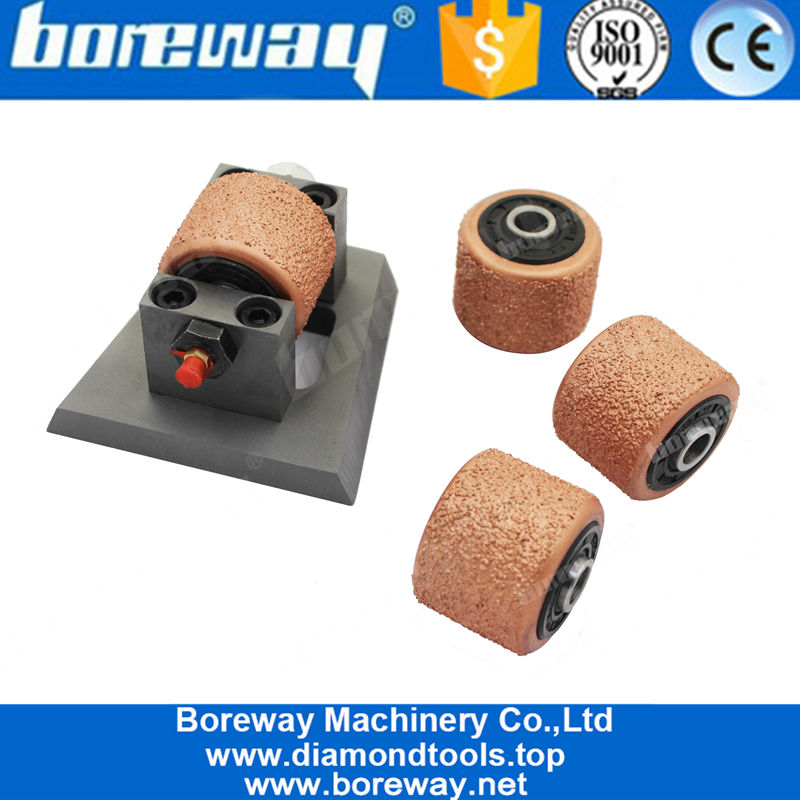

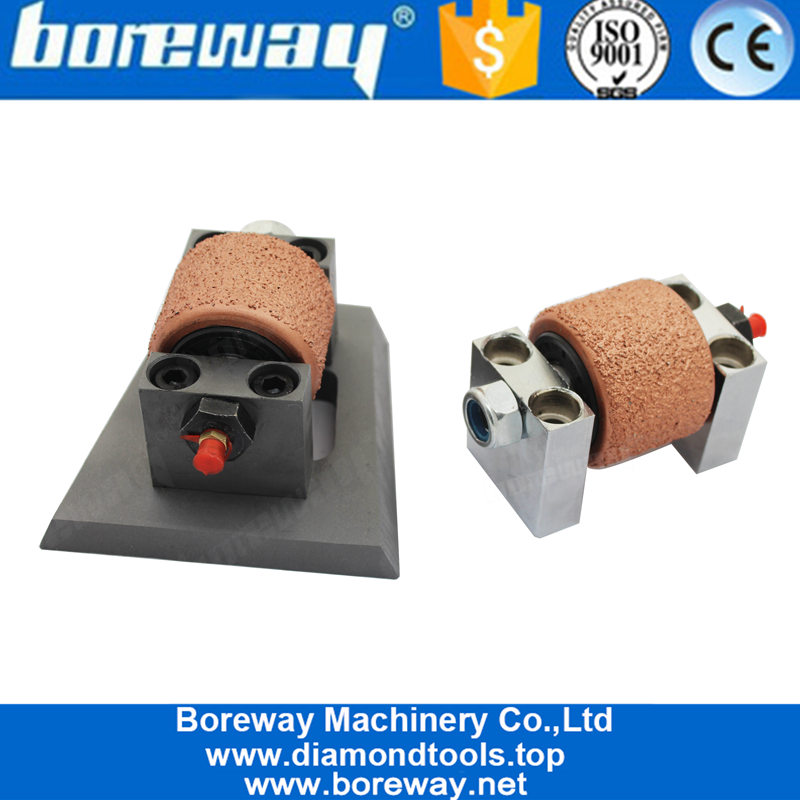

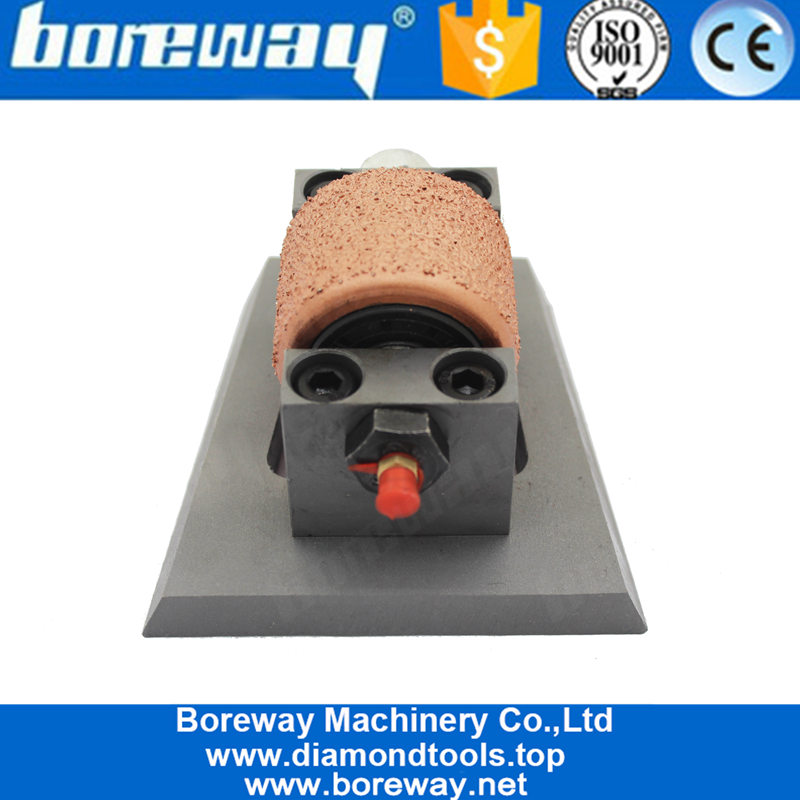

Horseshoe Type Vacuum Brazing Bush Hammer Roller With Base
- Feature: With Frankfurt
- Roller Size:φ50*L32mm
- Model: BW-BHR-VBF3250S
- Effect: Sandblasting Surface
- Segment Process: Vacuum Brazed
- Connect Type: Standard Frankfurt
- Machine: Frankfurt Grinding Machine,Automatic Grinding Lines
- Grinding Material : Rotating Bush Hammer Roller For Granite,Sandstone,Marble And Other Stone
| Product Description： |
2.Horseshoe type bush hammer roller is mainly used for producing texture effect and rough effect on the white surface of smooth stone.
3.Bush hammer roller with frankfurt base can also install 45s, 60s, 72s, 99S and other grinding wheels on Frankfurt base.
| Feature: |
1. Bush hammer roller with frankfurt base is durable metal and diamond compound.
2. Bush hammer roller with horseshoe base,competitive price and superior quality.
3. Different granularities and sizes as requested for the rotating bush hammer roller.
4. Different bush hammer roller effective for grinding natural stones and concrete to get litchi surface and sand blasting surface.
| Specification: |
The Followings Are The Normal Specifications Of Our Vacuum Brazing Bush Hammer Roller With Base:
| Roller Length | Roller Diameter |
Application | Machine |
| 32mm | 50mm | Creating Sandblasting Surface For Natural Stone |
Frankfurt Grinding Machine, Automatic Grinding Lines |
The above specifications are for reference, other specifications can be ordered by customers.
More normal specification of rotary bush hammer roller:
|
Model |
Out Diameter |
Wheel Width
|
Segment Quantity |
Segment Diameter |
Remark |
|
BW-BHR4530 |
45 |
22 |
30 |
3.6 4.5 4.6 4.7 6.0 8.0
|
With Stand Without Stand
|
|
BW-BHR5330 |
53 |
30 |
30 |
||
|
BW-BHR5530 |
55 |
22 |
30 |
||
|
BW-BHR5545 |
55 |
22 |
45 |
||
|
BW-BHR5545 |
55 |
30 |
45 |
||
|
BW-BHR5545 |
55 |
39 |
45 |
||
|
BW-BHR5545 |
55 |
53 |
45 |
||
|
BW-BHR5545 |
55 |
55 |
45 |
||
|
BW-BHR5560 |
55 |
43 |
60 |
||
|
BW-BHR8060 |
80 |
55 |
60 |
||
|
BW-BHR5972 |
59 |
53 |
72 |
||
|
BW-BHR6077 |
60 |
53 |
99 |
||
|
BW-BHR3307 |
33 |
6 |
7 |
Star Type |
|
|
BW-BHR3310 |
33 |
6 |
10 |
||
|
BW-BHR4910 |
49 |
6 |
10 |
||
|
BW-BHR4915 |
49 |
6 |
15 |
||
|
BW-BHR4920 |
49 |
6 |
20 |
| Product Show: |

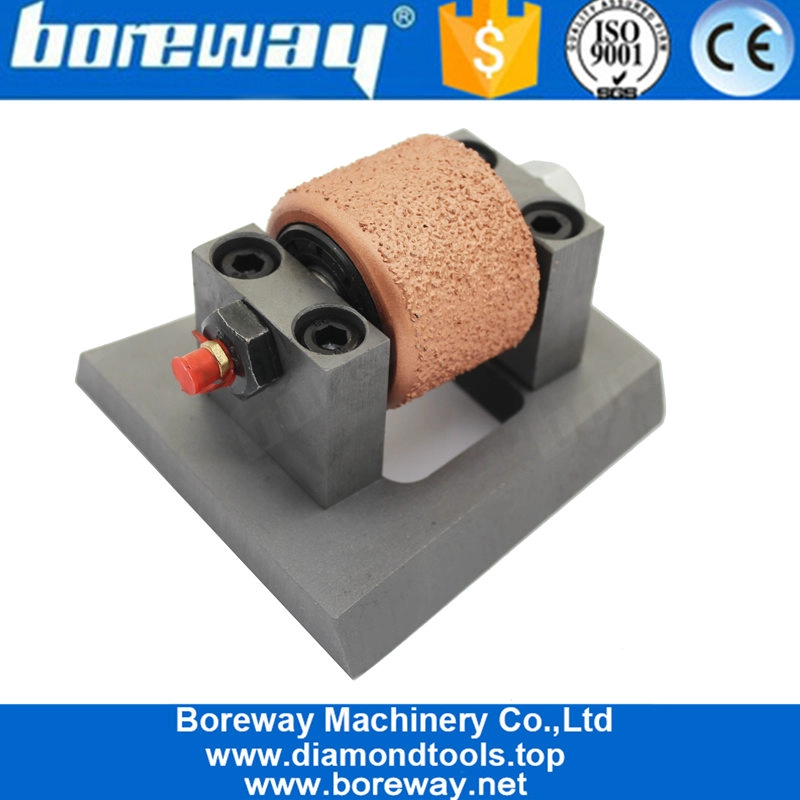

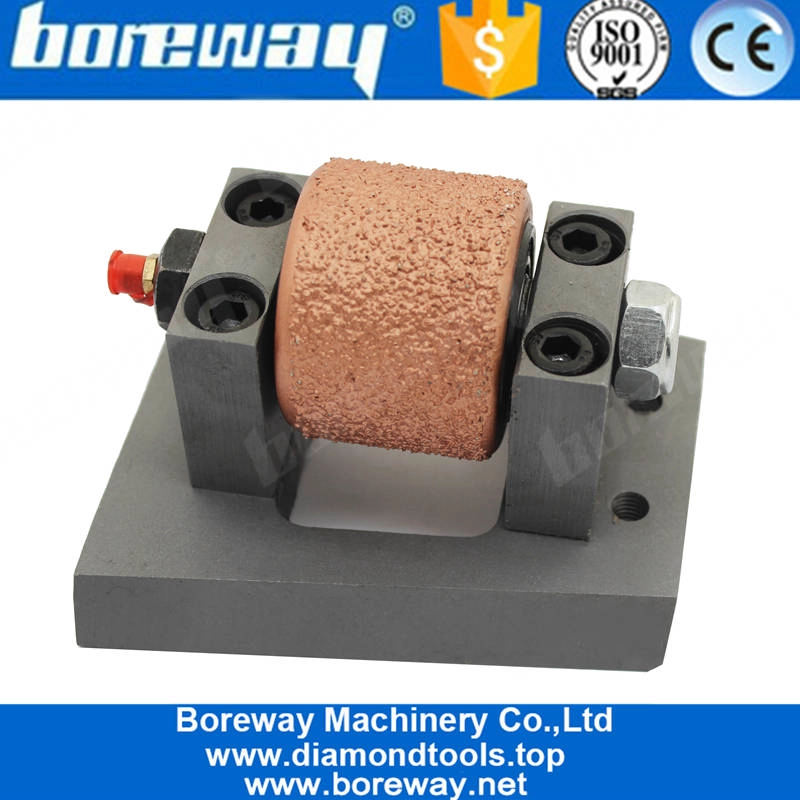

Horseshoe Type Vacuum Brazing Bush Hammer Roller With Base
Kindly Noted, when place order please inform the following:
1.Stone Effect（Sandblasted Surface/Litchi Surface）
2.Use Object (Marble, Granite Or Other Stone, Concrete And Other Stone)
3.Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)
4.Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)
5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)
1.Stone Effect（Sandblasted Surface/Litchi Surface）
2.Use Object (Marble, Granite Or Other Stone, Concrete And Other Stone)
3.Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)
4.Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)
5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)
Vacuum brazed horseshoe bush hammer can used in frankfurt grinding machine and automatic grinding lines.
We also provide the bush hammer plate of Lavina, HTC, RedI lock, Klindex, Scanmaskin, Fickert, which support customization.
