Semi Automatic High Frequency Induction Brazing Machine for Saw Blade Diamond Segment Welding Machine
- Welding Range:240mm -2300mm(standard 1300mm)
- Welding Rate:4-20 PCS/Min
- Water Consumption:1.5-2.0M³/h
- Air Pressure:0.3 - 0.6Mpa
- Equipment Weight:160Kg
- Machine Dimensions:L1030*W550*H1840mm
- Package Weight:200kg
- Package Dimensions:L2000*W680*H700mm
- Voltage:220V (Single-phase)50Hz
| Introduction: |
Semi Automatic High Frequency Induction Brazing Machine for Saw Blade Diamond Segment Welding Machine.It is a new type of high-frequency welding auxiliary equipment for diamond saw blades. It can automatically complete high-frequency heating, rapid cooling, tool holder and other operations. The machine is composed of high precision parts such as air claw, knife head adjusting and so on. Therefore, the welding precision and efficiency are greatly improved, and the welding strength of the joint and the steel body is guaranteed.
| Feature: |
1.High efficiency and accuracy,low energy consumption.
2.Can be used for welding gang saw blade after specially modification.
3.Compact structure, purchasing accessories easily, most of the wearing parts can be
found in the pneumatic tools shop in your side, rather than relying on the service agents.
| Specification: |
Specification of Semi Automatic High Frequency Induction Brazing Machine for Saw Blade Diamond Segment ：
| Model No: BWM-HJ165 | |
| Welding Range | Φ240mm - 2300mm(standard Φ1300mm) |
| Verticality | ≤± 0.3mm |
| Parallelism | ≤± 0.3mm |
| Welding Rate | 4-20 PCS/Min |
| Air Pressure | 0.3 - 0.6Mpa |
| Water Pressure | ≥ 0.2Mpa |
| Voltage | 220V (Single-phase)50Hz |
| Power(From LED Light) | 370W |
| Water Consumption | 1.5 - 2m³/h |
| Machine Dimensions | L1030*W550*H1840mm |
| Equipment Weight | 160Kg |
| Package Dimensions | L2000*W680*H700(Horizontally) |
| Package Weight(Wooden Package) | 200Kg |
Noted:This of welding frame is not equipped with high frequency machine, air compressor, water pump, if necessary, can be another random frame configuration.

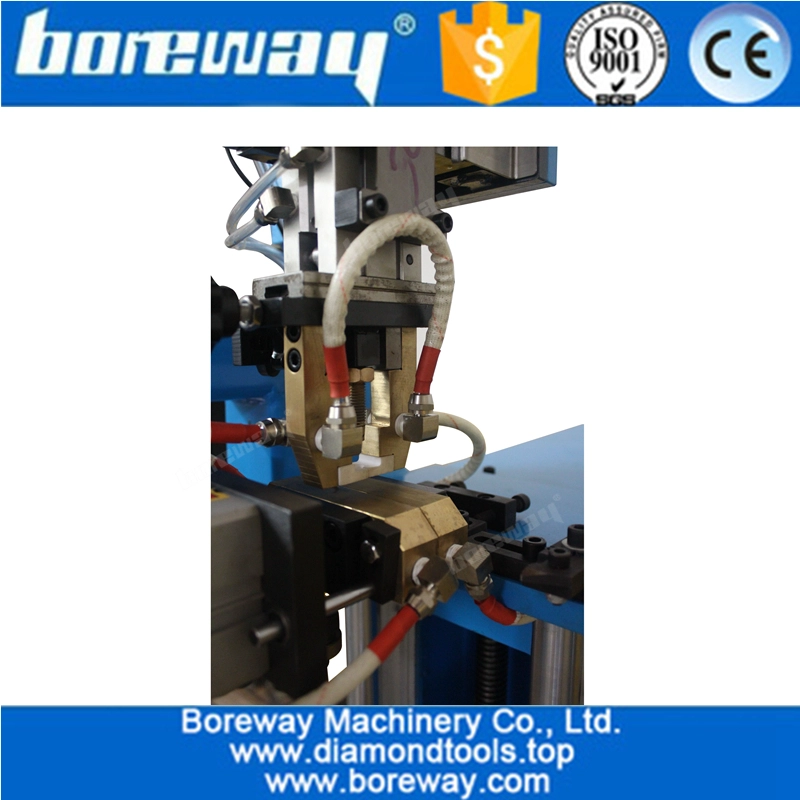

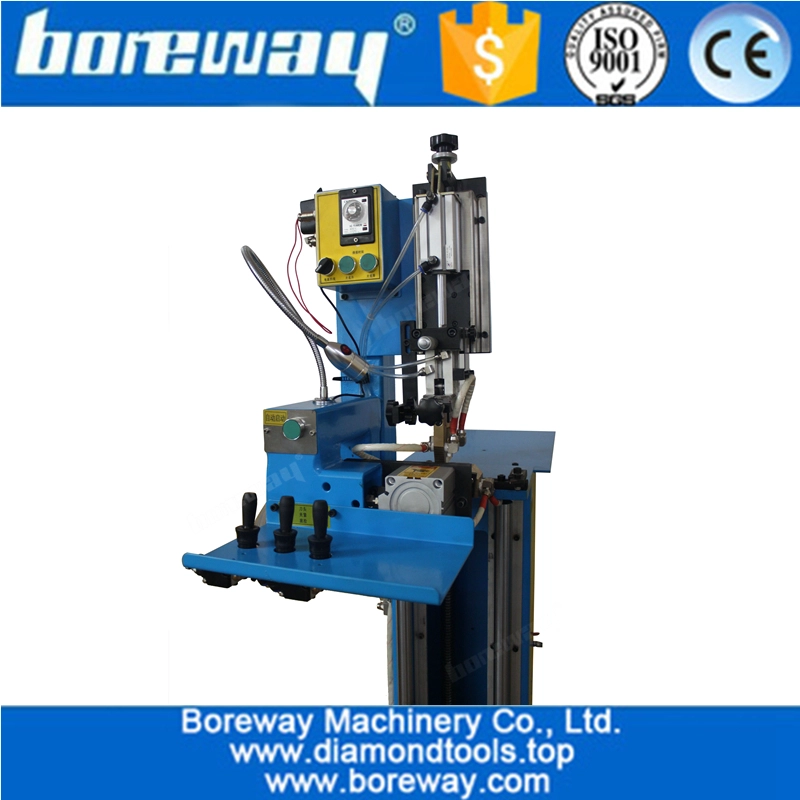

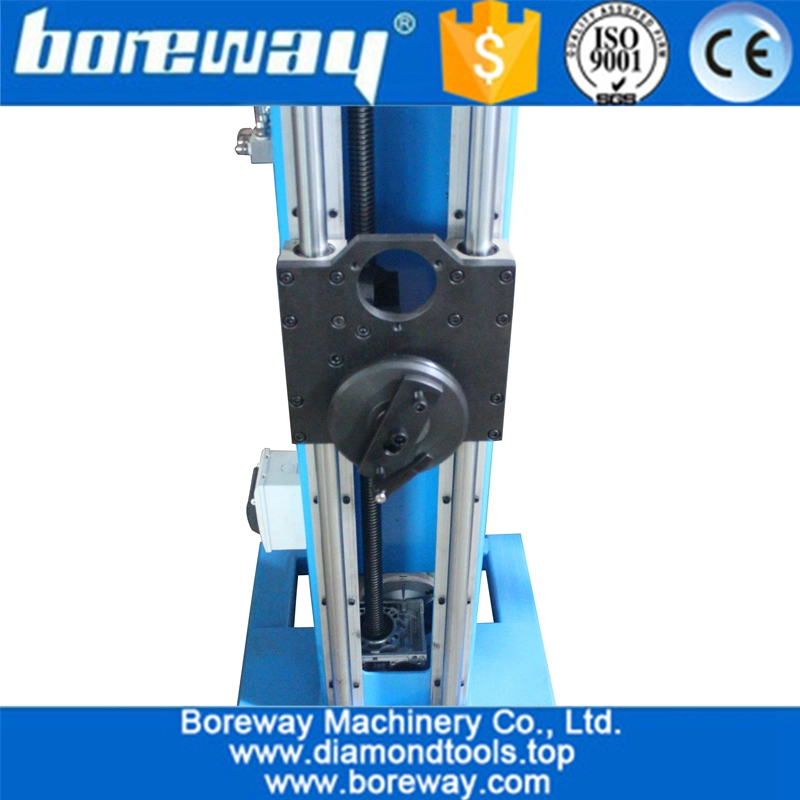

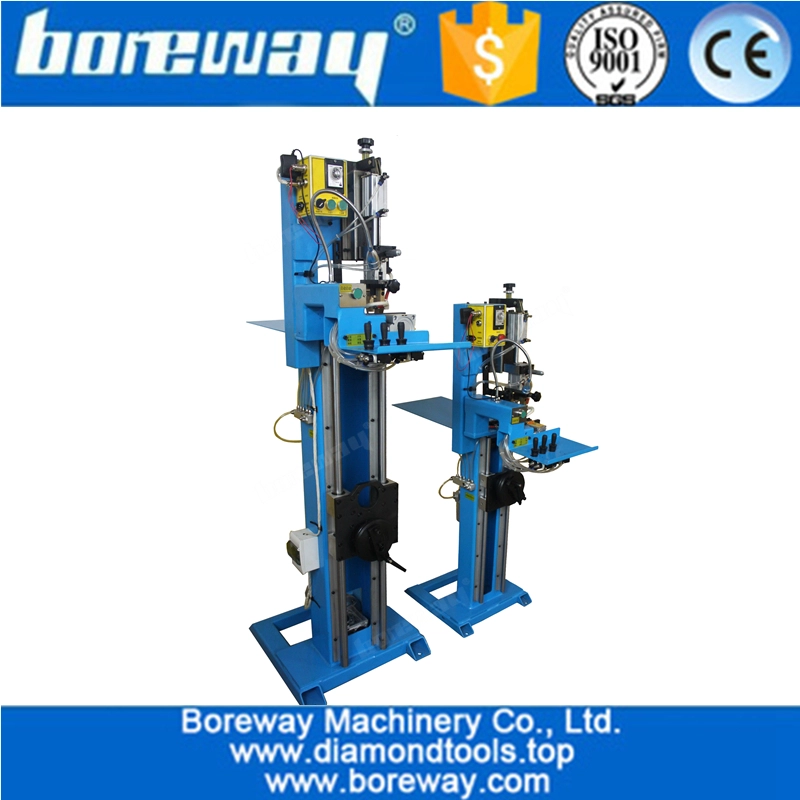

| Picture: |
Semi Automatic High Frequency Induction Brazing Machine for Saw Blade Diamond Segment Welding Machine
