Stone Edge Cutting Blade Making Machine Silver Weld Machine For Braze Diamond Segment On 3500mm

  • Model No:BWM-HJ350
  • Welding Range:400mm -3500mm(standard 1800mm)
  • Welding Rate:6-12 PCS/Min
  • Water Consumption:1.5-2m³/h
  • Equipment Weight:330Kg
  • Machine Dimensions:L900 * W700 * H2400 (Stand)
  • Package Weight:380kg
  • Package Dimensions:L2530 * W960 * H780 (Horizontally)
  • Voltage:220 (Single-phase), 50HZ
Introduction:

Stone Edge Cutting Blade Making Machine Silver Weld Machine for Braze Diamond Segment on 350mm. It is a new type of high-frequency welding auxiliary equipment for diamond saw blades. It can automatically complete high-frequency heating, rapid cooling, tool holder and other operations. Easy to install, easy to connect 220V power supply, water intake, water outlet, you can work without professional installation. Small size, light weight, simple operation, general training can be operated simply.


Feature:

1.Welding diameter range: 400 ~ 3500 mm.

2.Small size, light weight, simple operation, general training can be operated simply.

3.The diamond segment device adopts mechanical geometric alignment to ensure symmetry and accuracy.

Specification:

Specification of Stone Edge Cutting Blade Making Machine Silver Weld Machine for Braze Diamond Segment on 3500mm:

Model No:  BWM-HJ350
Welding Range Φ400mm - 3500mm(standard Φ1800mm)
Verticality ≤± 0.3mm
Parallelism ≤± 0.3mm
Welding Rate(Segments Qty/Min) 6-12 PCS/Min
Air Pressure 0.3 - 0.6Mpa
Water Pressure ≥ 0.2Mpa
Voltage 220V (Single-phase)50Hz
Power(From LED Light) 550W
Water Consumption 1.5 - 2m³/h
Machine Dimensions L900*W700*H2400mm
Equipment Weight 330Kg
Package Dimensions L2530*W960*H780(Horizontally)
Package Weight(Wooden Package) 380Kg

Noted:This of welding frame is not equipped with high frequency machine, air compressor, water pump, if necessary, can be another random frame configuration.

Picture:

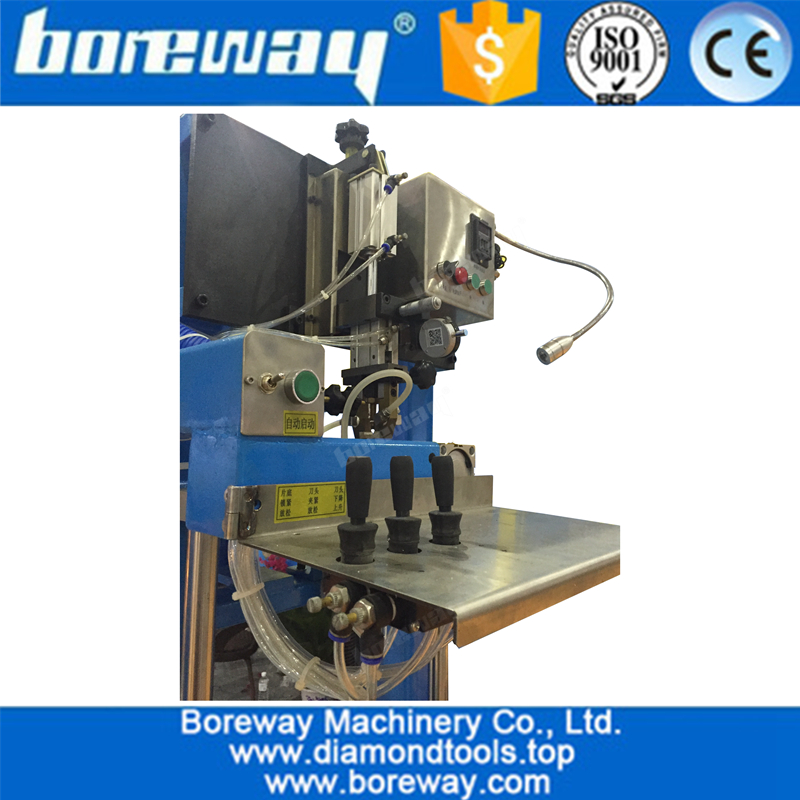

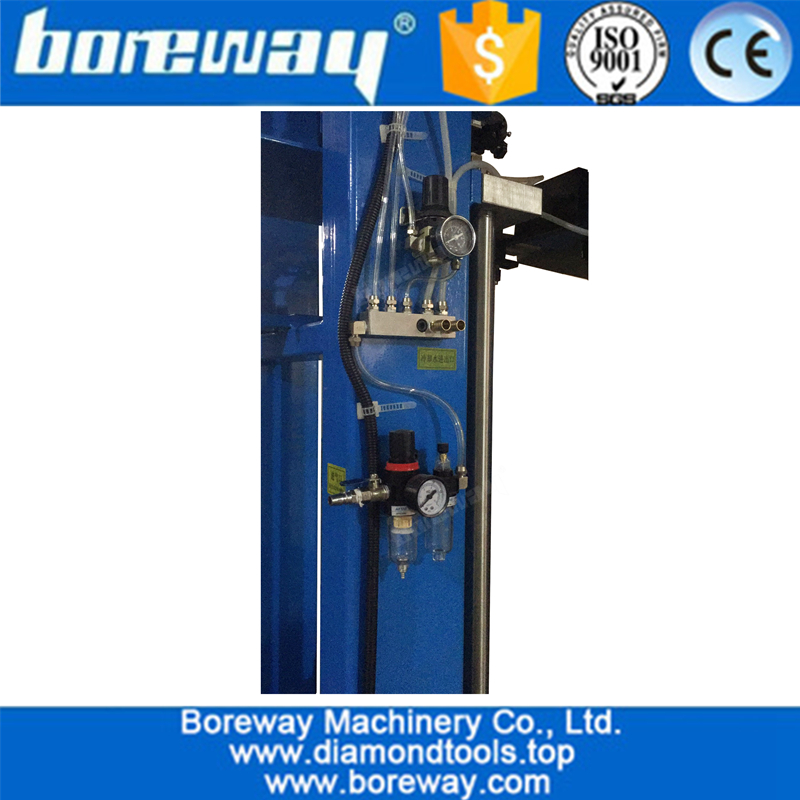

Stone Edge Cutting Blade Making Machine Silver Weld Machine for Braze Diamond Segment on 3500mm

Stone Edge Cutting Blade Making Machine Silver Weld Machine

Stone Edge Cutting Blade Making Machine Silver Weld Machine

Stone Edge Cutting Blade Making Machine Silver Weld Machine

Stone Edge Cutting Blade Making Machine Silver Weld Machine

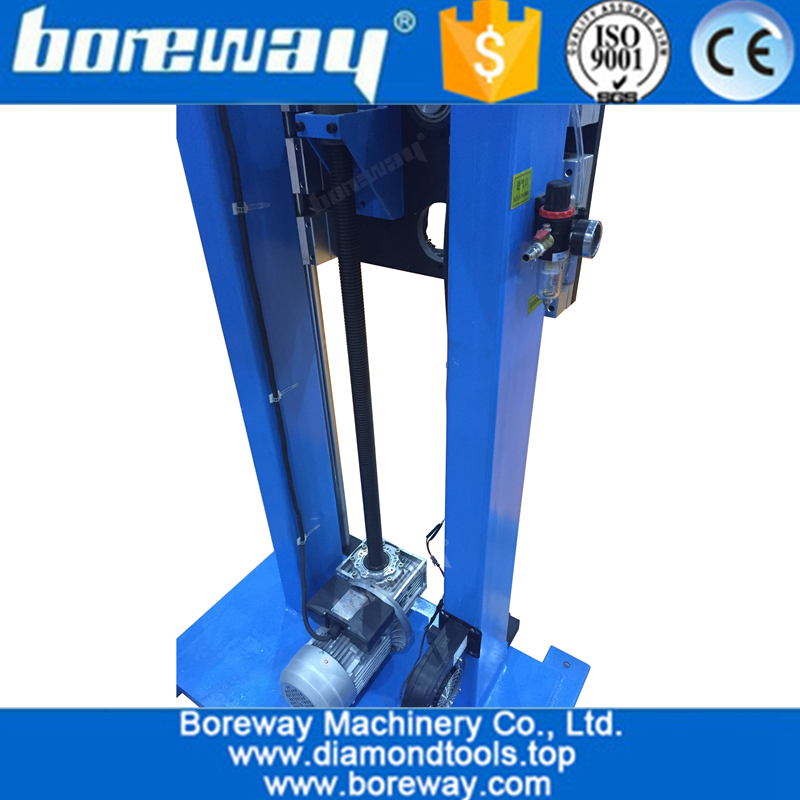

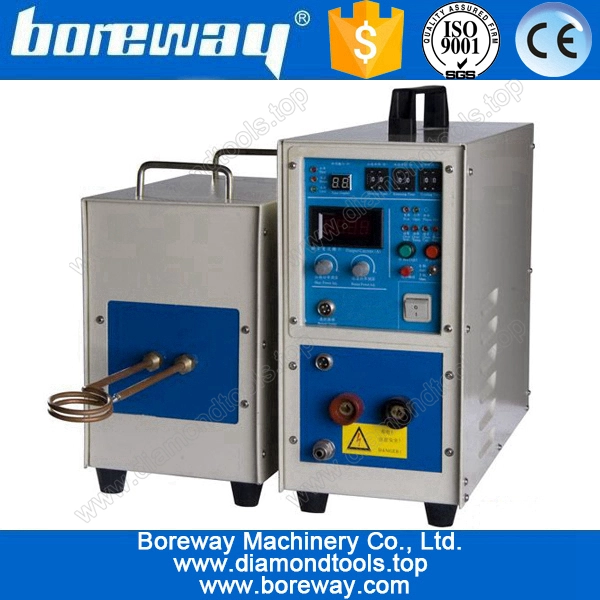

High frequency heating machine can be controlled by electrical system of this frame, of course you also can control the frequency heating machine via itself control system. The “BWM-HJ350” type welding frame has electric lifting system, and there are jacks on the left side of the electric control box, connect them correctly. There are lifting control buttons on the front side of the electric control box, please pay attention to the upper and lower limit when using the lifting system because there’s no automatic limit function.

Stone Edge Cutting Blade Making Machine Silver Weld Machine
