Automatic Welding Lifting Rack for Diamond Saw Blades

  • Model No:BWM-HJ08
  • Welding Range:240mm - 900mm(Max 1400mm)
  • Verticality:≤± 0.3mm
  • Parallelism:≤± 0.3mm
  • Welding Rate:4-20 PCS/Min
  • Water Consumption:1.5M³/h
  • Equipment Weight:85Kg
  • Package Weight:115kg
  • Package Dimensions:L1600*W520*H550
  • Machine Dimensions:L940*W440*H1440mm
Introduction:

Automatic Welding Lifting Rack for Diamond Saw Blades can weld diamond saw blade from ø240mm to ø900mm ( Max ø1400mm can be welded after being boosted 500mm high). Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.

Feature:

1.Welding diameter range: 240 ~ 900 mm.
2.Cylinder clamping saw blade base to ensure welding accuracy.
3.Small size, light weight, simple operation, general training can be operated simply.

Specification:

Specification of Automatic Welding Lifting Rack for Diamond Saw Blades:

Model No:   BWM-HJ08
Welding Range Φ240mm - 900mm(Max 1400mm)
Verticality ≤± 0.3mm
Parallelism ≤± 0.3mm
Welding Rate 4-20 PCS/Min
Air Pressure 0.3 - 0.6Mpa
Water Pressure ≥ 0.2Mpa
Voltage 220V (Single-phase)50Hz
Power(From LED Light) 1.0W
Water Consumption 1.5 - 2m³/h
Machine Dimensions L940*W440*H1440mm
Equipment Weight 85Kg
Package Dimensions L1600*W520*H550(Horizontally)
Package Weight(Wooden Package) 115Kg

Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.

Picture:

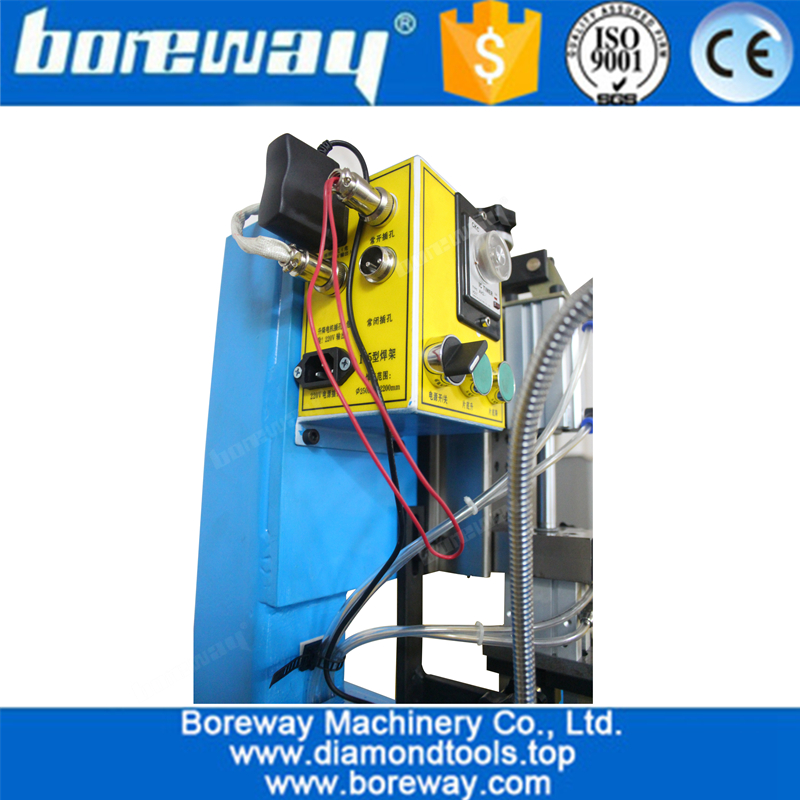

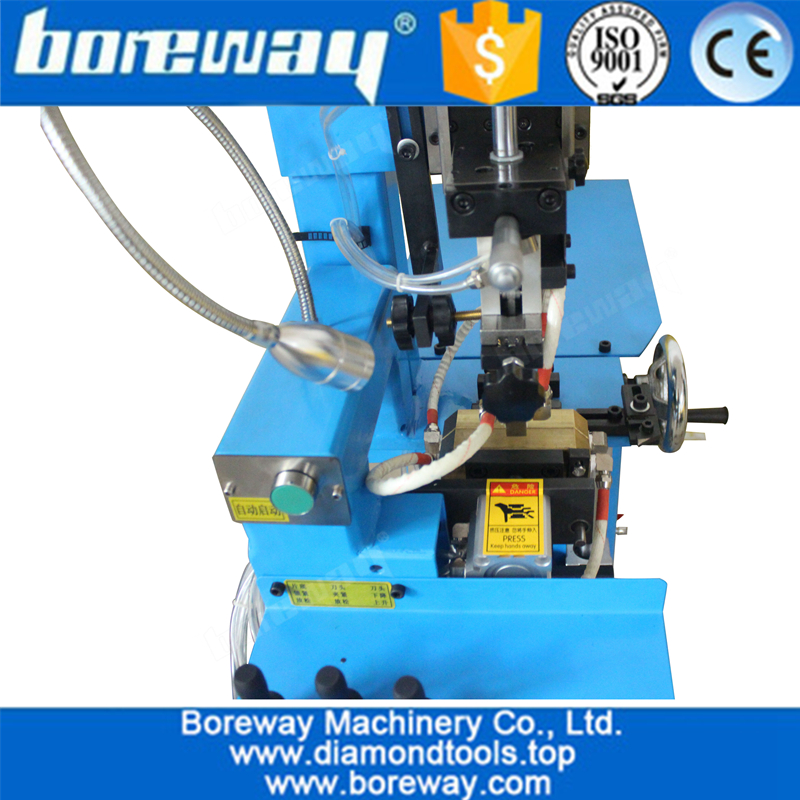

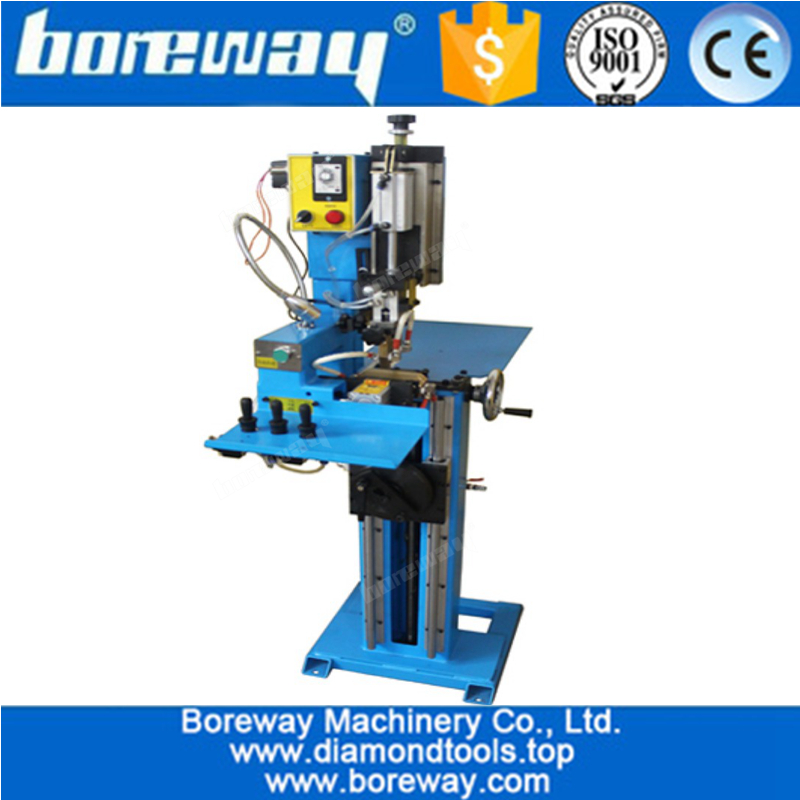

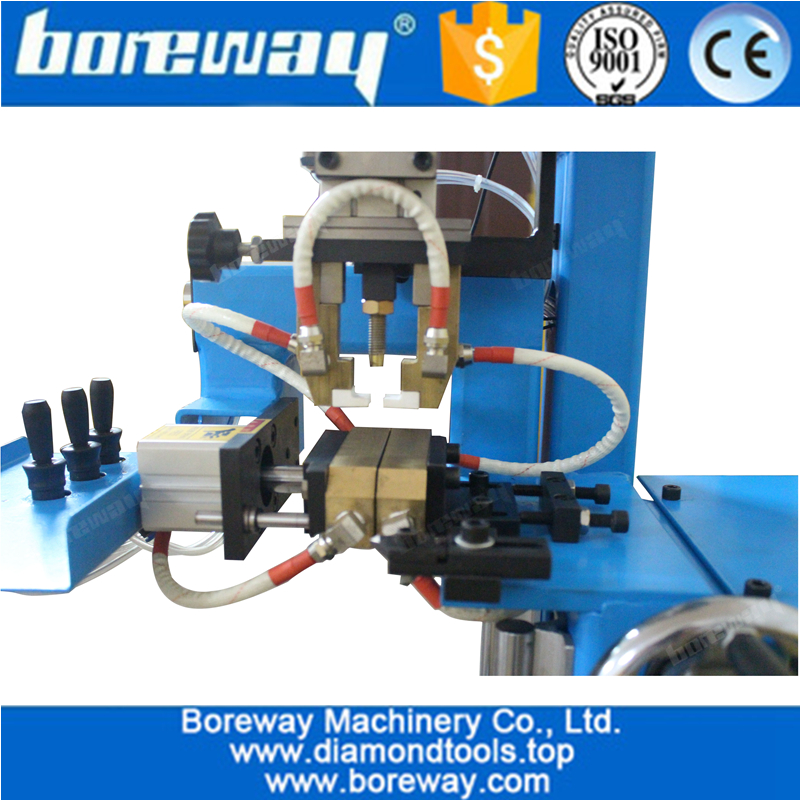

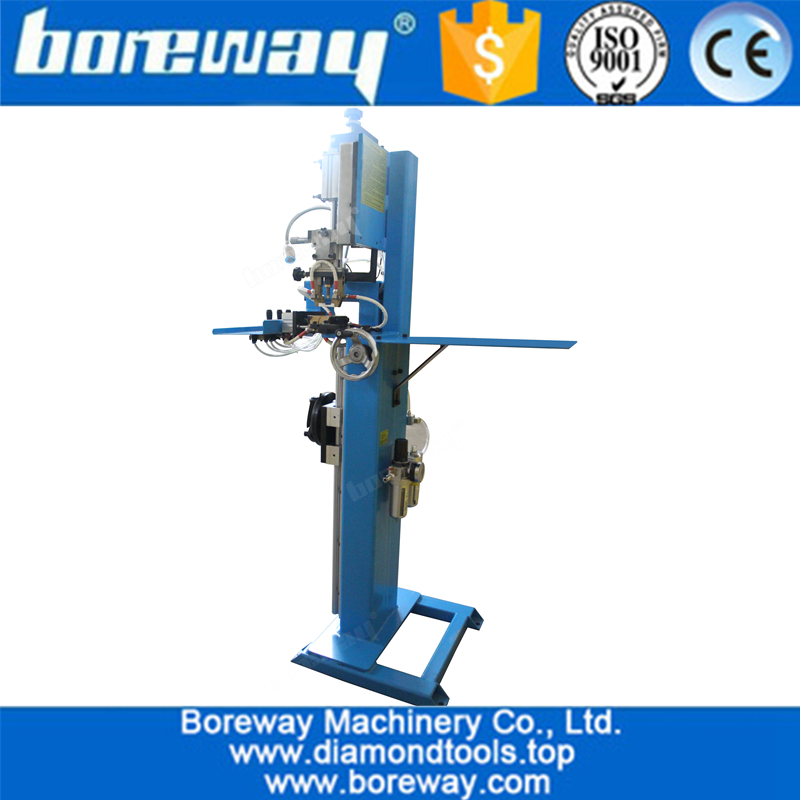

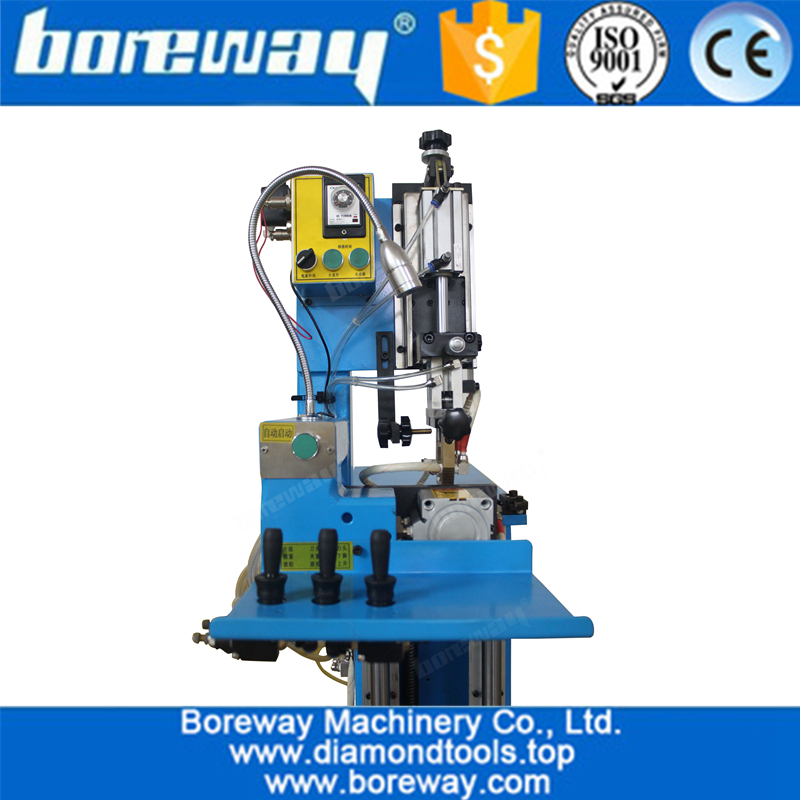

Automatic Welding Lifting Rack for Diamond Saw Blades

Automatic Welding Lifting Rack for Diamond Saw BladesAutomatic Welding Lifting Rack for Diamond Saw BladesAutomatic Welding Lifting Rack for Diamond Saw Blades

Automatic Welding Lifting Rack for Diamond Saw Blades

High frequency machine

Automatic Welding Lifting Rack for Diamond Saw Blades
