Low price diamond saw blade induction welding machineLow price diamond saw blade induction welding machineLow price diamond saw blade induction welding machineLow price diamond saw blade induction welding machineLow price diamond saw blade induction welding machine

Low price diamond saw blade induction welding machine

  • Welding Range:240mm -2300mm(standard 1300mm)
  • Welding Rate:4-20 PCS/Min
  • Water Consumption:1.5-2.0M³/h
  • Air Pressure:0.3 - 0.6Mpa
  • Equipment Weight:160Kg
  • Machine Dimensions:L1030*W550*H1840mm
  • Package Weight:200kg
  • Package Dimensions:L2000*W680*H700mm
  • Voltage:220V (Single-phase)50Hz
Introduction:

Wholesale diamond saw blade induction welding machine.It is a new type of high-frequency welding auxiliary equipment for diamond saw blades. It can automatically complete high-frequency heating, rapid cooling, tool holder and other operations. The machine is composed of high precision parts such as air claw, knife head adjusting and so on. Therefore, the welding precision and efficiency are greatly improved, and the welding strength of the joint and the steel body is guaranteed.

Feature:

1.Welding diameter range can be adjusted
2.Welding frame structure is compact and reliable
3.High level of automation, good stability, long service life

Specification:

Specification of Low price diamond saw blade induction welding machine:

Model No:  BWM-HJ165
Welding Range Φ240mm - 2300mm(standard Φ1300mm)
Verticality ≤± 0.3mm
Parallelism ≤± 0.3mm
Welding Rate 4-20 PCS/Min
Air Pressure 0.3 - 0.6Mpa
Water Pressure ≥ 0.2Mpa
Voltage 220V (Single-phase)50Hz
Power(From LED Light) 370W
Water Consumption 1.5 - 2m³/h
Machine Dimensions L1030*W550*H1840mm
Equipment Weight 160Kg
Package Dimensions L2000*W680*H700(Horizontally)
Package Weight(Wooden Package) 200Kg

Noted:This of welding frame is not equipped with high frequency machine, air compressor, water pump, if necessary, can be another random frame configuration.

Picture:

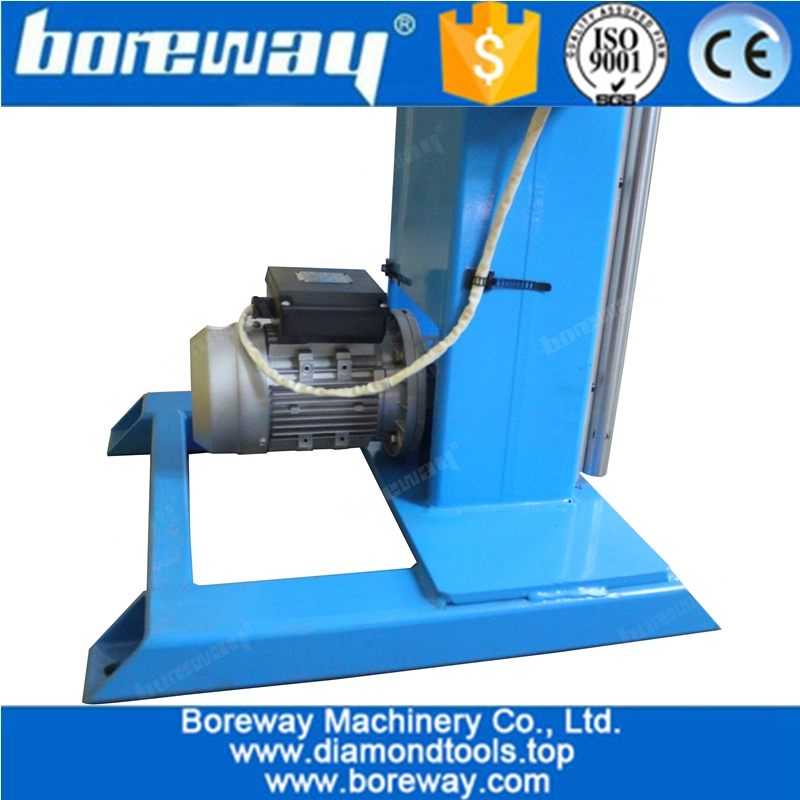

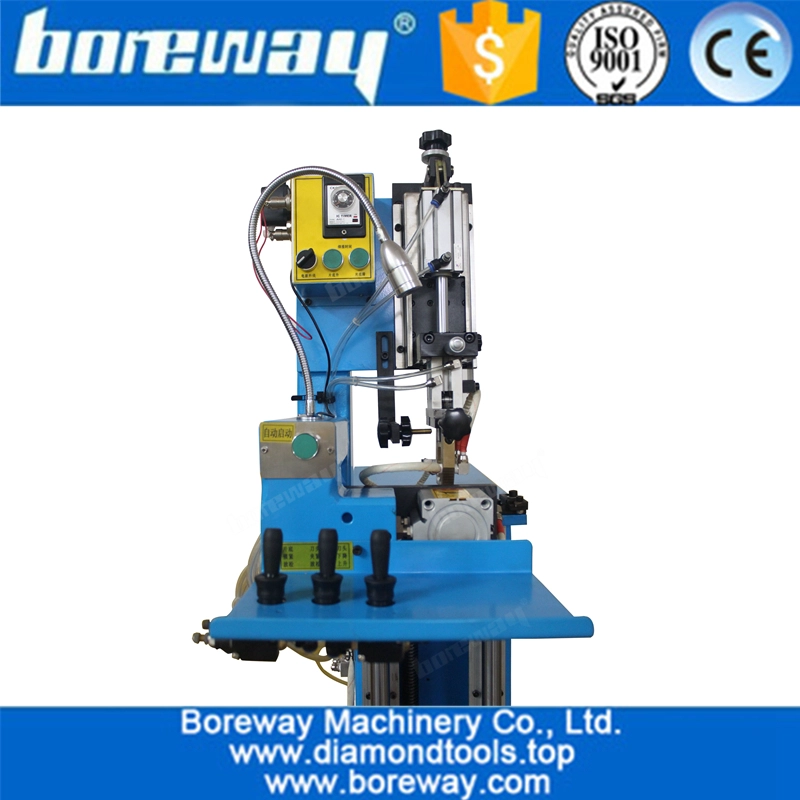

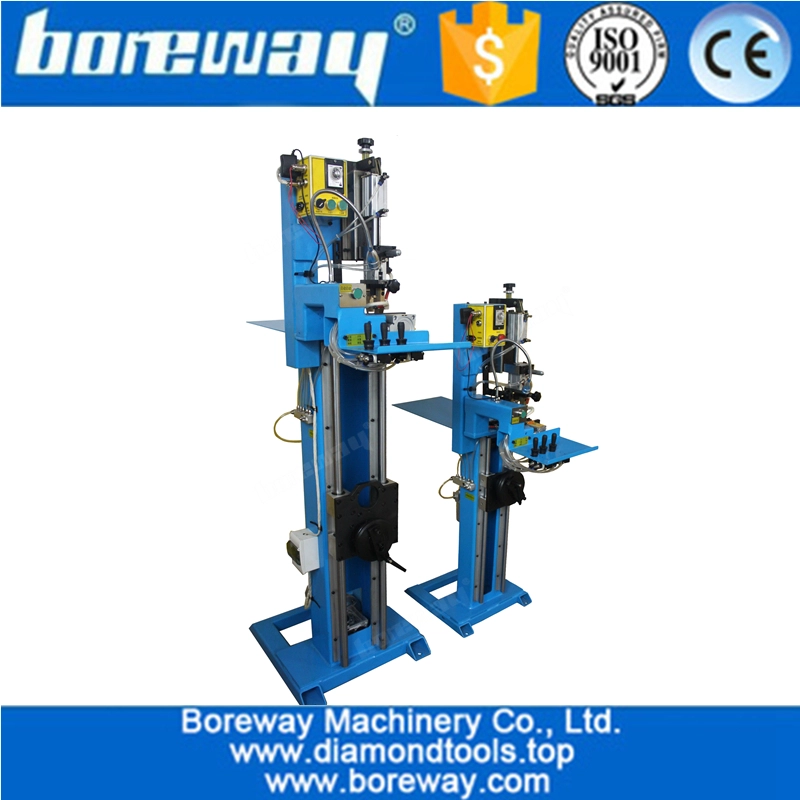

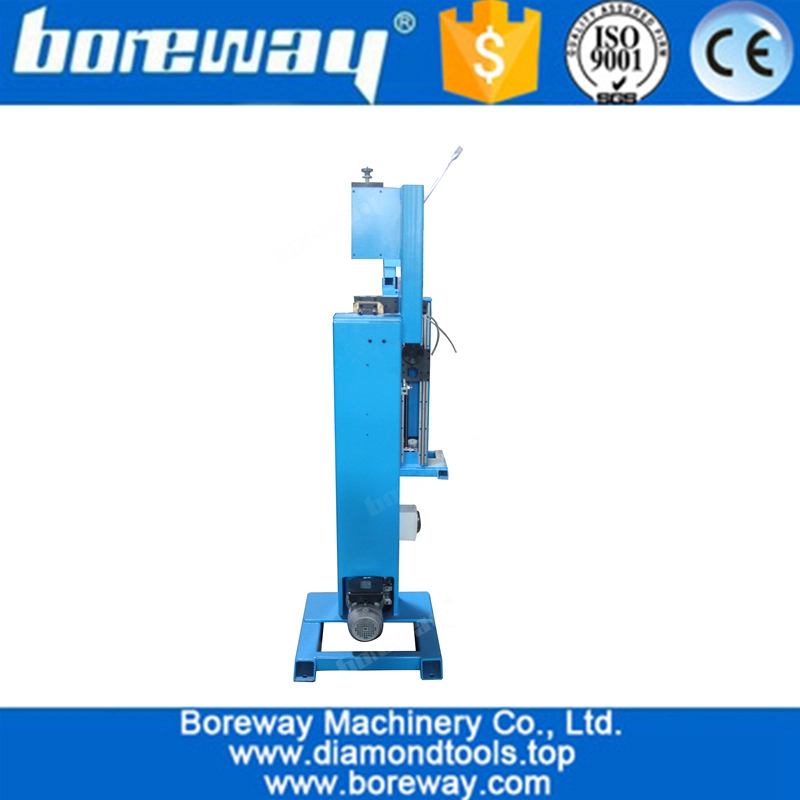

Low price diamond saw blade induction welding machine

Low price diamond saw blade induction welding machine

Low price diamond saw blade induction welding machine

Low price diamond saw blade induction welding machine

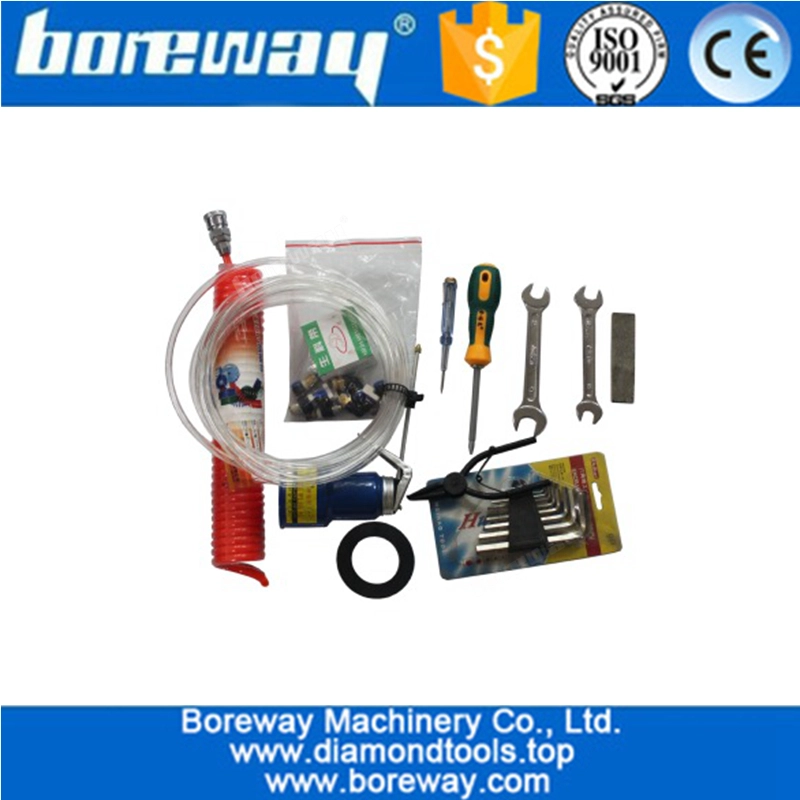

We promise that we will supply all the accessories of this kind of welding frame for

 a long-termand stability service.

Low price diamond saw blade induction welding machine

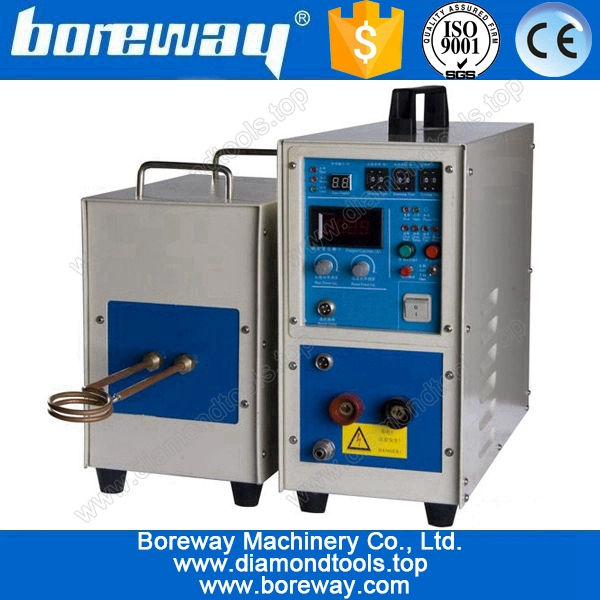

High frequency machine
