Welding Frame Rack Machine for Weld Diamond Segment or 250mm - 800mm Circular Blade
- Model No:BWM-HJ08
- Welding Range:240mm - 900mm(Max 1400mm)
- Verticality:≤± 0.3mm
- Parallelism:≤± 0.3mm
- Welding Rate:4-20 PCS/Min
- Water Consumption:1.5M³/h
- Equipment Weight:85Kg
- Package Weight:115kg
- Package Dimensions:L1600*W520*H550
- Machine Dimensions:L940*W440*H1440mm
| Introduction: |
Welding Frame Rack Machine for Weld Diamond Segment or 250mm - 800mm Circular Blade,it can be welded 1300mm saw blade after being boosted 500mm high. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.
| Feature: |
1.Welding diameter range: 240 ~ 900 mm.
2.Cylinder clamping saw blade base to ensure welding accuracy.
3.Small size, light weight, simple operation, general training can be operated simply.
| Specification: |
Specification of Welding Frame Rack Machine for Weld Diamond Segment or 250mm - 800mm Circular Blade:
| Model No: BWM-HJ08 | |
| Welding Range | Φ240mm - 900mm(Max 1400mm) |
| Verticality | ≤± 0.3mm |
| Parallelism | ≤± 0.3mm |
| Welding Rate | 4-20 PCS/Min |
| Air Pressure | 0.3 - 0.6Mpa |
| Water Pressure | ≥ 0.2Mpa |
| Voltage | 220V (Single-phase)50Hz |
| Power(From LED Light) | 1.0W |
| Water Consumption | 1.5 - 2m³/h |
| Machine Dimensions | L940*W440*H1440mm |
| Equipment Weight | 85Kg |
| Package Dimensions | L1600*W520*H550(Horizontally) |
| Package Weight(Wooden Package) | 115Kg |
Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.
| Picture: |

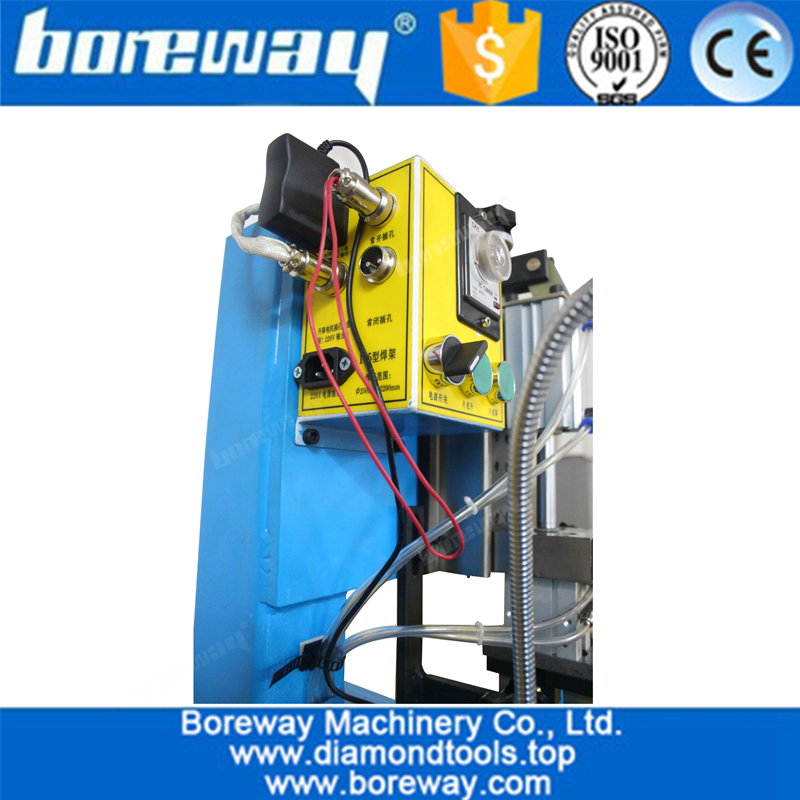

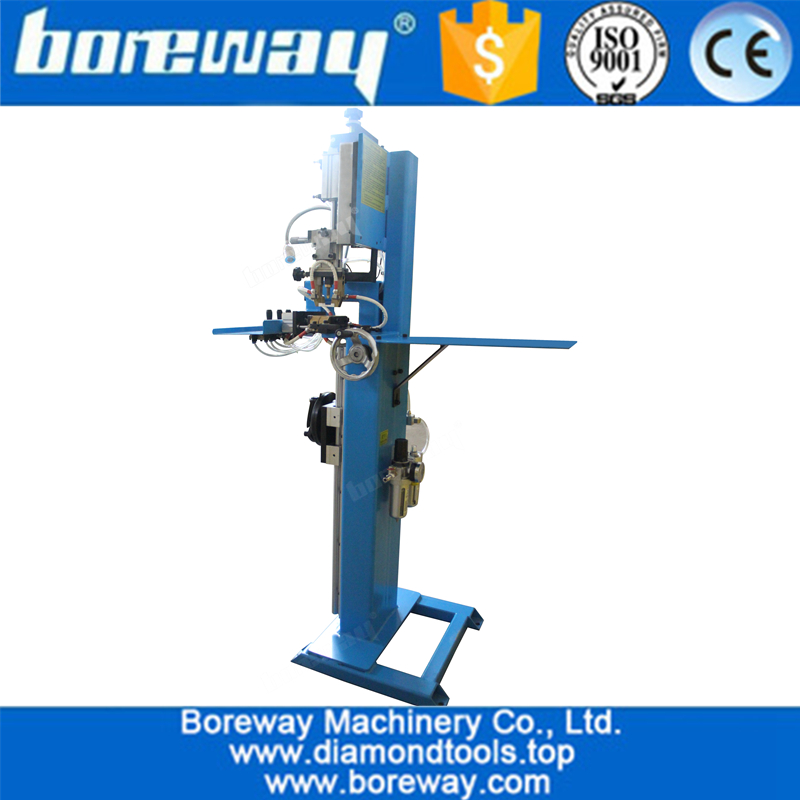

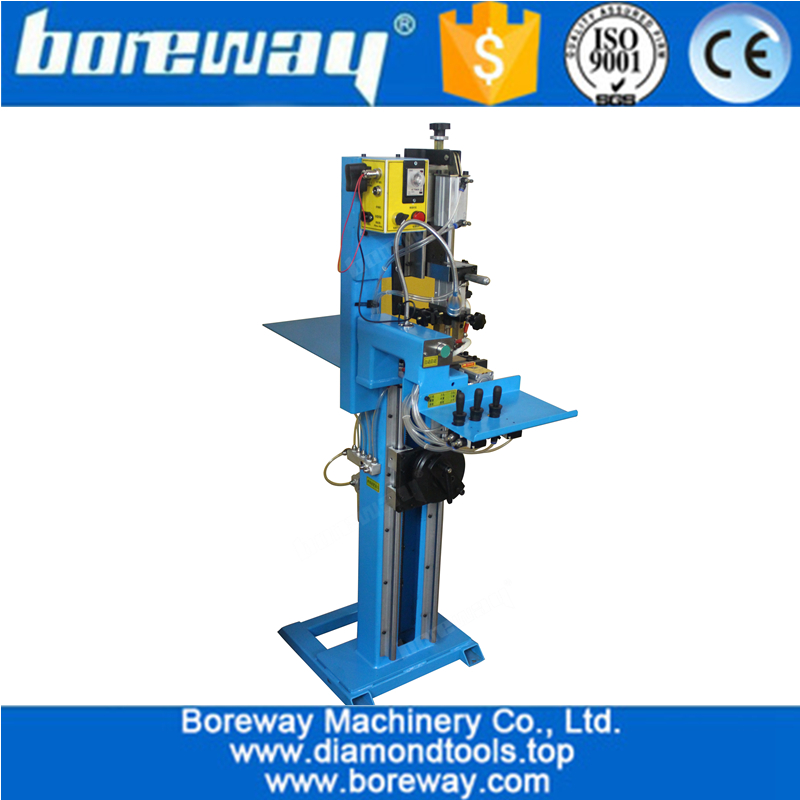

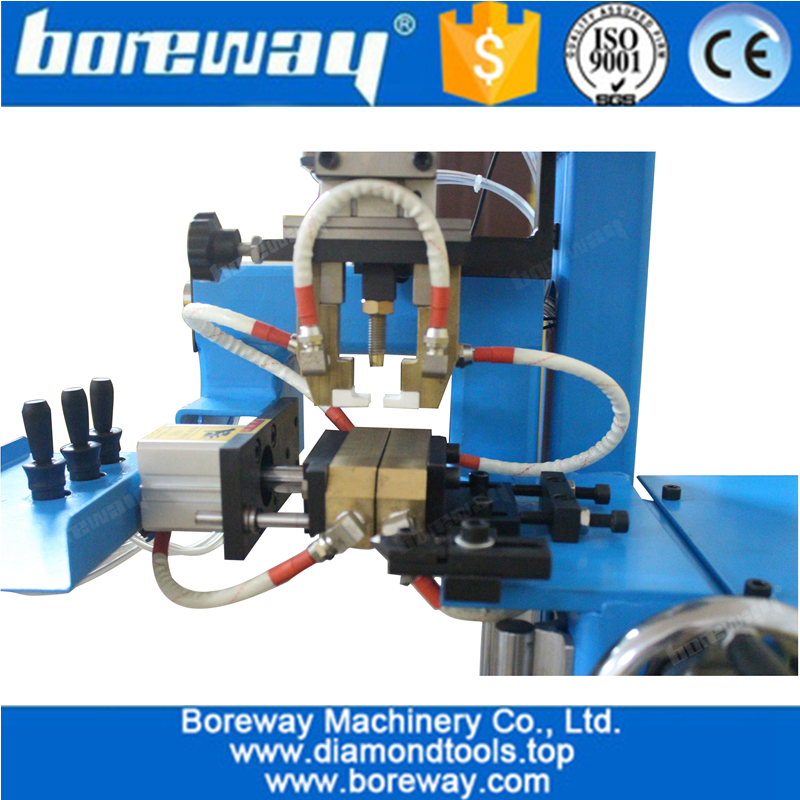

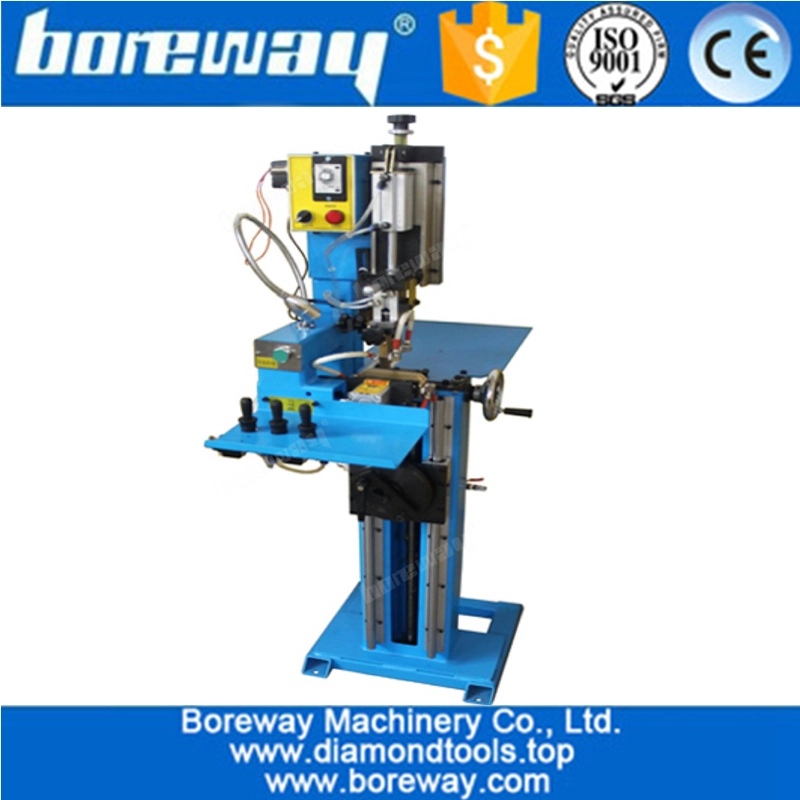

Welding Frame Rack Machine for Weld Diamond Segment or 250mm - 800mm Circular Blade

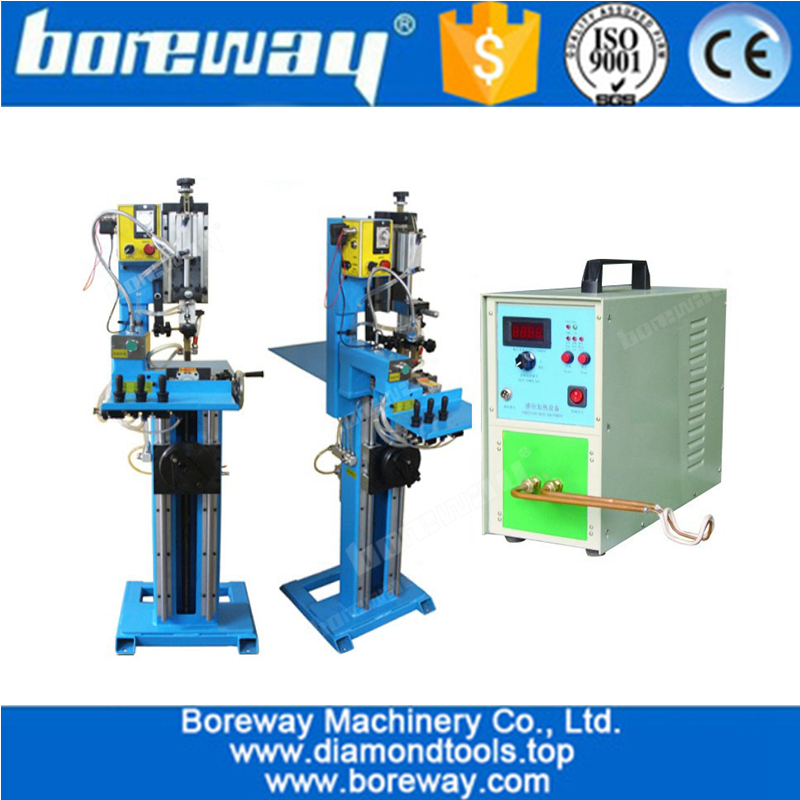

High frequency machine
