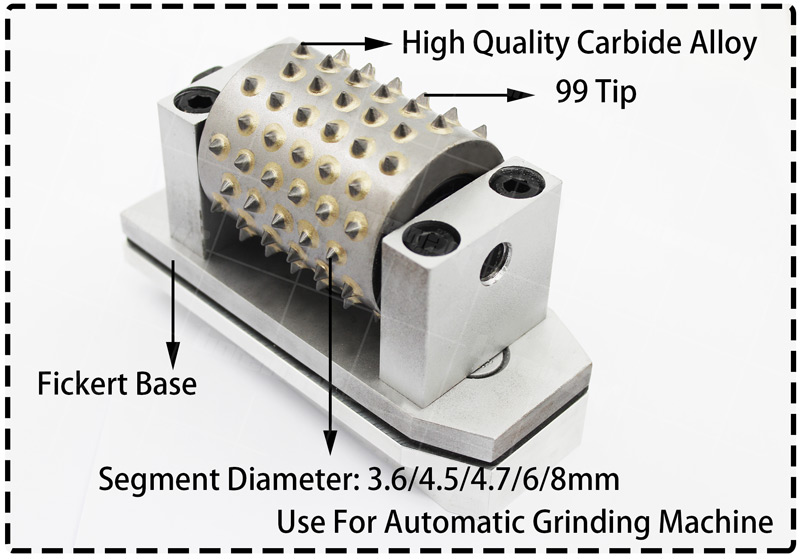

Rotary Fickert Bush Hammer Plate For Stone Slab Manufacturer
- Base Shape: Fickert
- Segment No.: 99 Tip
- Brand Name: Boreway
- Model Number: BW-BHR-F99S
- Fickert Length: L140m,L170mm
- Segment Diameter: 3.6/4.5/4.7/6/8mm
- Material: Alloy + Aluminum Base Bracket
- Segment Type: High Quality Carbide Alloy
- Application: For Grinding Granite,Marble And Other Stone Slab
- Machine: For Fickert Type Quick Change Fits Automatic Grinding Machines
- Base Type: U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.
Rotary Fickert Bush Hammer Plate For Stone Slab Manufacturer
| Feature: |
1.The fickert bush hammer length are l140m and l170mm.
2. Bush hammer with fickert base for automatic grinding machines.
3. Bush hammer roller supplier china diameter is 3.6/4.5/4.7/6/8mm.
4. Large grinding area, high efficiency, good performance and good effect.
5. Rotary fickert bush hammer for rough litchi surface, anti slip surface and decorative surface can be created on the large stone slab.
| Description: |
Fickert bsuh hammer has two sizes: 140mm and 170mm.
Each rotary fickert bush hammer has 99 high quality carbide alloy segment, which can be installed on the bases of fickert and frankfurt, and can be used in automatic grinding machine.
Bush hammer roller are mainly designed for texturing and roughening of smooth travertine surfaces and is especially important for performing operations to create anti-slip surfaces on stone floors and steps, etc.
It's scrollable and highly efficient, for example, a roller of 200mm diameter can fabricating more than 150 square meters stone surface per day.
Bush Hammer is used sophisticated welding technology and selecting high quality aluminum alloy to casting, bush hammered's grit can be changed through the adjustment of spring elasticity on bush hammer, manual grinding machine press.
Both enlarging spring's interval to reduce spring elasticity and reducing machine's press can enhance bush hammer vibration to make bush hammered face rough.
| Specifications: |
The followings are the normal specifications of our rotary fickert bush hammer:
| Product Size | Segment No. | Segment Diameter |
Machine |
Application |
| L140mm, L170mm |
99 Tip | 3.6/4.5/4.6/4.7/6/8mm | Automatic Grinding Machines |
Granite, Marble And Other Stones Slab |
The above specifications are for reference, other specifications can be ordered by customers.
More normal specification of wholesales bush hammer rollers:
|
Model |
Out Diameter |
Wheel Width
|
Segment Quantity |
Segment Diameter |
Remark |
|
BW-BHR4530 |
45 |
22 |
30 |
3.6 4.5 4.6 4.7 6.0 8.0
|
With Stand Without Stand
|
|
BW-BHR5330 |
53 |
30 |
30 |
||
|
BW-BHR5530 |
55 |
22 |
30 |
||
|
BW-BHR5545 |
55 |
22 |
45 |
||
|
BW-BHR5545 |
55 |
30 |
45 |
||
|
BW-BHR5545 |
55 |
39 |
45 |
||
|
BW-BHR5545 |
55 |
53 |
45 |
||
|
BW-BHR5545 |
55 |
55 |
45 |
||
|
BW-BHR5560 |
55 |
43 |
60 |
||
|
BW-BHR8060 |
80 |
55 |
60 |
||
|
BW-BHR5972 |
59 |
53 |
72 |
||
|
BW-BHR6077 |
60 |
53 |
99 |
||
|
BW-BHR3307 |
33 |
6 |
7 |
Star Type |
|
|
BW-BHR3310 |
33 |
6 |
10 |
||
|
BW-BHR4910 |
49 |
6 |
10 |
||
|
BW-BHR4915 |
49 |
6 |
15 |
||
|
BW-BHR4920 |
49 |
6 |
20 |
| Product Details: |
| Application: |
Rotary fickert bush hammer roller for fickert type quick change fits automatic grinding machines.
Kindly Noted, When Place Order Please Inform The Following:
1.Stone Effect（Sandblasted Surface/Litchi Surface）
2. Use Object (Marble, Granite Or Other Stone, Concrete And Other Stone)
3. Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)
4. Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)
5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)
1.Stone Effect（Sandblasted Surface/Litchi Surface）
2. Use Object (Marble, Granite Or Other Stone, Concrete And Other Stone)
3. Segment No.(30s, 45s, 60s, 72, 99s, Star, Steel Dense Tooth, Vacuum Brazing)
4. Diameter of the Bush hammer plate(125mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.)
5.Base Style(U Shape, Frankfurt, Fickert, Lavina, Husqvarna, HTC, Klindex, Werkmaster, Diamatic, Etc.)
6.Machines (Hand Held Grinders, Automatic Bush Hammering Machine, Automatic Grinding Machine, Angle Grinder, And Floor Grinders)
