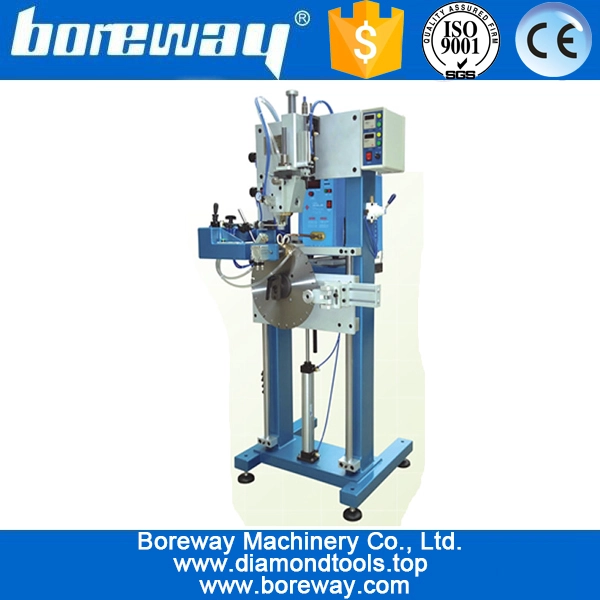

Light and semi-automatic welding frame for diamond saw blade
- Model:BWM-GHB20/300
- Diameter:250mm-700mm
- Brazing capacity :8-12 per hour
- Advantage：We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Introduction：
High precision brazing frame for diamond circular saw & core drill is a newly developed machinery for the industry.It’s easy to operate,precise,stable & high cost to performance ratio, comparing to imported machine.The machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.In the type B machine,cutter head can be automatically located,heated,cooled off and reset.
Features:
We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Specification:
Brazing diameter:(for circular saw)250-700mm
Brazing capacity:8-12 discs per hour(for diameter 350mm).
Positioning accuracy:Surface of segment tolerance:±0.03mm，Blade symmetry tolerance:±0.03mm。
Picture:
