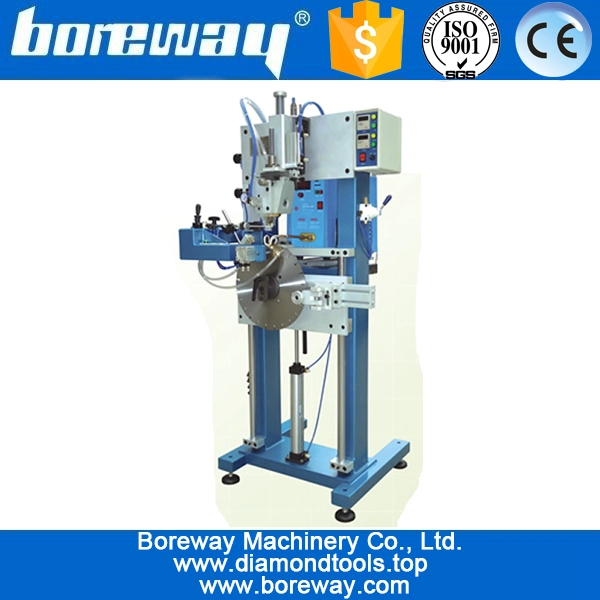

Automatic high frequency brazing welding frame rack for saw blade
- Model:BWM-GHA280/800
- Diameter:280mm-800mm
- Brazing capacity :8-12 per hour
- Advantage：We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Introduction：
High precision brazing frame for diamond circular saw & core drill is a newly developed machinery for the industry.It’s easy to operate,precise,stable & high cost to performance ratio, comparing to imported machine.The machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.In the type B machine,cutter head can be automatically located,heated,cooled off and reset.
Features:
We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Specification:
Brazing diameter:(for circular saw)280-800mm
Brazing capacity:8-12 discs per hour(for diameter 350mm).
Positioning accuracy:Surface of segment tolerance:±0.05mm，Blade symmetry tolerance:±0.05mm。
MODEL DIMENSION WEIGHT BRAZING DIAMETER GHA250/800C 86×80×160 150kg 250~800mm GHA250/1600C 100×86×180 230kg 250~1600mm GHA250/2000C 110×90×205 280kg 250~2000mm GHA250/2500C 110×90×2250 320kg 250~2500mm
