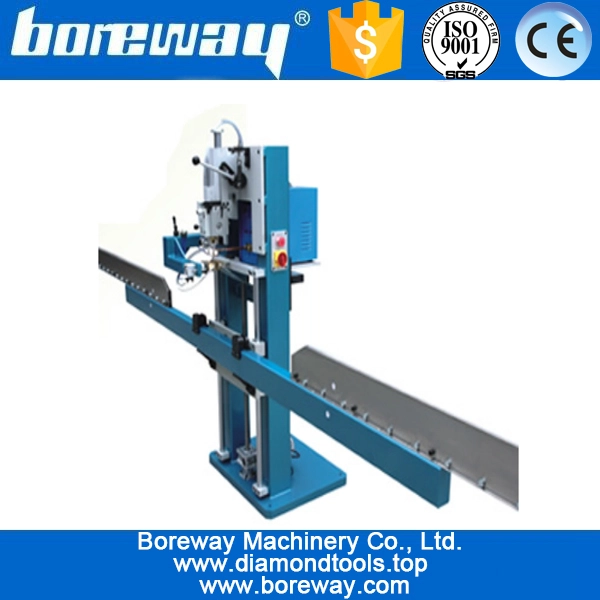

Automatic brazing welding frame for diamong gang saw
- Model:BWM-GHA1300C
- Legnth:4800mm-5500mm
- Thickness:1.2mm-3.0mm
- Height:90mm-200mm
- Advantage：We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Introduction：
High precision brazing frame for diamond circular saw & core drill is a newly developed machinery for the industry.It’s easy to operate,precise,stable & high cost to performance ratio, comparing to imported machine.The machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.
Features:
We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Specification:
Brazing Length:4800-5500mm
Brazing thickness:1.2~3.0
Brazing Height：90~200mm
Positioning accuracy:Surface of segment tolerance:±0.05,Blade symmetry tolerance:±0.05
Picture:
