240mm – 900mm Low cost high quality diamond saw blade welding machine240mm – 900mm Low cost high quality diamond saw blade welding machine240mm – 900mm Low cost high quality diamond saw blade welding machine240mm – 900mm Low cost high quality diamond saw blade welding machine240mm – 900mm Low cost high quality diamond saw blade welding machine

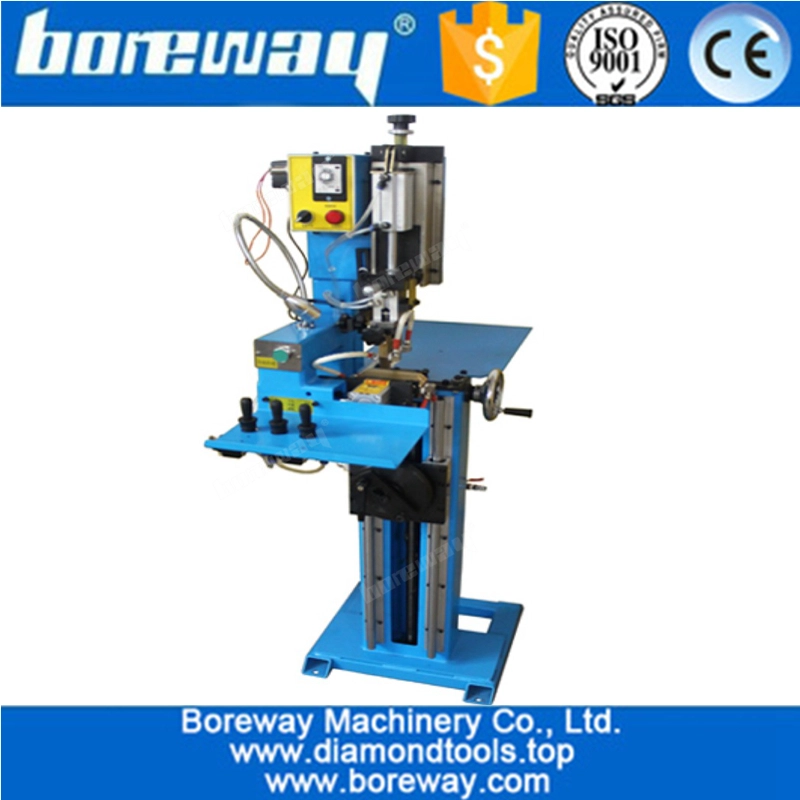

240mm – 900mm Low cost high quality diamond saw blade welding machine

  • Welding Range:240mm - 900mm(Max 1400mm)
  • Verticality:≤± 0.3mm
  • Parallelism:≤± 0.3mm
  • Welding Rate:4-20 PCS/Min
  • Water Consumption:1.5M³/h
  • Equipment Weight:85Kg
  • Machine Dimensions:L940*W440*H1440mm
  • Package Weight:115kg
  • Package Dimensions:L1600*W520*H550
  • Voltage:220 (Single-phase), 50HZ
Introduction:

Low cost high quality diamond saw welding machine -- diameter of welding saw blade: 240~900 mm.Cylinder clamping saw blade base to ensure welding accuracy.Cylinder clamping, ensure that the stress of the matrix welding process is not damaged.In addition, the kind of welding frame can be used for welding gang saw blade after specially modification. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.

Feature:

1.High efficiency and accuracy,low energy consumption.
2.Can be used for welding gang saw blade after specially modification.

3.Compact structure, purchasing accessories easily, most of the wearing parts can be

 found in the pneumatic tools shop in your side, rather than relying on the service agents.

Specification:

Specification of 240mm – 900mm Low cost high quality diamond saw blade welding machine:

Model No:   BWM-HJ08
Welding Range Φ240mm - 900mm(Max 1400mm)
Verticality ≤± 0.3mm
Parallelism ≤± 0.3mm
Welding Rate 4-20 PCS/Min

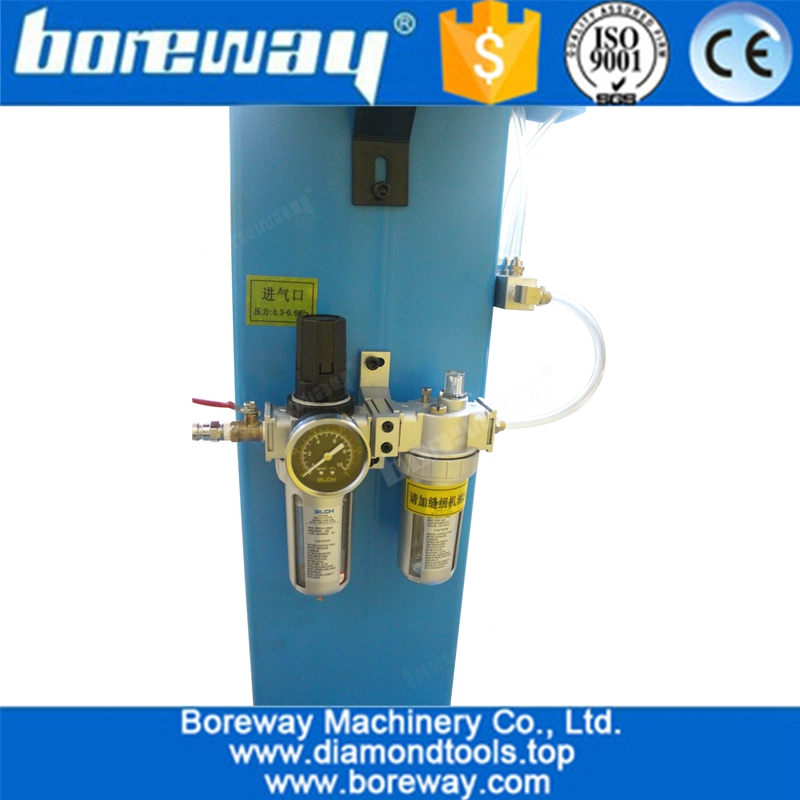

Air Pressure 0.3 - 0.6Mpa
Water Pressure ≥ 0.2Mpa
Voltage 220V (Single-phase)50Hz
Power(From LED Light) 1.0W
Water Consumption 1.5 - 2m³/h
Machine Dimensions L940*W440*H1440mm
Equipment Weight 85Kg
Package Dimensions L1600*W520*H550(Horizontally)

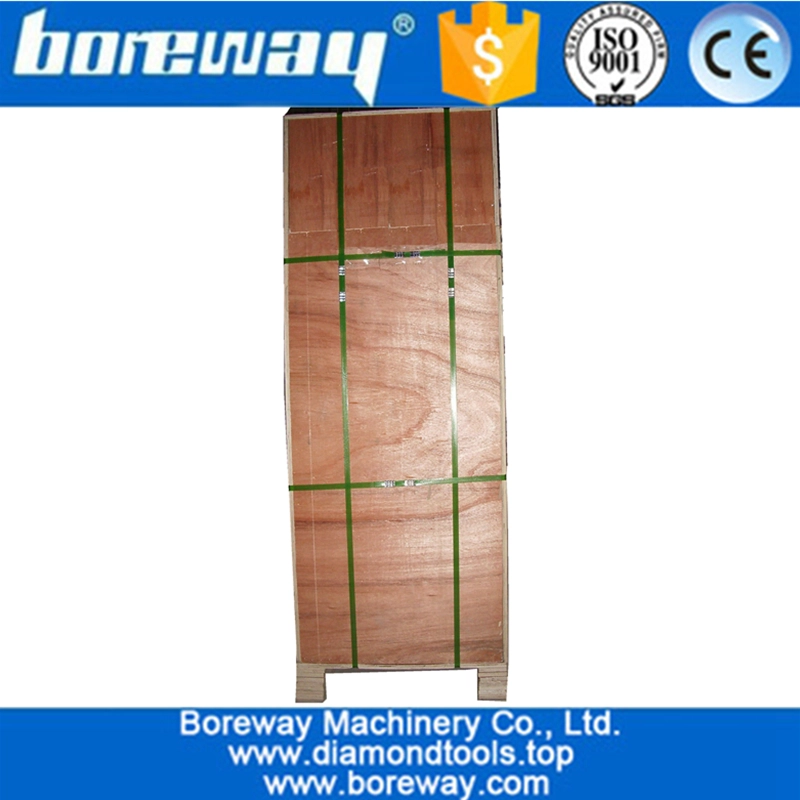

Package Weight(Wooden Package) 115Kg

Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.

Picture:

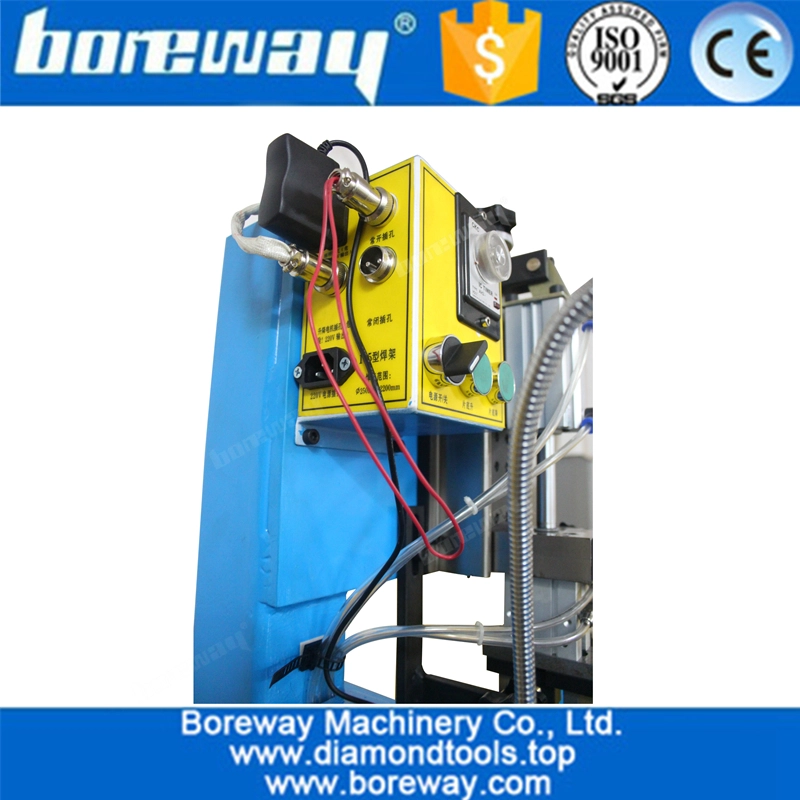

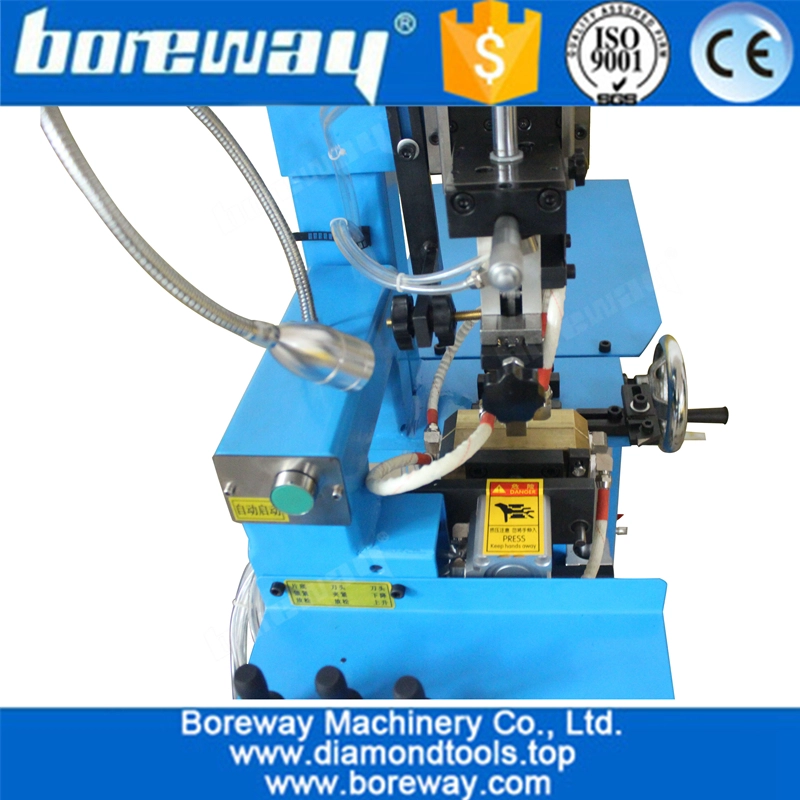

240mm – 900mm Low cost high quality diamond saw blade welding machine

240mm – 900mm Low cost high quality diamond saw blade welding machine

240mm – 900mm Low cost high quality diamond saw blade welding machine

240mm – 900mm Low cost high quality diamond saw blade welding machine

240mm – 900mm Low cost high quality diamond saw blade welding machine

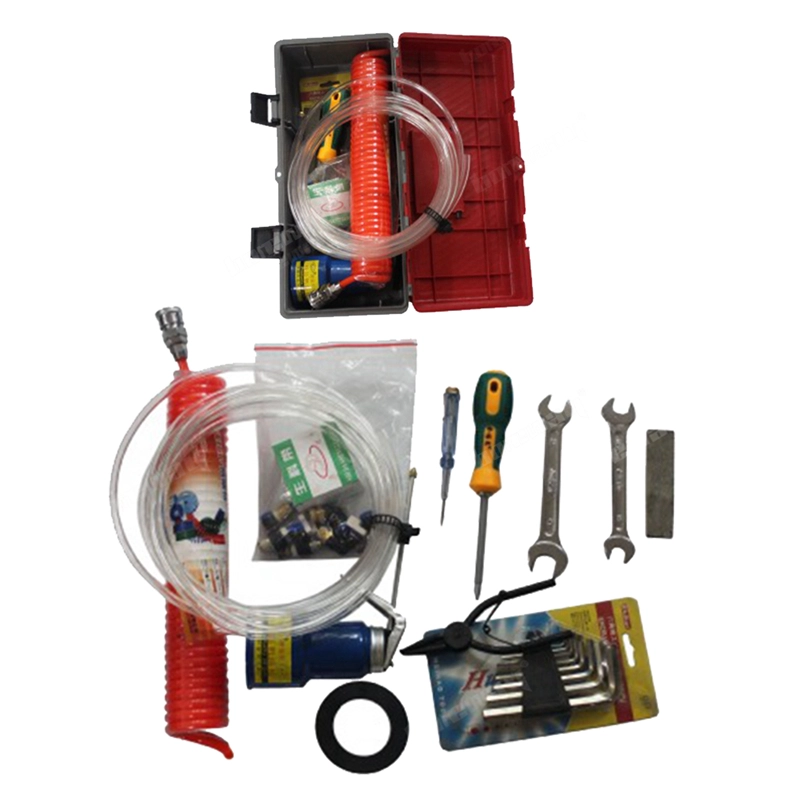

BWM-HJ08 Diamond Saw Blade Induction Heater Brazing Machine
