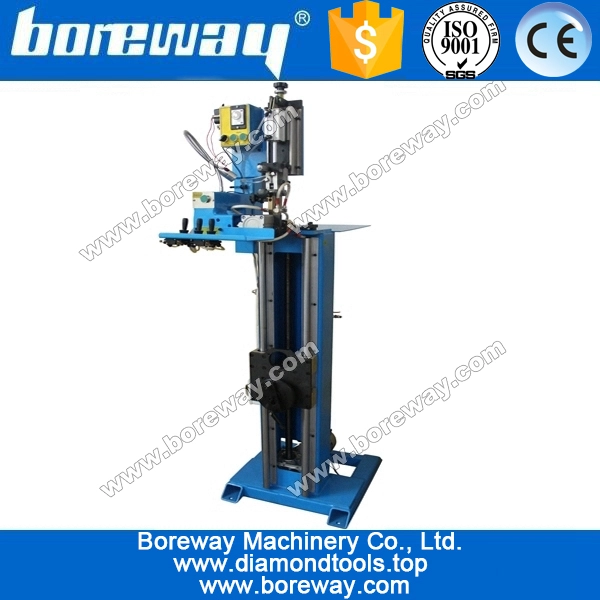

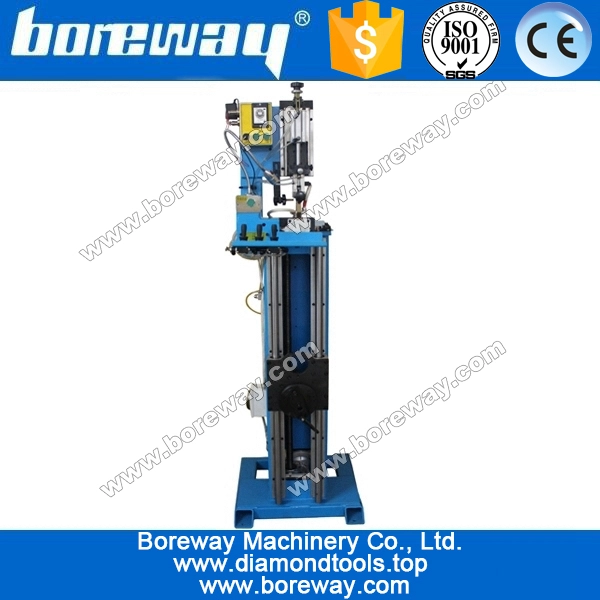

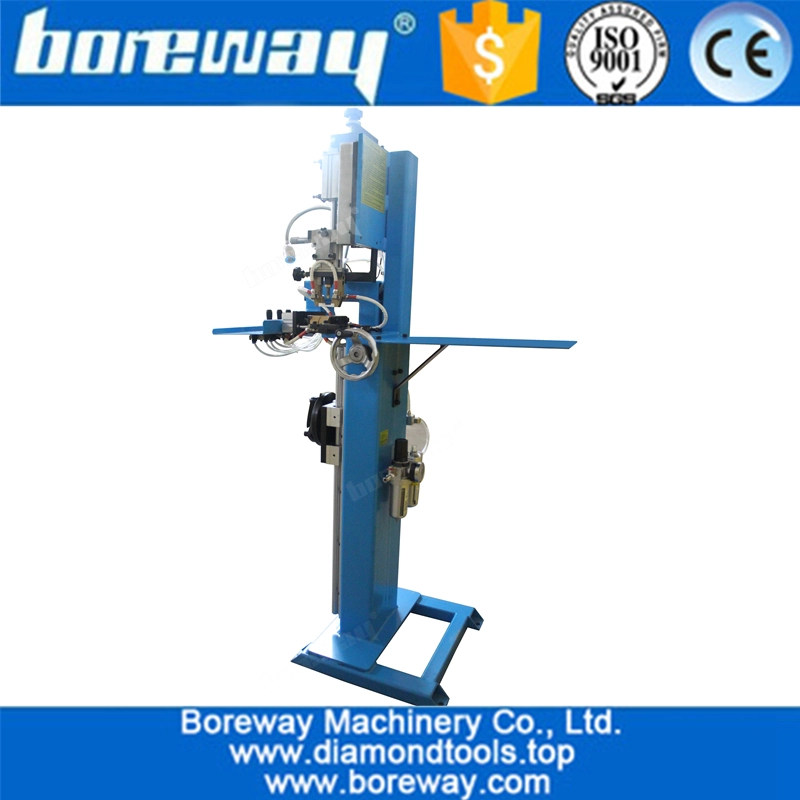

2300mm saw blade welding machine frame/rack
- Model Number: BWM-HJ-165
- Welding range: 240mm to 2300mm
- Segment qty/min: 4 to 12 Pcs/min
- Water pressure: ≥0.2Mpa
- Applications: Boreway saw blade welding machine farm is welding diamond saw blade with high frequency machine .
- Machine: This machine use with high frequency machine
- Industry: Welding machine
- Advantage: High quality and Long lifespan.
Introduction:
The “BWM-HJ165” welding frame can weld saw blade from ø250mm to ø2300mm ( Should be boosted 1000mm high). In addition, the kind of welding frame can be used for welding gang saw blade after specially modification.
Features:
1.Compact structure, purchasing accessories easily, most of the wearing parts can be found in the pneumatic tools shop in your side, rather than relying on the service agents.
2.High efficiency and accuracy,low energy consumption.
3.Can be used for welding gang saw blade after specially modification.
Specifications:
The followings are the normal specifications of our 2300mm saw blade welding machine frame / rack:
|
Parameters |
Numerical |
|
Welding Range |
Ø240 – Ø1300 mm （Max Ø2300mm） |
|
Verticality |
≤±0.03 mm |
|
Parallelism |
≤±0.03 mm |
|
Welding Rate（Segments Qty/Min） |
4 - 12 PCS/Min |
|
Air Pressure |
0.3 - 0.6 Mpa |
|
Water Pressure |
≥0.2 Mpa |
|
Voltage |
220V （Single-phase）, 50HZ |
|
Power (From LED Lighting) |
370 W |
|
Water Consumption |
1.5-2 M³/h |
|
Machine Dimensions |
1030mm * 550mm * 1840mm |
|
Equipment Weight |
160 KG |
|
Package Dimensions |
L2000 * W680 * H700 (Horizontally) |
|
Package Weight（Wooden Package） |
200 KG |
The above specifications are for reference, other or special specifications can be ordered by customers.
Note：This machine doesn’t include high frequency Welding machine , air compressor and water pump.
