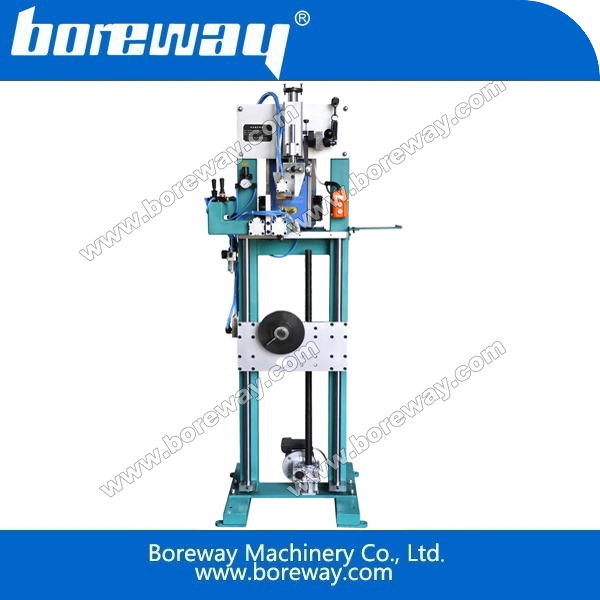

2200mm saw blade welding machine frame / rack

  • Model Number: BWM-HJ-08
  • Welding range: 350mm to 2200mm
  • Segment qty/min: 3 to 9 Pcs/min
  • Water pressure: ≥0.2Mpa
  • Applications: Boreway saw blade welding machine farm is welding diamond saw blade with high frequency machine .
  • Machine: This machine use with high frequency machine
  • Industry: Welding machine
  • Advantage: High quality and Long lifespan.

Introduction:

The “BW-HJ2200” welding frame can weld diamond saw blade from ø350mm to ø2200mm.

Features:

1.Double cylinder clamp, welding heads to ensure accuracy.

2.Dual clamping cylinder, ensure the welding process matrix stress damage.

3.Head clamping device for the use of mechanical geometry, ensures symmetry and accuracy.

4.Easy to operate, saving time and effort, Pu simple training to operate.

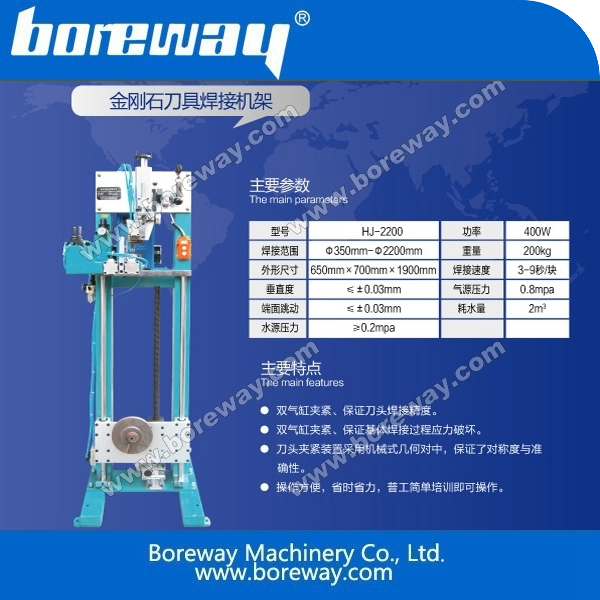

Specifications:

The followings are the normal specifications of our 2200mm saw blade welding machine frame / rack:

Parameters

Numerical

Type

BW-HJ2200

Welding range

Ø350-ø2200 mm

Dimension

650mm*700mm*1900mm

Verticality

≤±0.03 mm

Runout

≤±0.03 mm

Water pressure

≥0.2 MPa

Power

400 W

Weight

200 KG

Welding speed

3-9 S / Pc

Air pressure

0.8 MPa

Water Consumption

2 M³

The above specifications are for reference, other or special specifications can be ordered by customers.

Note:This machine doesn’t include high frequency Welding machine , air compressor and water pump.
