125MM Bush Hammer Plate With 3 Rollers On Werkmaster125MM Bush Hammer Plate With 3 Rollers On Werkmaster125MM Bush Hammer Plate With 3 Rollers On Werkmaster125MM Bush Hammer Plate With 3 Rollers On Werkmaster125MM Bush Hammer Plate With 3 Rollers On Werkmaster

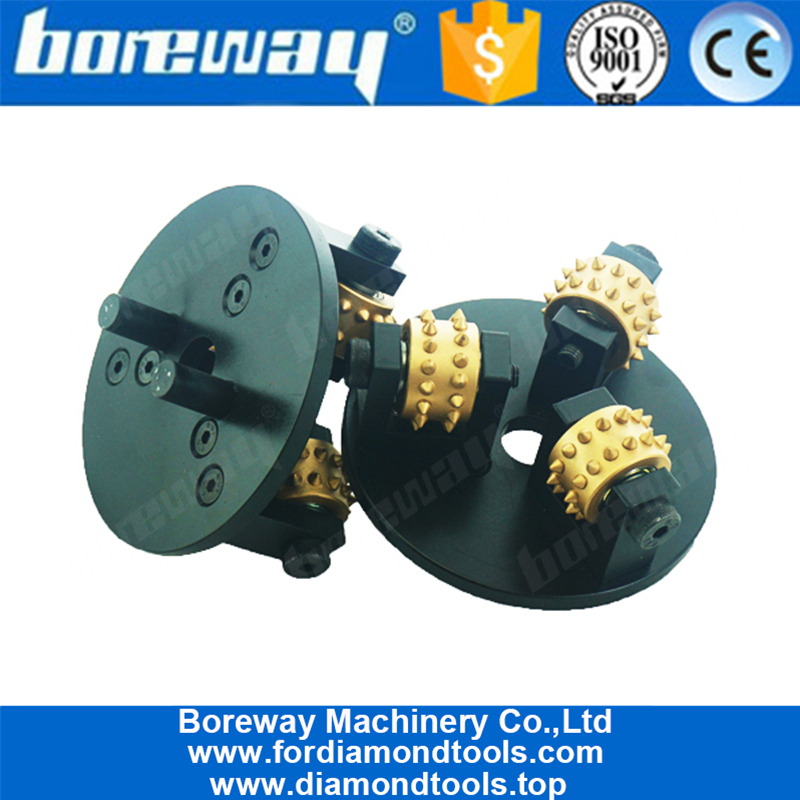

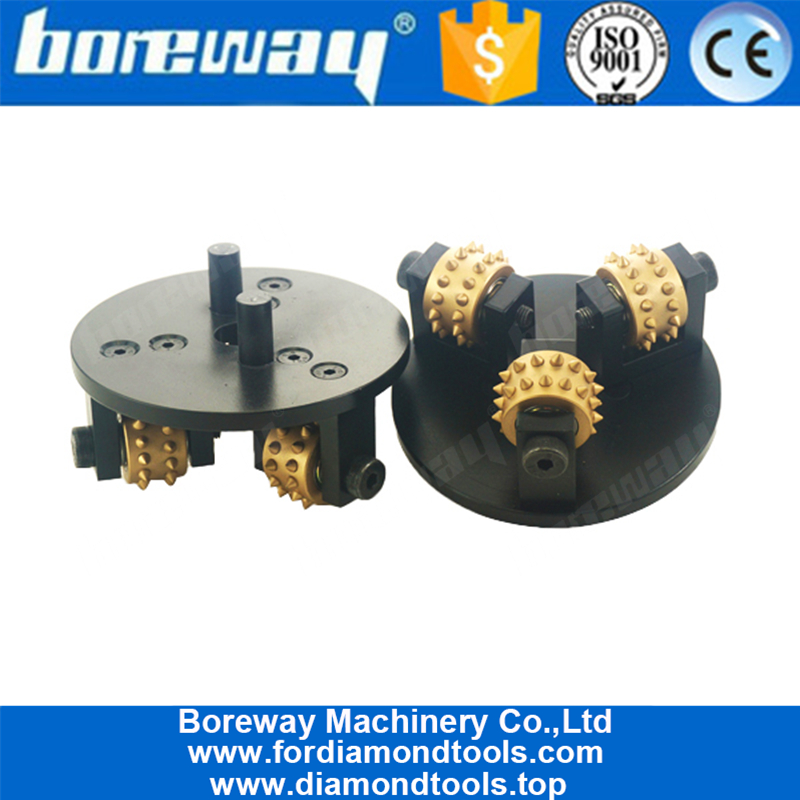

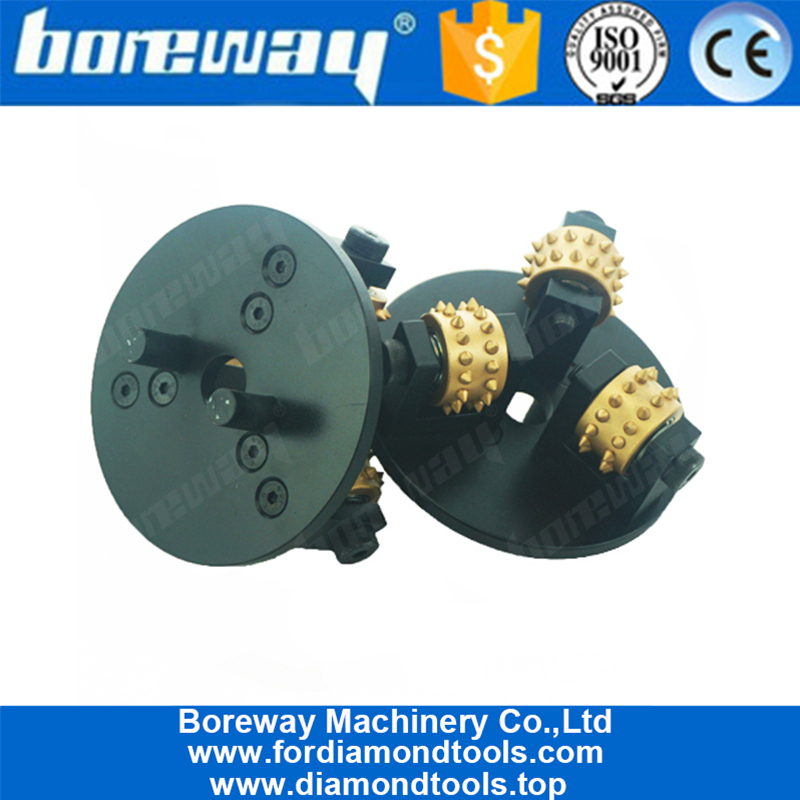

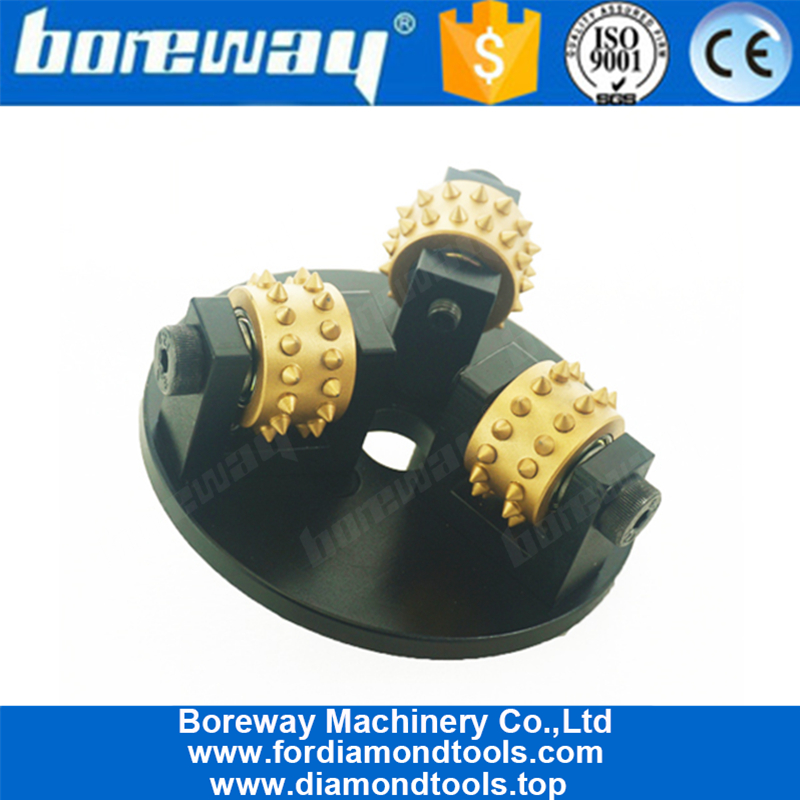

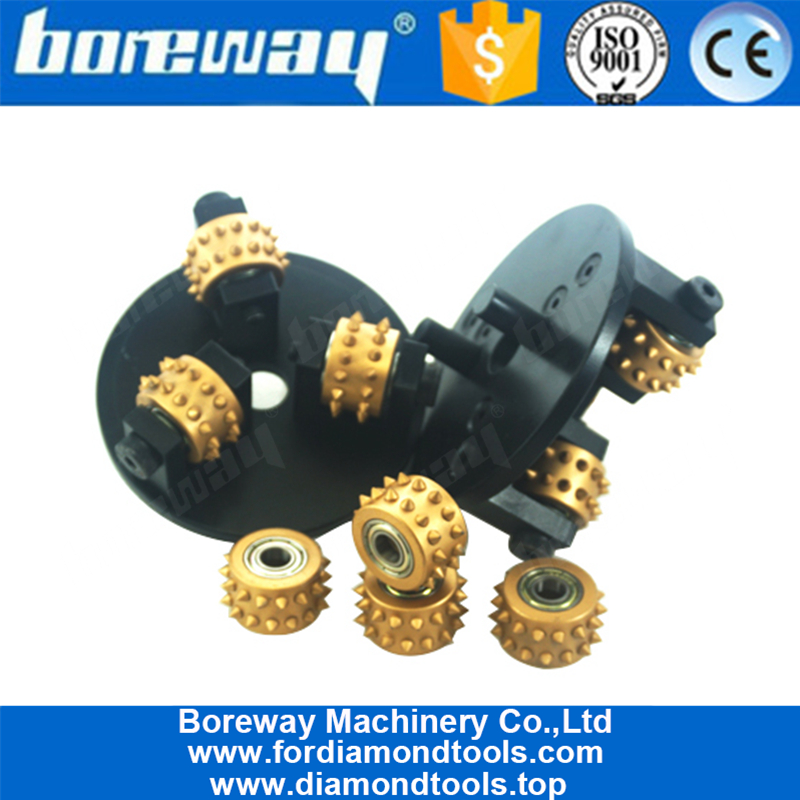

125MM Bush Hammer Plate With 3 Rollers On Werkmaster

  • Shape:Dish
  • Size:125mm
  • Hardness:Hard
  • Inner Side:12mm
  • Diameter:5",125mm
  • Roller No.:3 Rollers
  • Place Of Origin:Fujian
  • Model Number:BW-BHP-5W
  • Grains NO.of Each Roller:30 Grains
  • Material:Metal And Tungsten Carbide
  • Suitable for:Grinding Concrete,Granite And Other Floors

1.Bush Hammer Disc With 3 Rollers On Werkmaster  is used to surface creating,making bush hammered effects for grinding the surface of granite, marble, concrete and other materials, grind into a rough surface.

2.It plays the role of anti-skid and also can play the role of decoration.rotary bush hammer tool to expose the aggregate in concrete floors to prepare for concrete polishing.

3.The grit of bush hammer face can be adjusted and the size of adaptor decide to its machine, other specifications can be customized according to requirements.

4.This segments of the rotary bush hammer plate is carbides, each plate has 3 rollers, each roller has 30 grits, this bush hammer disc can be used on hand stone polishing machine.

5.Bush Hammer Disc With 3 Rollers On Werkmaster adopted the sophisticated welding technology and selecting high quality aluminum alloy to casting, bush hammerer's grit can be changed through the adjustment of spring elasticity on bush hammer, manual grinding machine press.


Bush Hammer Disc With 3 Rollers On Werkmaster usually used in the following aspects:

1.To create anti-slip surfaces.

2.For floor preparation before laying new coatings.

3.To remove old glue and resin coatings,especially thick resins.

4.Rotary bush hammer manufacturers to expose the aggregate in concrete floors to prepare for concrete polishing.

5.To use as a scarifying machine with the advantage that it is aggressive but gentle enough not to “dig” uncontrollably into the floor surface.


 Diameter  Inner Side Connection Rollers NO.  Grains NO.
 125MM  12MM 2 Pins  3 Rollers  30 Grains

Other general dimensions of the rotary bush hammer plate:

 Segment Quantity   Connection  Remark
 Inch mm
Fast Connection
Singer Layer

Double Layer
 BW-BH12514 5 125  3  14
 BW-BH12514  4  14
 BW-BH12520  3  20
 4  20
 BW-BH12530 5 125  3  30
 BW-BH15014 6 150  4  14
 BW-BH15020 6 150  4  20
 BW-BH15045 6 150  3  45
 BW-BH15030  4  30
 BW-BH20045 8  200   4  45
 BW-BH20030  6  30
 BW-BH25045 10  250   5  45
 BW-BH25030  6  30
 BW-BH30045 12  300   6  45
 BW-BH30030  9  30
 BW-BH35045 14  350   9  45
 BW-BH35030  12  30

Specially designed tools are available for any standard application. We can customize tools as per your exact needs.

Product Details:

Rotary Bush Hammer Disc With 3 Rollers On Werkmaster :

Bush Hammer Disc With 3 Rollers On Werkmaster

Applicable Machines:

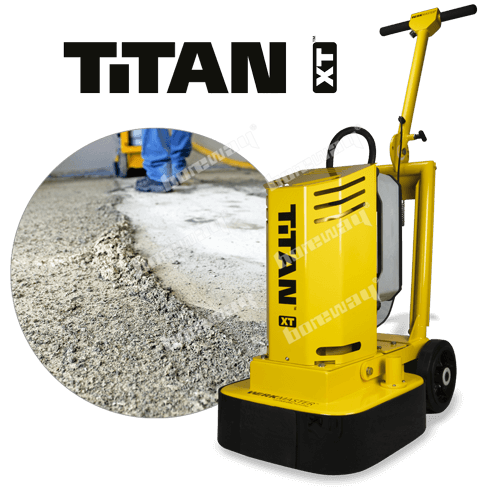

5 Inch Werkmaster Bush Hammer Roller Plate for Floor Grinding
Bush Hammer Disc With 3 Rollers On Werkmaster
About Us:

Bush Hammer Disc With 3 Rollers On Werkmaster

Our Service:

1.Low MOQ: It can meet your trial order need well.

2.OEM Accepted: We can produce according to your sample or drawings.

3.Good Service: We treat our clients as God with high professionalism and passion.

4.Good Quality: We have strict quality control system. Good reputation in the market.

5.Fast Delivery: We have big discount from forwarder.


1. What can Bush Hammers do?

Surface Prep for coatings.

Quickly expose large aggregate.

Remove hard coatings and overlays.

2.Do you provide many kinds of Bush hammer tool?

We provide 30s, 45s, 60s and other various bush hammer wheels, as well as multi-brand floor lychee surface grinding blocks and grinding discs.

3.Will the teeth of the bush hammer roller fall off

of course not,We use high-strength flux to weld the carbide tip to the grinding wheel. The grinding wheel is sturdy and durable, with a long life, and the tip is not easy to fall off.
