diamond segment Hot Sintering Press Machine
- Type:BWM-SP50,BWM-SP80
- Powder:380V,50/60Hz,380V,50/60Hz
- Rated working pressure:0-20 Ton
- Heating power:30KW-50KW,30KW-80KW
- Opening height:220mm,250mm
- Workbench acreage:180mm*180mm,200mm*200mm
- Temp control range:0℃-1100℃,400℃-1200℃
- Volume:700mm*1400mm*1800mm,820mm*1450mm*2100mm
- Weight:1000 Kg,1300 Kg
| Product Description: |
Boreway BWM-SP50 and BWM-SP80 sintering machine for diamond segment are designed for sintering the diamond segments, wire saw beads, the diamond grinding wheel and other kinds of segments for diamond tools.This machine is composed of main frame, hydraulic system, electronic unit, thermometric element and cooling system etc. Depending on the master-slave structural double- computer control system, the intelligent equipment can achieve automatically the whole sintering process according to the craft curves tabulated by customer, including controlling temperature and pressure, adjusting power, together with operating conveniently and controlling high accurately
Features:
1* Manual operation.
2* Low failure rate.
3* Operator needs have rich experience.
4* Reasonable and low price.
5* Saving electricity and time.
6* Intelligent PID temperature adjustor, with high precision.
7* Non-contact infrared pyrometer with quick response, laser aiming at the goal.
8* Automatically adjusting temperature, pressure and time and Permitting to adjust them manually.
9* Controlling the press force and the temperature in the closed loop way, increasing the press force and temperature according to the slope.
2* Low failure rate.
3* Operator needs have rich experience.
4* Reasonable and low price.
5* Saving electricity and time.
6* Intelligent PID temperature adjustor, with high precision.
7* Non-contact infrared pyrometer with quick response, laser aiming at the goal.
8* Automatically adjusting temperature, pressure and time and Permitting to adjust them manually.
9* Controlling the press force and the temperature in the closed loop way, increasing the press force and temperature according to the slope.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
Specification of diamond segment sintering machine:
Single layer mechanical diamond segment cold press machine:
Hot press and sinter machine packing in the wooden.
We can also pack the sinter machine according to your requirements.
Special specifications need to be negotiated for delivery times.
Fujian Nanan Boreway Machinery Co.,Ltd.
Address: Shuitou Town,Quanzhou, Fujian, China
Post Code: 362342
TEL: (+86)595-86990206/(+86)13559599186
FAX: (+86)595-86990220
WhatsApp:+86-13559599186
Facebook: Ally Huang
Other specifications can be customized according to requirements.
| Details: |
| Parameters | Numerical | Numerical |
| Type | BWM-SP50 | BWM-SP80 |
| Power | 380V 50/60HZ | 380V 50/60HZ |
| Rated working pressure | 0-20 ton | 0-20 ton |
| Heating power | 30-50 kw | 30-80 kw |
| Opening height | 220 mm | 250 mm |
| Workbench acreage | 180*180 mm | 200*200 mm |
| Temp control range | 400-1100 ℃ | 400-1200 ℃ |
| Volume | 700*1400*1800 mm | 8400*1250*2100 mm |
| Weight | 1000 kg | 1300 kg |
Note:
Other specification can be customized according to need.
| Pictures: |

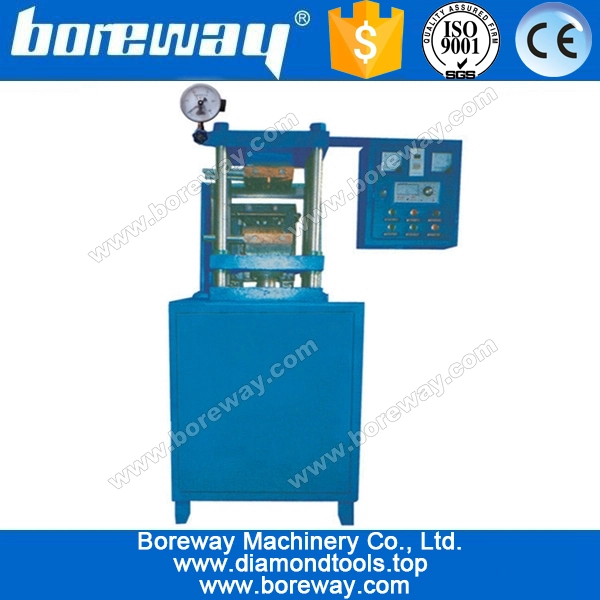

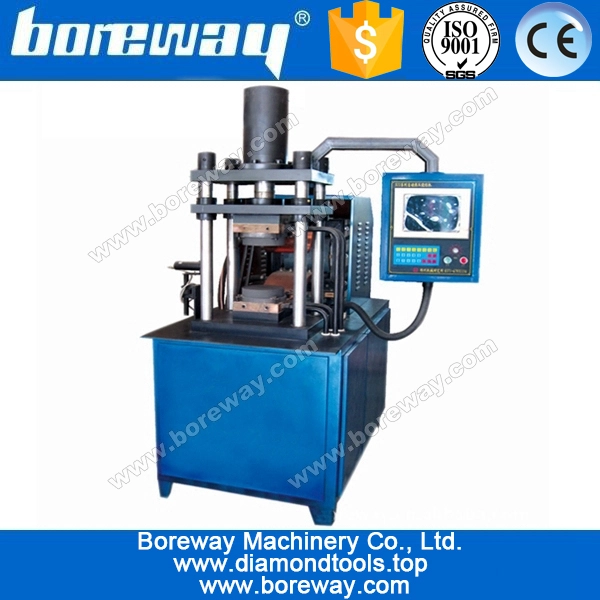

The following shows are only part of hot press and sinter machine:
| Other Products: |
| Packing & Shipping: |
We can also pack the sinter machine according to your requirements.
Special specifications need to be negotiated for delivery times.
