60Ton Powder metal compacting presses machine for diamond segments china factory

  • Model: BMW-60T
  • Motor Power: 4KW
  • The rated voltage: 380V
  • The rated current: 10A
  • Distance of upward: 80MM
  • Work efficiency: 29Times / Min
  • Weight accuracy of metal piece: ±2%
  • Quantity of metal piece per time: 1- 4PC
  • The largest volume of hopper box: 30KGS
  • Maximum height of metal powder: 0.5-30MM
  • Minimum size of mould cavity: 5*5MM

Product Description:
Introduction:

Fully Automatic Mechanical Cold Press Machine For Diamond Segments is divided into two different models according to the different pressure (BWM-35T and BWM-60T).  On the basis of the commonly used mechanical cold press machines, We made too much improvement and adjustment. It can be used for pressing of large, medium and small saw blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc.

Features:

1. Small and delicate LED work light;
2. The screen is working together with the brake, greatly increasing safety factor for operator;
3. It also can be used for pressing the segment with a base layer of metal powder (welding layer).
4. Feeding the metal powder in the way of mechnical, feeding more twice extraly in a short distance and more accurate;
5. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
6. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipments, increasing service life of the machine;
7.The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;

Advantage:
Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , more than 20 different countries . In these overseas markets,our products enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
Details:
Specification of fully automatic mechanical cold press machine:
Model: BWM-60T
 Motor Power
 4KW
 The rated voltage  380V
 The rated current  10A
 Distance of upward
  80MM
 Work efficiency
  29Times / Min
 Weight accuracy of metal piece
  ±2%
 Quantity of metal piece per time   1- 4PC
 The largest volume of hopper box
  30KGS
 Maximum height of metal powder   0.5-30MM
 Minimum size of mould cavity   5*5MM
 Maximum size of mould cavity  50*70MM
 Size of the mould  L(220-250)*W(130-150)*H(20-40)
 Device dimension  L850 * W1150 * H1800 (Face angle)MM
 Net Weight  1000KGS
Other specifications can be customized according to buyer's requirements.
Another model, Pls click here: Fully Automatic Cold Press Machine

The following shows only part of the product,other products can be customized according to your needs
If you do not find the product you want,please contact us for more product images.   
     
Pictures:

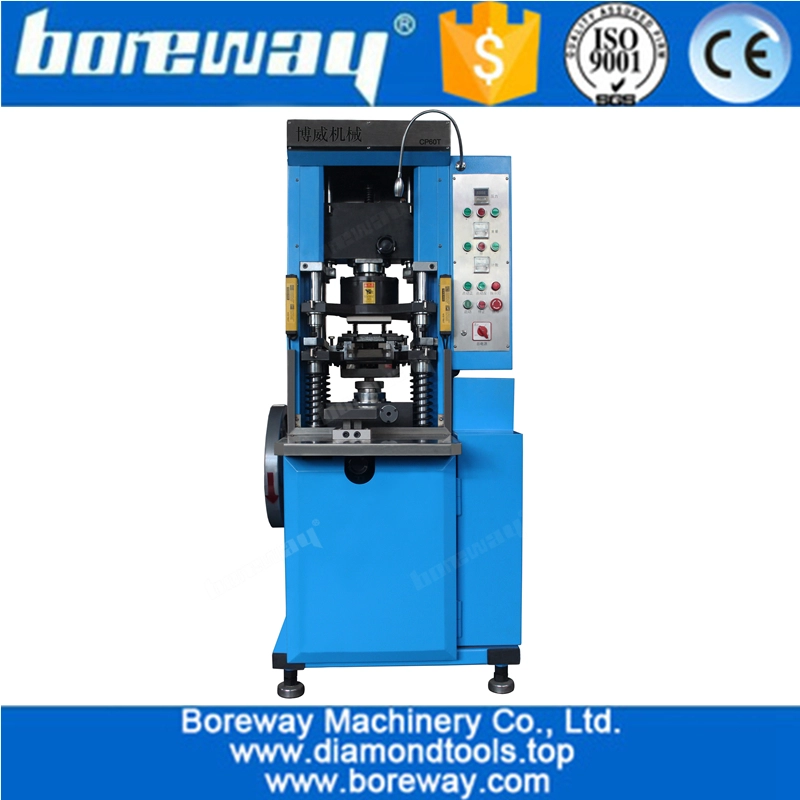

Automatic Mechanical cold press machine for diamond segments 60T

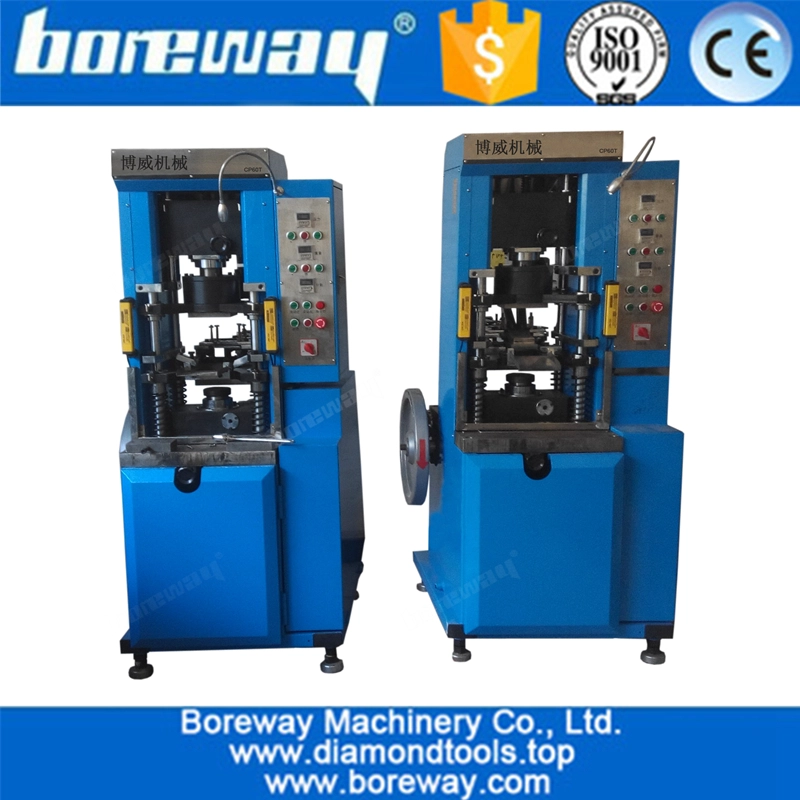

full Automatic Mechanical Cold Press Machine for diamond segments
fully Automatic Mechanical Cold Press Machine for diamond segments
The Details ofDiamond Segments Cold Press Machine                                                                   
automatic mechanical cold press machine for segment  automatic mechanical cold press machine for segment
  automatic mechanical cold press machine for segment automatic mechanical cold press machine for segment

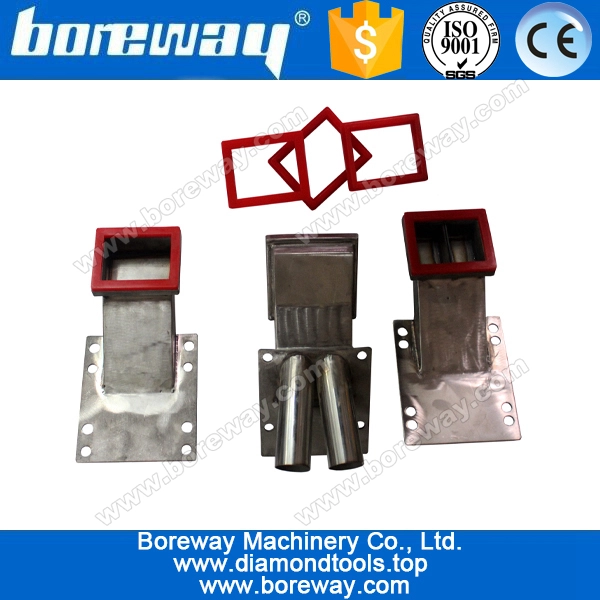

Automatic Cold Press Machine Tools Accessories included
automatic cold press machine tool accessories

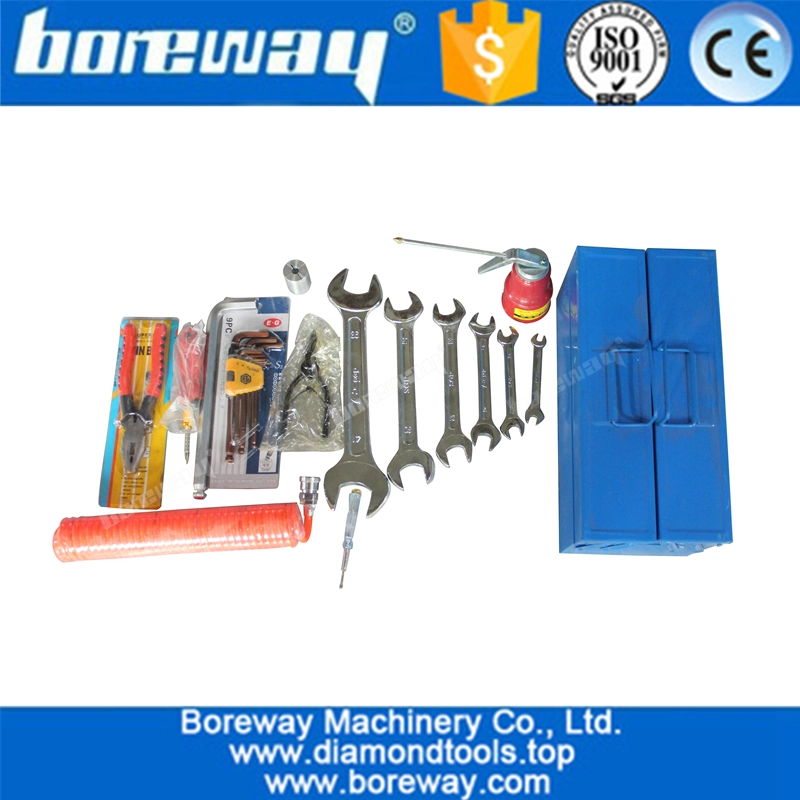

Fully Auto Cold Press machine Tool Box included
fully automatic cold press machine tool box

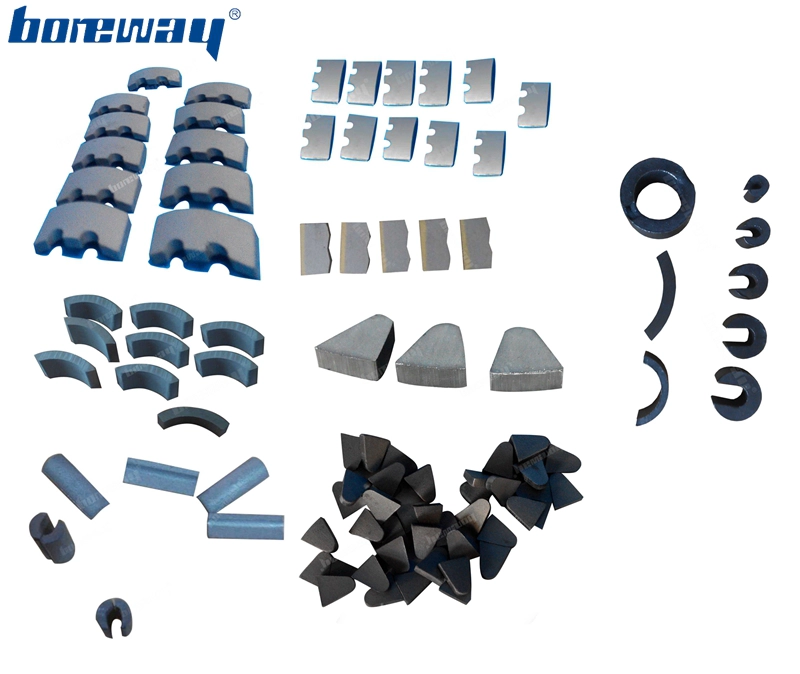

This cold press machine can make the following diamond segments,also can make other kinds.
More Pics in details, Pls contact with us :)
fully automatic cold press machine for making diamond segments

Packing and shipping:
We will deliver within seven days of your payment,products are packed in wooden.
We can also pack the products according to your requirements.
Special specifications need to be negotiated for delivery times.
fully automatic cold press machine wooden box packing

boreway machine delivery
