Automatic Hydraulic Pressing Machine- (BWM-HP)Automatic Hydraulic Pressing Machine- (BWM-HP)Automatic Hydraulic Pressing Machine- (BWM-HP)Automatic Hydraulic Pressing Machine- (BWM-HP)

Automatic Hydraulic Pressing Machine- (BWM-HP)

  • Model:BW-HP50
  • Power:7.5 KW
  • Rated Current:15 A
  • Finished error:±0.1 g
  • Efficiency:6 times / Min (3 layers)
  • Pressing layers:1-9 Layers
  • Dimensions:1560mm × 810mm × 1750mm
  • Rated voltage:380V, 50Hz
  • Working Pressure:50 Ton
  • Packing depth:1-40 mm
  • Weight:1.3 Ton
Product Description:
Brief Introduction:
The BWM-HP50-L cold pressed machine is designed for pressing and processing multi-layers diamond segments,such as sandwich diamond segments. The control system uses new industrial PLC man-machine interface technology,reliable,intuitive and easy to understand. It’s max pressure can up to 50 ton.
Features:
1* Press many layers without granulation.
2* PLC servo control system, low failure rate.
3* Key parts are imported devices, long life.
4* Multi-layers feeding, improve the maximum accuracy.
5* Return type filling,improved accuracy to the maximum degree.
6* Oriented software operating system, especially easy operation.
7* Activity template design, remove and install mold especially convenient.
8* High efficiency, suppress sandwiches segments 8-12 pieces per minute.
9* Online technology changes, particularly flexible and easy operation.
Precautions:
Please mix the powder evenly, otherwise it will affect the quality of the segment.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Details:
Specification of Hydraulic multiple layers diamond segment cold press machines:
Type Luxury type Normal type
Parameters Numerical Numerical
Model Numerical BW-HP50
Power 7.5 KW 7.5 KW
Rated Current 15 A 15 A
Finished error ±0.1 g ±0.1 g
Efficiency 6 times / Min (3 layers) 6 times / Min (3 layers)
Pressing layers 1-9 Layers 1-9 Layers
Dimensions 1450mm × 850mm × 1750mm 1560mm × 810mm × 1750mm
Rated voltage 380V, 50Hz 380V 50Hz
Working Pressure 50 Ton 50 Ton
Packing depth 1-40 mm 1-40 mm
Weight 1.3 Ton 1.3 Ton

Other work pressure can be customized.

Pictures:
The following shows are only part of Hydraulic multiple layers diamond segment cold press machines:

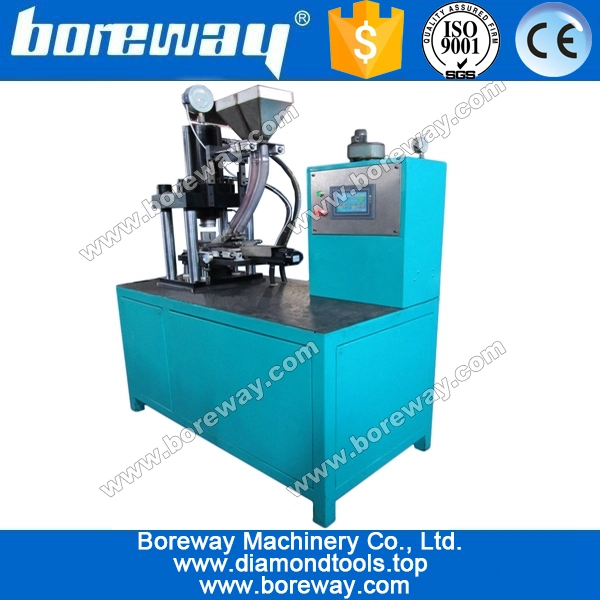

Luxury type:
BWM-HP50-L Cold pressed machine for diamond segment ( Multi-layers & Luxury)

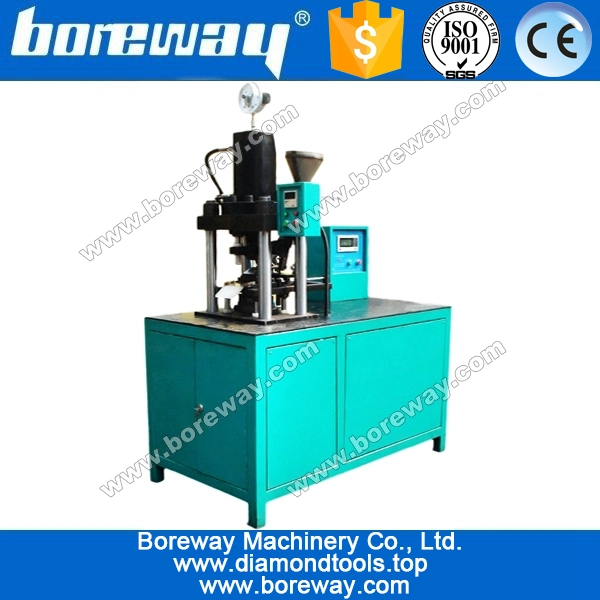

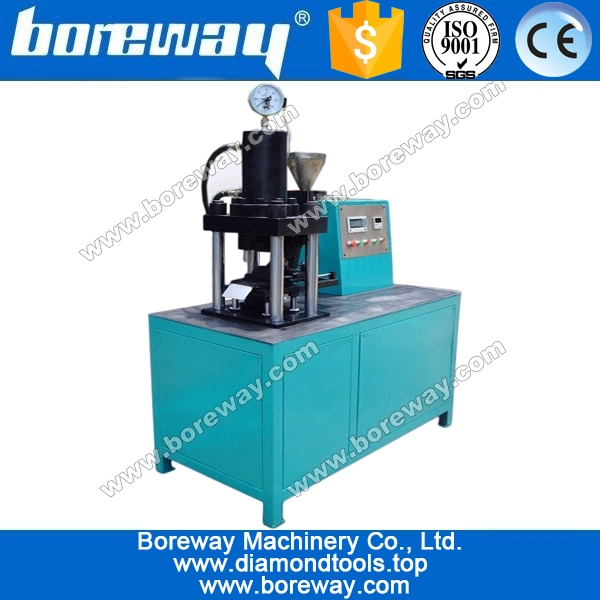

Normal type:
press machine for diamond segment
Note:
Please mix the powder evenly, otherwise it will affect the quality of the segment.
Packing & Shipping:
Hydraulic cold press machines packing in the wooden.
We can also pack the hydraulic cold press machines according to your requirements.
Special specifications need to be negotiated for delivery times.
