Abrasive Diamond Powder‎ cold press machine for diamond segments china supplierAbrasive Diamond Powder‎ cold press machine for diamond segments china supplierAbrasive Diamond Powder‎ cold press machine for diamond segments china supplierAbrasive Diamond Powder‎ cold press machine for diamond segments china supplierAbrasive Diamond Powder‎ cold press machine for diamond segments china supplierAbrasive Diamond Powder‎ cold press machine for diamond segments china supplierAbrasive Diamond Powder‎ cold press machine for diamond segments china supplier

Abrasive Diamond Powder‎ cold press machine for diamond segments china supplier

  • Name:Fully automatic mechanical cold press machine
  • Model:BWM-35T/BWM-60T
  • Maximum working pressure:35T / 60T
  • Maximum volume of hopper box:30 kg
  • Weight accuracy of piece:±2%
  • Quantity of piece per time:1-4 PCS
  • Work efficiency:21-25 Times/Min
  • Device dimension:L810 * W1000 * H1600   L850 * W1150 * H1800
  • Place of origin:China

Product Description:
Introduction:
Fully Automatic Mechanical Abrasive Diamond Powder‎ cold press machine for diamond segments is divided into two different models according to the different pressure ( BWM-35T and BWM-60T). On the basis of the commonly used mechanical cold press machines, We made too much improvement and adjustment. It can be used for pressing of large, medium and small saw blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc,this machine can also press other powders such as ceramic powder, metal powder and so on.Now , in china , most of factories use this series of machines in the field of diamond tools.

Features:
1. Small and delicate LED work light;
2. It also can be used for press ceramic powder and metal powder etc.
3.The screen is working together with the brake, greatly increasing safety factor for operator;
4. Feeding the metal powder in the way of pneumatic, feeding more twice extraly in a short distance and more accurate;
5. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
6. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipment,increasing service life of the machine;
7.The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;

Advantage:
Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , Iran, Pakistan, etc., more than 20 different countries. In these overseas markets,our products enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.

All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.


Details:
Specification of Abrasive Diamond Powder‎ cold press machine for diamond segments

Parameter

Maximum working pressure

35000 Kg

60000KG

Maximum size of mould cavity

40*70 MM

50*70MM

Size of the mould

L (220-250) * W 130 * H (20-30) MM

L(220-250)*W(130-150)*H(20-40) MM

The largest volume of hopper box

30 Kg

30 KG

Maximum height of metal powder

0.5-20 MM

0.5-30 MM

Weight accuracy of metal piece

±2%

±2%

Quantity of metal piece per time

1 - 4 PCS

1-4 PCS

Motor Power

2.2 KW

4 KW

The rated voltage

380 V

380 V

The rated current

6 A

10 A

Work efficiency

25 Times/Min

21 Times/Min

Distance of upward

64 MM

80 MM

Device dimension

L810 * W1000 * H1600

L850 * W1150 * H1800

Net weight

760 Kg

1000 KG

Other specifications can be customized according to requirements.

The following shows only part of the product,other products can be customized according to your needs
If you do not find the product you want,please contact us for more product images.

        
Pictures:

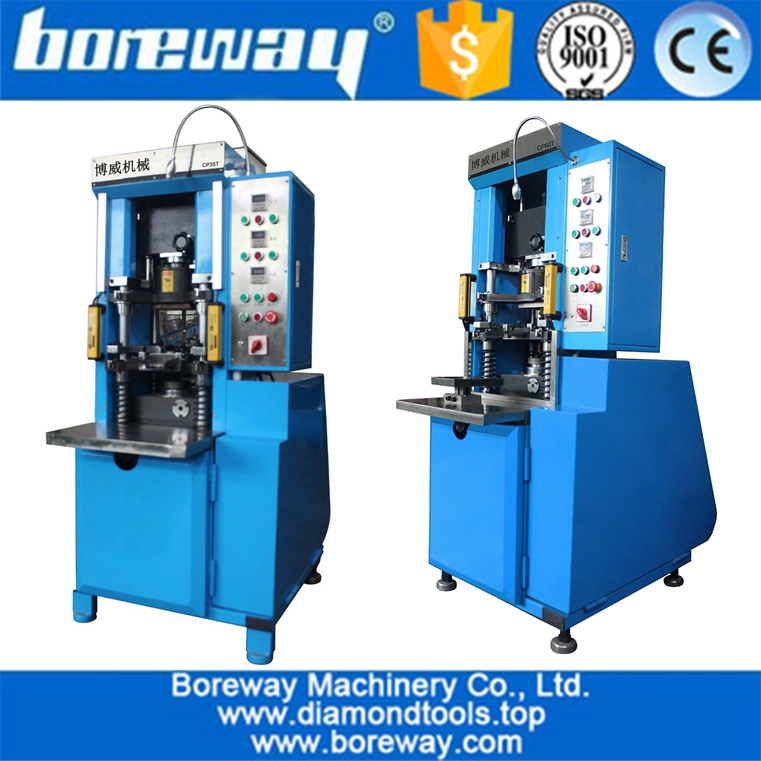

Abrasive Diamond Powder‎ cold press machine for diamond segments 35T
Automatic Mechanical cold press machine for diamond segments 35T 60T
Abrasive Diamond Powder‎ cold press machine for diamond segments 60T
Automatic Mechanical cold press machine for diamond segments 35T 60T
The Details of Abrasive Diamond Powder‎ cold press machine                                              
automatic mechanical cold press machine for segment  automatic mechanical cold press machine for segment
  automatic mechanical cold press machine for segment automatic mechanical cold press machine for segment
Abrasive Diamond Powder‎ cold press machine Tools Accessories included
Automatic Cold Press Machine Tools Accessories

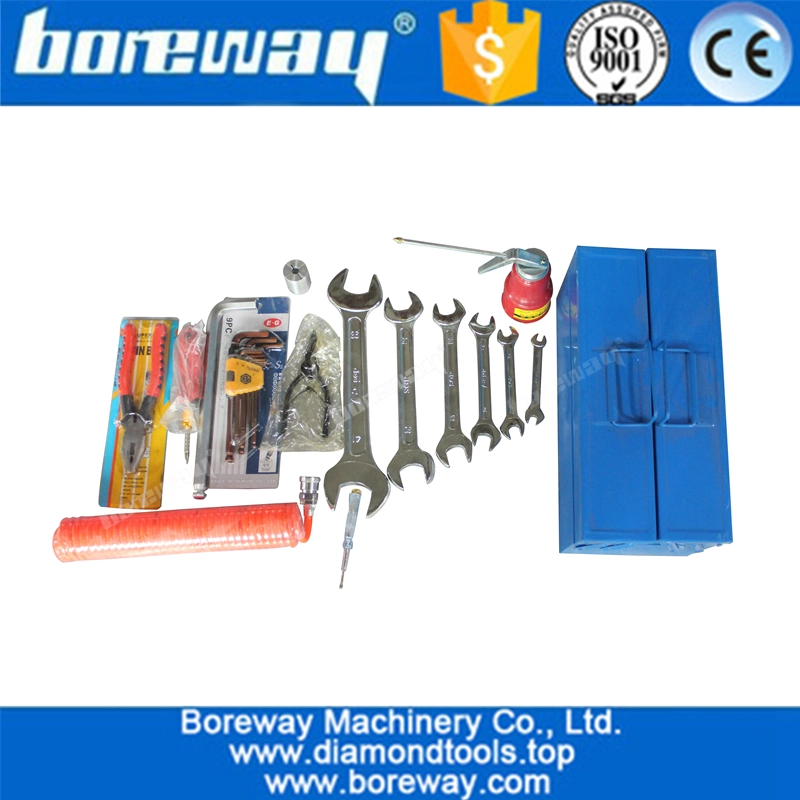

Abrasive Diamond Powder‎ cold press machine Tool Box included
automatic cold press machine tool box

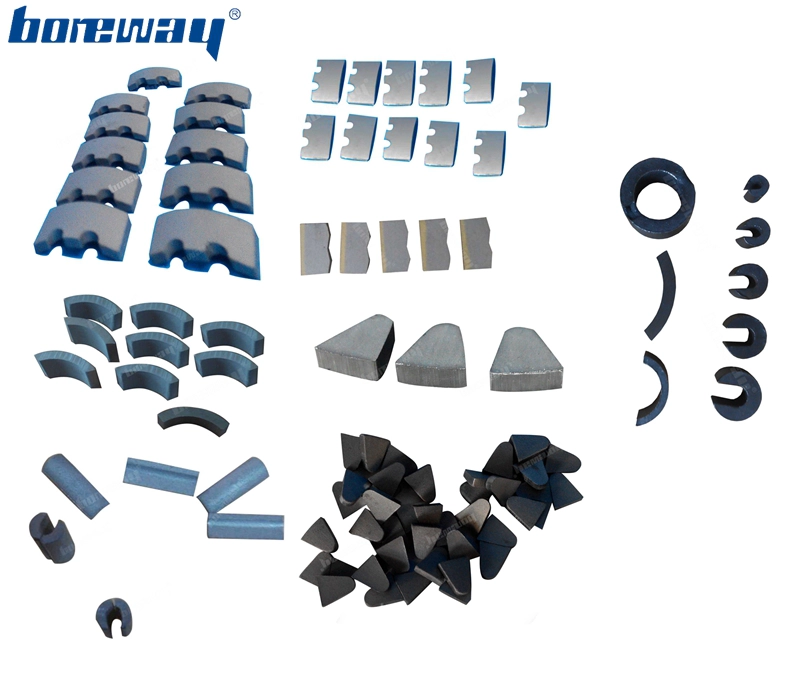

This cold press machine can make the following diamond segments,also can make other kinds.
More Pics in details, Pls contact with us :)
fully automatic cold press machine making diamond segments

Packing and shipping:
We will deliver within seven days of your payment,products are packed in wooden.
We can also pack the products according to your requirements.
Special specifications need to be negotiated for delivery times.
automatic cold press machine wooden box packing
boreway machine delivery
