Semi Automatic Diamond Saw Blade Welding Machine best selling diamond saw blade welding rackSemi Automatic Diamond Saw Blade Welding Machine best selling diamond saw blade welding rackSemi Automatic Diamond Saw Blade Welding Machine best selling diamond saw blade welding rackSemi Automatic Diamond Saw Blade Welding Machine best selling diamond saw blade welding rackSemi Automatic Diamond Saw Blade Welding Machine best selling diamond saw blade welding rackSemi Automatic Diamond Saw Blade Welding Machine best selling diamond saw blade welding rack

Semi Automatic Diamond Saw Blade Welding Machine best selling diamond saw blade welding rack

  • Model No:BWM-HJ08
  • Welding Range:240mm - 900mm(Max 1400mm)
  • Verticality:≤± 0.3mm
  • Parallelism:≤± 0.3mm
  • Welding Rate:4-20 PCS/Min
  • Water Consumption:1.5M³/h
  • Equipment Weight:85Kg
  • Machine Dimensions:L940*W440*H1440mm
  • Package Weight:115kg
  • Package Dimensions:L1600*W520*H550
Introduction:
The "BWM-HJ08" Semi-Automatic Brazing Welding Frame Rack Machine is used for Welding Diamond Circular Saw Blade from ø250mm to ø1400mm ( Should be boosted 500mm high). In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.



This machine has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.



Features:
1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;
5. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.

All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
Specification:

Specification of BWM-HJ08 Diamond Saw Blade Induction Heater Brazing Machine:

Model No:   BWM-HJ08
Welding Range Φ240mm - 900mm(Max 1400mm)
Verticality ≤± 0.3mm
Parallelism ≤± 0.3mm
Welding Rate 4-20 PCS/Min
Air Pressure 0.3 - 0.6Mpa
Water Pressure ≥ 0.2Mpa
Voltage 220V (Single-phase)50Hz
Power(From LED Light) 1.0W
Water Consumption 1.5 - 2m³/h
Machine Dimensions L940*W440*H1440mm
Equipment Weight 85Kg
Package Dimensions L1600*W520*H550(Horizontally)
Package Weight(Wooden Package) 115Kg

Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.

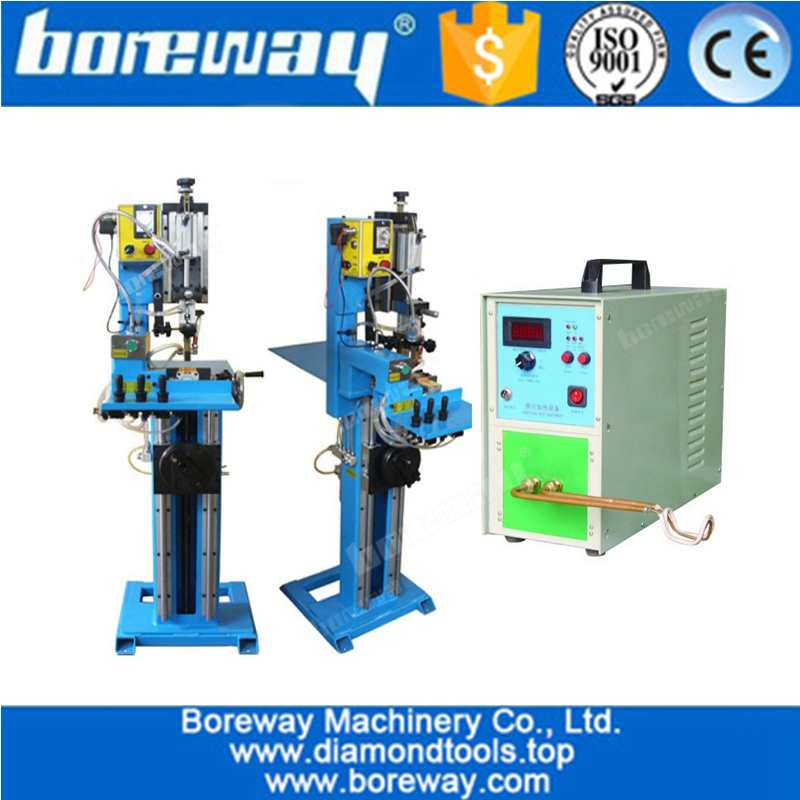

1.2m brazing welding frame rack high frequency induction heating welding machine

Pls click Here:  High Frequency Induction Heating Welding Machine  for more information.

Another bigger model, Pls click here: HJ165 Semi-automatic welding frame rack


Pictures:

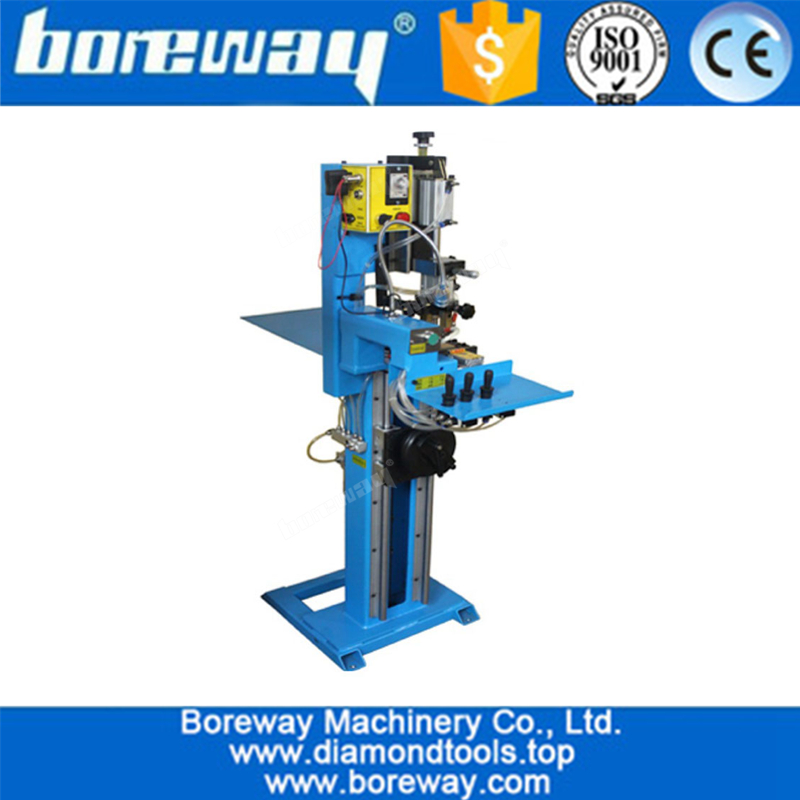

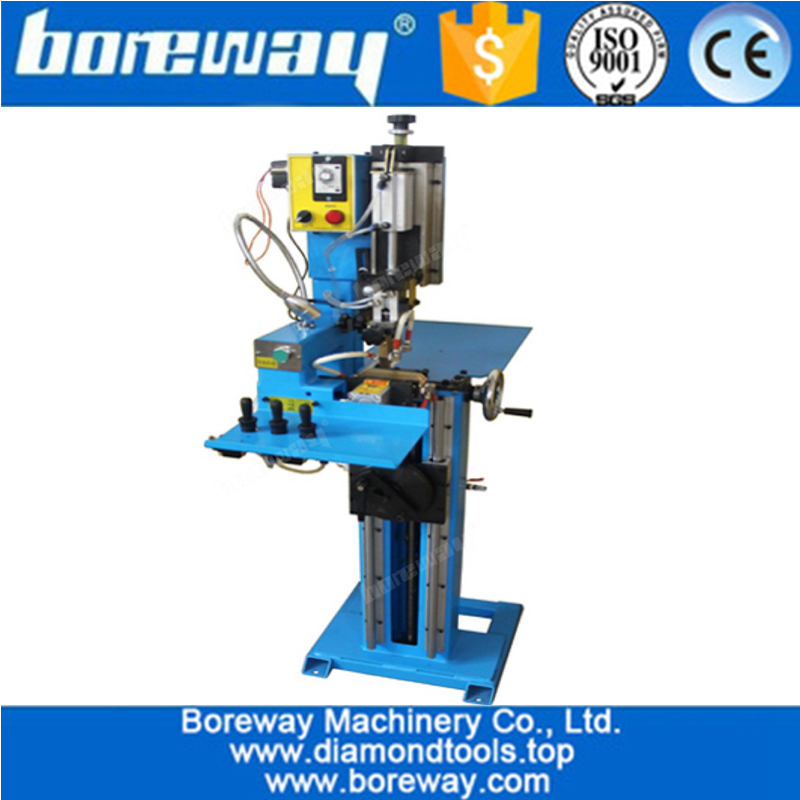

Welding Frame Rack Machinefor Circular Diamond Saw Blades
Semi Automatic Brazing Welding Frame Rack Machine for diamond saw blade   Semi Automatic Brazing Welding Frame Rack Machine for diamond saw blade

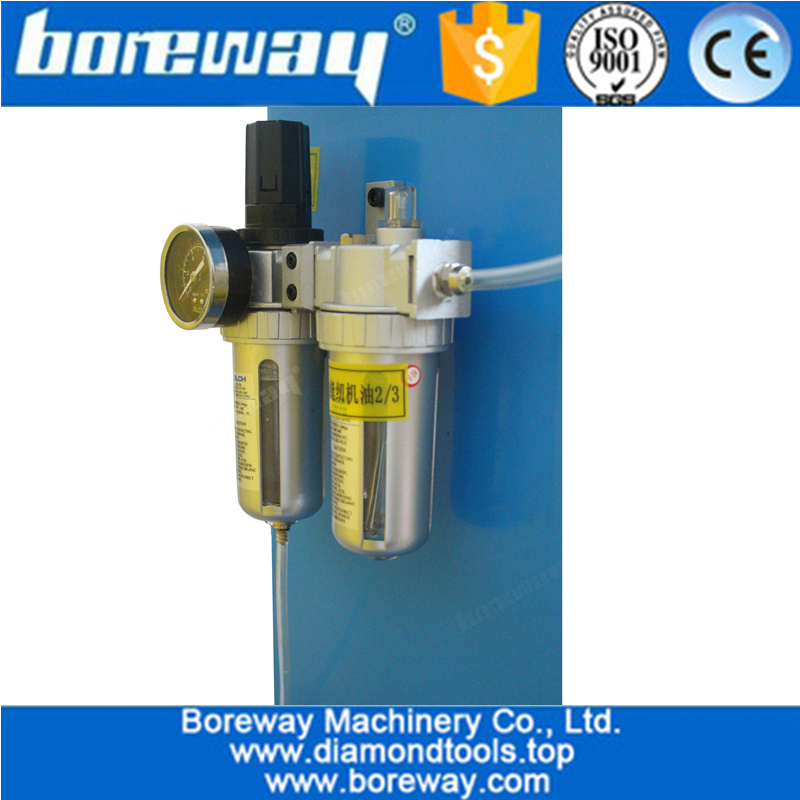

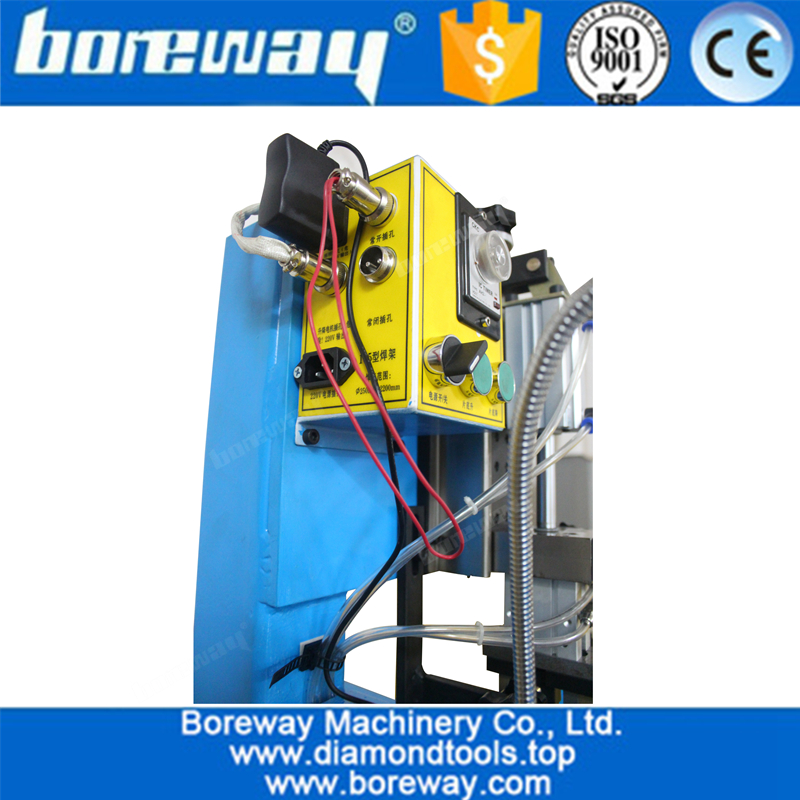

Details of the Welding Frame Rack for diamond saw blade 1.2m
Semi Automatic Brazing Welding Frame Rack Machine for diamond saw bladeSemi Automatic Brazing Welding Frame Rack Machine for diamond saw blade
Semi Automatic Brazing Welding Frame Rack Machine for diamond saw bladeSemi Automatic Brazing Welding Frame Rack Machine for diamond saw blade

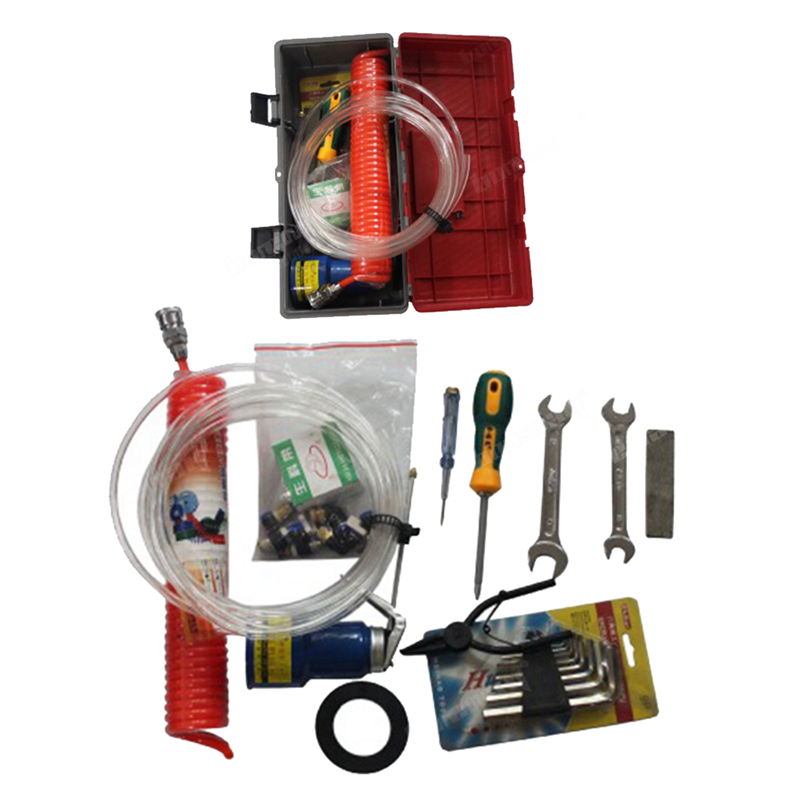

Brazing Welding Frame Rack Tool Box:
brazing welding frame rack tool box for diamond saw blade

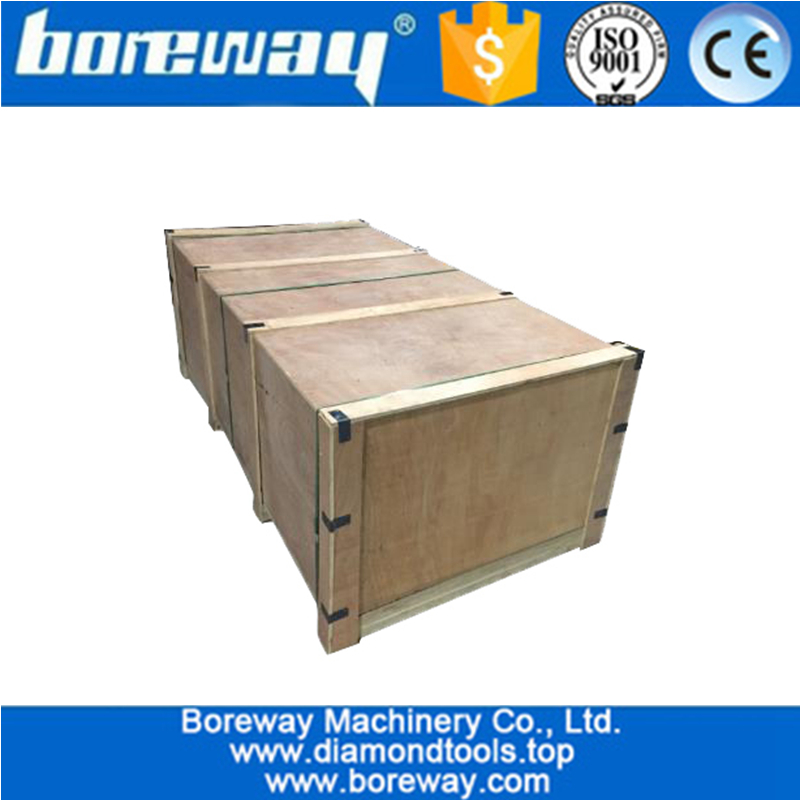

The Packing of Welding Frame Rack For Circle Diamond Saw Blade
boreway machinery packing mdf wooden box
Packing & Shipping:

Diamond saw blade welding frame packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.

boreway machinery delivery
