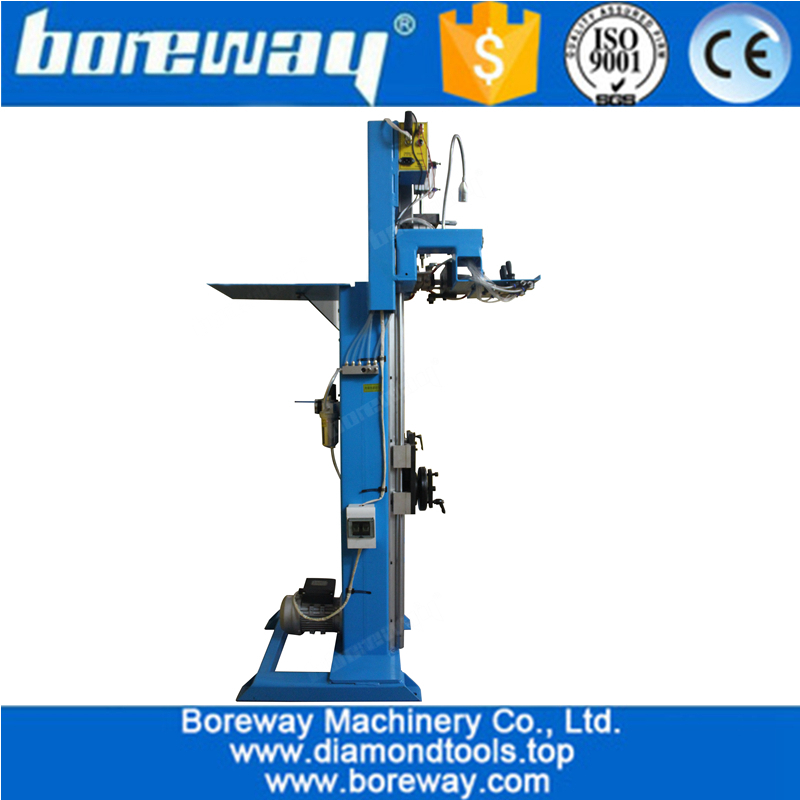

Semi-automatic  Brazing Welding Frame Rack machine for circular diamond saw blade BWM-HJ165 China factory priceSemi-automatic  Brazing Welding Frame Rack machine for circular diamond saw blade BWM-HJ165 China factory priceSemi-automatic  Brazing Welding Frame Rack machine for circular diamond saw blade BWM-HJ165 China factory priceSemi-automatic  Brazing Welding Frame Rack machine for circular diamond saw blade BWM-HJ165 China factory priceSemi-automatic  Brazing Welding Frame Rack machine for circular diamond saw blade BWM-HJ165 China factory priceSemi-automatic  Brazing Welding Frame Rack machine for circular diamond saw blade BWM-HJ165 China factory price

Semi-automatic Brazing Welding Frame Rack machine for circular diamond saw blade BWM-HJ165 China factory price

  • Model: BWM-HJ165
  • Current:0.01A
  • Rated Capacity:370W
  • Machine Weight:160kg
  • Voltage:220 (Single-phase), 50HZ
  • Power (From LED Lighting):1.0W
  • Package Weight(Wooden Package):200KGS
  • Water Consumption:1.5-2.0 cubic meter per hour
  • Machine Dimensions::L1030 * W550 * H1840
Product Description:

Brief Introduction:

The "BWM-HJ165" Semi-Automatic Brazing Welding Frame Rack Machine is used for Welding Diamond Circular Saw Blade from ø250mm to ø2300mm ( Should be boosted 1000mm high). In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.



This machine has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.



Features:
1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;
5. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Details:

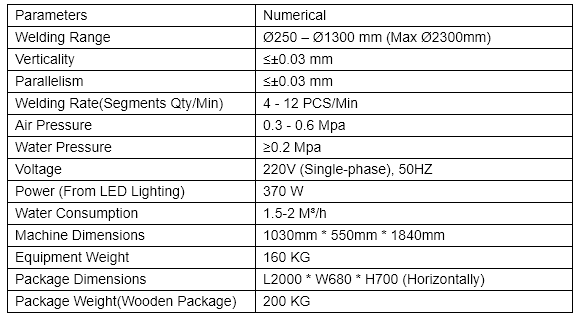

Specification of semi-automatic diamond circular saw blade welding rack
welding frame rack
Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.
semi-automatic welding frame rack for circle diamond saw blade

Pls click Here:  High Frequency Induction Heating Welding Machine   for more information.
Another small size model, pls click here: BWM-HJ08 brazing welding frame rack

PICTURES : BWM-HJ165                                                                                                                 

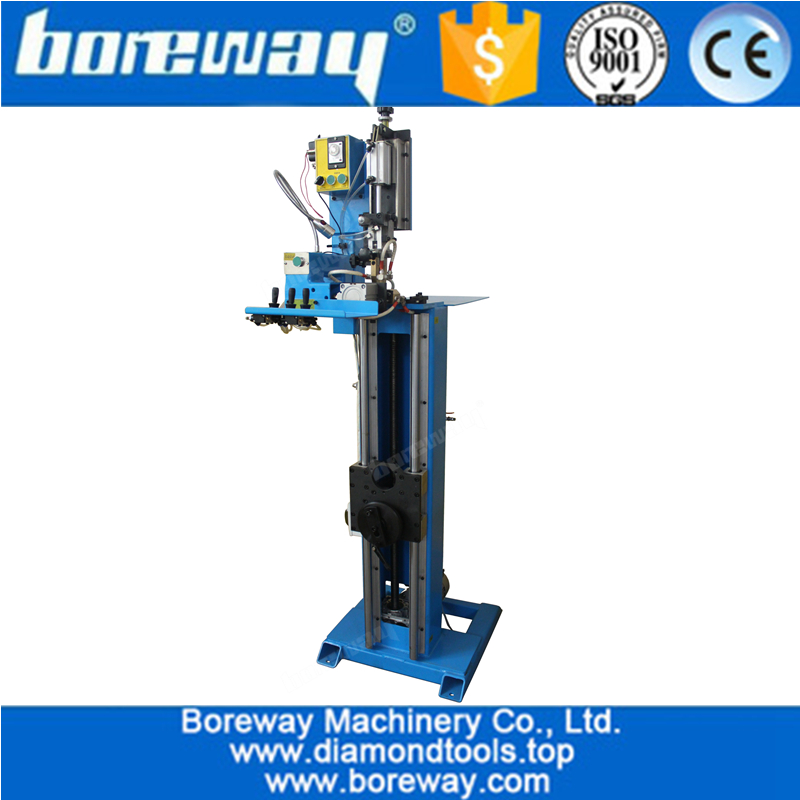

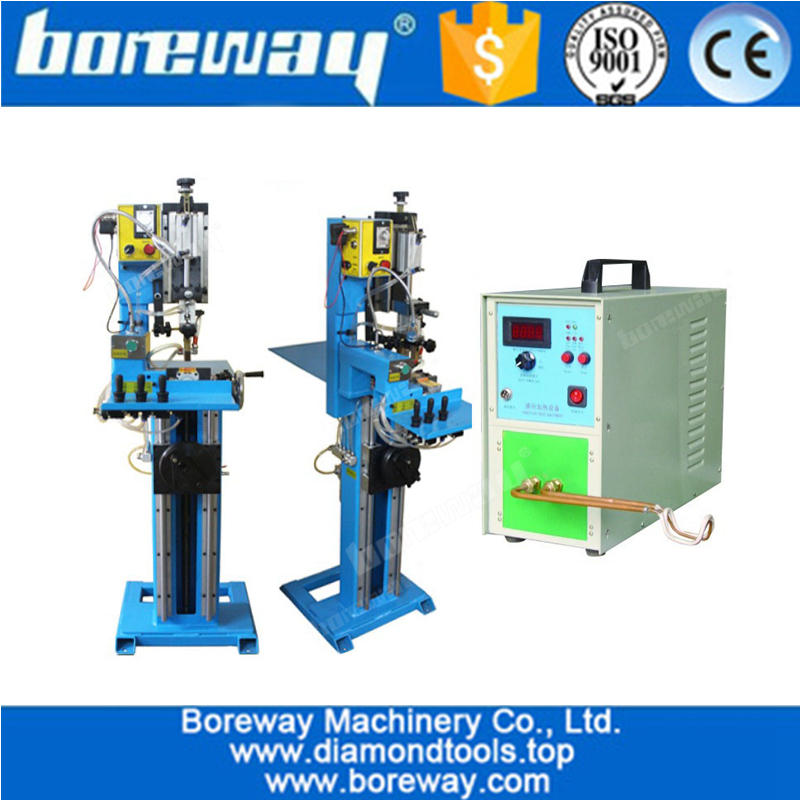

semi-automatic welding frame rack for circle diamond saw bladesemi-automatic welding frame rack for circle diamond saw blade

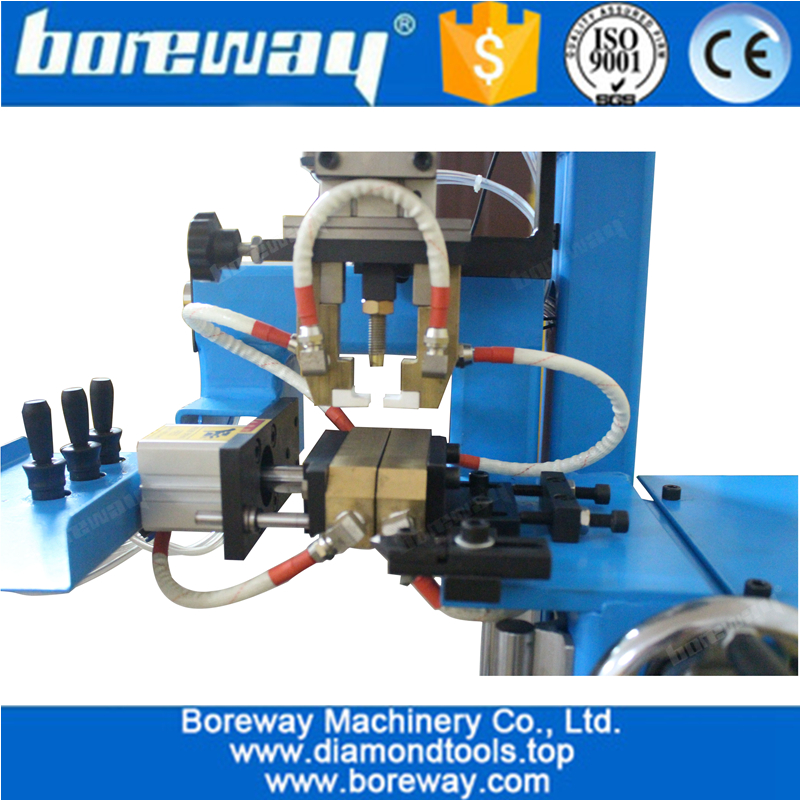

Details of the Welding Frame Rack for diamond saw blade

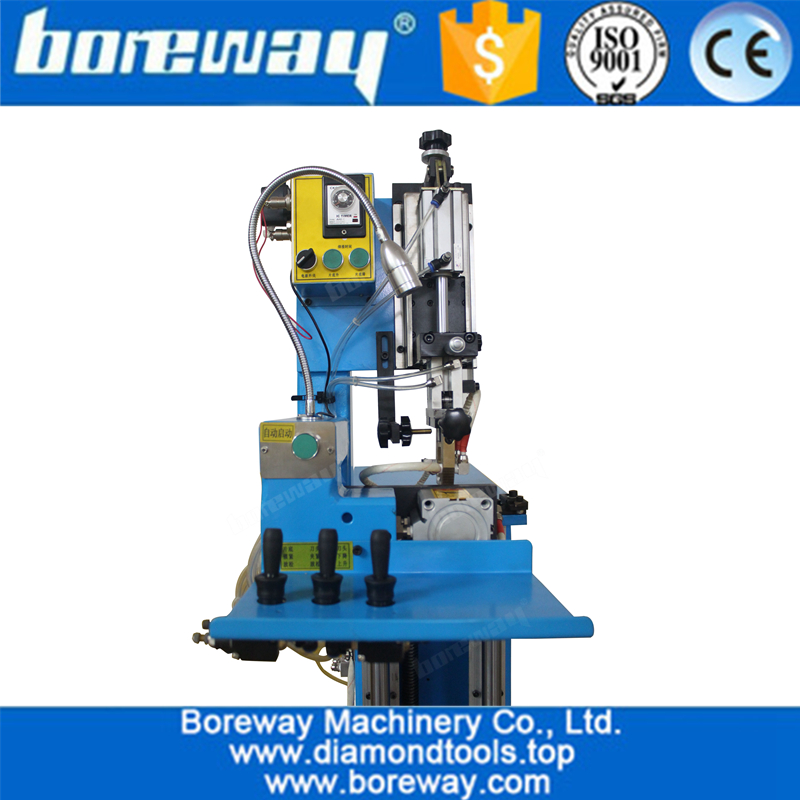

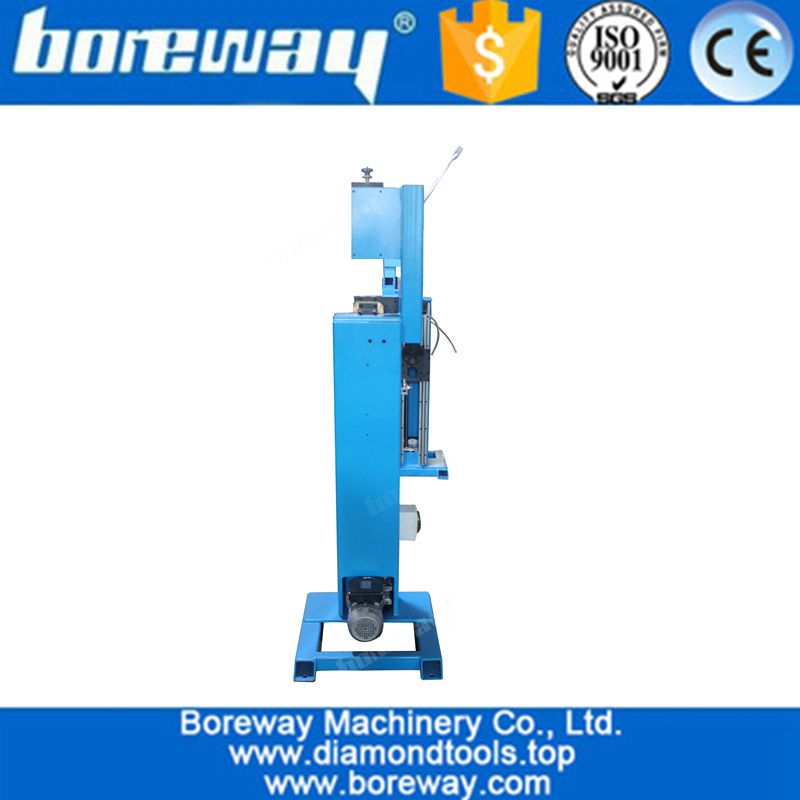

welding rack for circle diamond saw bladewelding rack for circle diamond saw blade

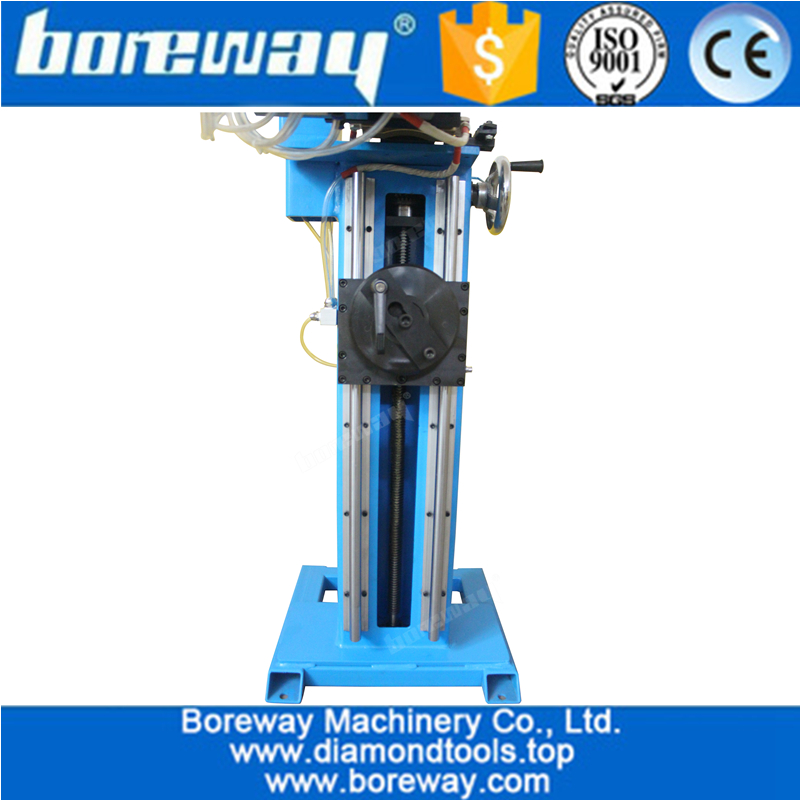

welding rack for circle diamond saw bladewelding rack for circle diamond saw blade

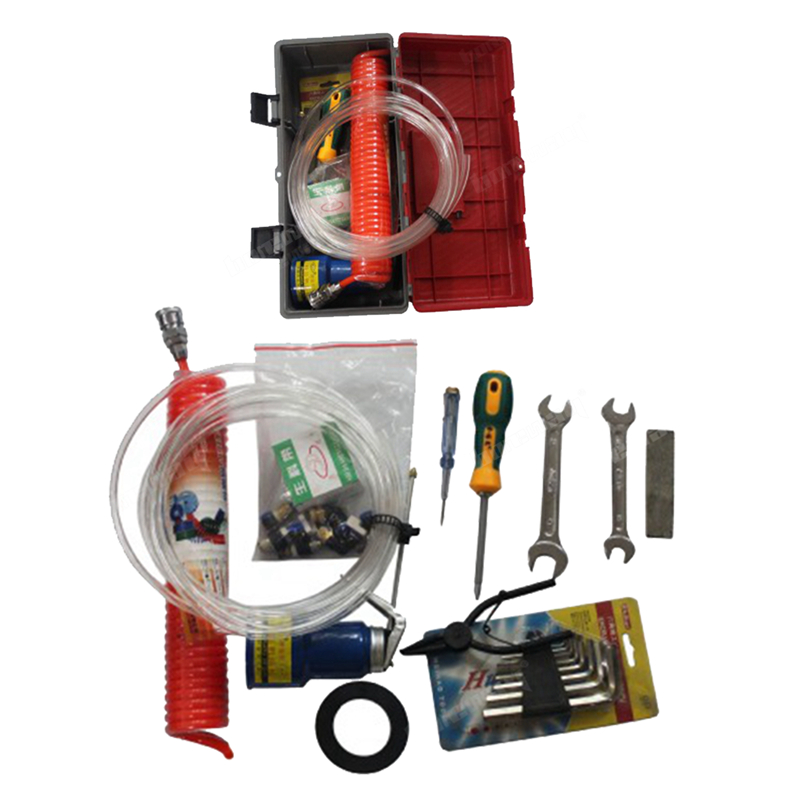

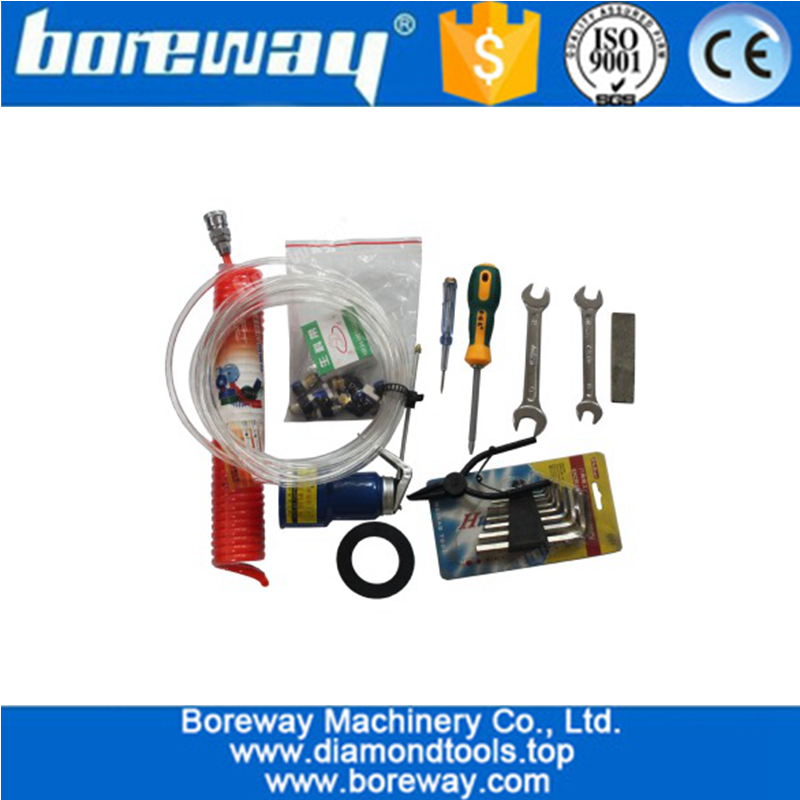

Welding Frame Rack Accessories-Tool Box        Packed in MDF Wooden box

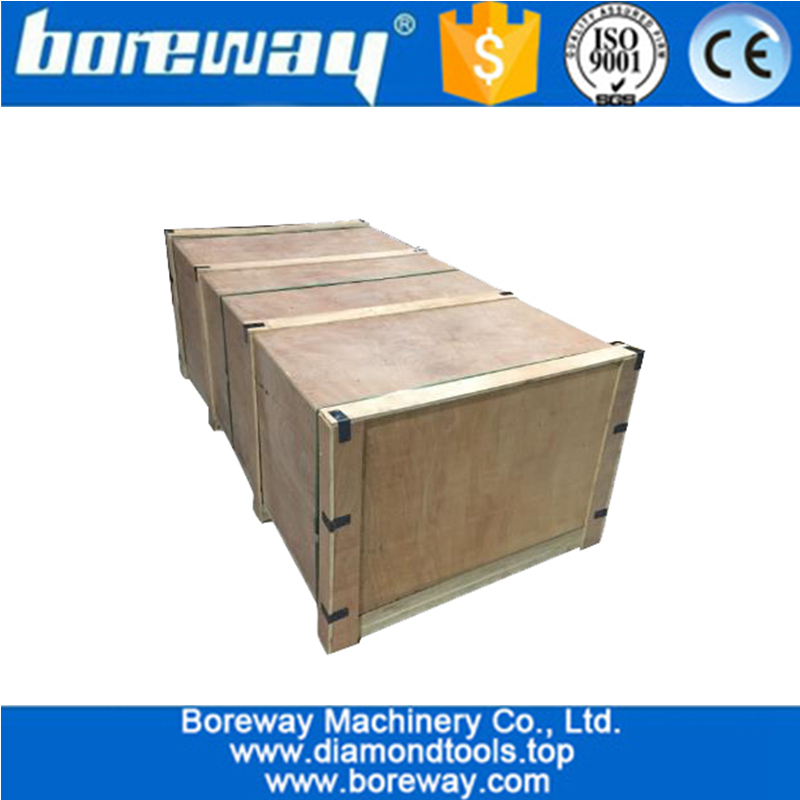

Welding Frame Rack Accessories-Tool Boxwelding frame rack wooden box
Packing & Shipping:

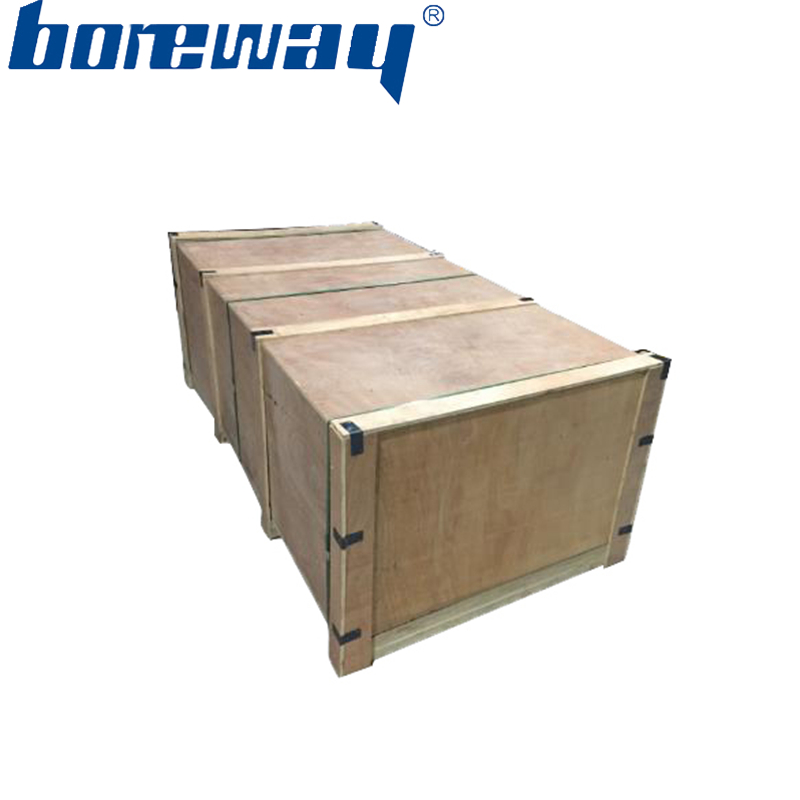

Diamond saw blade welding frame rack packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.

diamond tools machine deliver
