Semi Automatic Diamond Saw Blades Welding Frame china factory low price Diamond Saw Blade Brazing RackSemi Automatic Diamond Saw Blades Welding Frame china factory low price Diamond Saw Blade Brazing RackSemi Automatic Diamond Saw Blades Welding Frame china factory low price Diamond Saw Blade Brazing RackSemi Automatic Diamond Saw Blades Welding Frame china factory low price Diamond Saw Blade Brazing RackSemi Automatic Diamond Saw Blades Welding Frame china factory low price Diamond Saw Blade Brazing RackSemi Automatic Diamond Saw Blades Welding Frame china factory low price Diamond Saw Blade Brazing Rack

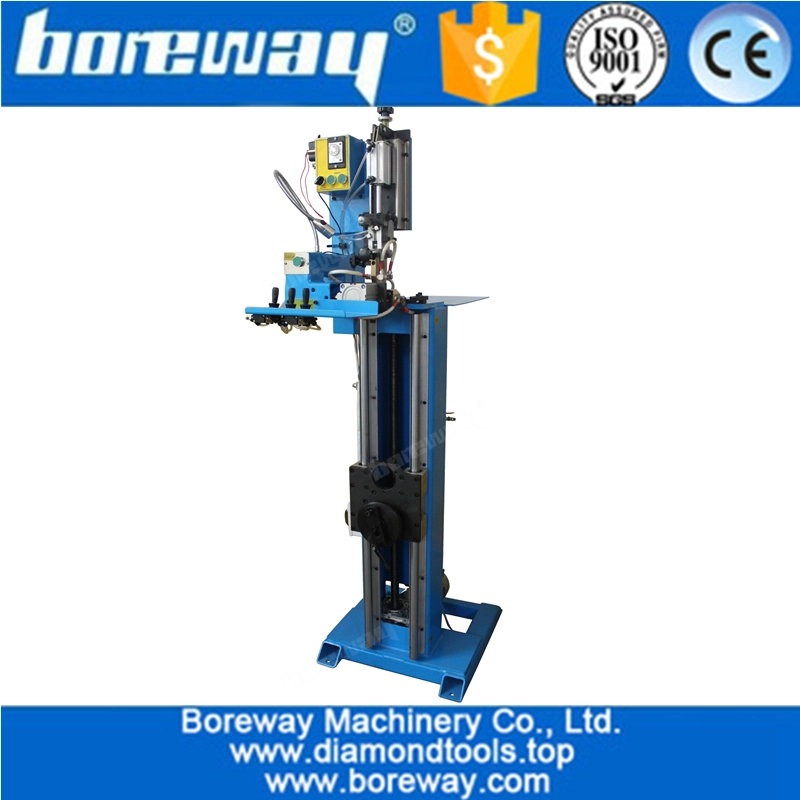

Semi Automatic Diamond Saw Blades Welding Frame china factory low price Diamond Saw Blade Brazing Rack

  • Model: BWM-HJ165
  • Current:0.01A
  • Rated Capacity:370W
  • Machine Weight:160kg
  • Voltage:220 (Single-phase), 50HZ
  • Power (From LED Lighting):1.0W
  • Package Weight(Wooden Package):200KGS
  • Water Consumption:1.5-2.0 cubic meter per hour
Product Description:

Brief Introduction:

The "BWM-HJ165" Semi-Automatic Brazing Welding Frame Rack Machine is used for Welding Diamond Circular Saw Blade from ø250mm to ø2300mm ( Should be boosted 1000mm high). In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.

 This machine has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.



Features:
1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;
5. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Specification of BWM-HJ165 Diamond saw blade welding machine:

Model No:  BWM-HJ165
Welding Range Φ240mm - 2300mm(standard Φ1300mm)
Verticality ≤± 0.3mm
Parallelism ≤± 0.3mm
Welding Rate 4-20 PCS/Min
Air Pressure 0.3 - 0.6Mpa
Water Pressure ≥ 0.2Mpa
Voltage 220V (Single-phase)50Hz
Power(From LED Light) 370W
Water Consumption 1.5 - 2m³/h
Machine Dimensions L1030*W550*H1840mm
Equipment Weight 160Kg
Package Dimensions L2000*W680*H700(Horizontally)
Package Weight(Wooden Package) 200Kg

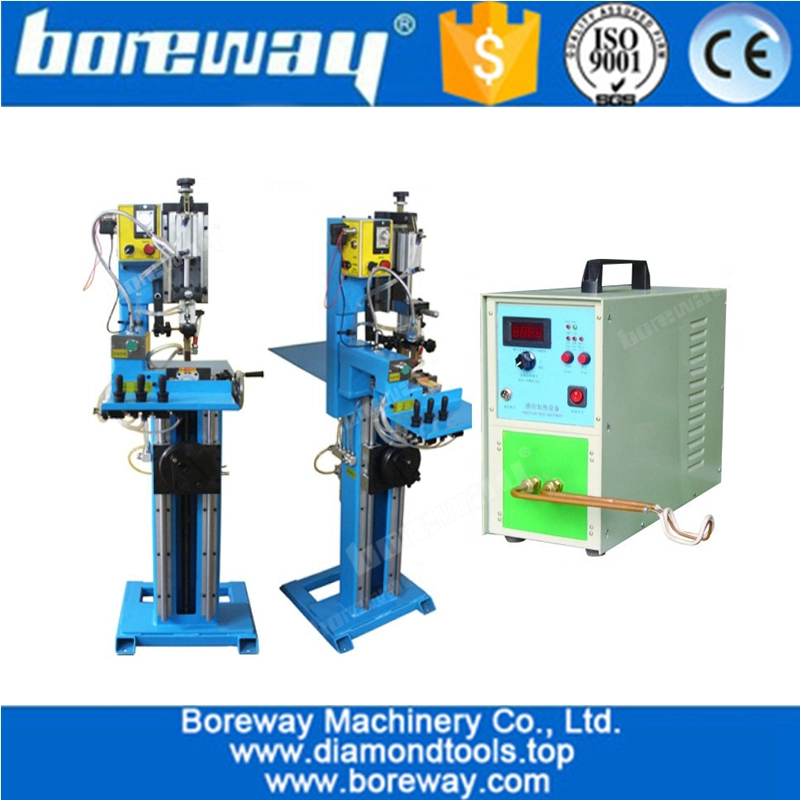

Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.semi automatic brazing welding frame rack connect with high frequency induction heating welding machine

Pls click Here:  High Frequency Induction Heating Welding Machine   for more information.  

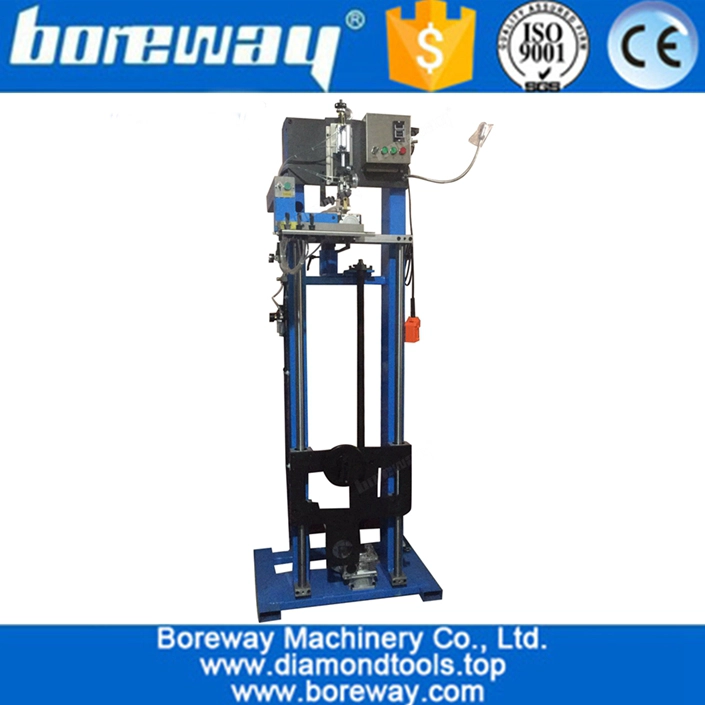

Another small size model, pls click here: BWM-HJ08 brazing welding frame rack

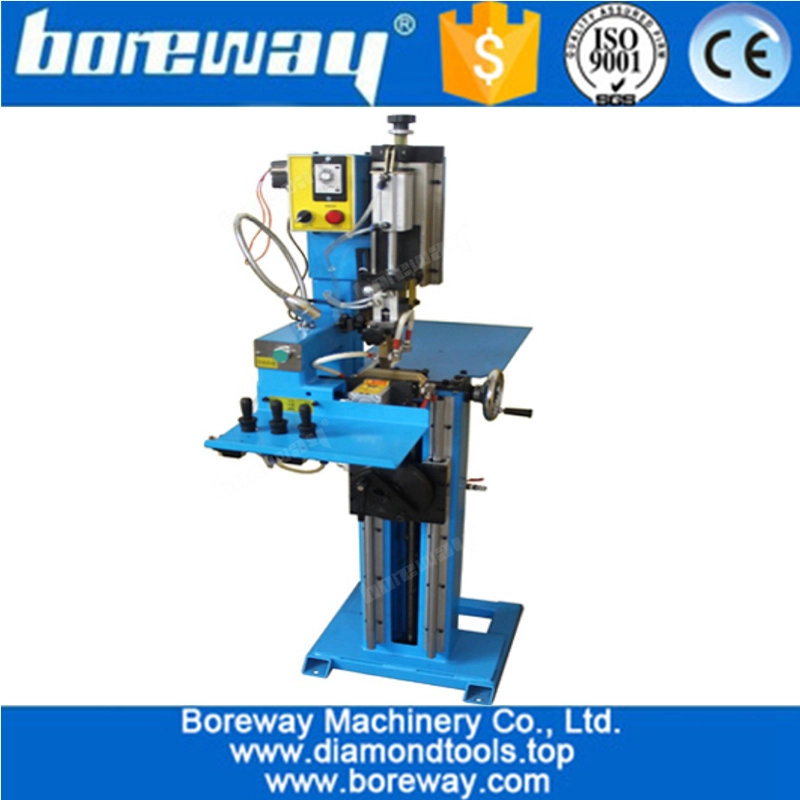

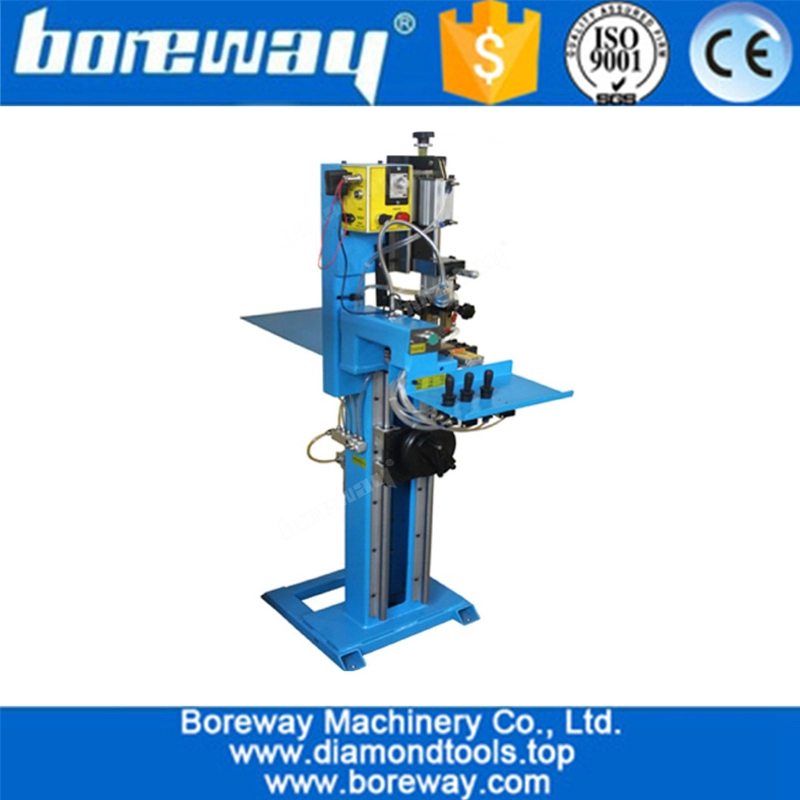

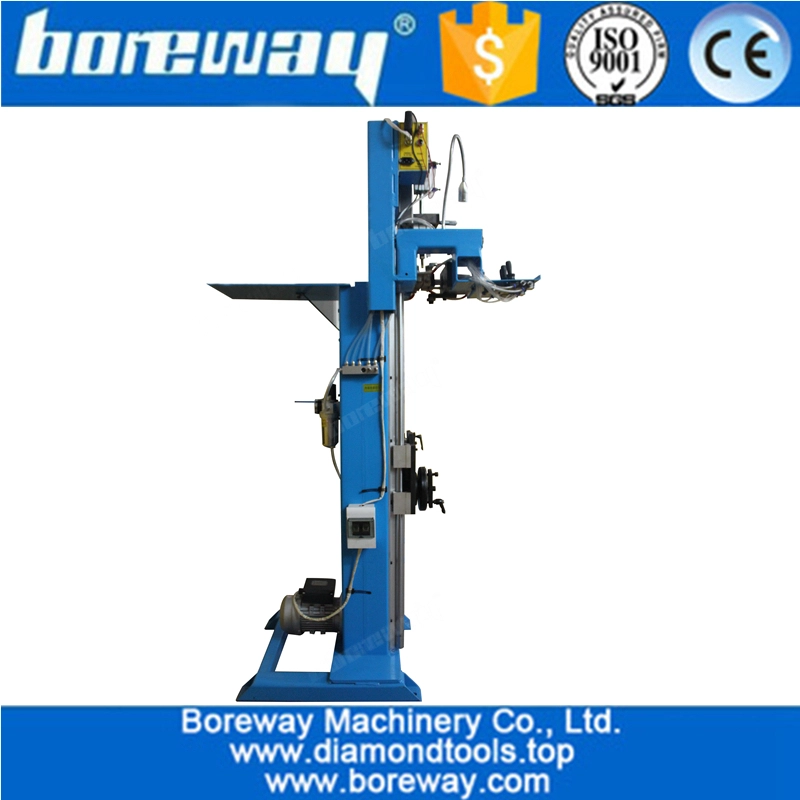

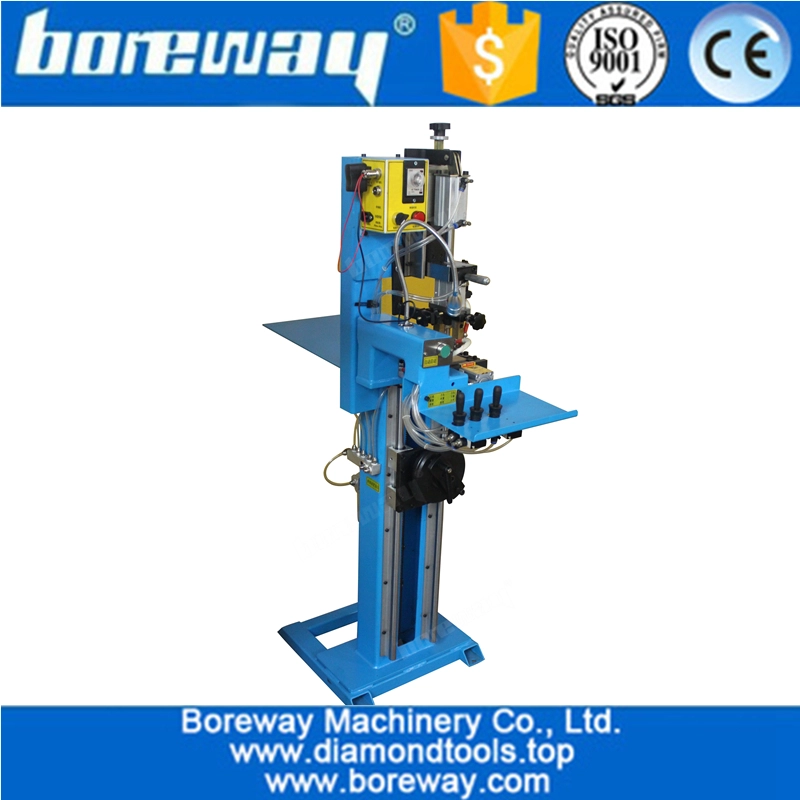

PICTURES : BWM-HJ165

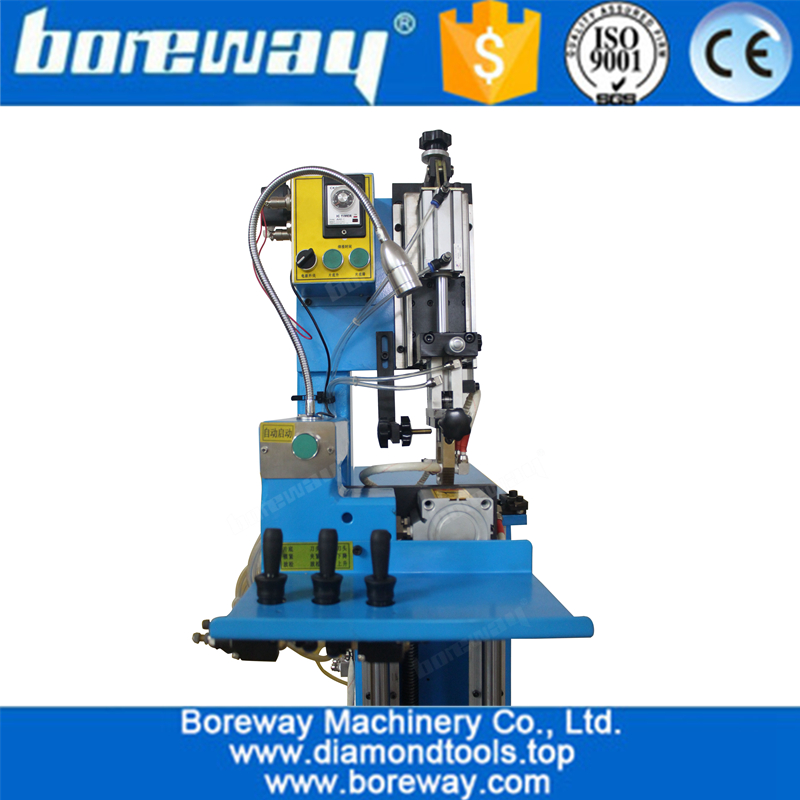

250-1300mm(2300mm)semi automatic brazing welding frame rack for circle diamond saw blade250-1300mm(2300mm)semi automatic brazing welding frame rack for circle diamond saw blade

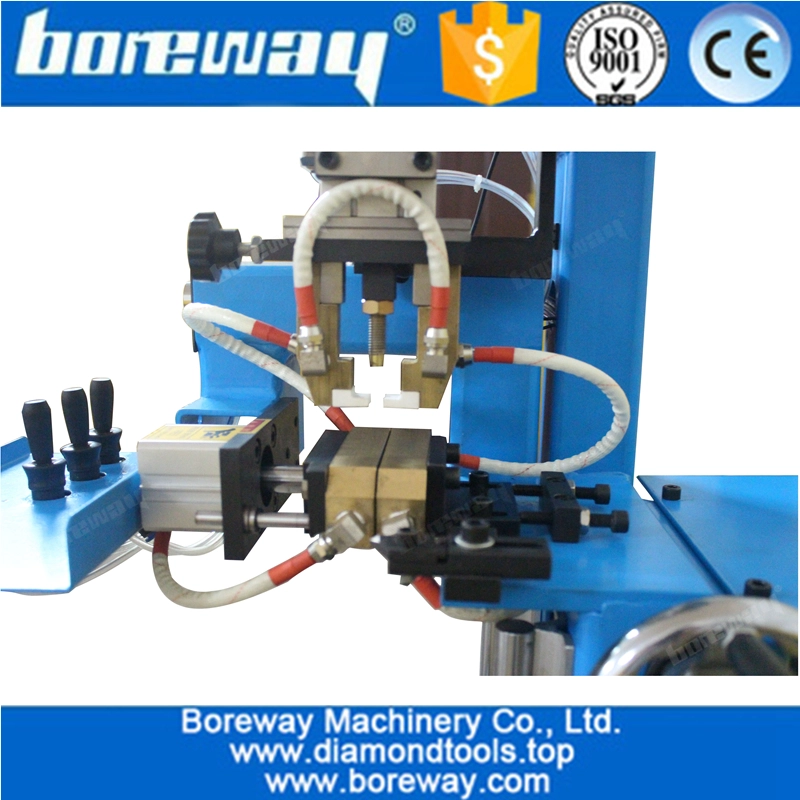

Details of the Welding Frame Rack for diamond saw blade:

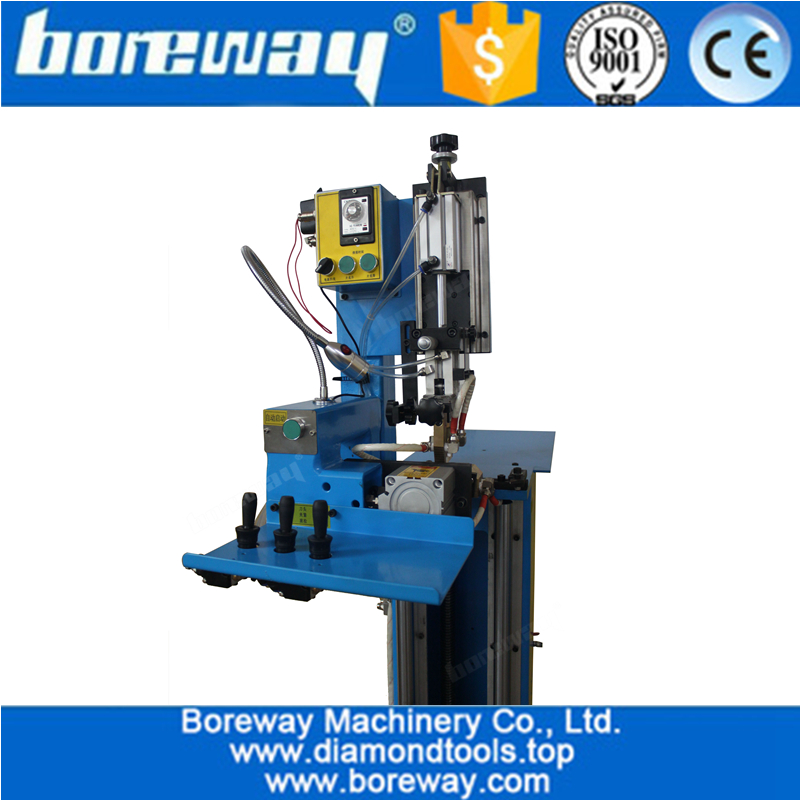

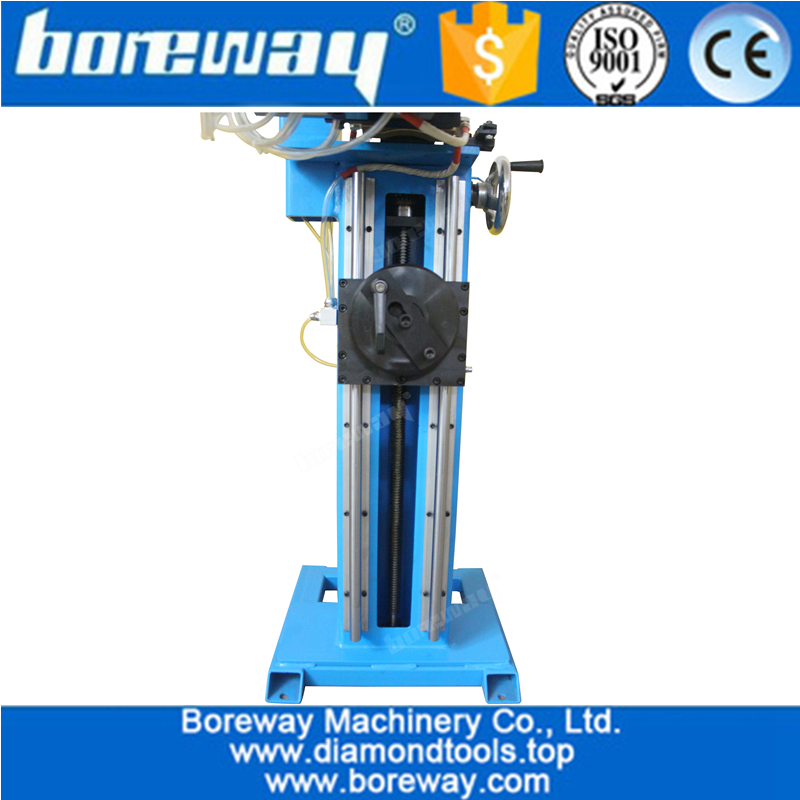

semi automatic brazing welding frame rack for circle diamond saw blade detailssemi automatic brazing welding frame rack for circle diamond saw blade details
semi automatic brazing welding frame rack for circle diamond saw blade detailssemi automatic brazing welding frame rack for circle diamond saw blade details

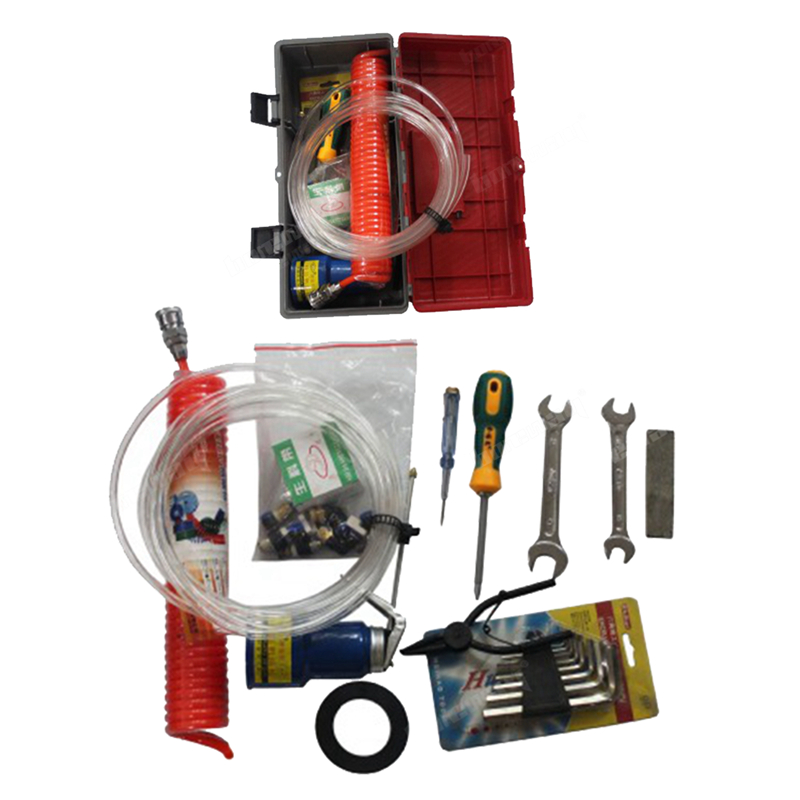

Welding Frame Rack Accessories-Tool Box : 
brazing welding rack tool accessories box

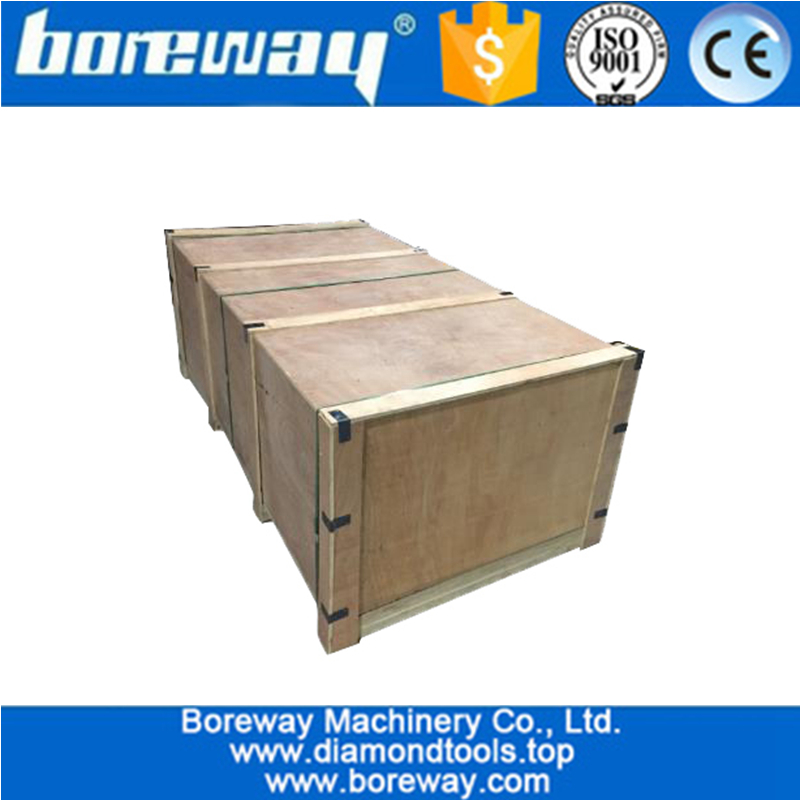

Packed in MDF Wooden box:
Brazing Welding Frame Rack packed in mdf wooden box
Packing:

Diamond saw blade welding frame rack packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.
