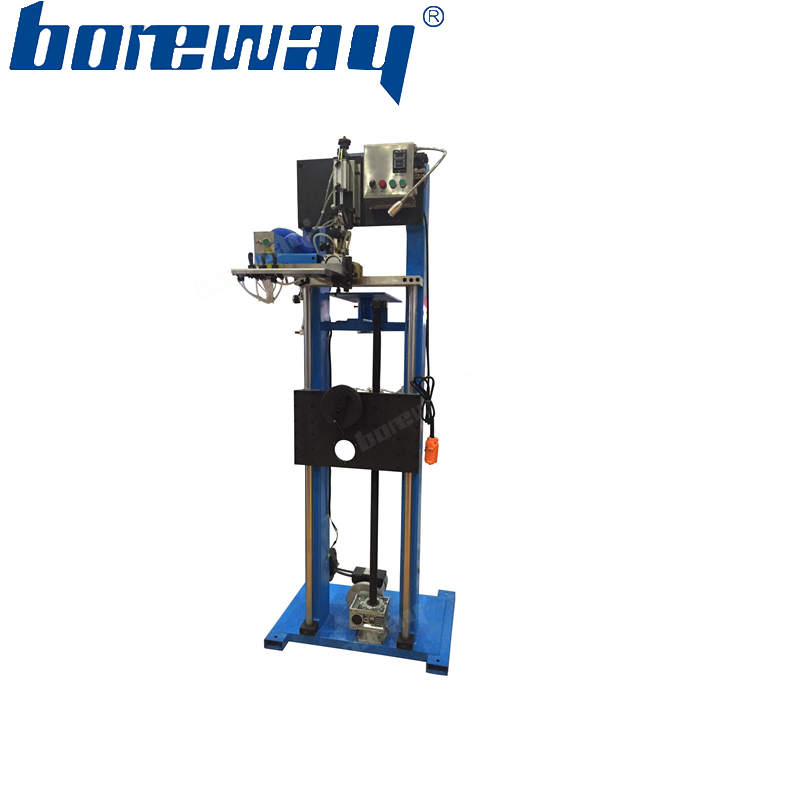

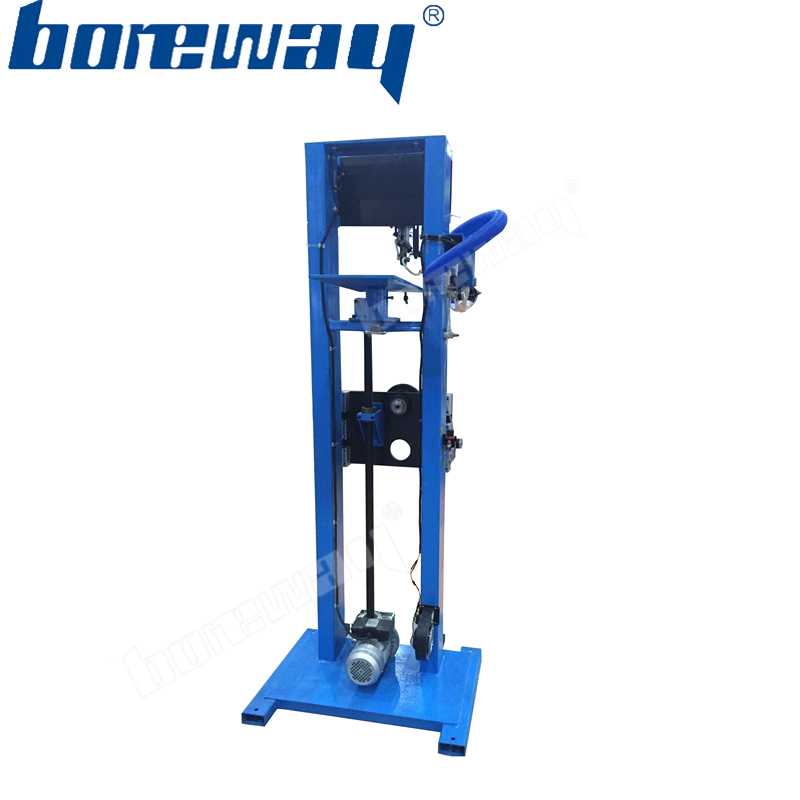

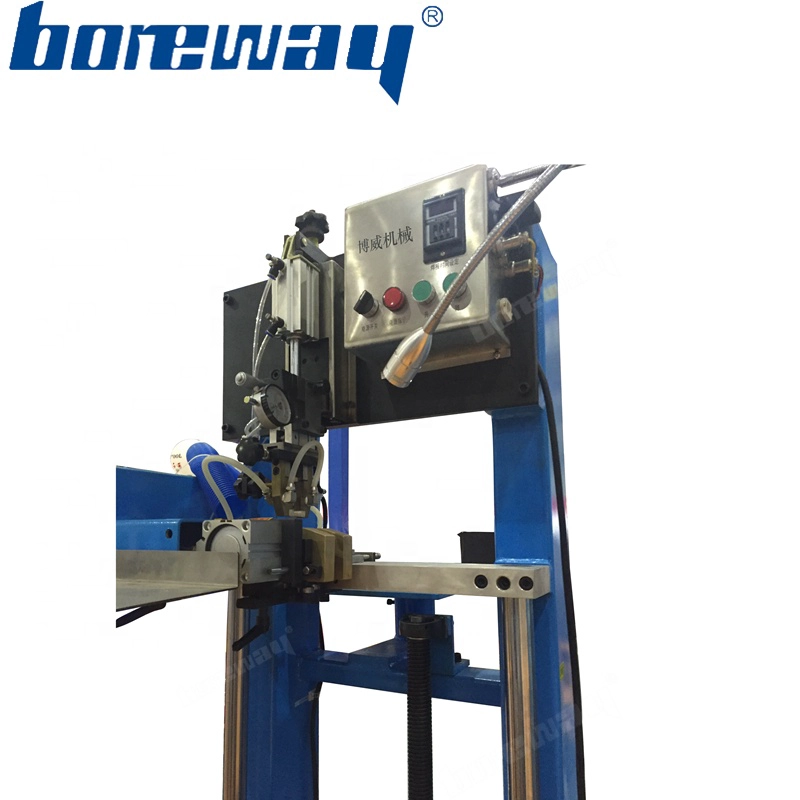

Diamond Segment Saw Blade Tools Induction Brazing Machine manufacturer diamond saw blade welding rack stone cutting tool
- Model: BWM-HJ350
- Voltage: 220V/50HZ
- Current: 60A
- Rated Capacity: 370W
- Rated Duty Cycle: 100%
- Welding Range: 350mm - 2500mm(Max 3500m
- Verticality: 0.3mm; 0.3mm
- Water Consumption: 1.5 - 2m³/h
- Welding Rate: 4-20 PCS/Min
- Welding Type: High-frequency induction brazing welding
| Introduction: |
Brief Introduction:
This machine has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.
2. Welding frame structure is compact and reliable ;
4. High level of automation, good stability, long service life ;
| Details: |
|
Model No.: BWM-HJ350 |
||
|
Welding Range |
MM |
Ø400 – Ø3500（Normal Max Ø1800） |
|
Verticality |
MM |
≤±0.03 |
|
Parallelism |
MM |
≤±0.03 |
|
Welding Rate（Segments Qty/Min） |
PCS/Min |
6 – 12 |
|
Air Pressure |
Mpa |
0.3 - 0.6 |
|
Water Pressure |
Mpa |
≥0.2 |
|
Voltage |
V |
220 （Single-phase）, 50HZ |
|
Power |
W |
550 |
|
Water Consumption |
M³/h |
1.5 - 2.0 |
|
Machine Dimensions |
MM |
L900 * W700 * H2400 (Stand) |
|
Machine Weight |
KG |
330 |
|
Package Dimensions |
MM |
L2530 * W960 * H780 (Horizontally) |
|
Package Weight（Wooden Packing） |
KG |
380 |
| Pictures: |
| Packing |
Diamond saw blade welding frame rack packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.
