Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate

Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate

  • Port: Xiamen
  • Brand Name: Boreway
  • Model Number: BW-DSEMB-00
  • Main Diameter Size:300-800mm
  • Welding method:Silver Welding
  • Base & Matrix Type:Normal, Silent
  • Technology:Hot Pressed Sintered Diamond Segment
  • Machine: Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine
  • Usage: For Slab Edge Cutting Of Marble, Limestone, Slate, Various Soft Stone Without Quart

Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate


Product Details:

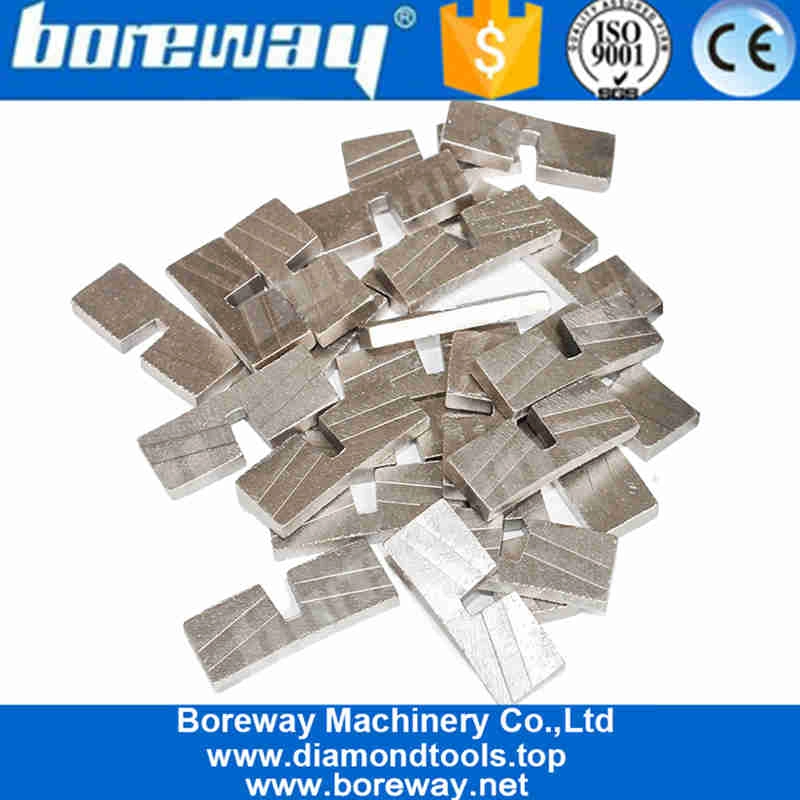

300 to 800mm u groove shape diamond segments tool:

  
Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate

Under same segment bond condition, short length means less resistance, 300 to 800mm u groove shape diamond segments tool is good to reduce the cutting resistance from the stones, thus it help to improve the cutting speed. With the improving of the cutting speed, this design give very smooth cutting.

Our 300 to 800mm u groove shape diamond segments tool are made by high-quality diamond powder and metal powder mixture,produced by pressing and sintering, diamond powder and metal powder combine closely, the quality is higher and the effect is better.

Such diamond segment are highest ratio of performance to price!

Specifications:

We are instrumental in providing to our valuable customers excellent quality
300 to 800mm u groove shape diamond segments tool which are available with following specification:

     Marble Edge Cutting Segment Dimension
  Specification  Steel Core    Dimension of Segment(L*W*H)  No.of teeth
 300  2.2/2.0  40  3.6/3.3/3.0  12/15  21
 350  2.4/2.2  40  3.6/3.3/3.0  12/15  24
 400  2.8/2.4  40  4.0/3.7/3.4  12/15  28
 500  3.2/2.8  40  4.3/4.0/3.7  12/15  36
 600  3.6/3.2  40  5.0/4.7/4.3  12/15  42
 700  4.0/3.8  40  5.5/5.2/4.9  12/15  50
 800  4.5/4.2  40  6.0/5.7/5.4  12/15  57

Besides 300 to 800mm u groove shape diamond segments tool, All of our
products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Applications:

300 to 800mm u groove shape diamond segments tool for for slab edge cutting of marble, limestone, slate, various soft stone without quartz.

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting

Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate

Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate

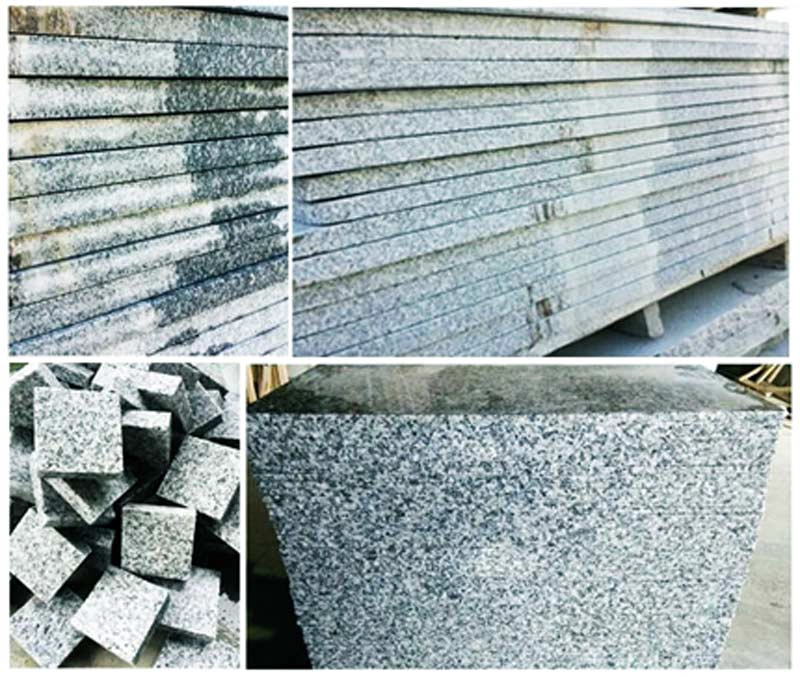

Cutting Effect:

Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate

Advantages:

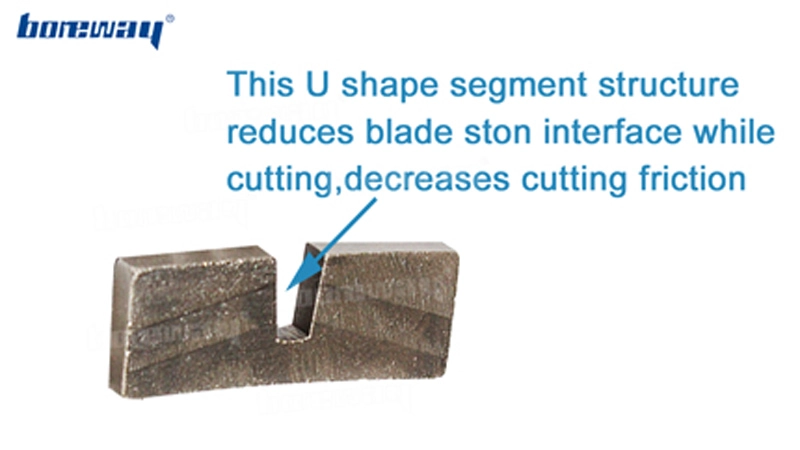

1.Unique U shape design, enhance the cutting sharpness.

2.Excellent comprehensive cutting performance

3.3.Smooth cutting, fast cutting speed, long diamond life.

4.300 to 800mm U Groove Shape Diamond Segments Tool for cutting stone

5.Using silver high frequency welding to braze the segments on the steelcores

6.The diamond segment has good sharpness and high efficiency at theprocess of cutting. meanwhile, granite cutting blade has a long lifespan

Related Products:
     
U Groove Shape Edge Cutting MarbleBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateU Groove Shape Edge Cutting Marble
Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateU Shape Diamond Segments For Limestone Cutting  Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate
Hot Pressed U Slot Diamond Segment for Edge CuttingBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateHot Pressed U Slot Diamond Segment for Edge Cutting             
                              
About us:

We have a strict quality control system:

Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate

Packing & Delivery:
Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate
Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1.If we want to buy diamond segment, how could we know the quality?
You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2.What could we do if we find your diamond segment are not in good performance?
Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?
Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
