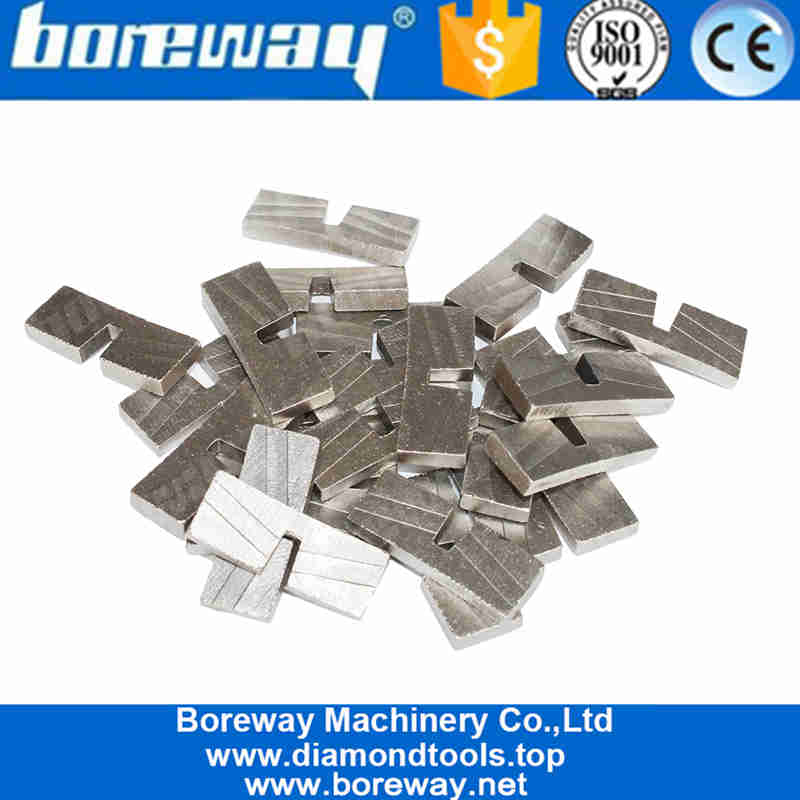

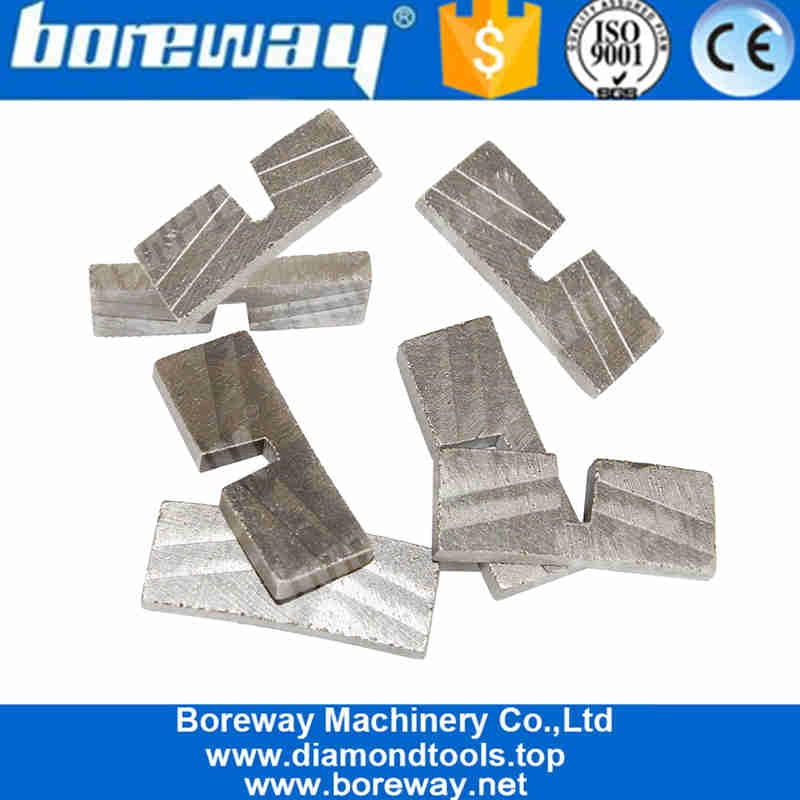

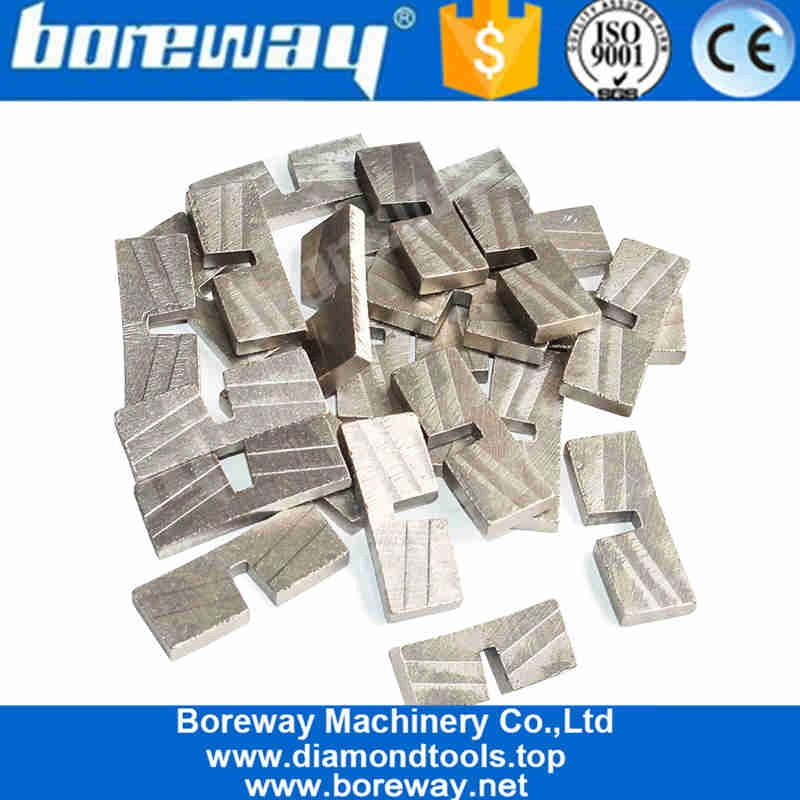

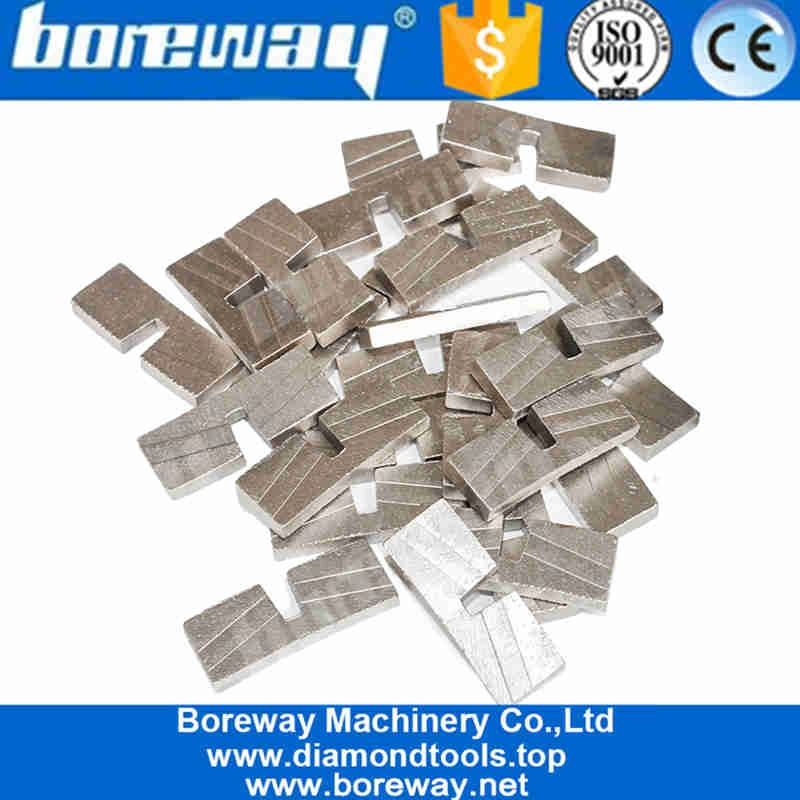

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge CuttingBoreway High Efficiency Marble Cutting Notched Diamond Segment For Edge CuttingBoreway High Efficiency Marble Cutting Notched Diamond Segment For Edge CuttingBoreway High Efficiency Marble Cutting Notched Diamond Segment For Edge CuttingBoreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting

  • Finishing: Ti-coated
  • Brand Name: Boreway
  • Supply Type: Manufactory
  • Model Number: BW-DSEMB-00
  • Main Diameter Size:300-800mm
  • Welding method:Silver Welding
  • Application: Marble Edge Cutting
  • Base & Matrix Type:Normal, Silent
  • Technology:Hot Pressed Sintered Diamond Segment
  • Machine: Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting


Product Details:

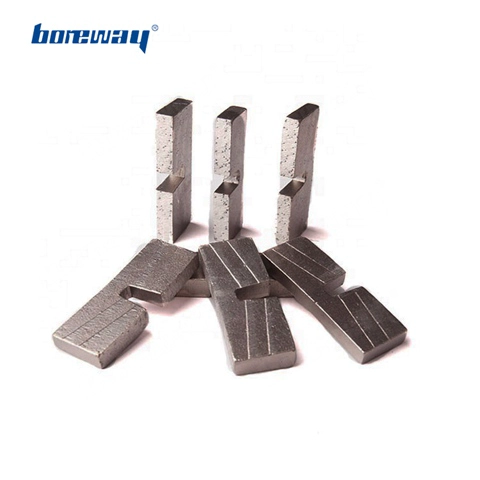

High efficiency Marble Cutting Notched Diamond Segment:

  
High efficiency Marble Cutting Notched Diamond Segment

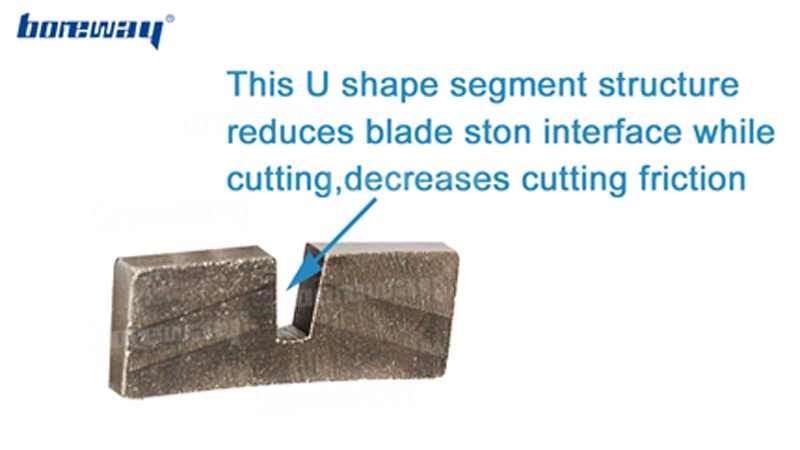

Under same segment bond condition, short length means less resistance, High efficiency Marble Cutting Notched Diamond Segment is good to reduce the cutting resistance from the stones, thus it help to improve the cutting speed. With the improving of the cutting speed, this design give very smooth cutting.

Our High efficiency Marble Cutting Notched Diamond Segment are made by high-quality diamond powder and metal powder mixture,produced by pressing and sintering, diamond powder and metal powder combine closely, the quality is higher and the effect is better.

Such diamond segment are highest ratio of performance to price!

Specifications:

We are instrumental in providing to our valuable customers excellent quality
High efficiency Marble Cutting Notched Diamond Segment which are available with following specification:

     Marble Edge Cutting Segment Dimension
  Specification  Steel Core    Dimension of Segment(L*W*H)  No.of teeth
 300  2.2/2.0  40  3.6/3.3/3.0  12/15  21
 350  2.4/2.2  40  3.6/3.3/3.0  12/15  24
 400  2.8/2.4  40  4.0/3.7/3.4  12/15  28
 500  3.2/2.8  40  4.3/4.0/3.7  12/15  36
 600  3.6/3.2  40  5.0/4.7/4.3  12/15  42
 700  4.0/3.8  40  5.5/5.2/4.9  12/15  50
 800  4.5/4.2  40  6.0/5.7/5.4  12/15  57

Besides High efficiency Marble Cutting Notched Diamond Segment, All of our
products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Product Details:

High efficiency Marble Cutting Notched Diamond Segment:

  
High efficiency Marble Cutting Notched Diamond Segment
Applications:

High efficiency Marble Cutting Notched Diamond Segment for for slab edge cutting of marble, limestone, slate, various soft stone without quartz.

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting



Cutting Effect:

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting

Advantages:

1. Good cutting result:  smooth  cutting,  flat  surface and even size.

2. Stable  cutting,  narrow  cutting gap, stone  waste reduction .

3. Ideal for Hard Materials for general purpose cut.

4. Reasonable price and excellent service.

5. We have strict  quality control system , to ensure quality stable.

6. Diamond saw blades suitable for fast, free, smooth cutting.

7. Reduce cutting  friction  a lot, improve slab flatness, save  energy.

Related Products:
     
Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge CuttingBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateBoreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting
Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateU Shape Diamond Segments For Limestone Cutting  Boreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting Slate
Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge CuttingBoreway 300 to 800mm U Groove Shape Diamond Segments Tool of Circular Saw Blade For Edge Cutting SlateBoreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting             
                              
About us:

We have a strict quality control system:

Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting

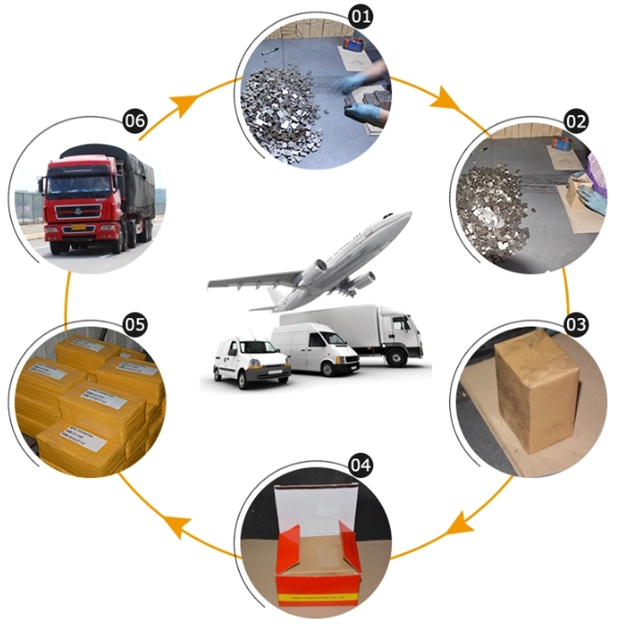

Packing & Delivery:
Boreway High Efficiency Marble Cutting Notched Diamond Segment For Edge Cutting
Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1.If we want to buy diamond segment, how could we know the quality?
You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2.What could we do if we find your diamond segment are not in good performance?
Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?
Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
