Indonesia High Frequency Welding Diamond Cutting Segment On 900mm Saw BladeIndonesia High Frequency Welding Diamond Cutting Segment On 900mm Saw BladeIndonesia High Frequency Welding Diamond Cutting Segment On 900mm Saw BladeIndonesia High Frequency Welding Diamond Cutting Segment On 900mm Saw BladeIndonesia High Frequency Welding Diamond Cutting Segment On 900mm Saw Blade

Indonesia High Frequency Welding Diamond Cutting Segment On 900mm Saw Blade

  • Brand Name: Boreway
  • Use: Wet Use For Cutting

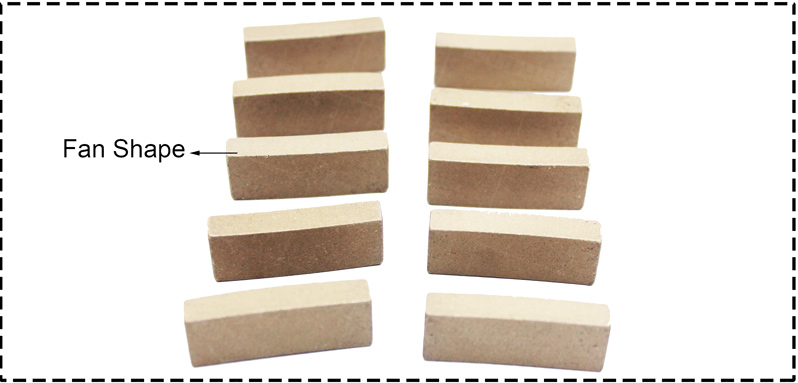

  • Segment Shape: Fan Shape

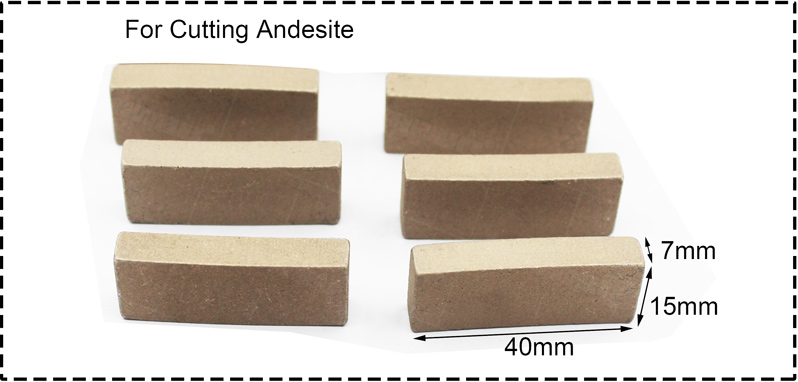

  • Segment Size: 40x7.0x15Mm
  • Model Number: BW-DSAB-7-15
  • Segment Quantity: 100pcs Per Box
  • Segment Material:Diamond Powder
  • Process: Hot Pressing Sintering,Cold Pressing
  • Application: Wet Use For Cutting Andesite Slab
  • Use: High Frequency Welding On 900mm Saw Blade
  • Machine: For Bridge Cutting Machine,Desktop Cutting Machine
Product Description:

High frequency welding cutting segment,use for 900mm circular diamond saw blade.

The processing technology is mature, the chemical bond formed after sintering can reduce threshing, improve the edge, change the single grinding to the combination of grinding and cutting edge, optimize the sawing performance.

All kinds of stone materials have targeted professional formula, suitable for cutting stone of different hardness.

High quality Diamond Segment Cutting Supplier China for granite, marble, basalt, volcanic, lava stone, andesite, travertine, limestone, sandstone, quartz, artificial stone, microcrystal stone.

Feature:

1.Diamond segment for cutting andesite,good sharpness cutting in high speed without chipping, less noise in work and save power.

2.High quality raw materials, choose high strength diamond single crystal and high quality metal matrix (Co, Ni, Wu, Ti, Cu-Fe, etc.).

3.Diamond Segment Cutting Tip Manufacturer is mainly aimed at Indonesian market. We also provide bit bit bit and grinding block bit in other markets. We also sell them separately

Product Specification:

The Following Are Normal Specifications High Frequency Welding Cutting Segment :

Blade Diameter   Segment Size
(LxWxH)
Segment Shape  Welding process  Machine
900mm
(36 Inch)
40x7x15mm  Fan Shape  High Frequency Welding  Bridge Cutting Machine,
Desktop Cutting Machine

Customized segment size and numbers will be suggesting can supply different specifications and diameters as per customer's requirement

Other Specifications Of Diamond Segments For Cutting Andesite, Indonesia:

Blade
Diameter
Segment Size
(LxWxH)
Application
400mm  40x3.5x15mm  Andesite
400mm  40x3.6x15mm   Andesite 
500mm  40x4.2x15mm  Andesite
500mm  40x4.5x15mm  Andesite
600mm  40x5.0x15mm  Andesite
800mm  40X6.0x15mm  Andesite
900mm  40x7.0x15mm  Andesite
1000mm 40x7.0x15mm  Andesite
1600mm  24x9.0x15mm  Andesite

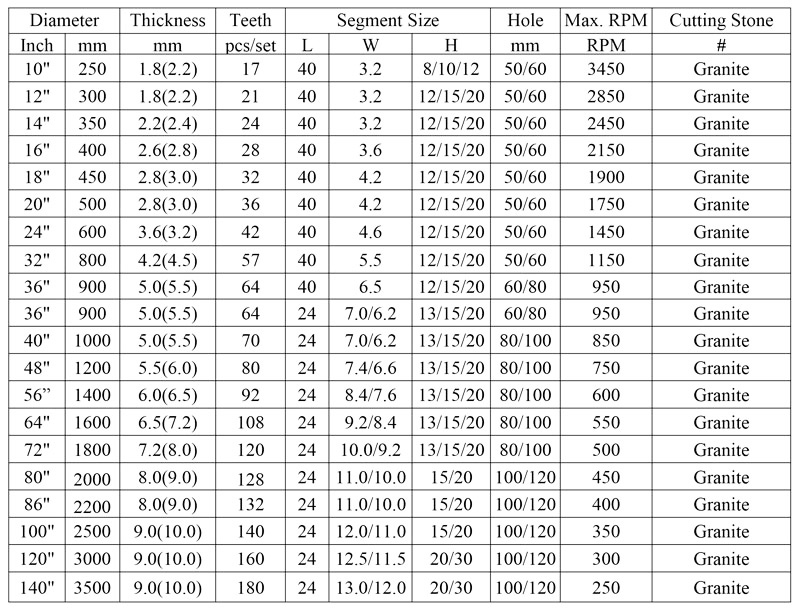

Other Specifications Of Cutter Segment:
Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 1

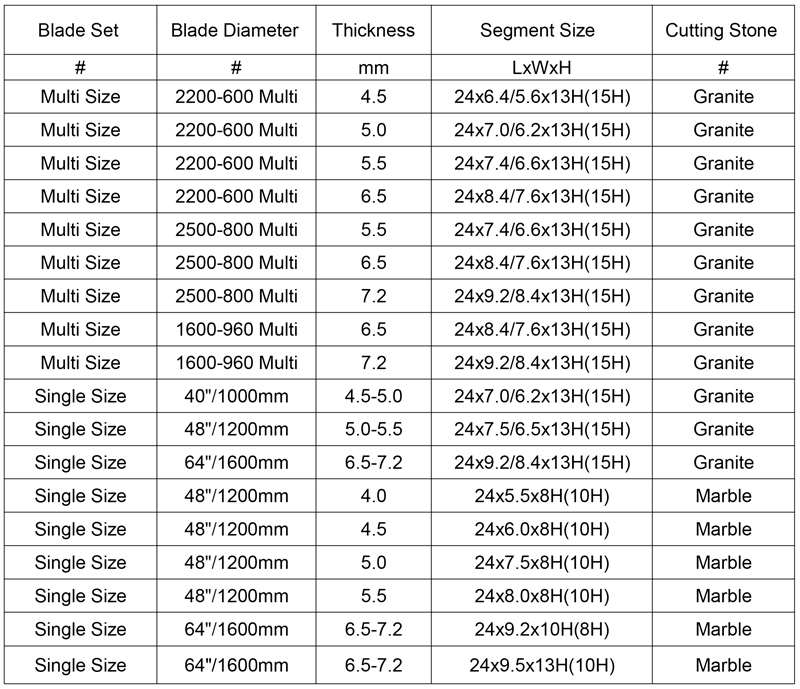

Multi Blade And Single Disc Saw Blade Specifications:


Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 2

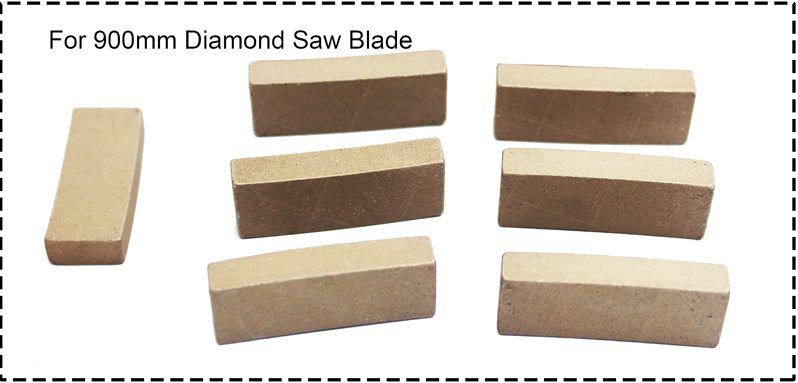

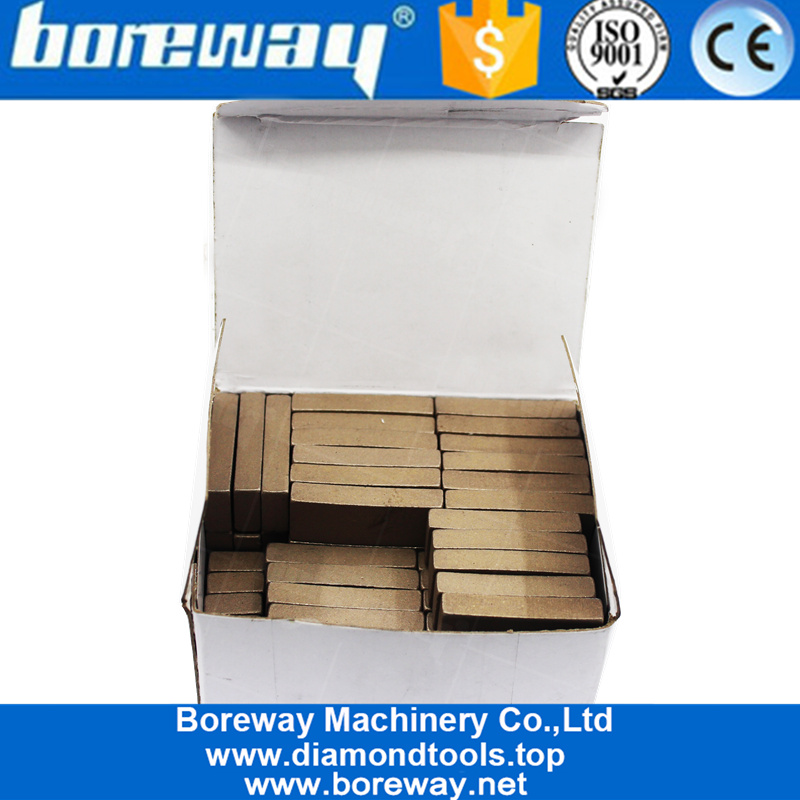

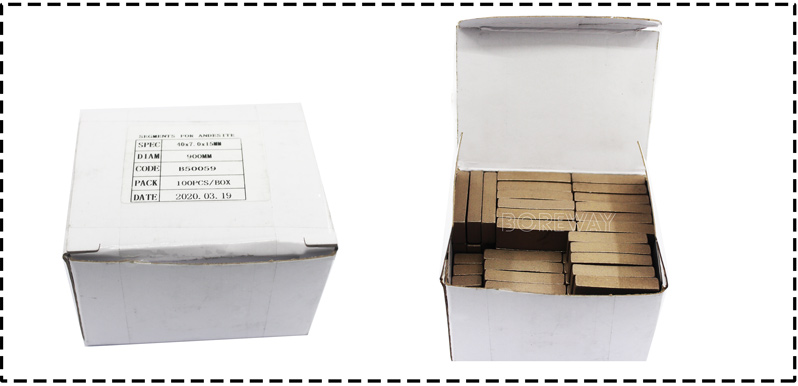

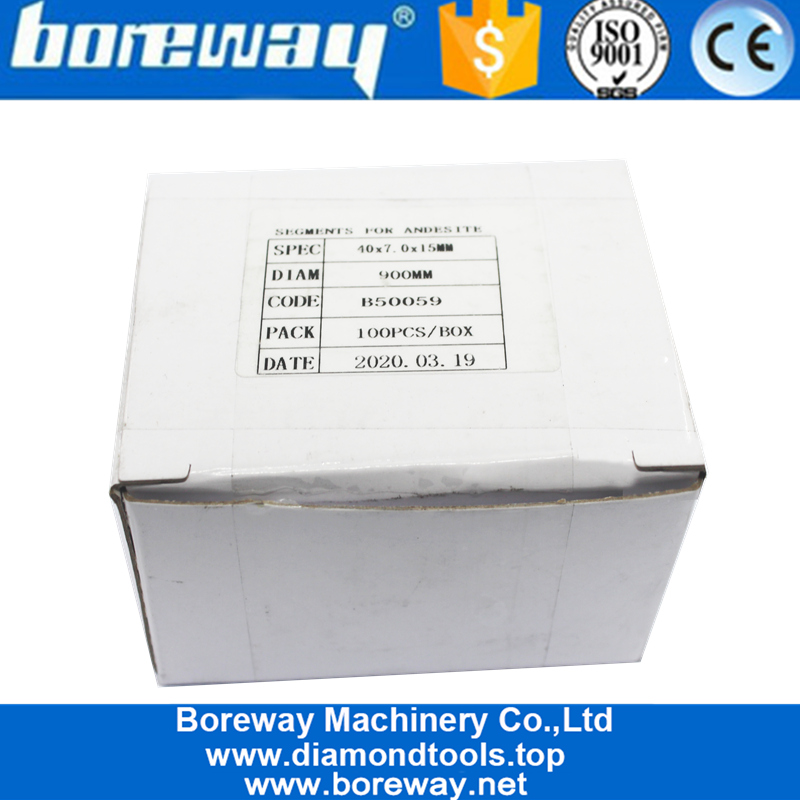

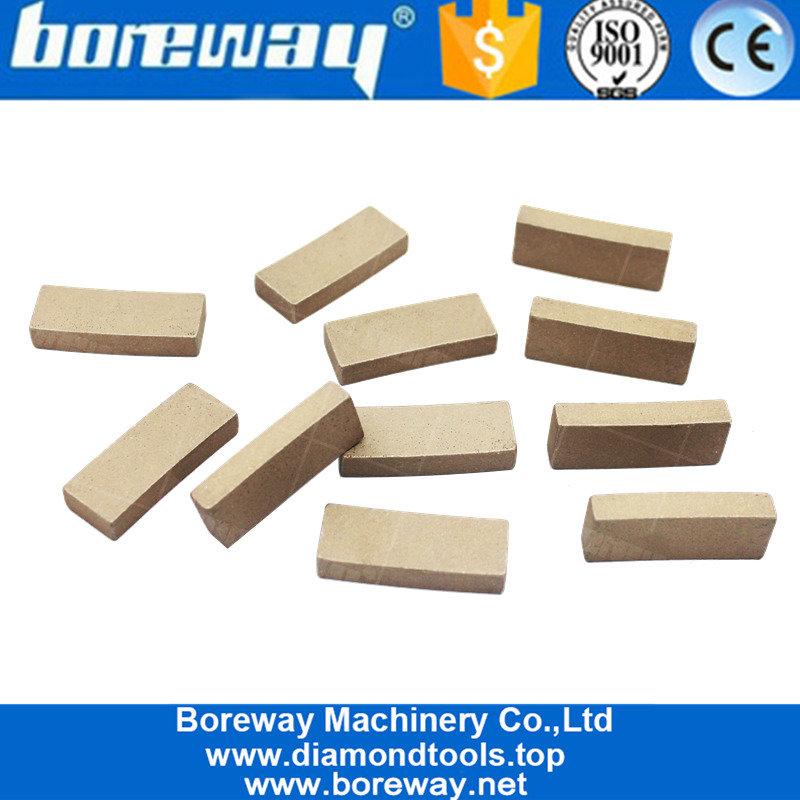

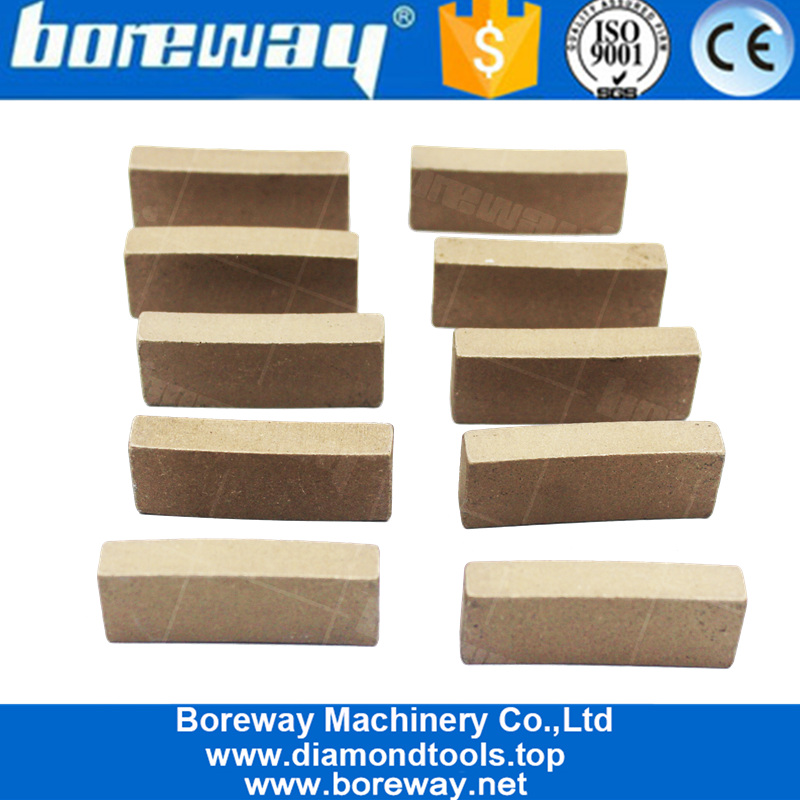

Product show

Indonesia High Frequency Welding Diamond Cutting Segment On 900mm Saw Blade

Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade
Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 3
Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 4
Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 5
Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 6

Application:

900mm cutting segment wet use for andesite slab.

Fast cutting edge cutting segment for desktop cutting machine and bridge cutting machine.


Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 7
Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 8

FAQ

1.What is your terms of payment?

We accept DHL,Fedex,TNT, UPS , etc.

2. Is there cheap shipping cost to import to our country?

For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.

3. Are you professional?

All of our company's products are diamond tools or related machinery products. They are highly professional and have maintained their pre-industry level. We are more professional and can help you find the ideal ideal for your market (dealer) or project (end user). Diamond tools.


Indonesia High Frequency Welding Of Diamond Cutting Segment On 900mm Saw Blade 9
