Boreway Premium Diamond Slant Slot Segment for Granite CuttingBoreway Premium Diamond Slant Slot Segment for Granite CuttingBoreway Premium Diamond Slant Slot Segment for Granite CuttingBoreway Premium Diamond Slant Slot Segment for Granite CuttingBoreway Premium Diamond Slant Slot Segment for Granite Cutting

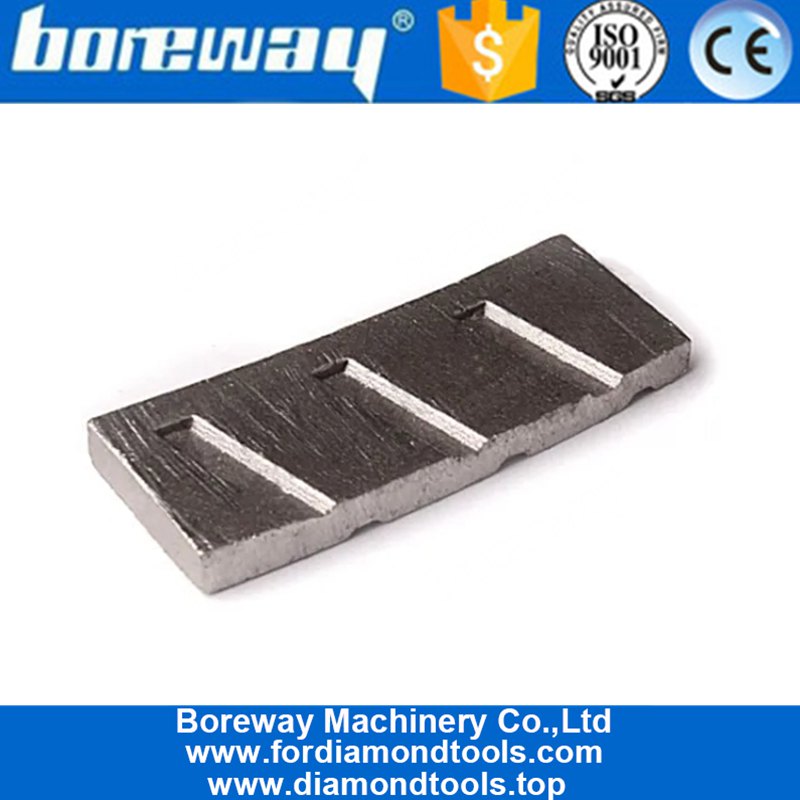

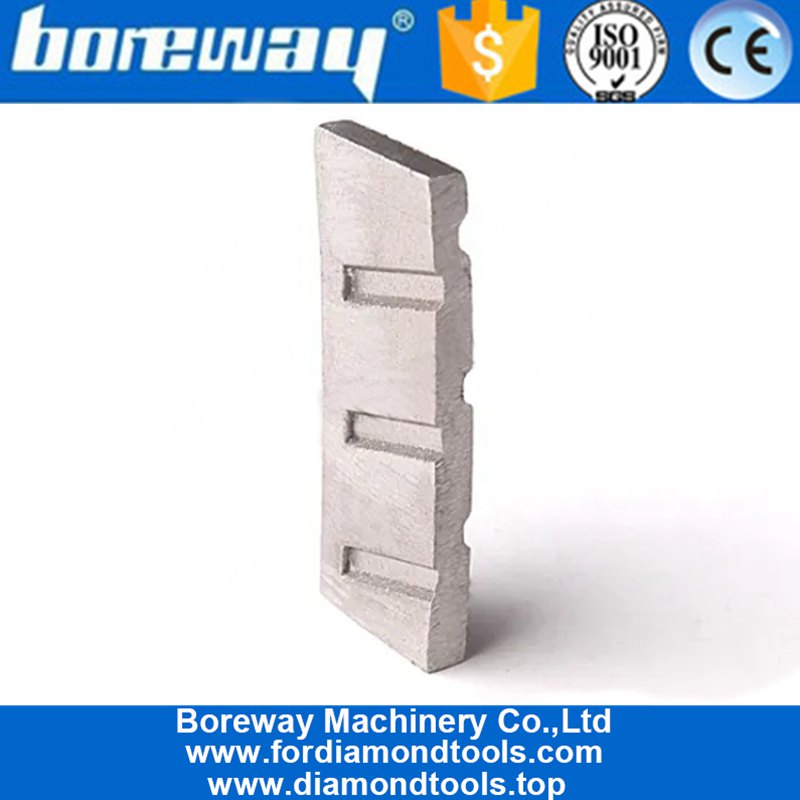

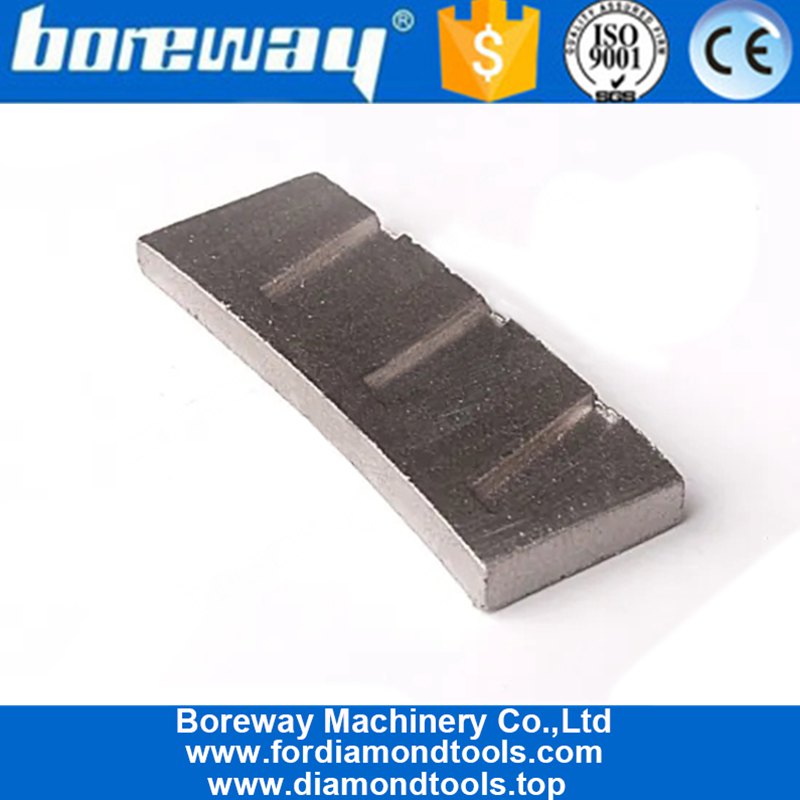

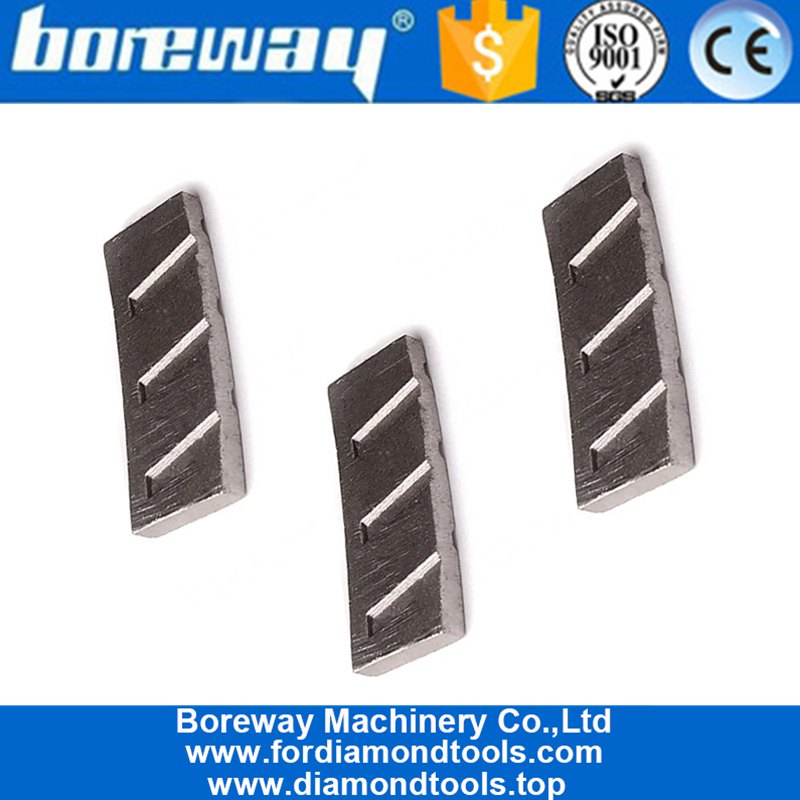

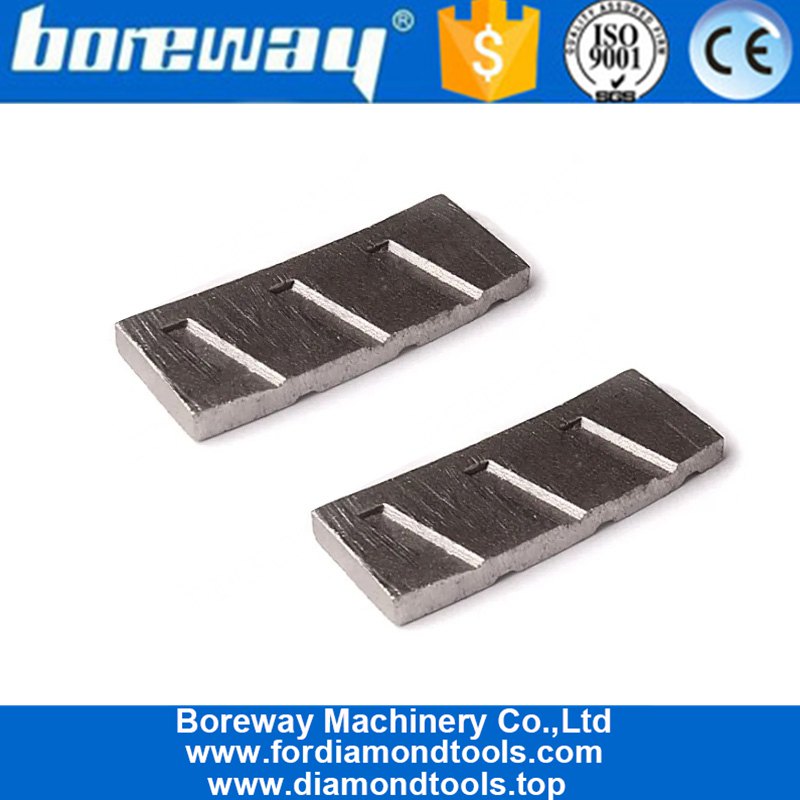

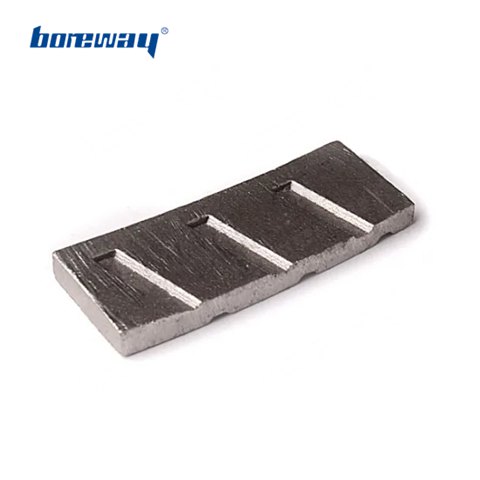

Boreway Premium Diamond Slant Slot Segment for Granite Cutting

  • Port: Xiamen
  • Brand Name: Boreway
  • Model Number: BW-DSEGB-00
  • Type: Wet use only
  • Service: OEM & ODM
  • Segment Height: 12mm, 15mm
  • Application: Granite Slab Edge Cutting
  • Cutting result: Flat surface and even size
  • Usage: Slab edge cutting of Granite, Sandstone, various hard stone with quartz
  • Machine: Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine



Descriptions:



Boreway Premium Diamond Slant Slot Segment for Granite Cutting:

Our Diamond Slant Slot Segment for Granite Cutting are made by high-quality diamond powder and metal powder mixture,produced by pressing and sintering, diamond powder and metal powder combine closely, the quality is higher and the effect is better.

Diamond Slant Slot Segment for Granite Cutting, Unique slant slot design of segment side face improves the sharpness and cutting efficiency.

Such diamond segment are highest ratio of performance to price!

Specifications:

We are instrumental in providing to our valuable customers excellent quality
Diamond Slant Slot Segment for Granite Cutting which are available with following specification:

      300-800mm Granite Edge Cutting Segment
  Diameter Segment Size  No.of teeth
 Inch  mm  length  Thickness  Height  Number
 12  300  40  3.0  10/12  21
 14  350  40  3.2  10/12  24
 16  400  40  3.6  10/12  28
 18  450  40  4.0  10/12  32
 20  500  40  4.2  10/12  36
 24  600  40  4.6  10/12  42
 28  700  40  5.0  10/12  50
 32  800  40  6.0  10/12  57

Besides Boreway Premium Diamond Slant Slot Segment for Granite Cutting,
All of our products have been strictly tested before access to market. Other specifications can be customized
according to requirements.

Product Details:

Boreway Premium Diamond Slant Slot Segment for Granite Cutting:

  

Applications:

Boreway Premium Diamond Slant Slot Segment for Granite Cutting, Diamond segment for slab edge cutting of Granite, Sandstone, various hard stone with quartz.




Cutting Effect:


Advantages:

1. The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.

2. Good cutting result: smooth cutting, flat surface and even size.

3. Stable cutting, narrow cutting gap, stone waste reduction.

Related Products:
     
             
                              
About us:

We have a strict quality control system:

270MM Bush Hammered Plate For HTC Grinders

Packing & Delivery:


Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1. If we want to buy diamond segment, how could we know the quality?
You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2. What could we do if we find your diamond segment are not in good performance?
Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?
Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.

Please note:

Please use high frequency silver welded machine instead of fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be reduced!
