Boreway Flat Shape Smooth Cutting Diamond Segments For Granite Saw BladeBoreway Flat Shape Smooth Cutting Diamond Segments For Granite Saw BladeBoreway Flat Shape Smooth Cutting Diamond Segments For Granite Saw BladeBoreway Flat Shape Smooth Cutting Diamond Segments For Granite Saw Blade

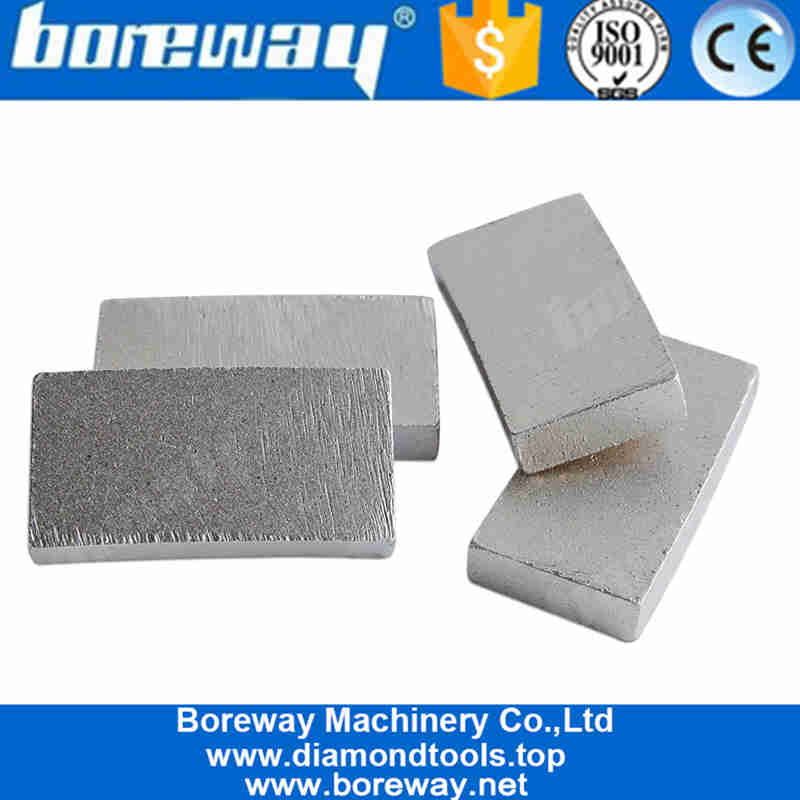

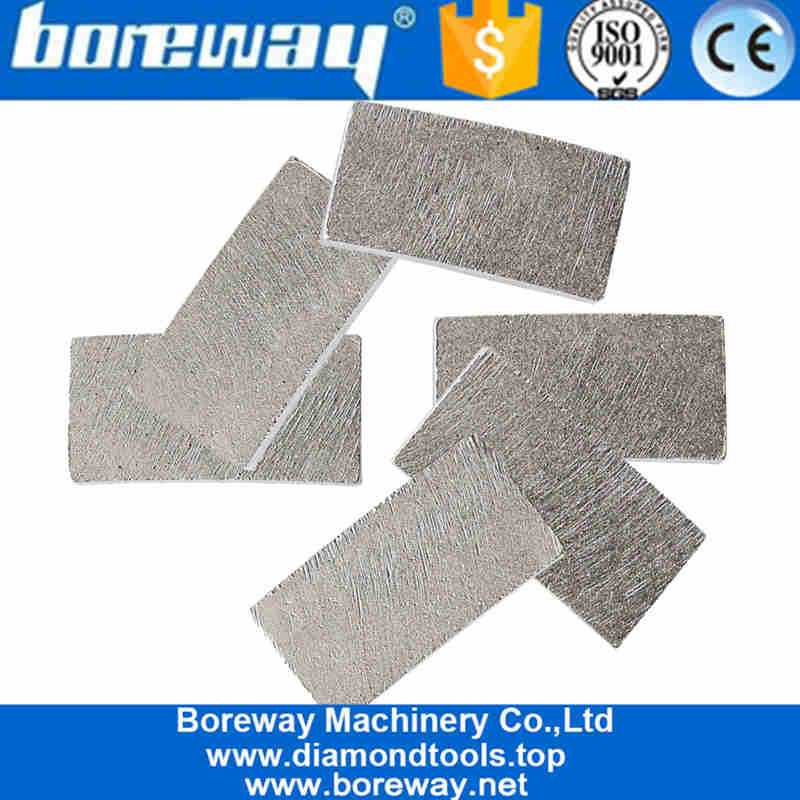

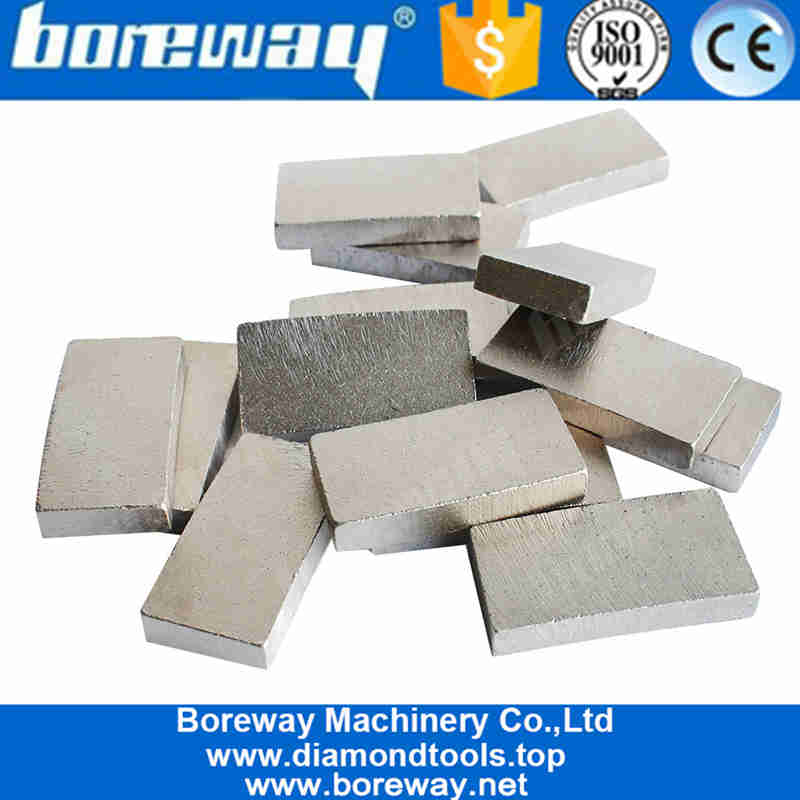

Boreway Flat Shape Smooth Cutting Diamond Segments For Granite Saw Blade

  • Usage:Wet use
  • Diameters:550MM
  • Segment No.:38pcs
  • Quality Grade:A/B/C
  • Brand Name:Boreway

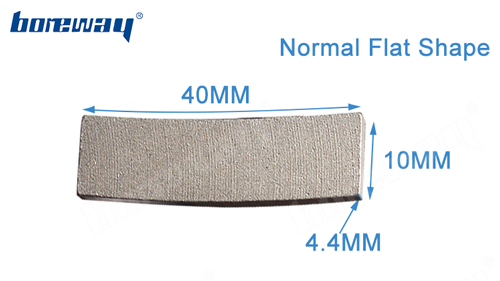

  • Shape:Normal Flat Shape
  • Model Number:BW-DSG-01-07
  • Segment Size:40x4.4x10MM
  • Place of Origin:Fujian, China
  • Product:Diamond Cutting Segment
  • Machine:For bridge cutting machines
  • Cutting Material:Granite, Sandstone, various hard stone with quartz
Boreway Flat Shape Smooth Cutting Diamond Segments For Granite Saw Blade

Advantage:

1.It has good sharpness, fast cutting speed and high cutting efficiency.
2.Good wear resistance, long service life and high comprehensive cost performance.
3.Flat shape smooth cutting diamond segment are fast cutting,small cutting seam, the cut stone surface is flat and even in size.
4.By changing single grinding into the combination of grinding and cutting, the sawing performance is optimized.

Feature:

1.Flat shape smooth cutting diamond segment adopts diamond sheet material and metal matrix (Ti + Cr + Ni + CO, etc.) to form chemical bond, which can reduce threshing, improve cutting edge and prolong service life.
2.A large number of products are exported to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets; the product quality has been unanimously recognized by overseas customers
Specification:
The following are normal specifications flat shape smooth cutting diamond segment:
Code. Diameter
(mm/Inch)
Segment Size
(mm)
Segment No.
BW-DSG-01-07 500mm(22inch)  40x4.4x10/12/15/20  38

The above specifications is only for reference, other specifications may be available as per customer's demand.

Diamond segments or rims are made up of a mixture of diamonds and metal powders. Diamonds used in blades are almost exclusively manufactured diamonds in various grit size and quality grades.
In the manufacturing process, the metal powder and diamond grit mixture is hot pressed at high temperatures to form a solid metal alloy (called the bond or matrix) in which the diamond grit is retained.

The segment or rim is slightly wider than the blade core. This allows the cutting edge to penetrate through the material while protecting the steel body.

The application of bond (or Matrix)
- Typically the following rule applies :
- For hard materials : use soft bonds.
- For soft materials : use hard bonds.
Product Details:
Flat shape smooth cutting diamond segment
Flat shape smooth cutting diamond segment
  

Example :
Stone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.

Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.

Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.

Applications:
Flat shape smooth cutting diamond segment with normal flat shape of circular saw blades for slab edge cutting of Granite, Sandstone, various hard stone with quartz.
Flat shape smooth cutting diamond segment with normal flat shape of circular saw blades for slab edge cutting of Granite, Sandstone, various hard stone with quartz.

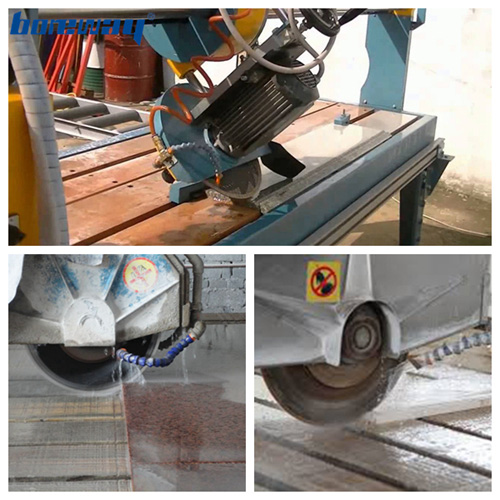

Applications machine:
Flat shape smooth cutting diamond segment suitable for bridge cutting machines.
Flat shape smooth cutting diamond segment

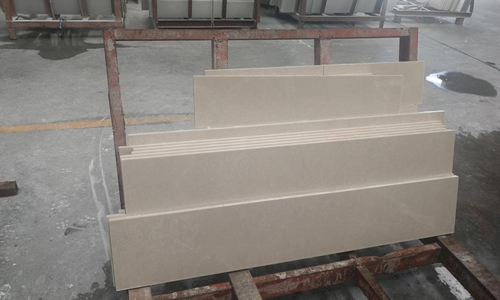

Cutting Effect:
Flat shape smooth cutting diamond segment is cutting without edge collapse, high machining accuracy, straight cutting line without burr, stable feeding, fast moving, small single-layer, laminated SAW seam, no spark, no tail, no dragger
Flat shape smooth cutting diamond segment

Related Products:
     
             



Flat shape smooth cutting diamond segment Flat shape smooth cutting diamond segment
Edge Cutting Segment for Sandstone Block Cutting Segment for Quartz

                              


About us:

Flat shape smooth cutting diamond segment
Flat shape smooth cutting diamond segment
Flat shape smooth cutting diamond segment
Flat shape smooth cutting diamond segment
Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
