Boreway Diamond circular Saw Blade Segments for Block of various hard stone ManufacturerBoreway Diamond circular Saw Blade Segments for Block of various hard stone ManufacturerBoreway Diamond circular Saw Blade Segments for Block of various hard stone ManufacturerBoreway Diamond circular Saw Blade Segments for Block of various hard stone Manufacturer

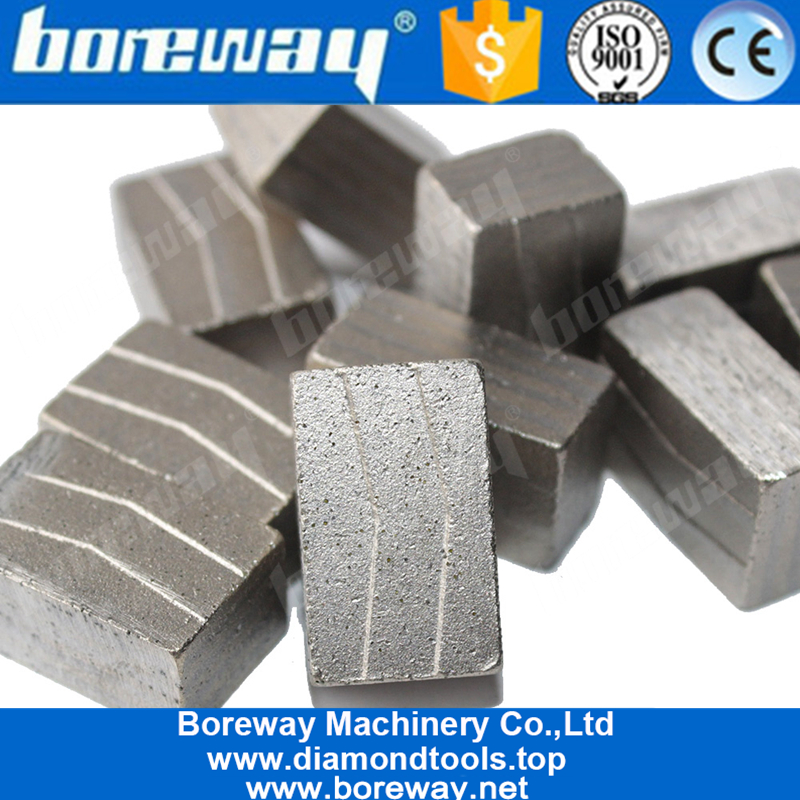

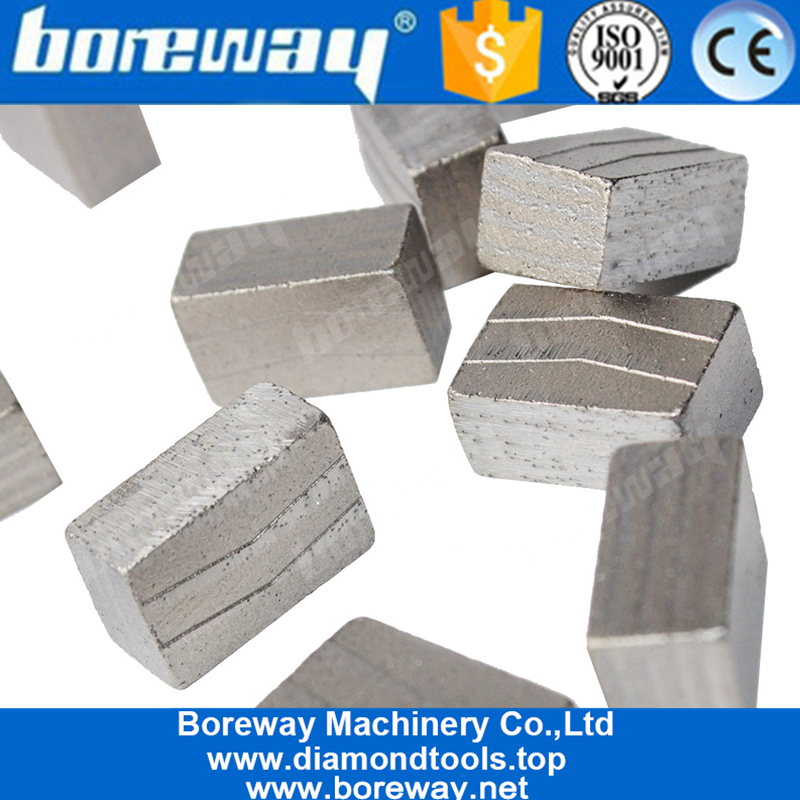

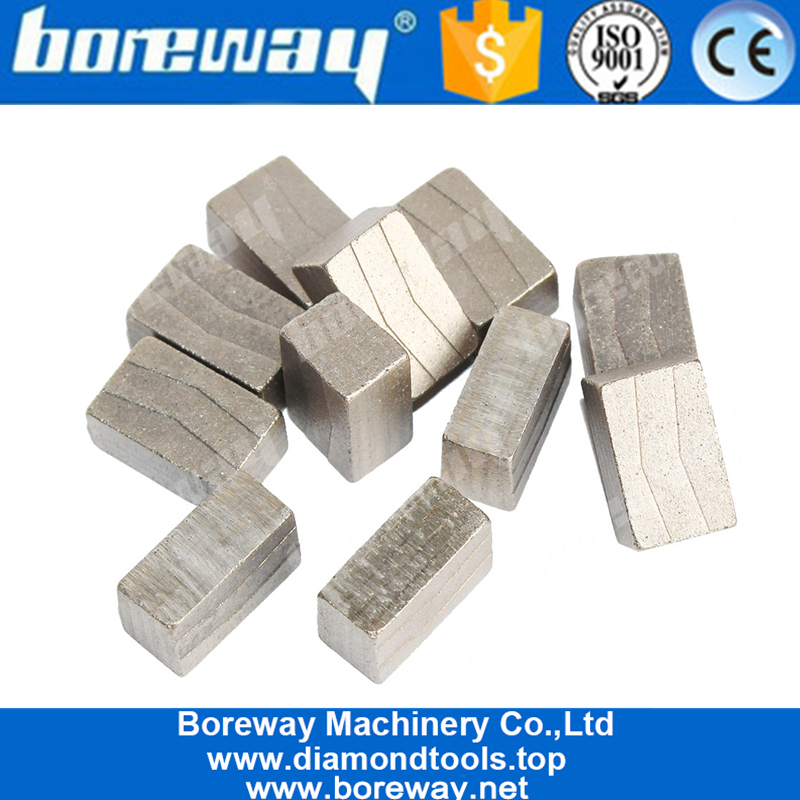

Boreway Diamond circular Saw Blade Segments for Block of various hard stone Manufacturer

  • Shape: << step
  • Seg.No.:160pcs
  • Price:Competitive
  • Produce art:Sintering
  • Disc diameter:3000mm
  • Brand Name:Boreway
  • Seg. size:24x12x20mm
  • Material:diamond,Co,Ni,etc
  • Welding way:Silver welding
  • Place of Origin:Fujian, China
  • Type:Diamond cutting segment
  • Performance:Sharp and longlife
  • Model Number:BW-DSGB-02-15
  • Product:Diamond segment for granite saw blade
  • Application:Cutting of granite, sandstone, various hard stone with quartz.
Boreway Diamond Circular Saw Blade Segments For Block Of Various Hard Stone Manufacturer



Descriptions:



900mm-3500mm Diamond Segments for Granite Cutting- Multi-layers Structure, <<Taper Shape

Circular saw blade segments for manufacturerfor multi-layers structure and "<<" taper shape of 900-3500mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

Wet use only.

Welding method: Silver welding by high frequency welding machine.

Specification:
The following are normal specifications circular saw blade segments for manufacturer:
 Code.  Diameter
(mm)
 Length  Width (Taper Type)  Height  Segment No.
 BW-DSGB-02-15   3000   24/30   12.5/12/11.5  20/25  160
 13/12.5/12/11.5  30

Product Details:

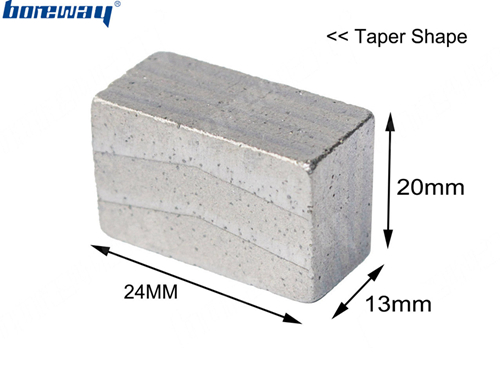

Circular saw blade segments for Manufacturer
Circular saw blade segments for Manufacturer
  

Example :
Stone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.

Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.

Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.

Applications:

Circular saw blade segments for manufacturer used for cutting granite  also other diamond segment for marble, sandstone, limestone, lava, concrete, mine


saw blade segments for manufacturer used for cutting granite  also other diamond segment for marble, sandstone, limestone, lava, concrete, mine

Advantages:

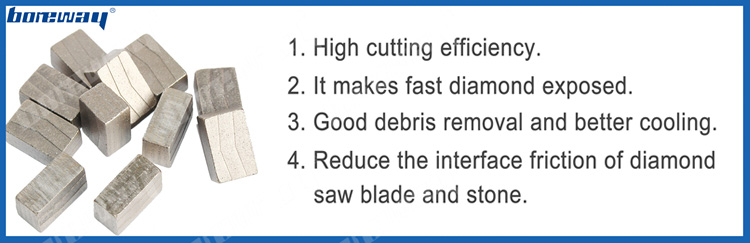

Circular saw blade segments for Manufacturer, it is advantage as follows,
Circular saw blade segments for manufacturer
Related Products:
     
             



Edge Cutting Segment for Granite Block Cutting Segment for Marble

                              


About us:

We have a strict quality control system:


270MM Bush Hammered Plate For HTC Grinders

Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
