China Diamond Stone Block Segment For 3000mm Saw Blade Russian MarketChina Diamond Stone Block Segment For 3000mm Saw Blade Russian MarketChina Diamond Stone Block Segment For 3000mm Saw Blade Russian MarketChina Diamond Stone Block Segment For 3000mm Saw Blade Russian MarketChina Diamond Stone Block Segment For 3000mm Saw Blade Russian Market

China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market

  • Max.RPM: 300RPM
  • Teeth No.:160 Pin
  • Brand Name: Boreway
  • Segment Height: 15/20mm
  • Hole of Blade: 100/120mm
  • Model Number: BW-DSGB-11-20
  • Segment Size: 24X12.5/11.5x20mm
  • Use: Wet Use For 3000mm Saw Blade
  • Application: Granite And Hard Stone
  • Thickness Of Blade Steel:9.0(10.0)mm
  • Segment Material:Diamond, Metal Powder
  • Machine: For Bridge Cutting Machine,Single Arm Machine
Product Description:

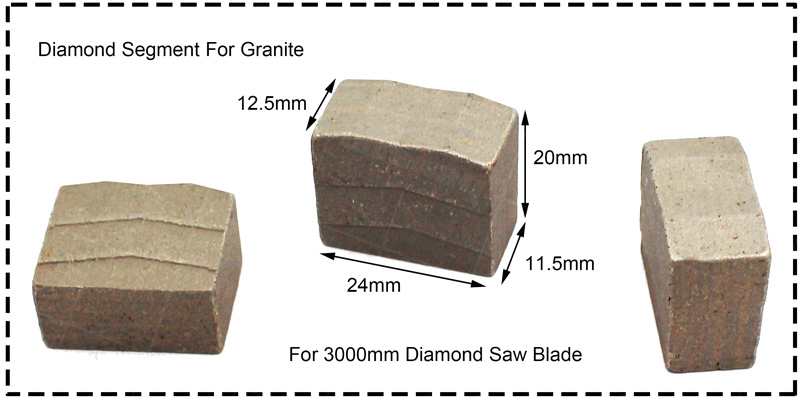

24x12.5/11.5x20mm Diamond segment for stone block cutting.Segment Shape has K-shaped, M-shaped, V-shaped, Rectangle, Sandwich design.etc.

The height of M shape segment can be selected from 15mm and 20mm.

40mm And 24mm are the conventional dimensions of diamond saw blade segment,other sizes can be customized as required.

We have various styles of high quality cutter heads type: "K" type, "V" type, grooved type, M type, taper type etc.Silent and non-silent blades are available for choice for different blade and stones.

Feature:

1. Granite Block Diamond Segment Manufacturer Reducing cutting and working time.

2. Using thick diamonds for hard granite.Working safe, quiet, and precise.

3. Granite block diamond segment.high percent of cobalts.Precise segment size.High grade of diamonds.

Product Specification:

The Following Are Normal Specifications Diamond Segment For Stone Block Cutting:

Blade
Diameter
Segment Size
(LxWxH)
Hole of Blade  Thickness Of
Blade Steel
Max.RPM
3000mm
(160 Inch)
24X12.5/11.5x20mm   100/120mm  9.0(10.0)mm  300RPM


The above specifications is only for reference, other specifications may be available as per customer's demand.


Other Specifications Of Cutter Segment:

China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market

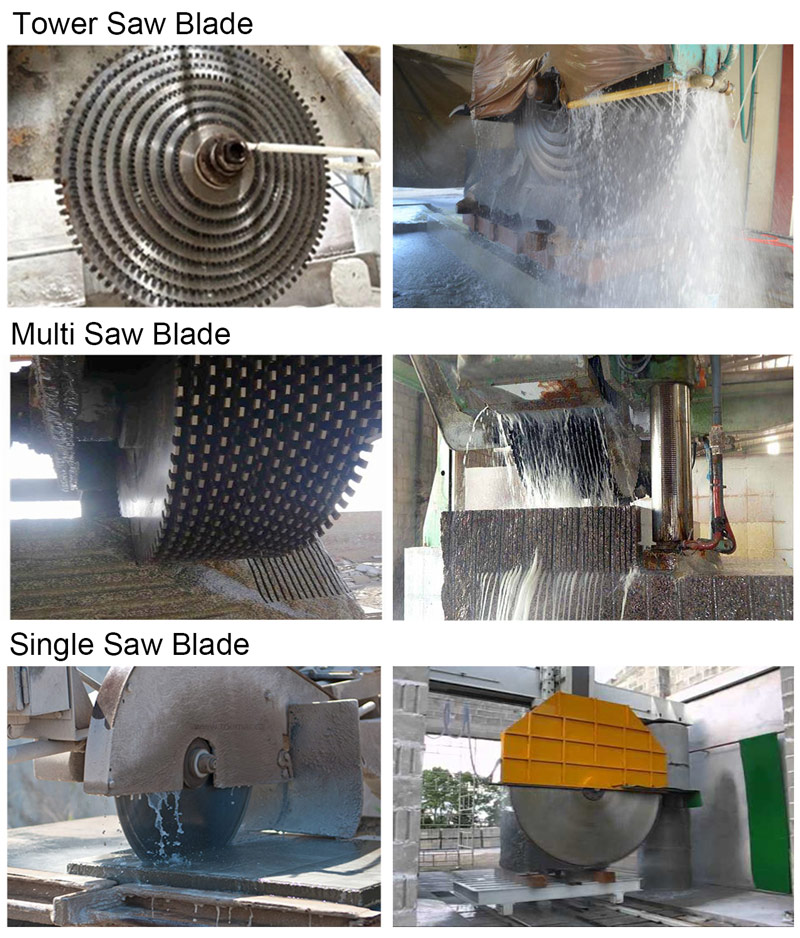

Multi Blade And Single Disc Saw Blade Specifications:

China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 01

Product show

China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 02
China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 03
China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 03
China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 05
China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 07

Application:

Teeth No.:160 Pin

Max.RPM: 300RPM

Hole of Blade: 100/120mm

Segment Height: 15/20mm

Thickness Of Blade Steel:9.0(10.0)mm

Use: Wet Use For 3000mm Saw Blade

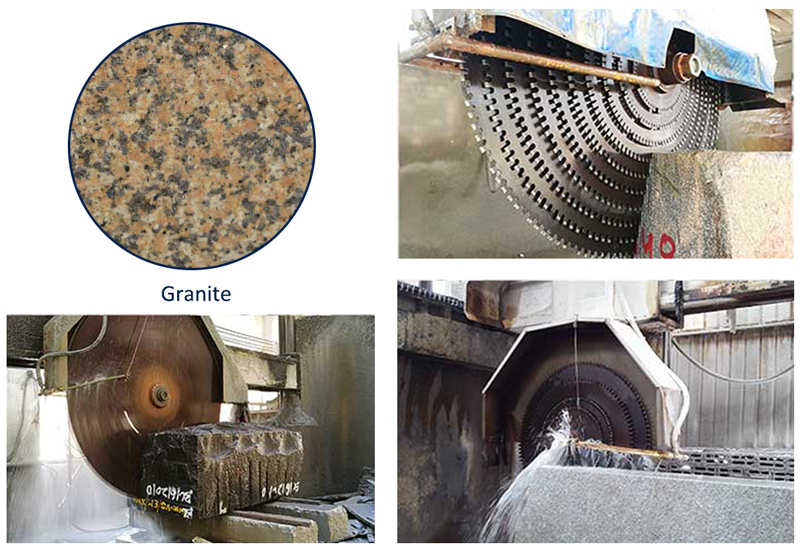

Diamond segment for stone block cutting for granite and hard stone.

Stone block cutting diamond segment for bridge cutting machine,single arm machine.


China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 07
China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 08
FAQ

1.How can we be your agent in our country?

Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.

2. If we need technical support, can you offer us?

Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment staff, engineers and technicians.

3.Can your products use different objects and materials?

It is best to communicate with our staff before using, because different products use different proportions of ingredients and use different effects.


 China Diamond Stone Block Segment For 3000mm Saw Blade Russian Market 09
