Normal shape diamond segment for granite
- Model Number: BW-NSDSG-002
- Type: Wet Use
- Diameter: 250mm to 800mm
- Segment number: 18 to 50
- Applications: Boreway normal shape diamond segment for granite is welding to be saw blade for cutting granite and other hard stone.
- Machine: Cutting machine.
- Industry: Diamond cutting tools
- Welding method: Silver welding
- Advantage: Good sharpness and Long lifespan.
Introduction:

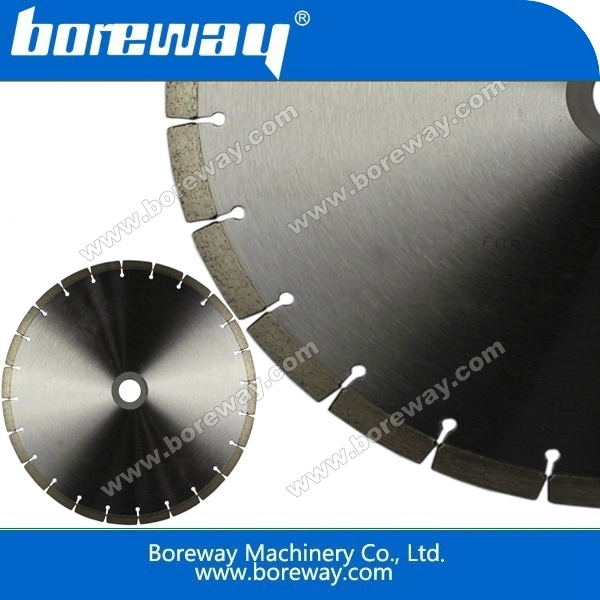

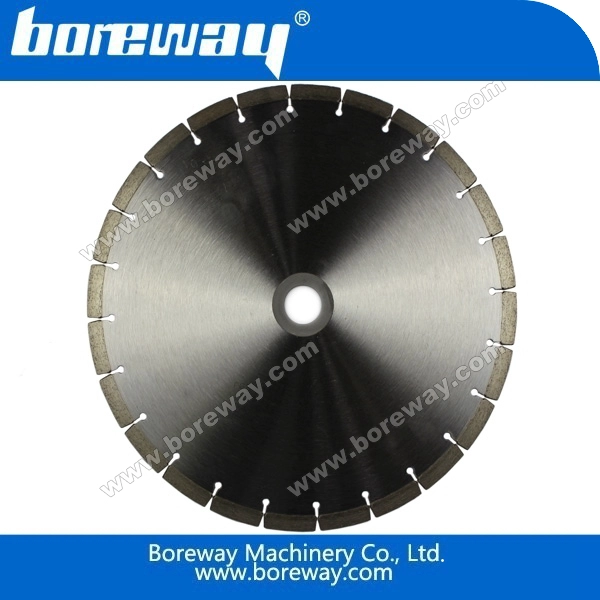

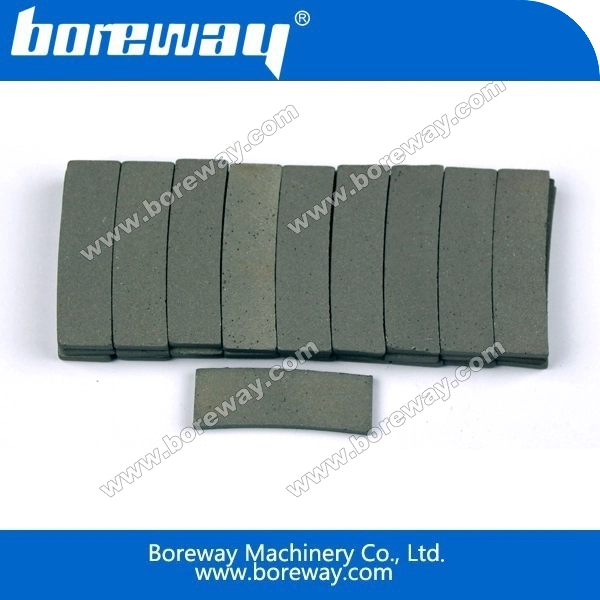

Diamond Segments with normal flat shape of circular saw blades for slab edge cutting of granite and other hard stone.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Silver welded, wet use only.
Features:
1.Good cutting result.
2.High cutting efficiency
3.Long lifespan.
Specifications:
The followings are the normal specifications of our normal shape diamond segment for granite:
|
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
250mm(10") |
40x2.8x10 |
18 |
|
300mm(12") |
40x3.0x10/12 |
21 |
|
350mm(14") |
40x3.2x10/12/15/20 |
24/25 |
|
400mm(16") |
40x3.6x10/12/15/20 |
28 |
|
450mm(18") |
40x4.0x10/12/15/20 |
32 |
|
500mm(20") |
40x4.2x10/12/15/20 |
36 |
|
550mm(22") |
40x4.4x10/12/15/20 |
38 |
|
600mm(24") |
40x4.6x10/12/15/20 |
42 |
|
700mm(28") |
40x5.2x10/12/15/20 |
50 |
|
750mm(30") |
40x5.5x10/12/15/20 |
50 |
|
800mm(32") |
40x6.0x10/12/15/20 |
46 |
The above specifications are for reference, other specifications can be ordered by customers.
