M Type Diamond Granite Cutting Segment For 1200mm Single BladeM Type Diamond Granite Cutting Segment For 1200mm Single BladeM Type Diamond Granite Cutting Segment For 1200mm Single BladeM Type Diamond Granite Cutting Segment For 1200mm Single Blade

M Type Diamond Granite Cutting Segment For 1200mm Single Blade

  • Brand Name:Boreway
  • Segment Length: 24mm
  • Segment Shape: M Shape
  • Blade Thickness:7.6/7mm
  • Segment Height: 15/10mm
  • Process Type: Hot Press
  • Model Number:BW-DSGB-7-15
  • Usage:Stone Block Processing
  • Segment Size:24x7.6//7x15/10mm
  • Place Of Origin: Fujian, China
  • Feature:Fast Speed Working and Long Life
  • Product name:Diamond Segments for Granite Cutting
Product Description:

M type diamond cutting segment is slightly wider than the blade core. This allows the cutting edge to penetrate through the material while protecting the steel body.

In the manufacturing process, the metal powder and diamond grit mixture is hot pressed at high temperatures to form a solid metal alloy (called the bond or matrix) in which the diamond grit is retained.

M shape diamond segments or rims are made up of a mixture of diamonds and metal powders. Diamond used in blades are almost exclusively manufactured diamonds in various grit size and quality grades.

Feature:

1.Granite block diamond segment.high percent of cobalts.Precise segment size.High grade of diamonds.

2.Stone cutting segment wholesales,cut granite hard stone and cut it with bridge cutting machine.

3.Multi saw blade segment for granite. this diamond granite segment are ensure block with average thickness,low noise with smooth cutting,save energy on powder and stone.


Product Specification:

The Following Are Normal Specifications M type diamond cutting segment:

 Blade Diameter  Segment Length Segment
Thickness
 Segment Height
Production

Method

1200mm
(48 Inch)
24mm  7.6/7.0mm 15/10mm  Sintered

The above specifications is only for reference, other specifications may be available as per customer's demand.

Product show

M Type Diamond Granite Cutting Segment For 1200mm Single Blade

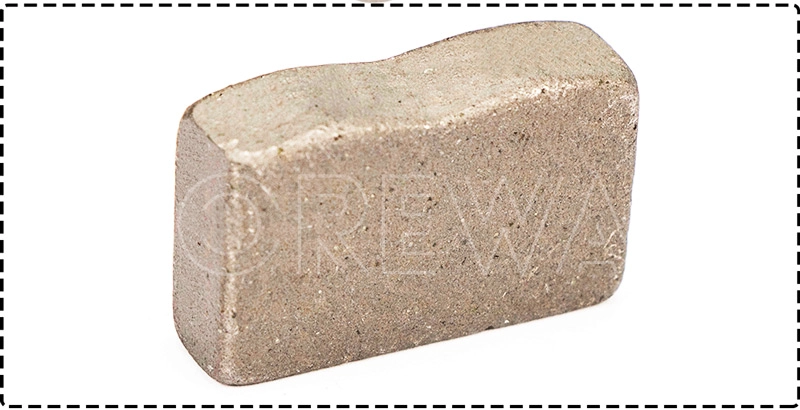

M Type Diamond Granite Cutting Segment For 1200mm Single Blade 88
M Type Diamond Granite Cutting Segment For 1200mm Single Blade 99

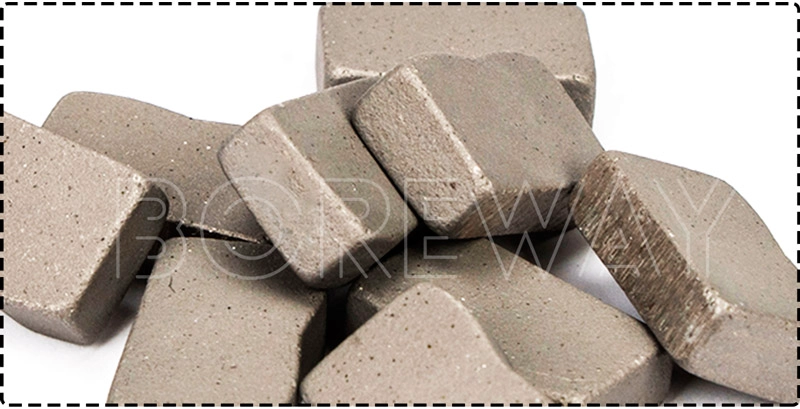

M Type Diamond Granite Cutting Segment For 1200mm Single Blade  100

Application:

Wet use for bridge cutting machine,single arm machine.

Diamondsaw blade segment for granite cutting,stone block.

M type diamond cutting segmentfor welding on 1200mm circular saw blade.for multi blade saw and single blade saw.

 bridge cutting machine,desktop cutting machine8899

FAQ

1. How to guarantee the quality of the product?

The company’s products have standards, safety guarantees to control product quality, responsible for product quality for our customers, Established for more than ten years, as a professional and experienced diamond manufacturer, Boreway insists on providing our customers with the highest quality diamond tools .

2. Are you professional?

All of our company's products are diamond tools or related machinery products. They are highly professional and have maintained their pre-industry level. We are more professional and can help you find the ideal ideal for your market (dealer) or project (end user). Diamond tools.

3. What are our advantages?

Our teams is professional and the members have good study of the diamond tools. We offer quick response. Each messege or email will be replied within 24 hours.In the past few decades, Boreway diamond tools has made many orders of the OEM/ODM successfully . Some of the OEM/ODM services are free of charge!
