Wheel axles for standard stubbing wheel,diamond standard stubbing wheel adapter shaft for granite,wheel axles for drain stubbing wheel,Wheel axles for duty diamond stubbing wheel

Model Number: BW-DSSWA
Type:Wet Use
Size:D37*90L*1/2"G
Diameter:37mm
Length:90mm
Connection:1/2G"
Applications:Adapter for standard stubbing wheels which are used for milling and materialremoval for stones.
Machine:Be used for CNC machine or other stone machine.
Advantage:High efficiency and long lifespan

Introduction:
Wheel axles for standard stubbing wheel are used for surface milling and material removal for various granite

and marble stone on router machines.Their merits are high efficiency of production,accuracy in

shape and size.

Features:

1.The unique design with good sharpness allows easy dust removal, low noise and safety. This product

provides high accuracy and smooth surface in stone processing.

2.Its lifespan could normally reach more than 450meters.

3.With feature of high efficiency,accuracy in shape and size.

4.Various specification are available upon client's request.

Specifications:
The followings are the normal specifications of our diamond standard stubbing wheel.

Diameter/mm	Segment height/mm	Inner hole/mm	Connection	Grit No.	Machine
50	20	10	Φ10-2+2Hole	30/40# 60# 100# 200#	CNC machine and radial arm machine
	30
	40
86	20	50	Φ50-3+3Hole
	30
	40
100	20		Φ50-3+3Hole
	30
	40

Above specification just a reference for customers.Other specifications can be ordered by customers.

Picture:

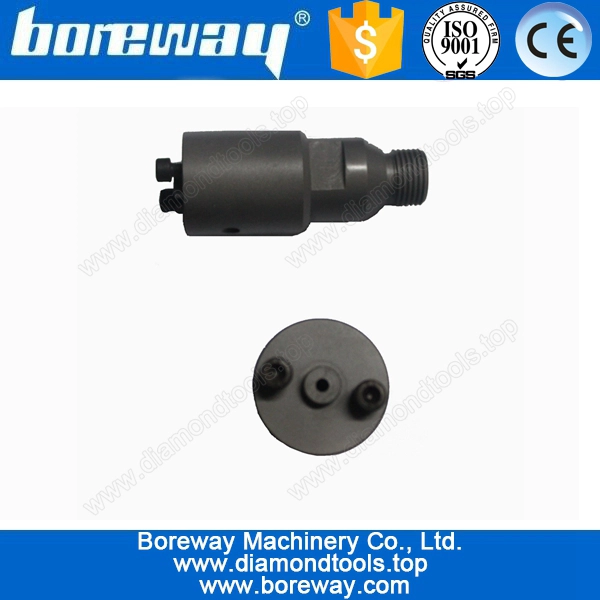

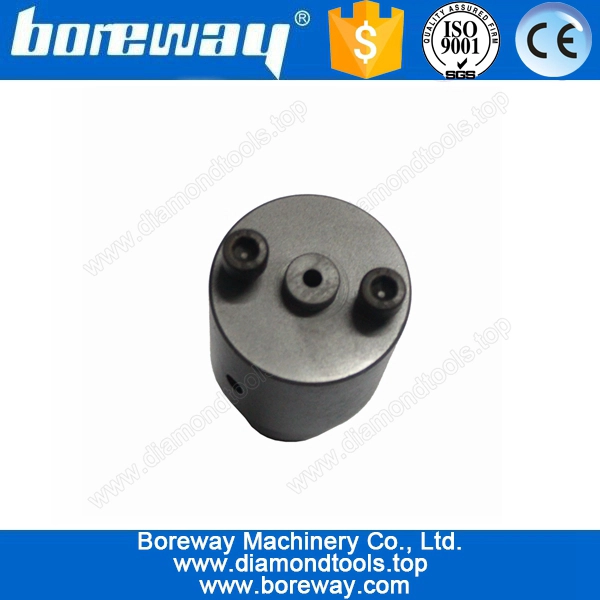

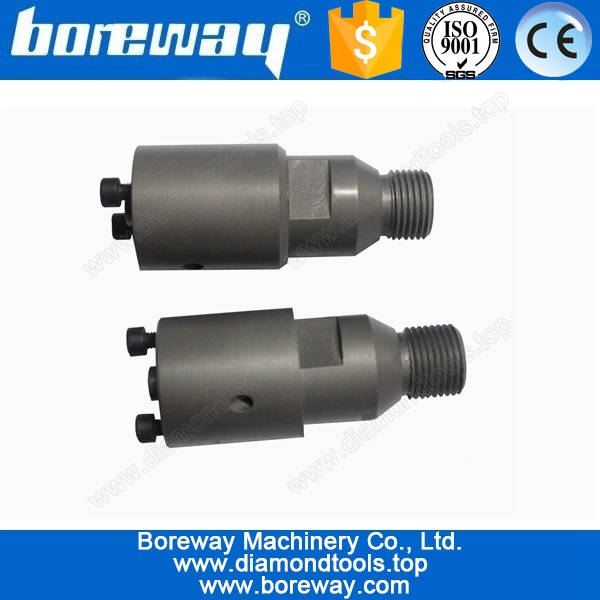

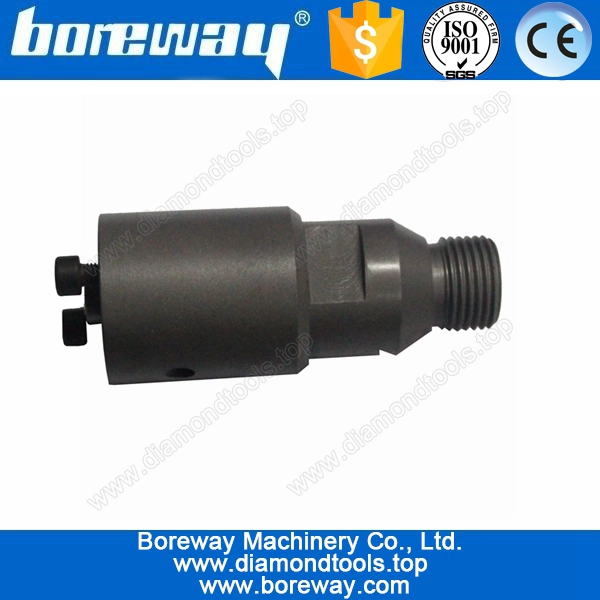

wheel axles for diamond standard stubbing wheel

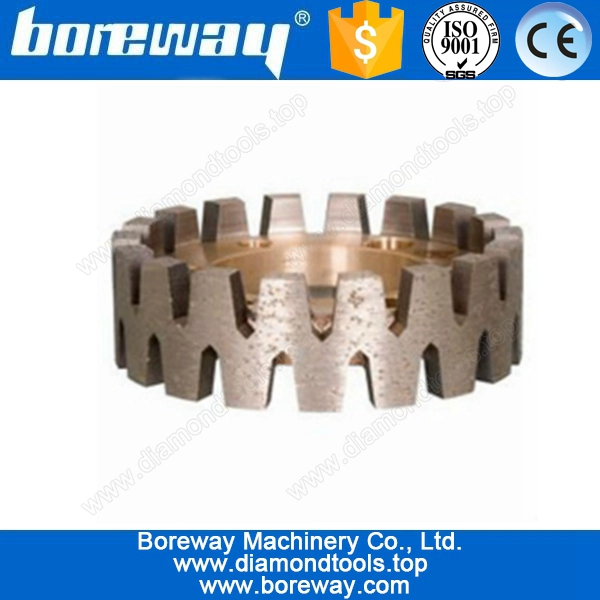

Diamond standard stubbing wheel
