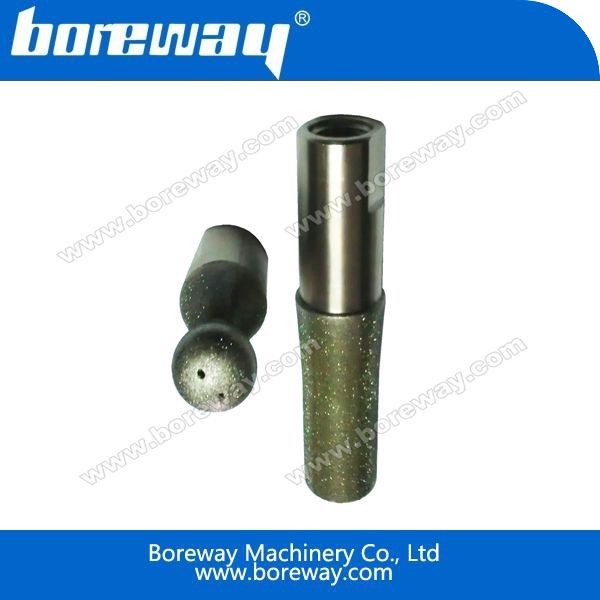

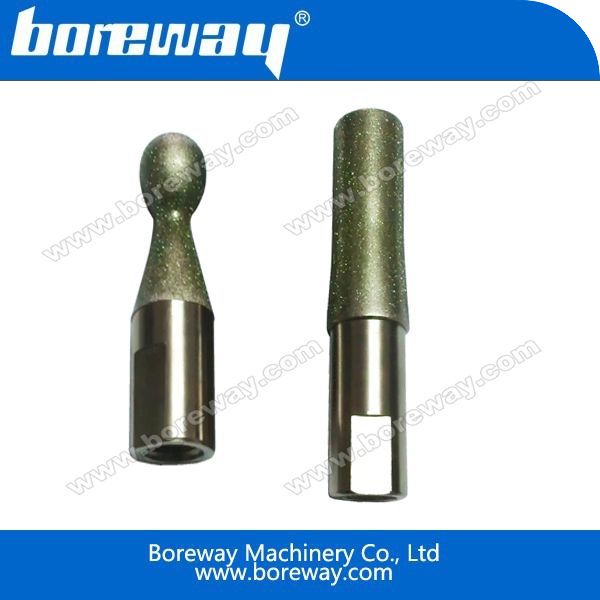

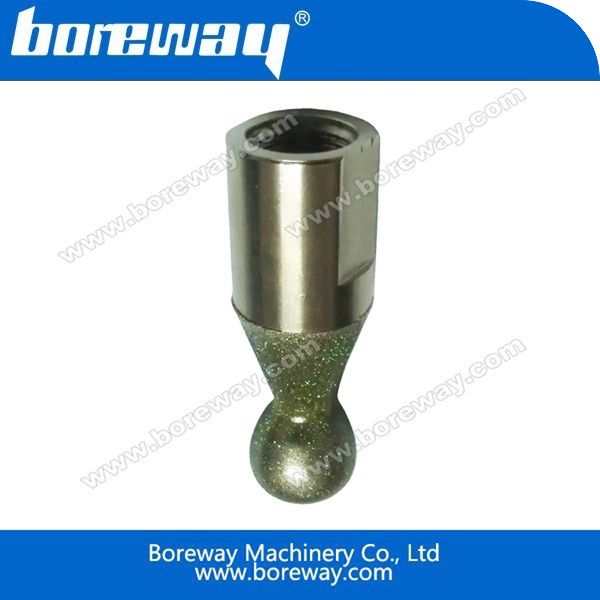

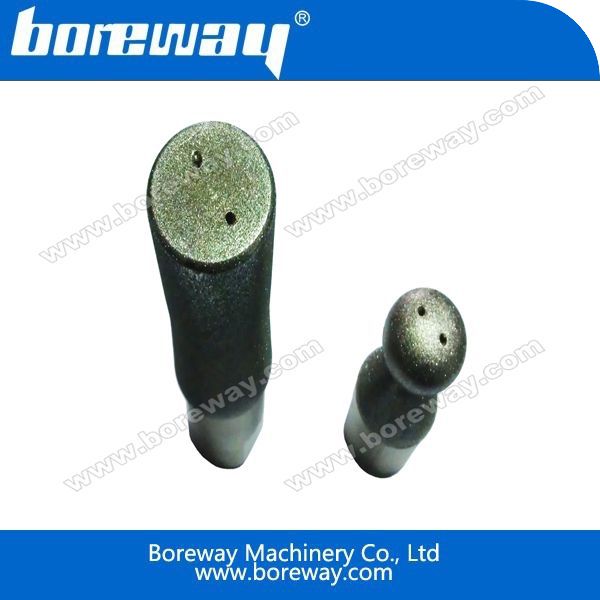

Electroplated Diamond Rock Grinding Head
- Model Number: BW-EDGH-00
- Type: Wet use
- Shank Diameter: 12mm or 12.7mm
- Head Diameter: 10mm
- Technology: Electroplated
- Industry: Diamond tools
- Advantage: Good sharpness and long lifespan.
- Machine: Portable grinder etc
- Applications: Electroplated diamond rock grinding head is wet use for milling hole of stone.
Electroplated diamond rock grinding head is designed for grinding bore of jade and other hard stone,at the same
time in the process of grinding hard rocks suggest water use.
Features:
1. Easy and smooth grinding.
2. Long lasting lifespan.
3. Good grinding result and high efficiency.
Specifications:
The followings are the normal specifications of our electroplated diamond rock grinding head
Item No. Shank Diameter(mm) Head Diameter(mm) Blade length(mm) W1 12 10 30 W2 12 10 50 W3 12 10 60 S1 12.7 10 80 S2 12.7 10 100 S3 12.7 10 120 S4 12.7 10 60 S5 12.7 10 100 S6 12.7 10 100 S7 12.7 10 120 S8 12.7 10 80 S9 12.7 10 100 S10 12.7 10 120
