Two Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding MachineTwo Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding MachineTwo Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding MachineTwo Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding Machine

Two Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding Machine

  • Segment No.:2T
  • Brand Name:Boreway
  • Usage:Concrete,Terrazzo
  • Type:Concrete Grinding Pads
  • Applied Machine:Floor Grinder
  • Place Of Origin:Fujian, China
  • Model Number:BW-LAX-MET-RS-01
  • Application:Concrete Epoxy Terrazzo
  • Segment Type:Double Rectangle Segments
  • Product Name:Concrete Grinding Discs
  • Material:Diamond And Metal Powder Combination
  • Segment Size:40*10*10mm 40*12*12mm 40*12*15mm
  • Bond:Extra Soft,Super Soft,Soft,Medium,Hard,Super Hard, Extra Hard

Two Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding Machine


Specification:

The normal size of Two Rectangle Diamond Metal Bond Shoe:

 Segment No.: 2T
 Usage:  Wet Or Dry Use
Machine:    Floor Grinder
 Type: Lavina Pads
Segment Shape: Two Rectangle Segment
Application: Concrete Epoxy Terrazzo

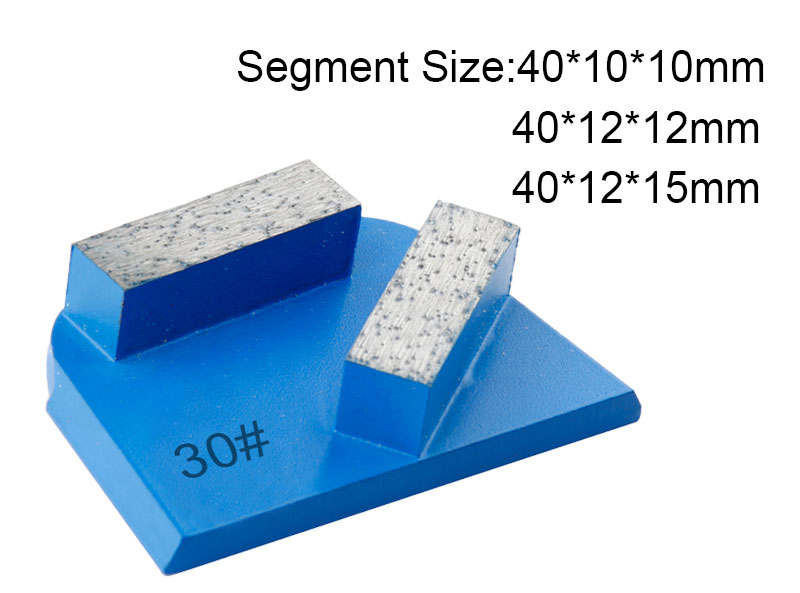

Segment Size:  40*10*10mm 40*12*12mm 40*12*15mm

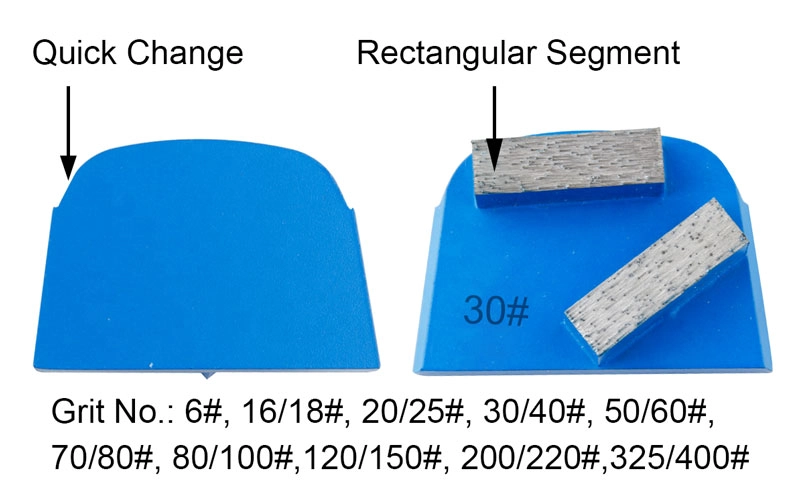

Grit No.: 6#,16#,20/25#,30/40#, 50/60#, 70/80#,80/100#,120/150#,200/220#,325/400#
 Bond:  Very Soft Bond, Soft Bond, Medium Bond, Hard Bond, Very Hard Bond, Extreme Hard Bond

Other connection and specification can be customized according to need
Description:

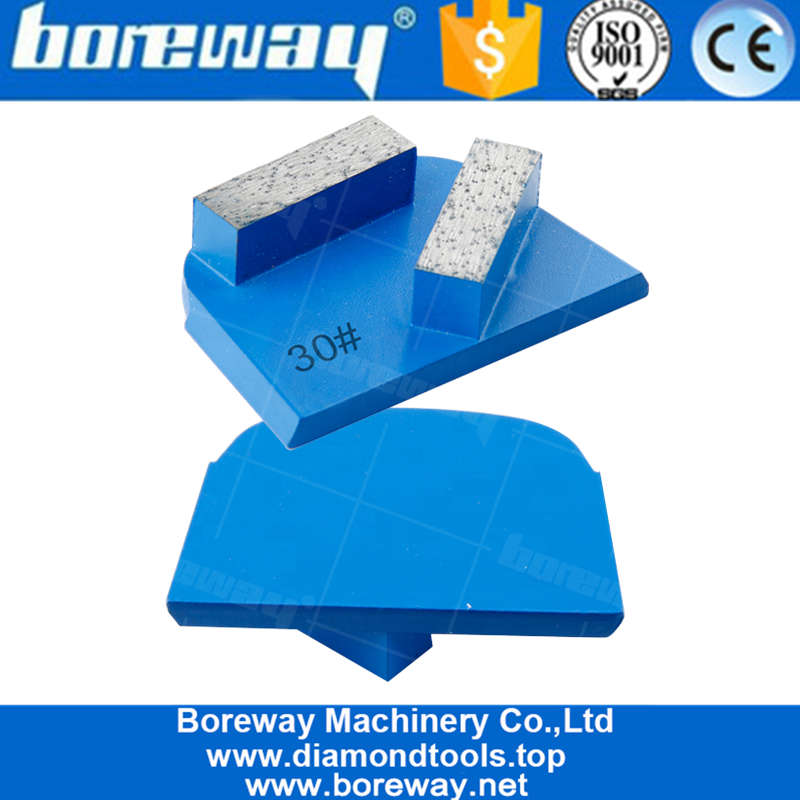

Two Rectangle Diamond Metal Bond Shoe

Connection :
Quick Change system features replaceable trapezoid-style pads that easily slide in and out of the machine plates or heads, with no bolting required.

Features:
Can be designed into a variety of different shapes of single segment or double segments , also can be customized according to the customer's special shape and specific numbers of segments.

For example ,below can be made into a three inch and ten segments grinding disc , providing an ultra-long service life , this model is recommended for large horsepower or large grinding machine.



Advantages:

Two Rectangle Diamond Metal Bond Shoe can be designed into a variety of different shapes of single segment or double segments , also can be customized according to the customer's special shape and specific numbers of segments.

For example ,below can be made into a three inch and ten segments grinding disc , providing an ultra-long service life , this model is recommended for large horsepower or large grinding machine.


Bond:

Soft Bond - For hard concrete, between 4000 and 5500 psi. The bond must be softened to expose the diamond crystals to grind the hard surface. Hardened concrete consists of hardened granite, quartz, river stone, flint.

Medium bonds - for medium concrete, between 2500 and 4000 psi - are the suggested, most popular and most common bonds used in most cases. For use on common pit gravel and / or medium river stones, traprock, crushed gravel floors. Soft and hard bonds are usually reserved for extreme (unusual) cases.

Hard Bond - For soft concrete, typically below 2500 psi. Bonds have rigid metals in their matrix that withstand friction, so diamond crystals are not kicked-out before the surface has a chance to work. Soft concrete consists of limestone, sandstone, dolomite, soft shell.


Single Rhombus Segment Concrete Grinding Pads

Design for removing adhesives, thin mil coatings and leveling uneven spots or joints.
Effective, efficient grinding concrete floor sestoration tools.
It's good to coarse grinding concrete surface quickly, remove bump, make the surface leveling
Also idea for the initial steps in concrete polishing procedures
Achieve maximum square footage at minimum cost.
Fits Lavina grinder machines on the market

Chinese Wholesaler Single Arc Segments Round Grinding Pad 



Application:

Two Rectangle Diamond Metal Bond Shoe For Concrete Grinding
Design for leveling adhesives, thin coating and uneven spots or joints.

Two Rectangle Diamond Metal Bond Shoe are designed for grinding and polishing concrete floors. Boots / Cakes come with soft bond, rigid bond and standard medium bond and mixed grits. These concrete diamond grinding shoes fit into the fast change style piece and polishing heads. Grinding shoes are designed for extended life compared to the competition with a jumbo-size segment and a lower grinding cost per square yard.

Cassani Diamond Tools for Concrete Grinding

Cassani Diamond Tools for Concrete Grinding

Single Rhombus Segment Concrete Grinding Pads,Highquality diamond combain with excellent bond,which specialized design for very aggresive, high-performance, long life diamond grinding tools.

Packing&Delivery:

PS:

1.Tools packing in carton cases

2.By Air/Sea for batch goods, Airport/Port receiving

3.Less than 45kg, generally delivery by express(Door to Door)

4.When tools are in large quantities, they are packing in wooden cases
Single Rhombus Segment Concrete Grinding Pads

Logistics:

Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours

Our Service:

1.Low MOQ: It can meet your trial order need well.
2.OEM Accepted: We can produce according to your sample or drawings.
3.Good Service: We treat our clients as God with high professionalism and passion.
4.Good Quality: We have strict quality control system. Good reputation in the market.
5.Fast Delivery: We have big discount from forwarder.

FAQ:

1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.

2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.

3.Does your company accept custom-made?
Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.
