Single Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection HoleSingle Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection HoleSingle Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection HoleSingle Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection HoleSingle Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection Hole

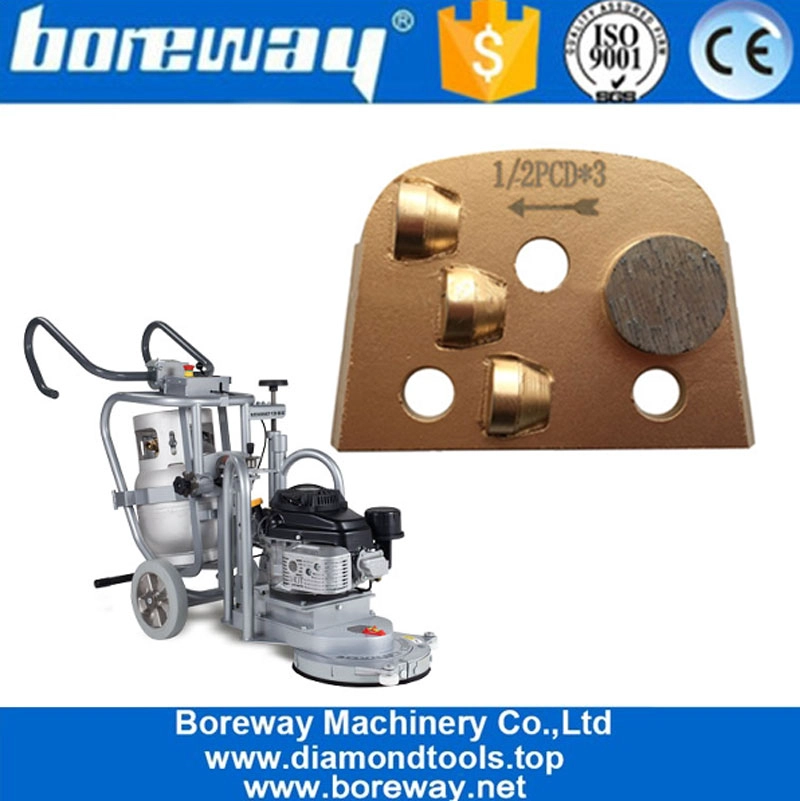

Single Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection Hole

  • Brand: Boreway
  • Shape: Lavina
  • Material: Diamond
  • Feature: High Efficiency
  • Bandage: Hard, Medium, Soft
  • Advantage: High Grinding Ability
  • Usage: Concrete And Terrazzo Floor
  • Segment Shape: Single Round Segment
  • Application: Lavina Concrete Grinding Machine
  • Section Size: Three Half Pcd And One Bar Segment
  • Outrageous Grain Size: 16 # 30 # 50 # 120 # And So On
Products:

Wholesales Diamond Grinding And Polishing Tools For Concrete,Single Round Segment And Three Half Pcd Pad are designed for grinding and polishing concrete floors. Boots / Cakes come with soft bond, rigid bond and standard medium bond and mixed grits.
Single Round Segment And Three Half Pcd Pad fit into the fast change style piece and polishing heads. Grinding shoes are designed for extended life compared to the competition with a jumbo-size segment and a lower grinding cost per square yard.

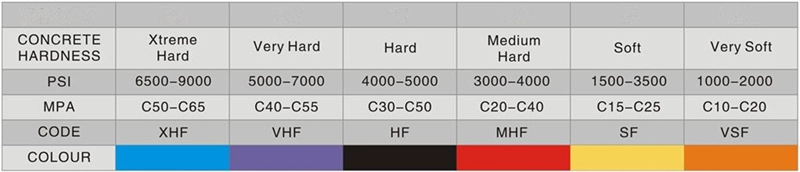

Bond:
Soft Bond - For hard concrete, between 4000 and 5500 psi. The bond must be softened to expose the diamond crystals to grind the hard surface. Hardened concrete consists of hardened granite, quartz, river stone, flint.

Medium bonds - for medium concrete, between 2500 and 4000 psi - are the suggested, most popular and most common bonds used in most cases. For use on common pit gravel and / or medium river stones, traprock, crushed gravel floors. Soft and hard bonds are usually reserved for extreme (unusual) cases.

Hard Bond - For soft concrete, typically below 2500 psi. Bonds have rigid metals in their matrix that withstand friction, so diamond crystals are not kicked-out before the surface has a chance to work. Soft concrete consists of limestone, sandstone, dolomite, soft shell.



Specifications:

Following are the general specifications Lavina Single Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection Hole:

Shape: Lavina
Block Grit: 16 # 30 # 50 # 120 # And So On
Material: Diamond + Metal Powder
Quality: International Standard Quality
Bond: Soft,Medium Hard,Hard
Benefit: High Grinding Efficiency

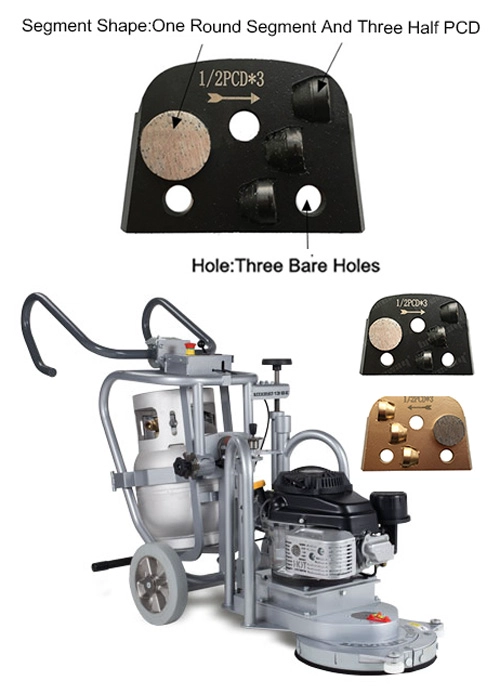

Block Shape: Three Half Pcd And One Round Diamond Segment
Name:

Single Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection Hole


Specifically designed tools are available for any standard application. We can do it Tailor your equipment to your specific needs.

Description:

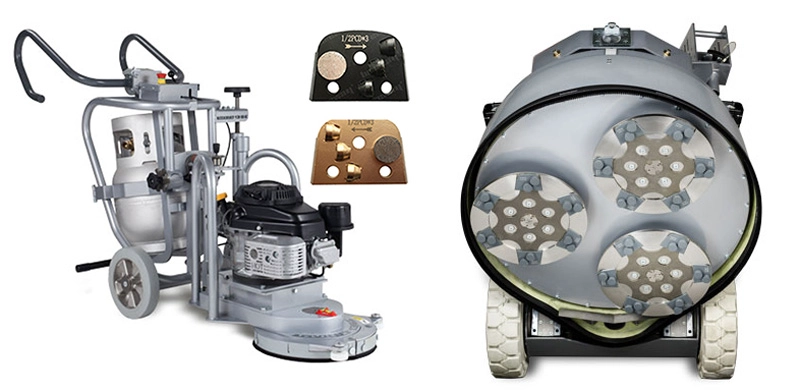

Applied to Lavina Concrete Grinding Machine a Single Round Segment And Three Half PCD Diamond Pad Concrete Terrazzo Floor Tools With Three Connection Hole

PCD is designed for concrete floor coating removals, such as epoxies, glues, mastic, thin-set, urethane etc.

Single Round Segment And Three Half Pcd Pad is very sharp; it is designed for quick removal of coatings, such as paint, epoxy, glue from concrete floors as well as flattening bumpy concrete surface.

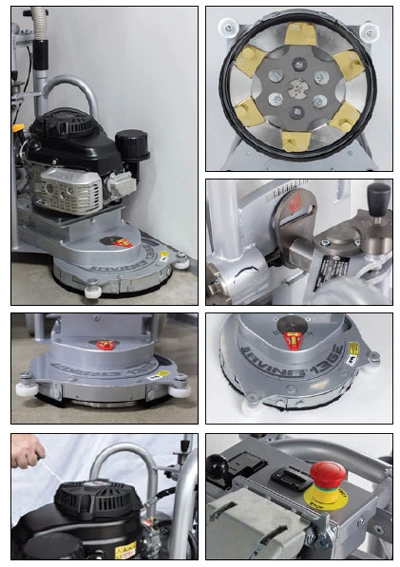

Fits all Lavina grinders including latest models - bolt-on & magnetic

Lavina Tools with 3 big Half PCD removes coatings aggressively. 1 button scraper well balance cutting depth and smooth the deeper marks left by PCD cut.

Before deciding which tools to use for coating removal, you should inspect the floor and answer the following questions:

• What type of coating are you removing and how thick or thin is the coating?
• Will you be re-coating with a thick or thin mil system?
• Are you going to be polishing the surface?
Any bolts or other objects sticking up from the floor must be cut and hammered down into the floor to prevent damage to the tools and machine

Advantages:

PCD tools WITHOUT Sacrificial bars or Metal Bond Button are the most aggressive style and will leave a very coarse profile on the concrete underneath. These are suitable for removal of:

• Thick mastics and glues
• 30 mils and up Epoxy Coatings
• Thick Elastomeric Membranes
• ¼” Thick Parking Deck Membranes
• Any coating with silica sand broadcast mixed in

Boreway's PCD tools are designed for aggressive stock and coating removal and are offered with the same QuickChange attachment as the standard metal bond QC tools. Please note that the PCD tools are directional specific and you should check the direction of rotation of the grinder heads. All Lavina machines require standard right-hand rotation tools. LAVINA propane grinders require PCD tools with LEFT-hand rotation - those can be easily distinguished by their blue color.

Application:

For Lavina Machine
PCD tools With Sacrificial bars or Metal Bond Button are designed to remove coating over a surface equal to a troweled surface and will not damage the concrete. Single Round Segment And Three Half Pcd Pad.The sacrificial bars or the metal button act as a stabilizer and depth guide, and reduce the gauging of the floor caused by the aggressive pcd segments. These tools are suitable for removal of:
Medium to thin mastics or glues
Failing epoxy coatings (30 mils or less)

Boreway's QUICK CHANGE METAL BOND TOOLS can be used for coating removal of thin, old, dried glues, 20 mils or less- epoxy coatings, floor paints, cure-n-seals, etc.

Please note that PCD tools are direction specific, you need to check the rotation of your grinding heads. Most machines require standard right hand rotation tools.
