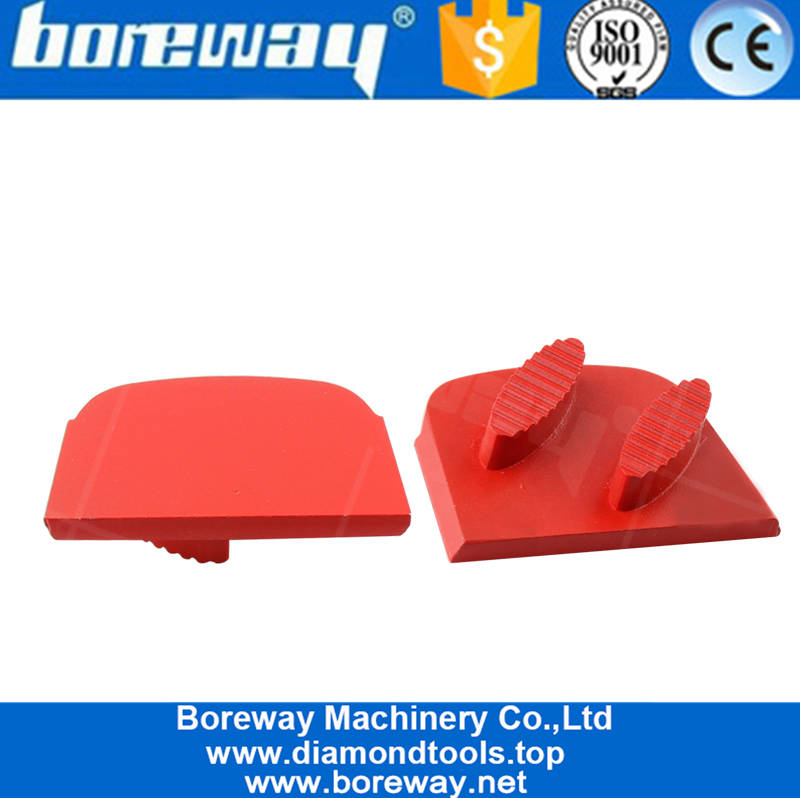

Chinese Manufacturing Companies Shoes Shape Segments Lavina Diamond Red Grinding Terrazzo Floor Diamond ShoeChinese Manufacturing Companies Shoes Shape Segments Lavina Diamond Red Grinding Terrazzo Floor Diamond ShoeChinese Manufacturing Companies Shoes Shape Segments Lavina Diamond Red Grinding Terrazzo Floor Diamond ShoeChinese Manufacturing Companies Shoes Shape Segments Lavina Diamond Red Grinding Terrazzo Floor Diamond Shoe

Chinese Manufacturing Companies Shoes Shape Segments Lavina Diamond Red Grinding Terrazzo Floor Diamond Shoe

  • Brand:Boreway
  • Segment Height: 10mm
  • Type:Lavina Grinding Bar
  • Segment Type:Shoes Shape
  • Model Number:BW-LA-SS-01
  • Usage:Concrete,Terrazzo Floor
  • Applied Machine:Lavina Floor Grinder
  • Girt No.:16/18# 20/25# 50/60# 80/100# ETC
  • Product Name:Grinding Diamond Discs Marble
  • Material:Diamond And Metal Powder Combination

Two Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding Machine


Advantages:


Shoes Shape Segments Lavina Grinding BlockShoes Shape Segments Lavina Grinding Block

Shoes Shape Segments Lavina Grinding Block


1. Design for removing adhesives, thin mil coatings and leveling uneven spots or joints.


2. Effective, efficient grinding concrete floor sestoration tools.


3. It's good to coarse grinding concrete surface quickly, remove bump, make the surface leveling


4. Also idea for the initial steps in concrete polishing procedures


5. Achieve maximum square footage at minimum cost.


6. Fits Lavina grinder machines on the market


Bond:

Soft Bond - For hard concrete, between 4000 and 5500 psi. The bond must be softened to expose the diamond crystals to grind the hard surface. Hardened concrete consists of hardened granite, quartz, river stone, flint.

Medium bonds - for medium concrete, between 2500 and 4000 psi - are the suggested, most popular and most common bonds used in most cases. For use on common pit gravel and / or medium river stones, traprock, crushed gravel floors. Soft and hard bonds are usually reserved for extreme (unusual) cases.

Hard Bond - For soft concrete, typically below 2500 psi. Bonds have rigid metals in their matrix that withstand friction, so diamond crystals are not kicked-out before the surface has a chance to work. Soft concrete consists of limestone, sandstone, dolomite, soft shell.


Specification:

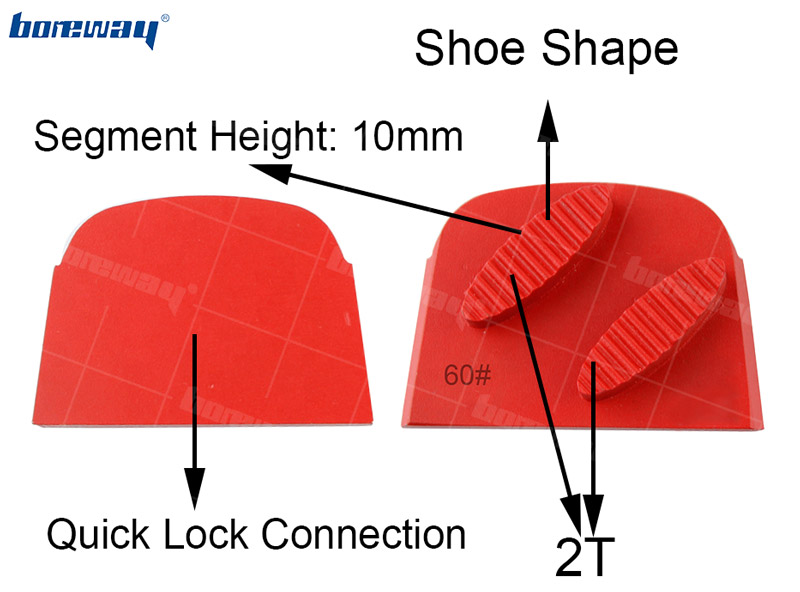

The normal size of Shoes Shape Segments Lavina Grinding Block:

 Segment No.:
2T


 Segment Height:

10mm

 Usage:
Wet / Dry Use

Machine:
Floor Grinder

 Segment Shape:
Lavina Grinding Block

Type:
Two Shoe Shape Segment

Application:
For Concrete and Terrazzo Floor

Grit No.:
6#,16#,20/25#,30/40#, 50/60#, 70/80#,80/100#,120/150#,200/220#,325/400#

 Bond:
Very Soft Bond, Soft Bond, Medium Bond, Hard Bond, Very Hard Bond, Extreme Hard Bond


Other connection and specification can be customized according to need

Product Detail:

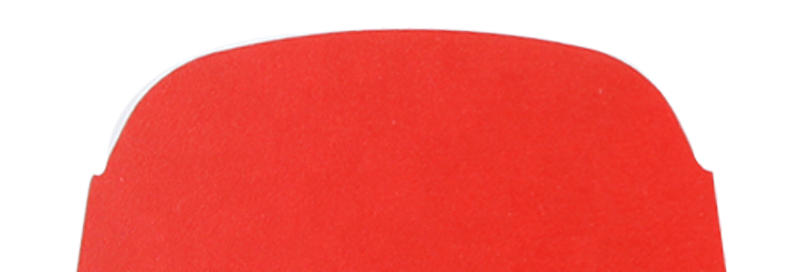

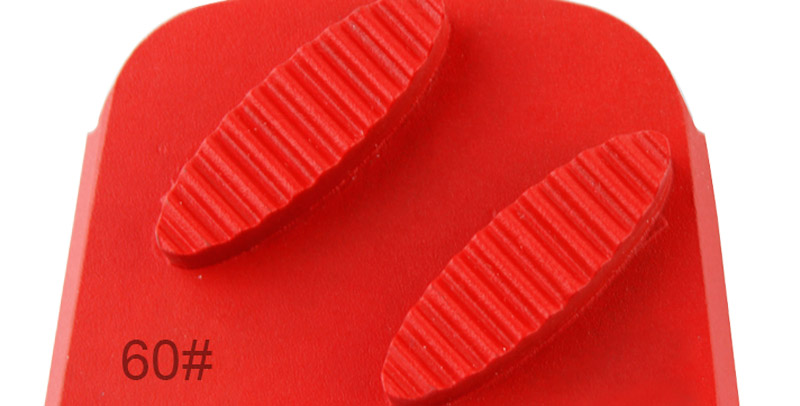

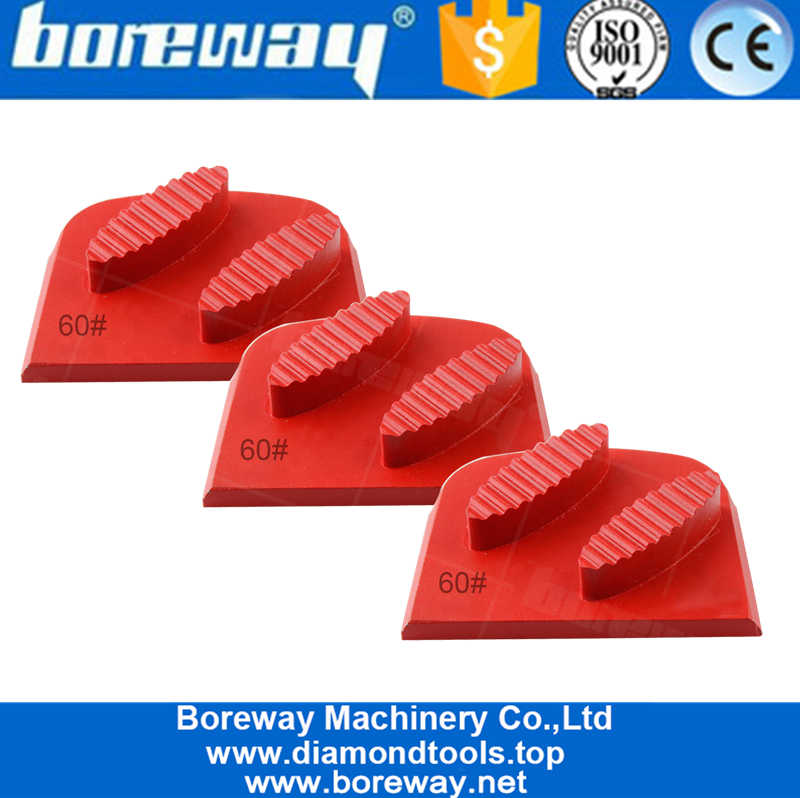

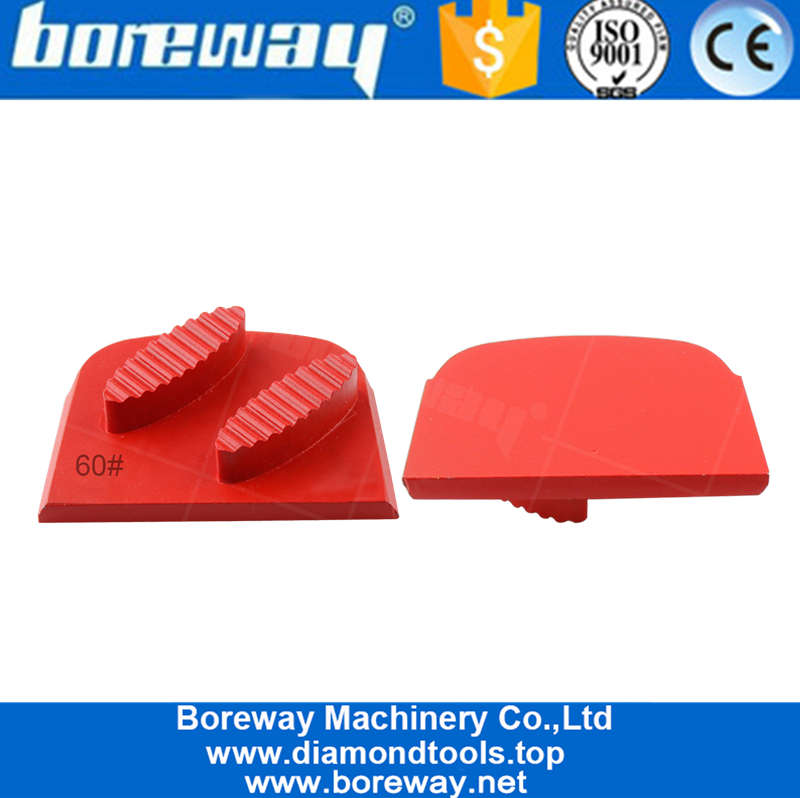

Shoes Shape Segments Lavina Grinding Block

Two Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding Machine

Two Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding Machine

Two Rectangle Metal Bond Shoe Factory Products Blue Diamond Concrete Grinding Disc For Lavina Floor Grinding Machine





Description:


Connection :


Quick Change system features replaceable trapezoid-style pads that easily slide in and out of the machine plates or heads, with no bolting required.

Shoes Shape Segments Lavina Grinding Blockcan be designed into a variety of different shapes of single segment or double segments , also can be customized according to the customer's special shape and specific numbers of segments.


For example ,below can be made into a three inch and ten segments grinding disc , providing an ultra-long service life , this model is recommended for large horsepower or large grinding machine.

Shoes Shape Segments Lavina Grinding Block are designed for grinding and polishing concrete floors. Boots / Cakes come with soft bond, rigid bond and standard medium bond and mixed grits. These concrete diamond grinding shoes fit into the fast change style piece and polishing heads. Grinding shoes are designed for extended life compared to the competition with a jumbo-size segment and a lower grinding cost per square yard.

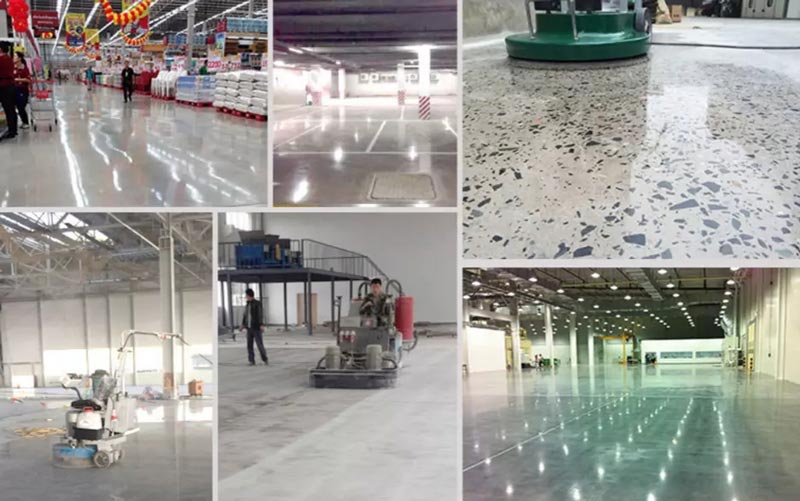

Application:


Shoes Shape Segments Lavina Grinding Block
 For Lavina Grinding  Machine.


Design for leveling adhesives, thin coating and uneven spots or joints.


Double Round Segment Shoe For Lavina Grinder,Highquality diamond combain with excellent bond,which specialized design for very aggresive, high-performance, long life diamond grinding tools.

Cassani Diamond Tools for Concrete Grinding

Cassani Diamond Tools for Concrete Grinding

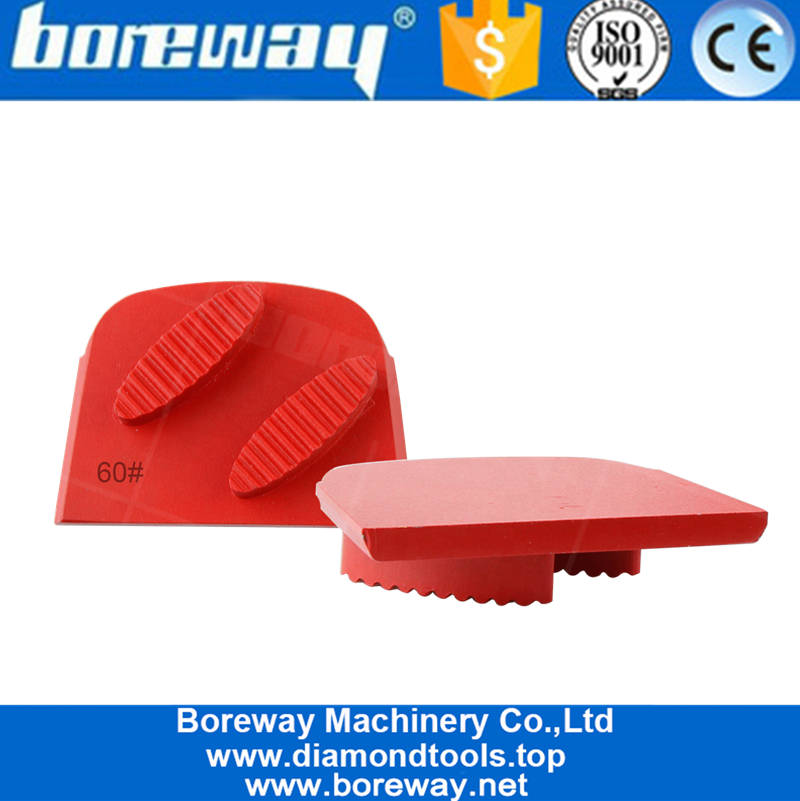

Shoes Shape Segments Lavina Grinding Block

Packing&Delivery:

PS:

1.Tools packing in carton cases

2.By Air/Sea for batch goods, Airport/Port receiving

3.Less than 45kg, generally delivery by express(Door to Door)

4.When tools are in large quantities, they are packing in wooden cases
Single Rhombus Segment Concrete Grinding Pads

Logistics:

Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours

Our Service:

1.Low MOQ: It can meet your trial order need well.
2.OEM Accepted: We can produce according to your sample or drawings.
3.Good Service: We treat our clients as God with high professionalism and passion.
4.Good Quality: We have strict quality control system. Good reputation in the market.
5.Fast Delivery: We have big discount from forwarder.

FAQ:

1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.

2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.

3.Does your company accept custom-made?
Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.
