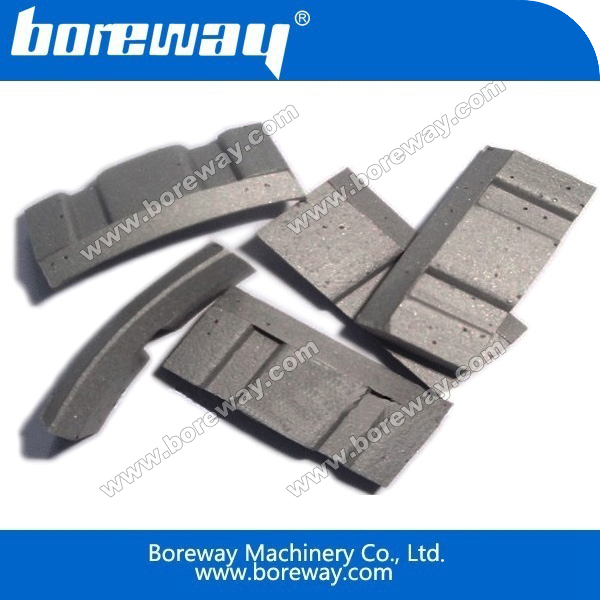

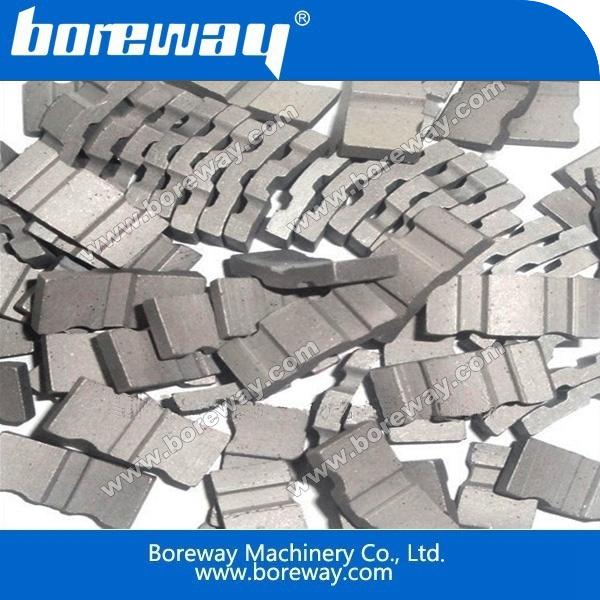

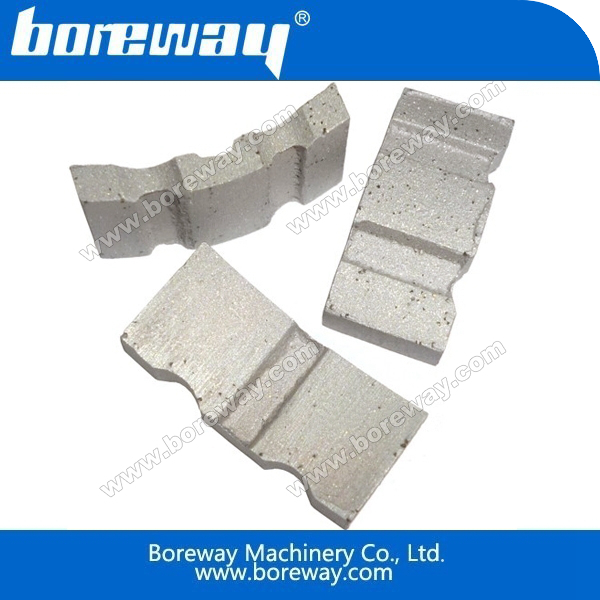

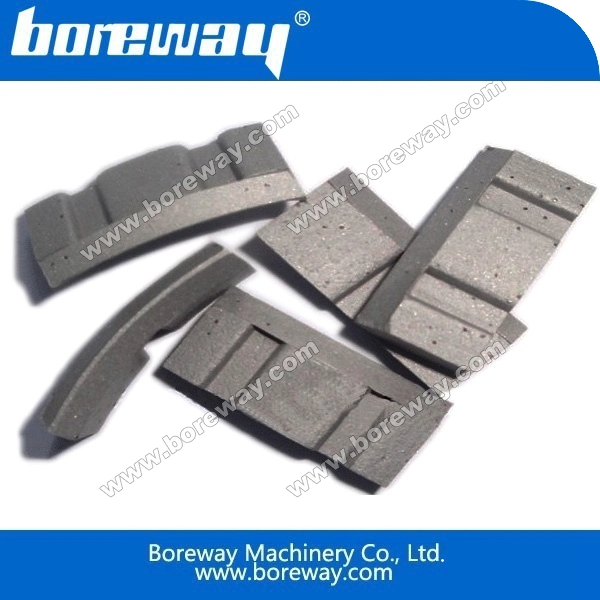

Turbo segment for construction diamond core drill bit
- Model Number: BW-TSCDCDB-002
- Type: Wet use
- Segment Length: 16mm-24mm
- Segment Thickness: 3mm-5.5mm
- Segment Hight: 10mm
- Industry: Diamond drilling tools
- Technology: Sintered
- Advantage: Good sharpness and long lifespan.
- Applications: Boreway turbo segment for construction diamond core drill bit is welding for core drill bit.
Introduction:
Turbo segments for construction diamond core drill bits are suitable for drilling cured reinforced concrete, green concrete or stone material. Under same bond conditions, the drilling speed of this turbo segments is much faster than normal flat segments.
Features:
1. Turbo segment provide higher drilling efficiency.
2. Wet or dry drilling.
3. Long lifespan and stable performance.
Specifications:
The followings are the normal specifications of our turbo segment for construction diamond core drill bit:
|
Product Name |
Diameter |
Segment Width |
Segment No. |
Applications |
|
Turbo Segment For Construction Diamond Core Drill Bit |
1.25"(32mm) |
16x3.0x10 |
4 |
Concrete Brick Masonry |
|
1.38"(35mm) |
16x3.0x10 |
4 |
||
|
1.50"(38mm) |
16x3.0x10 |
5 |
||
|
1.63"(42mm) |
16x3.0x10 |
5 |
||
|
1.75"(45mm) |
16x3.0x10 |
6 |
||
|
1.88"(48mm) |
16x3.0x10 |
6 |
||
|
2"(52mm) |
16x3.0x10 |
7 |
||
|
2.25"(57mm) |
24x3.5x10 |
5 |
||
|
2.50"(63mm) |
24x3.5x10 |
6 |
||
|
2.75"(70mm) |
24x3.5x10 |
7 |
||
|
3"(76mm) |
24x3.5x10 |
8 |
||
|
3.25"(82mm) |
24x3.5x10 |
9 |
||
|
3.50"(89mm) |
24x3.5x10 |
10 |
||
|
4"(102mm) |
24x3.5x10 |
10 |
||
|
4.25"(108mm) |
24x3.5x10 |
11 |
||
|
4.50"(114mm) |
24x3.5x10 |
11 |
||
|
4.75"(120mm) |
24x4.0x10 |
11 |
||
|
5"(127mm) |
24x4.0x10 |
11 |
||
|
5.5"(140mm) |
24x4.0x10 |
12 |
||
|
5.75"(146mm) |
24x4.0x10 |
13 |
||
|
6"(152mm) |
24x4.0x10 |
13 |
||
|
6.25"(159mm) |
24x4.0x10 |
14 |
||
|
6.5"(165mm) |
24x4.0x10 |
15 |
||
|
7"(178mm) |
24x4.0x10 |
16 |
||
|
8"(203mm) |
24x4.5x10 |
18 |
||
|
9"(229mm) |
24x4.5x10 |
20 |
||
|
10"(254mm) |
24x4.5x10 |
23 |
||
|
11"(280mm) |
24x5.0x10 |
25 |
||
|
12"(305mm) |
24x5.0x10 |
27 |
||
|
13"(330mm) |
24x5.5x10 |
30 |
||
|
14"(356mm) |
24x5.5x10 |
32 |
The above specifications are for reference, other specifications can be ordered by customers.
