Boreway Silver Welded Diamond Segment Core Drill Bit for concrete ManufacturerBoreway Silver Welded Diamond Segment Core Drill Bit for concrete ManufacturerBoreway Silver Welded Diamond Segment Core Drill Bit for concrete ManufacturerBoreway Silver Welded Diamond Segment Core Drill Bit for concrete ManufacturerBoreway Silver Welded Diamond Segment Core Drill Bit for concrete Manufacturer

Boreway Silver Welded Diamond Segment Core Drill Bit for concrete Manufacturer

  • Segment No.:11pcs
  • Brand Name:BOREWAY
  • Diamond:4.75inch(120mm)
  • Segment size:24x4.0x10mm
  • Model Number:BW-DS-DB-C02-20
  • Welding:Laser welded, Silver welded
  • Place of Origin:Fujian, China(Mainland)
  • Material:Diamond,metal powder,Co,Ni,etc
  • Machinery:Handheld drill or table drill machine
  • Production technology:Sintered,hot press,cold press
  • Application:Cured reinforced concrete with hard to soft aggregates green concrete orabrasive material

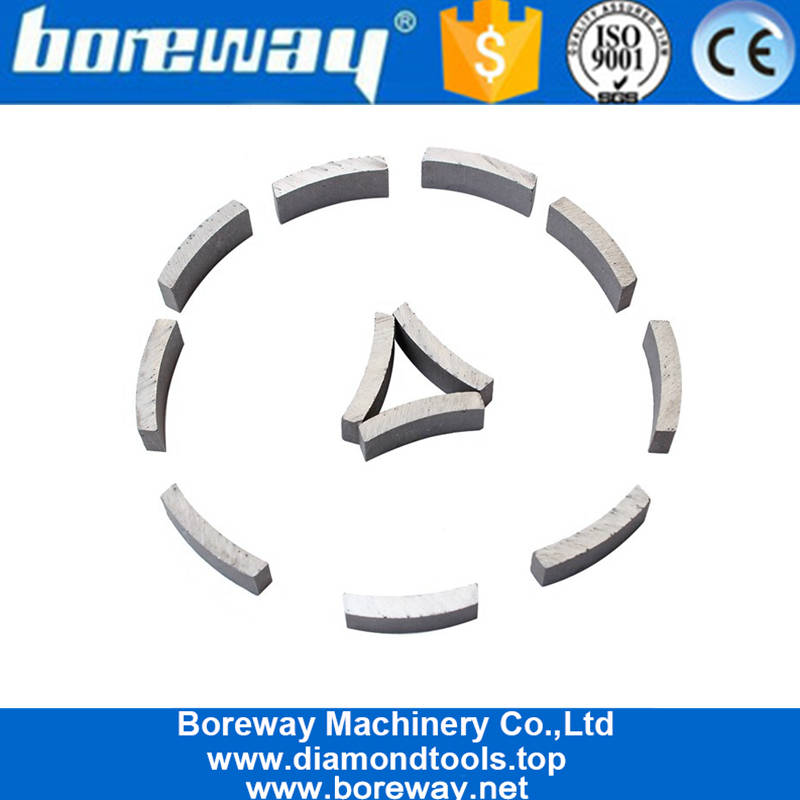

Boreway Core Drill Bit Spare Part Diamond Segment for Reinforce Concrete


Descriptions:

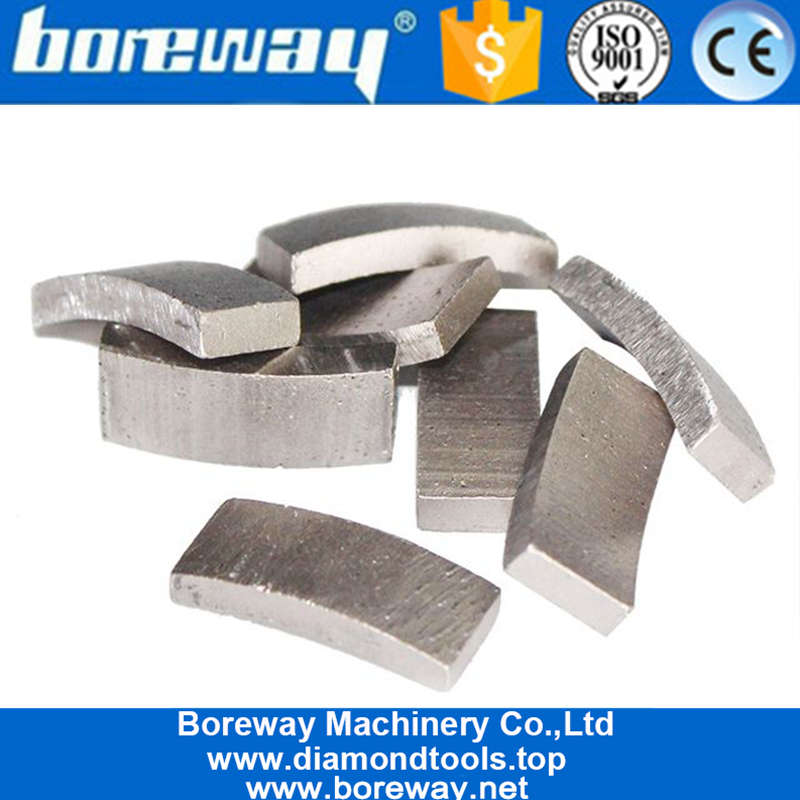

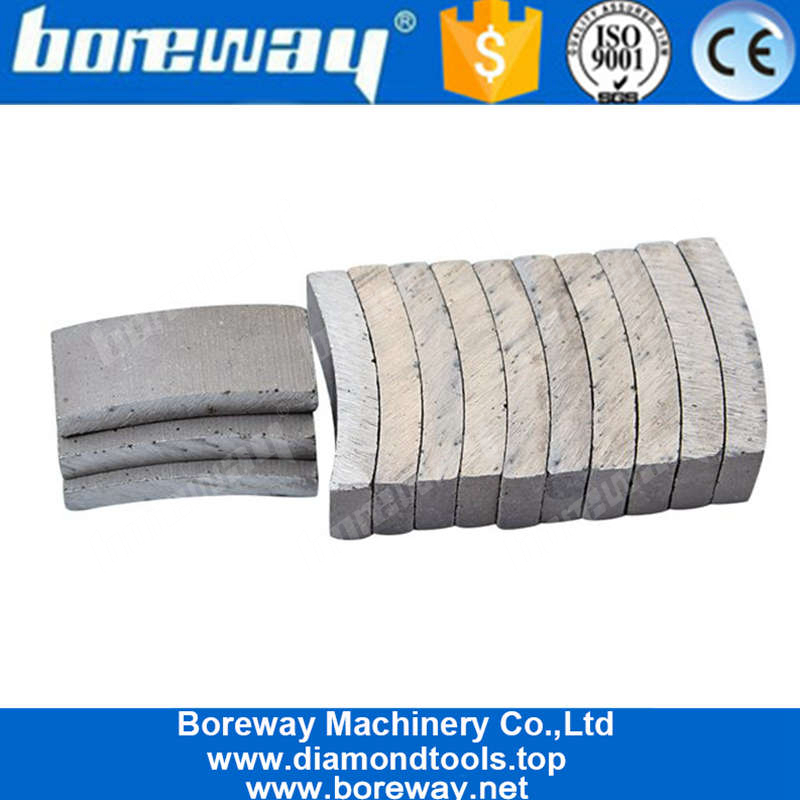

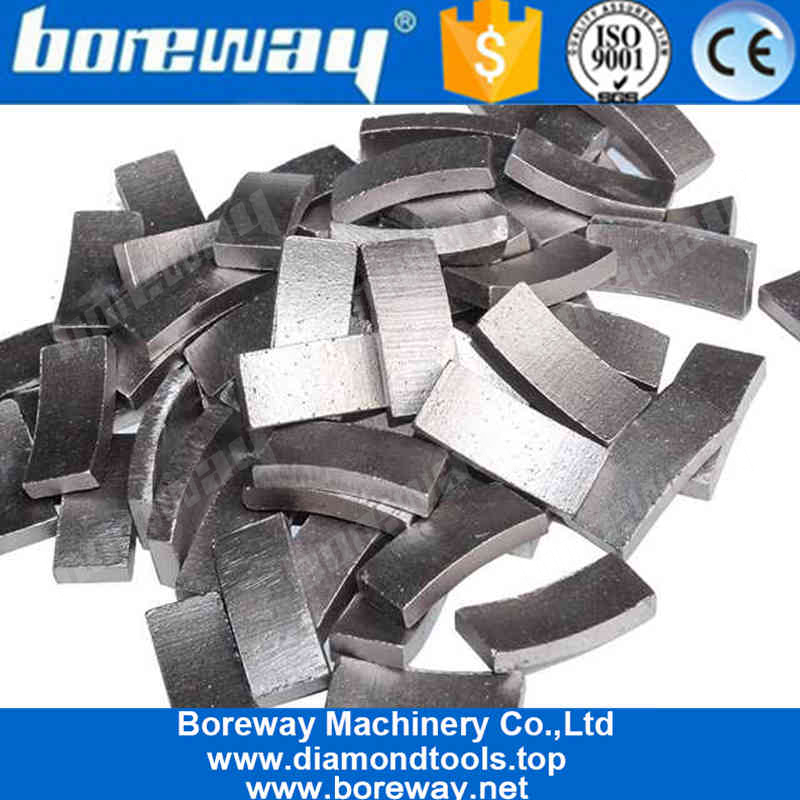

Diamond Segments of Drill Bits - Normal Flat Shape

Silver welded diamond segment core drill bit normal flat shape of drill bits diameter 22mm-356mm provide smooth and fast drilling for kinds of concrete.

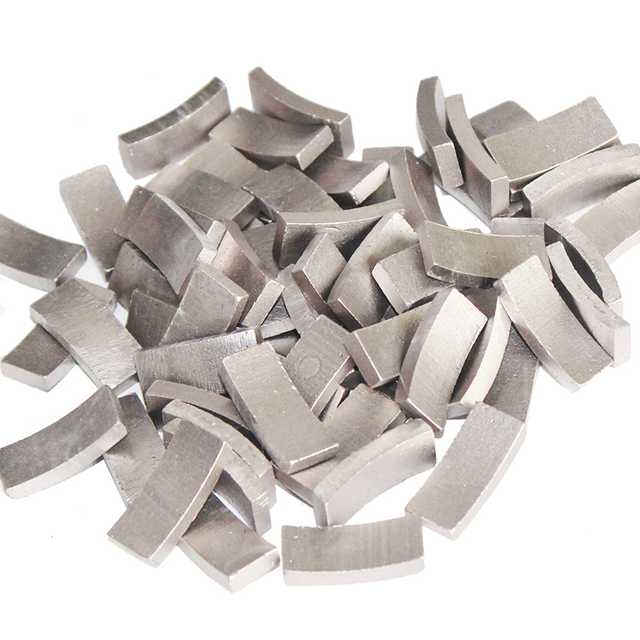

Boreway Silver Welded Diamond Segment Core Drill Bit for concrete Manufacturer

Specifications:

The following specifications of silver welded diamond segment core drill bit

Code No.

Diameter

Segment Size

Segment No.

BW-DS-DB-C02-01

7/8"(22mm)

17/12x3.0x10

3

BW-DS-DB-C02-02

1"(25mm)

17/12x3.0x10

4

BW-DS-DB-C02-03

1.18"(29mm)

17/12x3.0x10

4

BW-DS-DB-C02-04

1.25"(32mm)

16x3.0x10

4

BW-DS-DB-C02-05

1.38"(35mm)

16x3.0x10

4

BW-DS-DB-C02-06

1.50"(38mm)

16x3.0x10

5

BW-DS-DB-C02-07

1.63"(42mm)

16x3.0x10

5

BW-DS-DB-C02-08

1.75"(45mm)

16x3.0x10

6

BW-DS-DB-C02-09

1.88"(48mm)

16x3.0x10

6

BW-DS-DB-C02-10

2"(52mm)

16x3.0x10

7

BW-DS-DB-C02-11

2.25"(57mm)

22x3.5x10

5

BW-DS-DB-C02-12

2.50"(63mm)

22x3.5x10

6

BW-DS-DB-C02-13

2.75"(70mm)

22x3.5x10

7

BW-DS-DB-C02-14

3"(76mm)

22x3.5x10

8

BW-DS-DB-C02-15

3.25"(82mm)

22x3.5x10

9

BW-DS-DB-C02-16

3.50"(89mm)

22x3.5x10

10

BW-DS-DB-C02-17

4"(102mm)

22x3.5x10

10

BW-DS-DB-C02-18

4.25"(108mm)

22x3.5x10

11

BW-DS-DB-C02-19

4.50"(114mm)

22x3.5x10

11

BW-DS-DB-C02-20

4.75"(120mm)

24x4.0x10

11

BW-DS-DB-C02-21

5"(127mm)

24x4.0x10

11

BW-DS-DB-C02-22

5.5"(140mm)

24x4.0x10

12

BW-DS-DB-C02-23

5.75"(146mm)

24x4.0x10

13

BW-DS-DB-C02-24

6"(152mm)

24x4.0x10

13

BW-DS-DB-C02-25

6.25"(159mm)

24x4.0x10

14

BW-DS-DB-C02-26

6.5"(165mm)

24x4.0x10

15

BW-DS-DB-C02-27

7"(178mm)

24x4.0x10

16

BW-DS--DB-C02-28

8"(203mm)

24x4.5x10

18

BW-DS-DB-C02-29

9"(229mm)

24x4.5x10

20

BW-DS-DB-C02-30

10"(254mm)

24x4.5x10

23

BW-DS-DB-C02-31

11"(280mm)

24x5.0x10

25

BW-DS-DB-C02-32

12"(305mm)

24x5.0x10

27

BW-DS-DB-C02-33

13"(330mm)

24x5.5x10

30

BW-DS-DB-C02-34

14"(356mm)

24x5.5x10

32

Other specifications are available upon request.

 Applications:
Silver welded diamond segment core drill bit with hard to soft aggregates, green concrete or abrasive material.

Welding Type: Silver or Laser.

Wet Use.

Advantage:
1. Our bit bit head adopts diamond sheet material and metal matrix (Ti + Cr + Ni + CO, etc.) to form chemical bond, which can reduce threshing, improve cutting edge and prolong service life.

2. Change single drilling to combination of grinding and cutting edge drilling (high strength diamond), optimize the drilling performance;

3. Good sharpness, fast drilling speed and high efficiency;

4. Good wear resistance coefficient, long service life and high comprehensive cost performance!

Note: the operator is required to add a certain amount of cooling water, and the spray flow should be large, so that it has better cooling effect, so as to improve the service life of the drill and reduce the cost!


 Machine for making cutter Segment:


 Silver welded diamond segment core drill bit

Machine for welding the cutter segment base:

 Silver welded diamond segment core drill bit


Relatsd Products:

                   


Turbo segment for construction diamond core drill bit

         Turbo segment for construction
diamond core drill bit



About us:

270MM Bush Hammered Plate For HTC Grinders
Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


Description:

1. If we want to order your product, how do we know your quality?
Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Please note:

1. Please provide items before purchase.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
