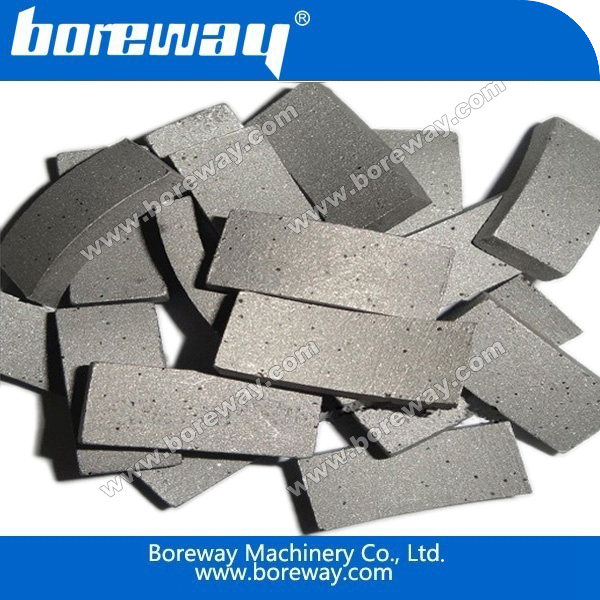

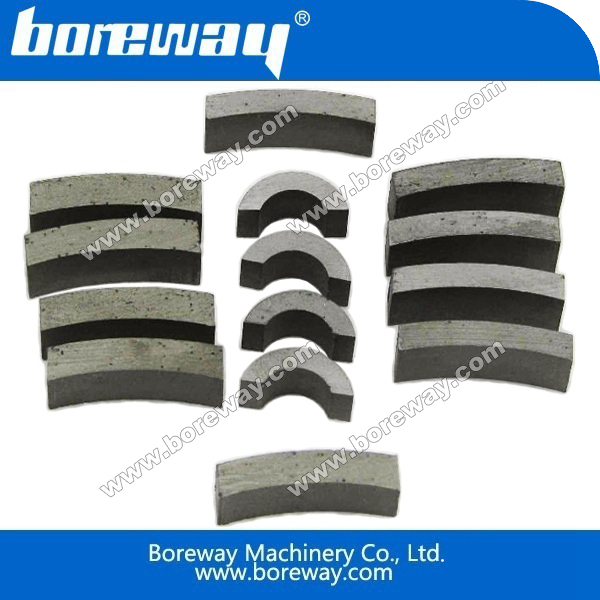

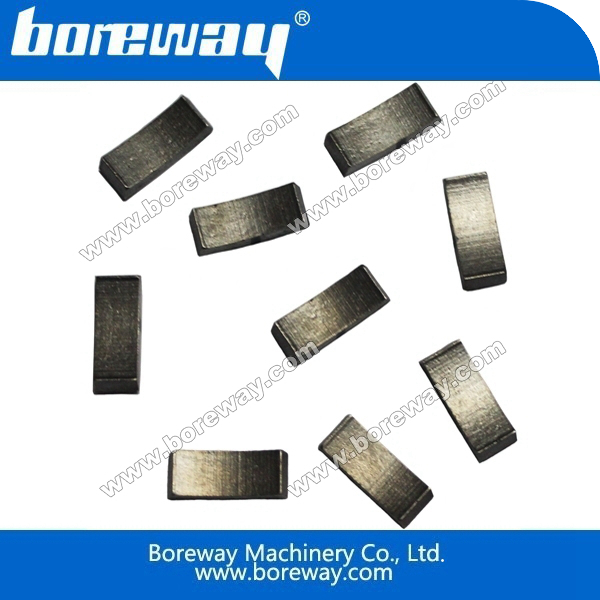

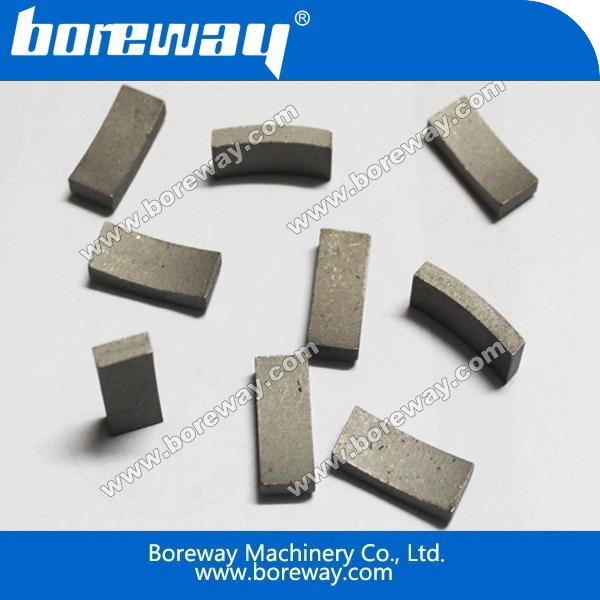

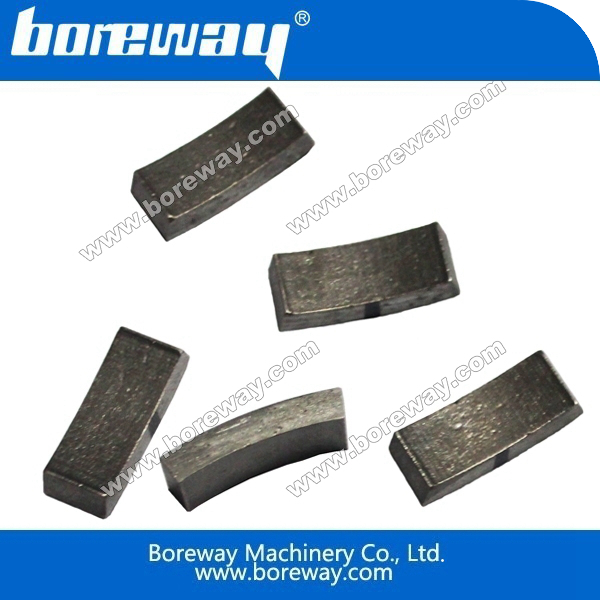

Normal flat segment for construction diamond core drill bit
- Model Number: BW-NFSCDCDB-02
- Type: Wet or dry use
- Segment Length: 16mm-24mm
- Segment Thickness: 3mm-5.5mm
- Segment Hight: 10mm
- Industry: Diamond drilling tools
- Technology: Sintered
- Advantage: Good sharpness and long lifespan.
- Machine: High-frequency soldering machine
- Applications: Boreway normal flat segment for construction diamond core drill bit is used for drill bits for drilling concrete brick and masonry.
Introduction:
Normal flat segment for construction diamond core drill bits are suitable for drilling cured reinforced concrete green concrete or stone material. Under same bond conditions, the drilling speed of this turbo segments is much faster than normal flat segments.
Features:
1.High quality formula provide higher drilling efficiency.
2.Wet or dry drilling.
3.Long lifespan and stable performance.
Specifications:
The followings are the normal specifications of our normal flat segment for construction diamond core drill bit:
|
Product Name |
Diameter |
Segment Size |
Segment No. |
Applications |
|
Normal flat segment for construction diamond core drill bits |
1.25"(32mm) |
16x3.0x10 |
4 |
Concrete Brick Masonry |
|
1.38"(35mm) |
16x3.0x10 |
4 |
||
|
1.50"(38mm) |
16x3.0x10 |
5 |
||
|
1.63"(42mm) |
16x3.0x10 |
5 |
||
|
1.75"(45mm) |
16x3.0x10 |
6 |
||
|
1.88"(48mm) |
16x3.0x10 |
6 |
||
|
2"(52mm) |
16x3.0x10 |
7 |
||
|
2.25"(57mm) |
24x3.5x10 |
5 |
||
|
2.50"(63mm) |
24x3.5x10 |
6 |
||
|
2.75"(70mm) |
24x3.5x10 |
7 |
||
|
3"(76mm) |
24x3.5x10 |
8 |
||
|
3.25"(82mm) |
24x3.5x10 |
9 |
||
|
3.50"(89mm) |
24x3.5x10 |
10 |
||
|
4"(102mm) |
24x3.5x10 |
10 |
||
|
4.25"(108mm) |
24x3.5x10 |
11 |
||
|
4.50"(114mm) |
24x3.5x10 |
11 |
||
|
4.75"(120mm) |
24x4.0x10 |
11 |
||
|
5"(127mm) |
24x4.0x10 |
11 |
||
|
5.5"(140mm) |
24x4.0x10 |
12 |
||
|
5.75"(146mm) |
24x4.0x10 |
13 |
||
|
6"(152mm) |
24x4.0x10 |
13 |
||
|
6.25"(159mm) |
24x4.0x10 |
14 |
||
|
6.5"(165mm) |
24x4.0x10 |
15 |
||
|
7"(178mm) |
24x4.0x10 |
16 |
||
|
8"(203mm) |
24x4.5x10 |
18 |
||
|
9"(229mm) |
24x4.5x10 |
20 |
||
|
10"(254mm) |
24x4.5x10 |
23 |
||
|
11"(280mm) |
24x5.0x10 |
25 |
||
|
12"(305mm) |
24x5.0x10 |
27 |
||
|
13"(330mm) |
24x5.5x10 |
30 |
||
|
14"(356mm) |
24x5.5x10 |
32 |
The above specifications are for reference, other specifications can be ordered by customers.
