Home > Product > Machinery and Other Tools > Machinery For Diamond Saw Blade Production Line > Three-side edging machine for diamond saw blade-EM01
Three-side edging machine for diamond saw blade-EM01Three-side edging machine for diamond saw blade-EM01Three-side edging machine for diamond saw blade-EM01

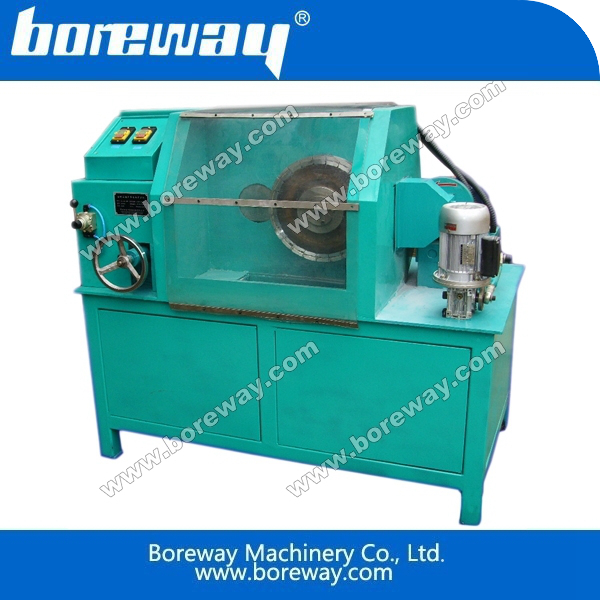

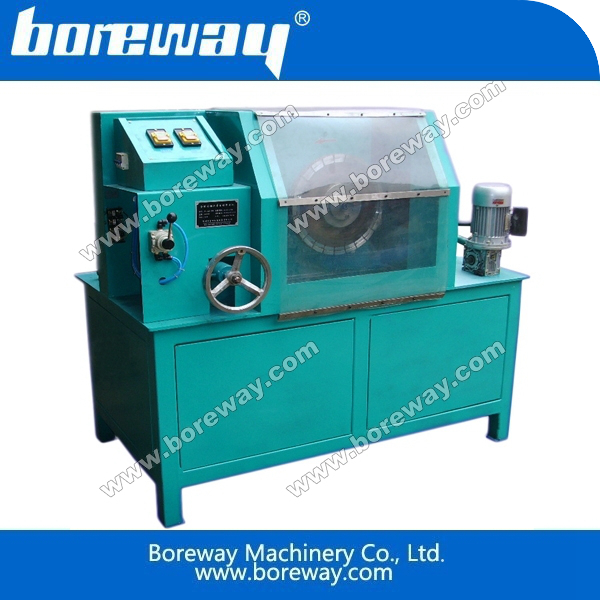

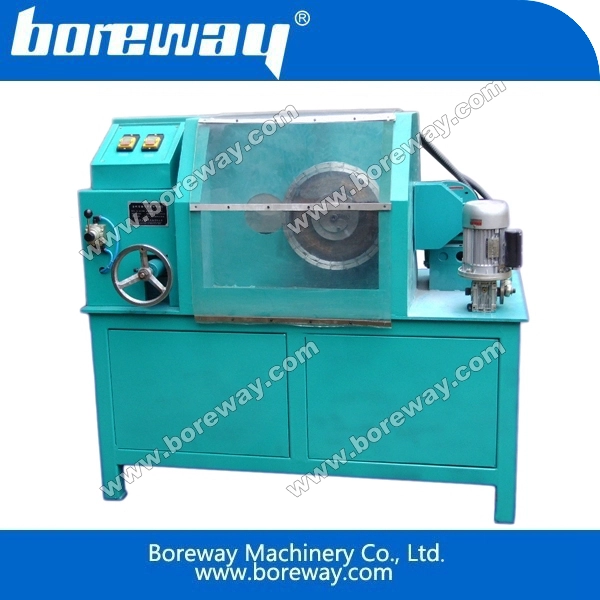

Three-side edging machine for diamond saw blade-EM01

  • Model Number: BW-EM-01
  • swing motor: 90W
  • Wheel motor: 750W
  • Range  : 250mm to 600mm
  • Dimension: 1400mm*800mm*1200mm
  • Applications: The boreway BWM-EM01 three-side edging machine for diamond saw blade is designed for edging the diamond segments of diamond saw blades, making the blade can be used directly after leaving the factory.
  • Industry: Boreway machine
  • Result:          Making the blade can be used directly after leaving the factory
  • Advantage: High speed and Long lifespan.

Introduction:

The BWM-EM01 three-side edging machine for diamond saw blade is designed for edging the diamond segments of diamond saw blades, making the blade can be used directly after leaving the factory.



Features:

1.User-friendly design, compact structure.

2.Easy operation, wide application.

3.Three-blade and welding oxide layer clear edge, can be completed in the same machine.

4.Clean job, very environmentally friendly.

5.High efficiency, daily output 300-400 pieces.



Specifications:

The followings are the normal specifications of our three-side edging machine for diamond saw blade:

Parameters

Numerical

Type

BWM-EM01

Blade rotation motor

1500 W

Wheel motor

750 W

Swing motor

90 W

Wheel diameter

Ø200/Ø35 Thickness25mm

Range

Ø250mm - Ø600mm

Dimension

1400mm*800mm*1200mm

Power supply

380V-50HZ

Wheel speed

1400 r/min

Saw Spindle Speed

300 r/min

Weight

360 Kg

The above specifications are for reference, other or special specifications can be ordered by customers.
