Factory Making Diamond Segment Tips For Cutting Stone Block Manufacturer

  • Use: Wet Use
  • Brand Name: Boreway
  • Segment Shape: M Shape
  • Model Number: BW-DSGB-9-13
  • Blade Diameter: 1600mm,64 Inch
  • Segment Size(L*W*H): 24*9.2/8.4*13mm
  • Application: For Granite, Various Hard Stone
  • Type: Stone Block Cutting Diamond Segments
  • Production Process:Hot Pressing,Cold Pressing
  • Machine: For Single Arm Machine,Bridge Cutting Machine
  • Welding Method: Silver Welding By High Frequency Welding Machine

1.Stone Block Cutting Diamond Segments Manufacturer,smooth cutting, flat surface and even size cutting result.

2.Good cutting result: smooth cutting, flat surface and even size,.

3.All kinds of stone materials have targeted professional formula, suitable for cutting stone of different hardness.

4.High quality raw materials, choose high strength diamond single crystal and high quality metal matrix (Co, Ni, Wu, Ti, Cu-Fe, etc.).

Product Description:

Multi Saw Blade Diamond Cutting Segment For Suppliers for suppliers,it is a kind of granite cutter head used on circular saw blade, which is used to cut granite and other hard materials.It can be used in for single arm machine, bridge cutting machine.

Stone block cutting diamond segments is 24mm long. Due to the gradient design of the cutter head, the cutter head has a thickness of 9.2mm and 8.4mm and a height of 13mm. Diamond segments for granite cutting.The cutter head height can also be 15mm and 20mm. For 1600mm saw blade, one 1600mm saw blade with 108 pin teeth.

Product Specification:

The Following Are Normal Specifications Stone Block Cutting Diamond Segments:

Name    Segment Size     Pack Each Box   Roduction Process
1600mm Diamond Saw Blade Segment  24MM  9.2/8.4MM  13MM  108Pin  Hot Pressing,
Cold Pressing

The above specifications is only for reference, other specifications may be available as per customer's demand.

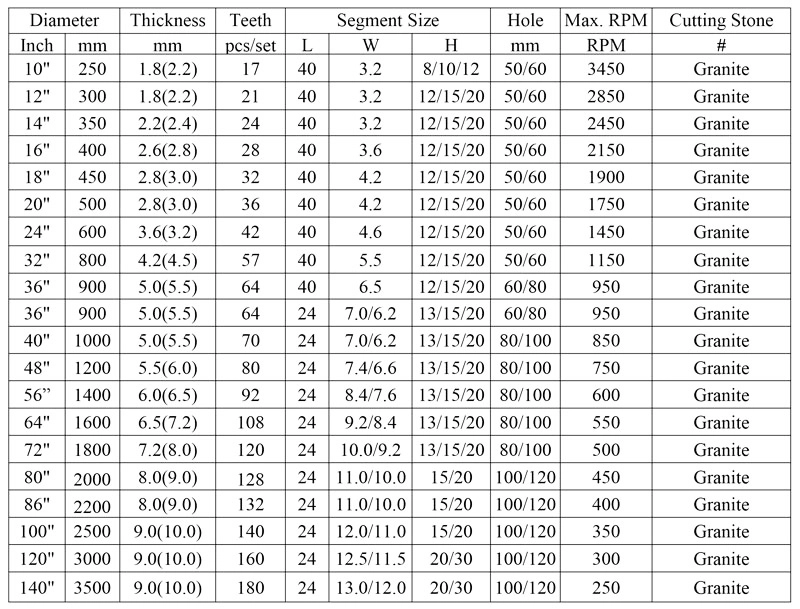

Other Specifications Of Cutter Segment:

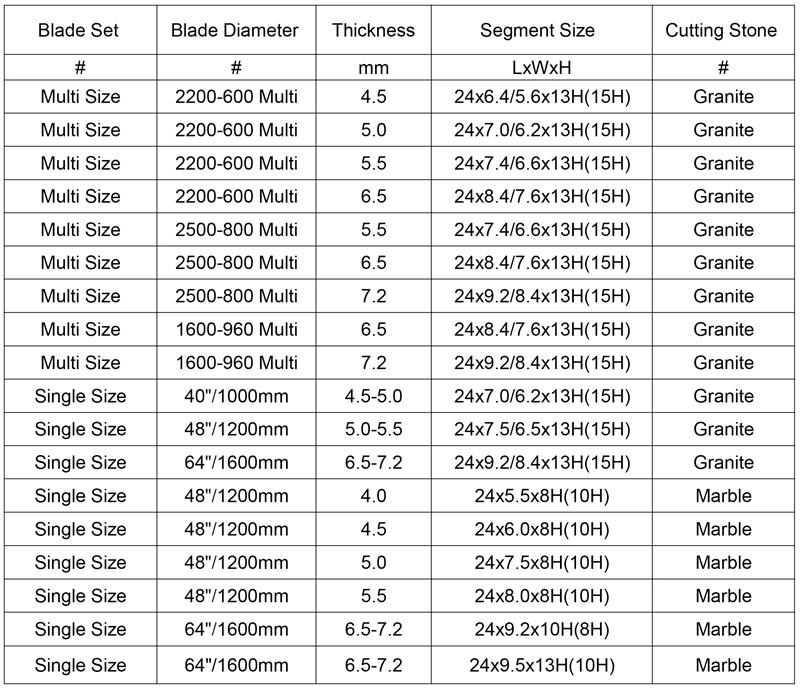

Multi-Blade And Single-Disc Saw Blade Specifications:

Product show

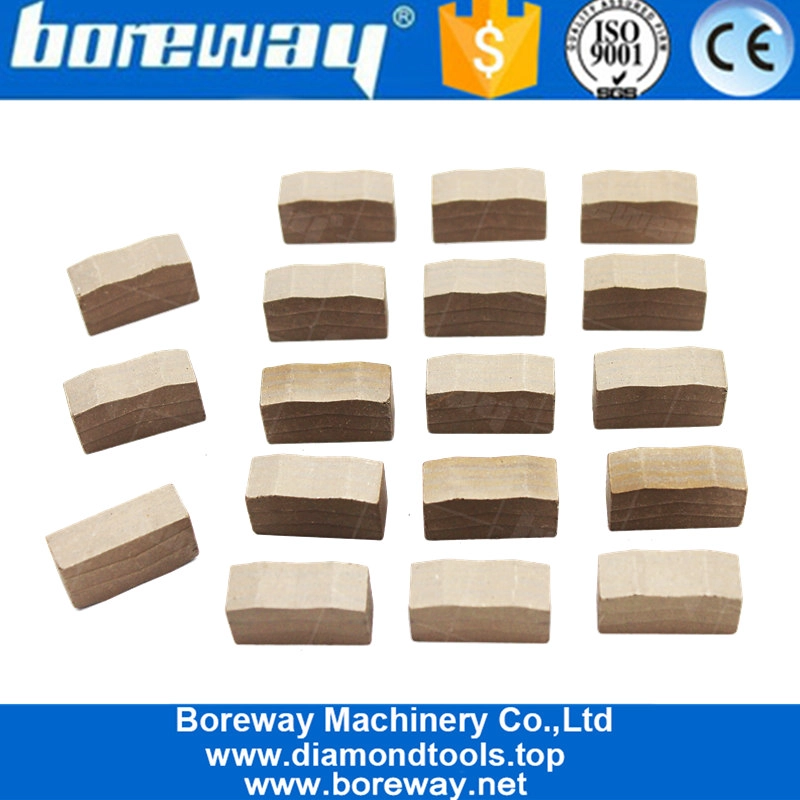

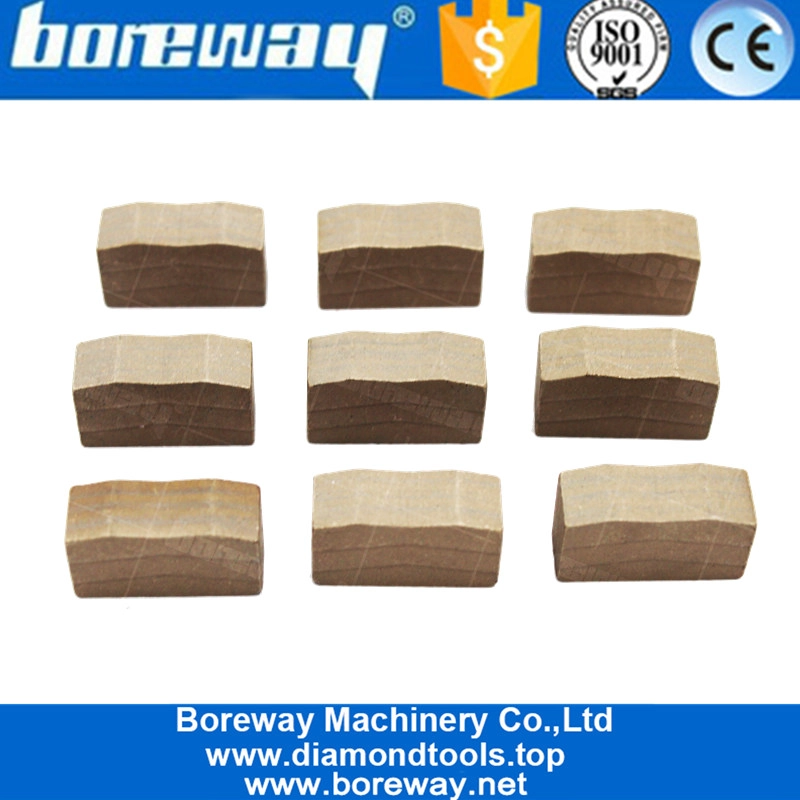

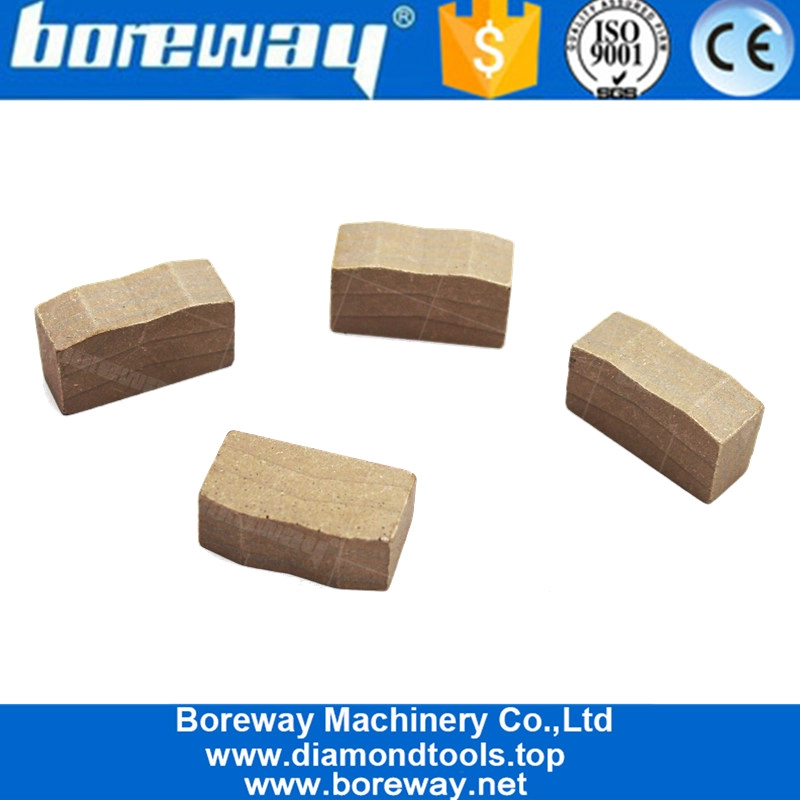

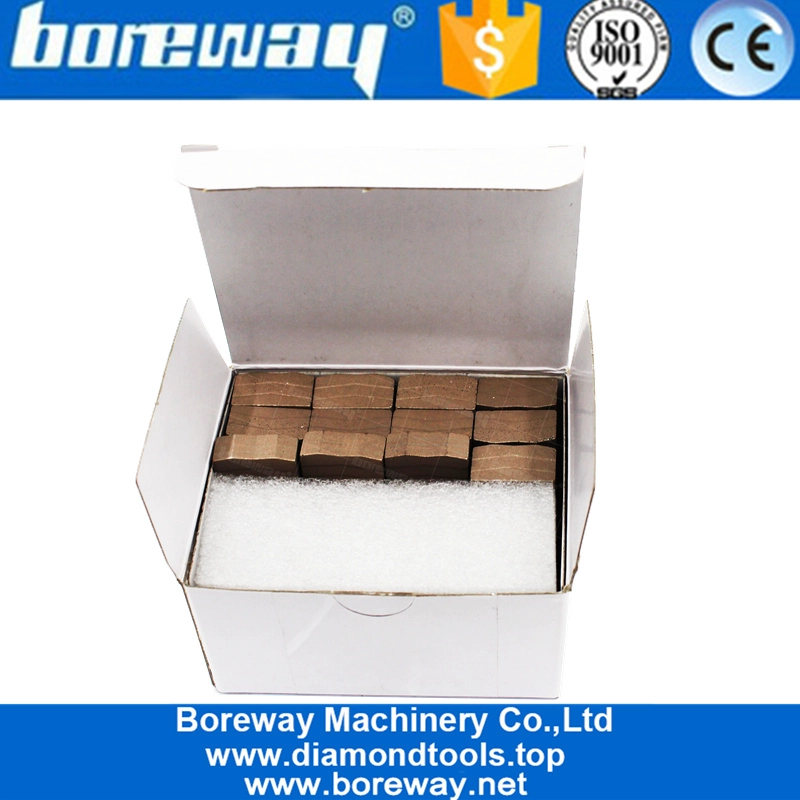

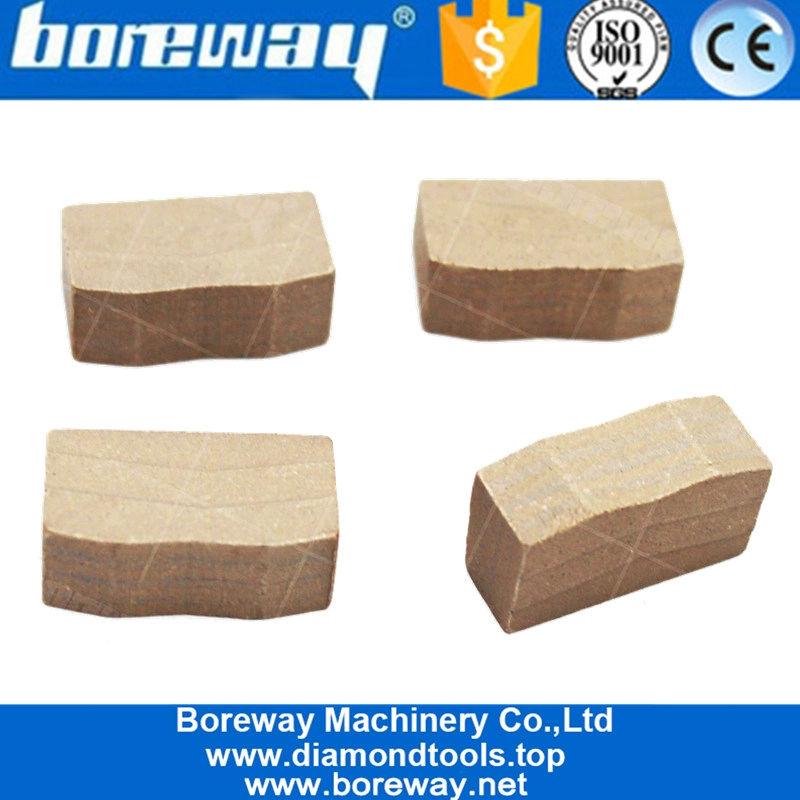

Factory Making Diamond Segment Tips For Cutting Stone Block Manufacturer

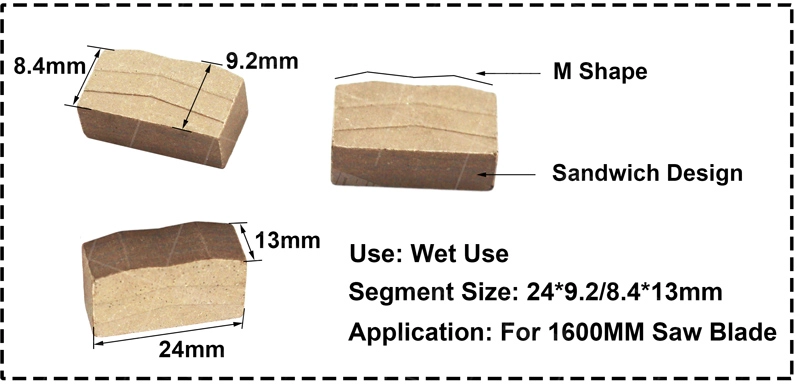

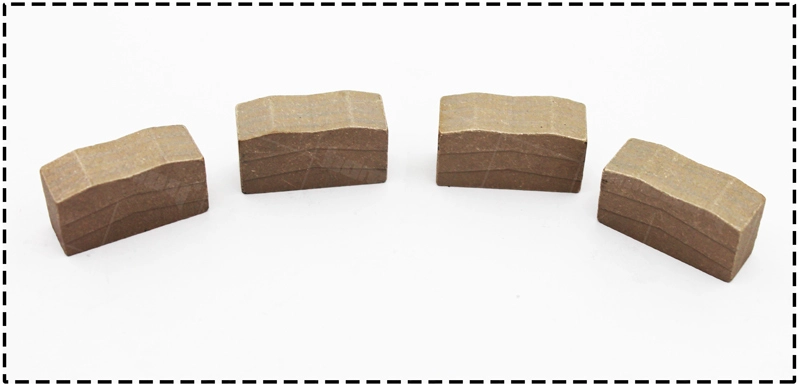

Stone Block Cutting Diamond Segments Manufacturer
Stone Block Cutting Diamond Segments Manufacturer

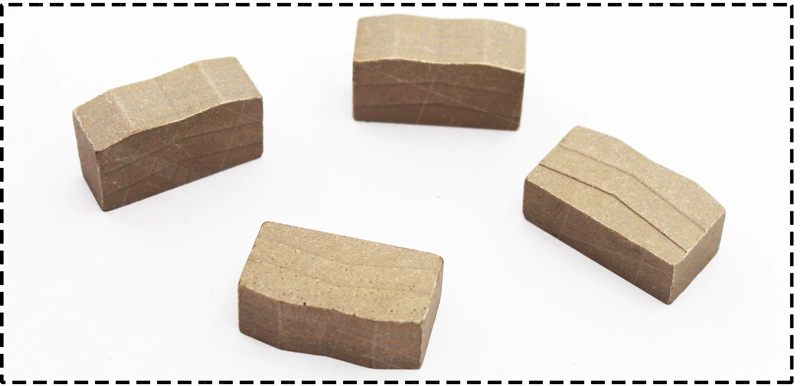

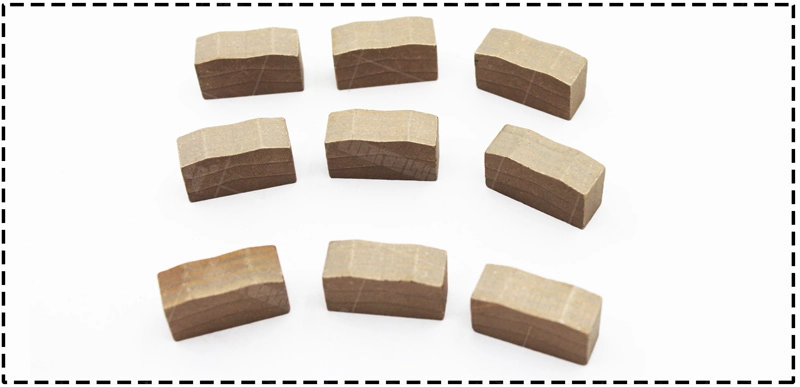

Multi Saw Blade Diamond Cutting Segment For Suppliers
Multi Saw Blade Diamond Cutting Segment For Suppliers

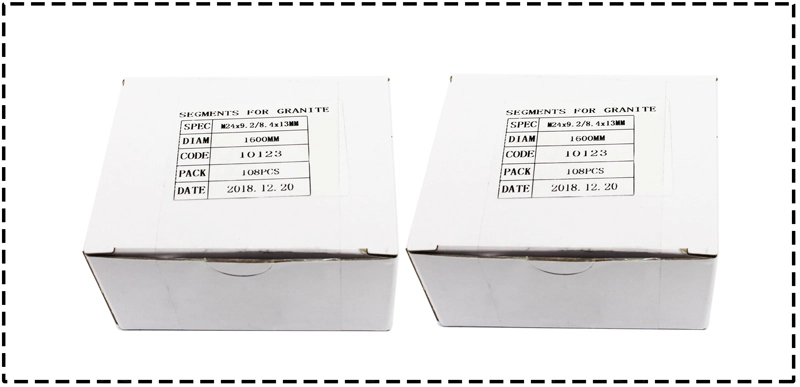

Diamond Segment Cutting Supplier China

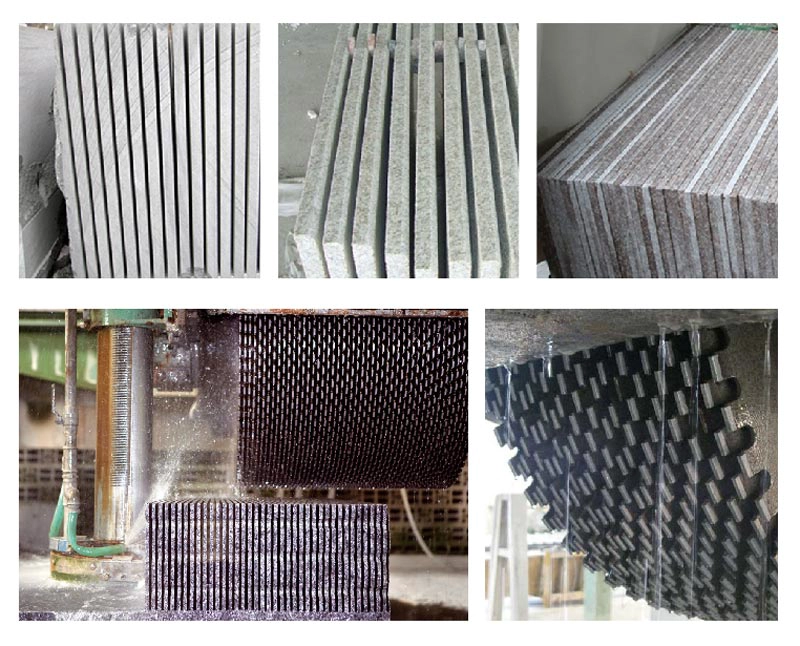

Granite Segment is used for 1600mm granite saw blade.

Used in granite, and other hard materials.

Diamond Segment Cutting Supplier China

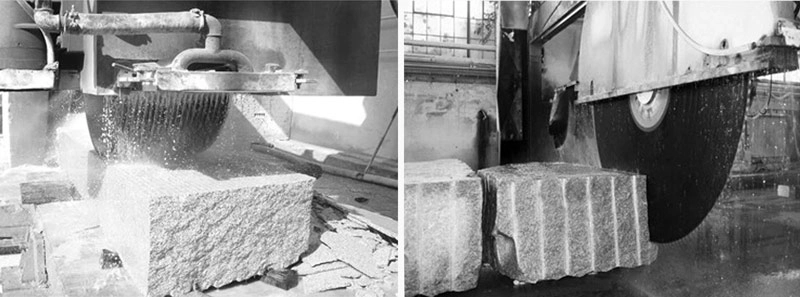

for single arm machine,bridge cutting machine.
