Silent diamond calibrating wheelSilent diamond calibrating wheelSilent diamond calibrating wheelSilent diamond calibrating wheel

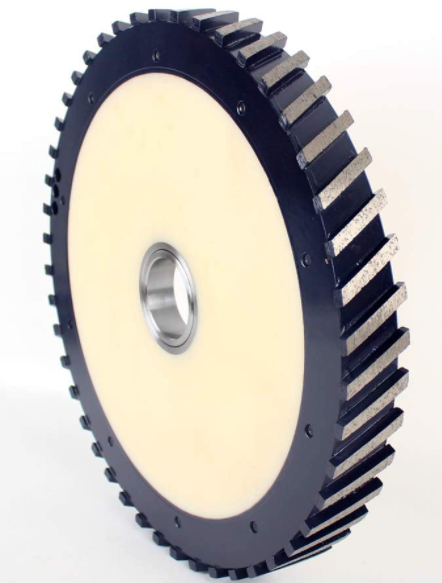

Silent diamond calibrating wheel

  • Model: BW-SDCW
  • Diameter: 300mm - 600mm
  • Wheel width: 30mm / 40mm / 50mm
  • Segment Length: 34.6mm / 46.2mm / 57.7mm
  • Segment width: 9mm
  • Segment height: 6.5mm
  • Segment Teeth: 36-72
  • Inner hole: 50mm / 60mm
  • Adaptation machines: milling machine, line, etc.
  • Application materials: granite, marble and other stone and ceramic tile, etc.
  • silent diamond calibrating wheel,oblique segment calibrating wheel,milling wheels for calibrating stone,silent diamond calibrating grinding wheel
Introduction:
Silent diamond calibrating wheel mounted on milling machine, line machine for grinding granite slab, marble slab, tile and other material surface, will be thick handle, the base of nylon, aluminum and other materials, to reduce noise pollution.
Features:
1. Silent diamond calibrating wheel using a nylon, aluminum and other materials, to reduce noise pollution
2. Silent diamond calibrating wheel has a thick high grinding efficiency, shape, size, accuracy and other characteristics,
3. This diamond calibrating wheel has good sharp, long life, high speed for grinding
4. We have a common set thick round diamond and diamond-thick muffler round two products
specification:
This is general specification of our silent diamond calibrating wheel:

diameter

Grinding wheel width

Segment Size

Head gear

Bore

long

wide

high

300mm

30mm

40mm

50mm

34.6mm

46.2mm

57.7mm

9mm

6.5mm

36

50mm

60mm

350mm

40

400mm

45

500mm

60

600mm

72










Picture:
