D190mm Sharp And Stable Diamond Calibration Wheel For Automatic Quartz Calibrating And Polishing Line 70mm ThicknessD190mm Sharp And Stable Diamond Calibration Wheel For Automatic Quartz Calibrating And Polishing Line 70mm ThicknessD190mm Sharp And Stable Diamond Calibration Wheel For Automatic Quartz Calibrating And Polishing Line 70mm ThicknessD190mm Sharp And Stable Diamond Calibration Wheel For Automatic Quartz Calibrating And Polishing Line 70mm ThicknessD190mm Sharp And Stable Diamond Calibration Wheel For Automatic Quartz Calibrating And Polishing Line 70mm Thickness

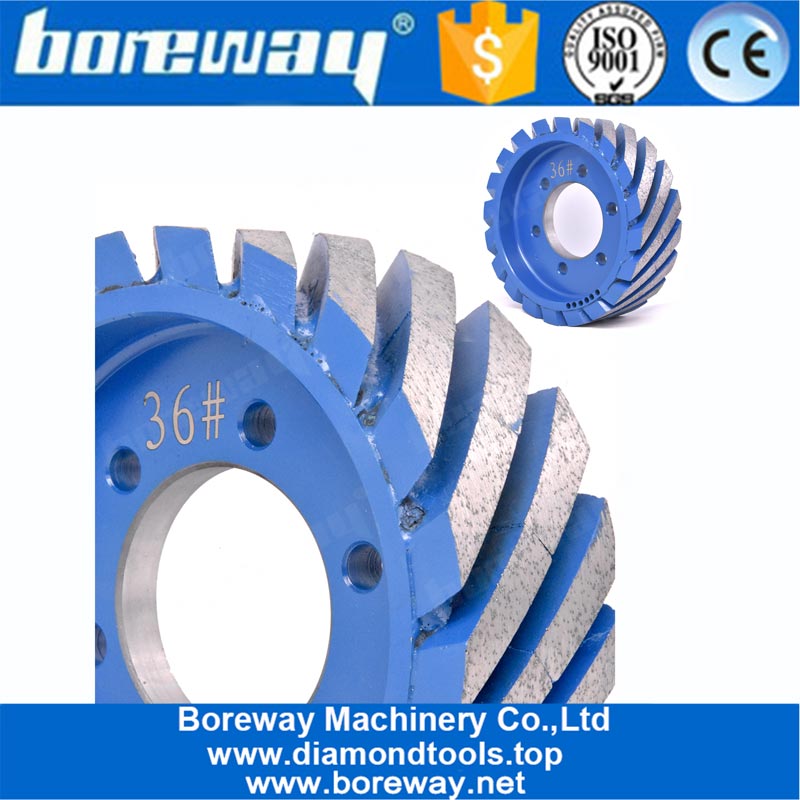

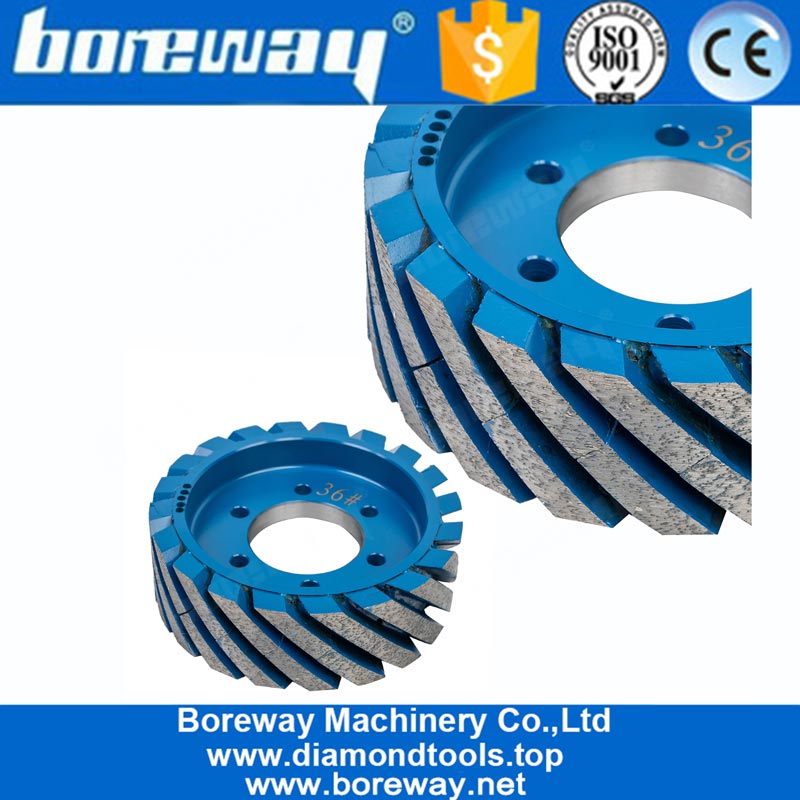

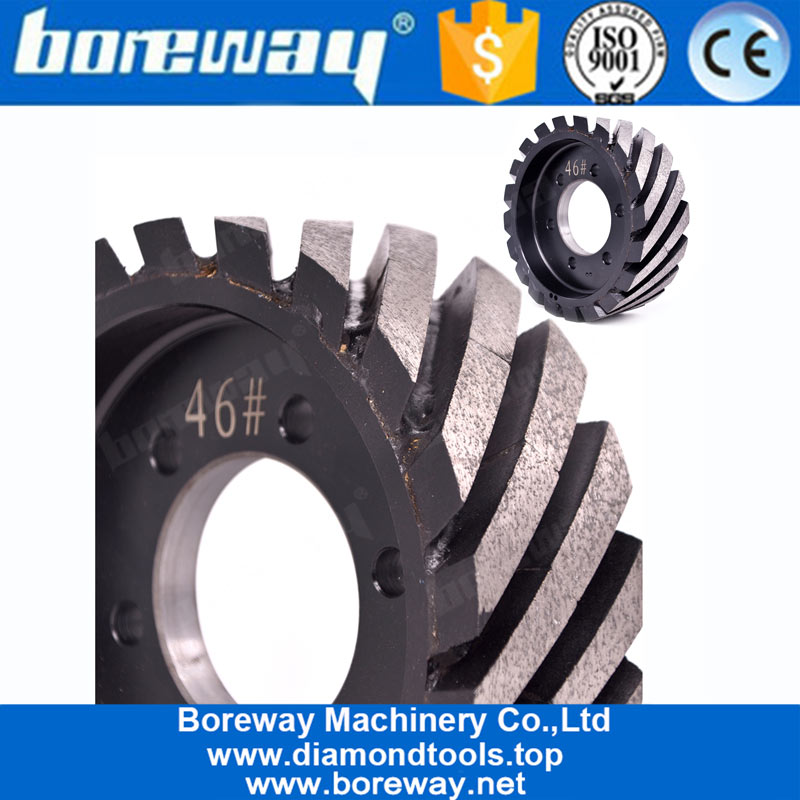

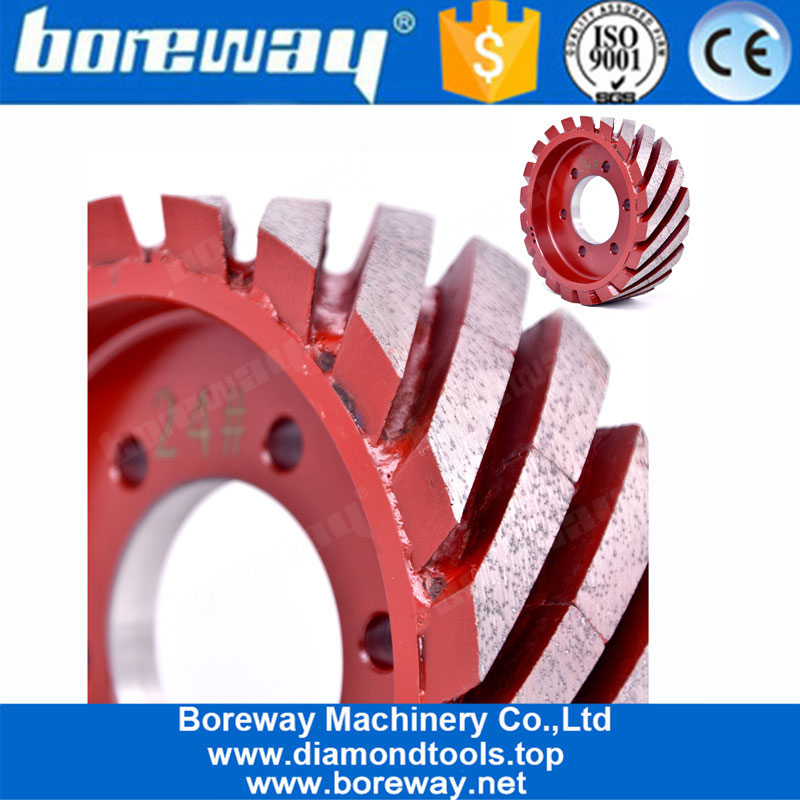

D190mm Sharp And Stable Diamond Calibration Wheel For Automatic Quartz Calibrating And Polishing Line 70mm Thickness

  • Grit:24#
  • Thickness:60MM
  • Hole Size:70MM
  • Diameter:190MM
  • Type:Calibrating Wheel
  • Model Number:BW-DMW-01
  • Advantage:Long Life, Sharp
  • Machine:For Profiling Machine
  • Application:Engineered Quartz Stone
Product Description


D190mm Sharp And Stable Diamond Calibration Wheel for Suppliers use for is designed to calibrate or remove stock on quartz stone surface to get fixed thickness and prepare for next grinding and polishing steps.

Surface calibration is the first step in quartz stone polishing and it is fundamental important in the quartz stone processing and usually the calibration are done on both the top and bottom of the slab. It helps eliminate defects formed during moulding.

Currently three designs of segmented calibrating discs are common in use, segmented cylindrical rollers, spiral cylindrical rollers and continuous rim calibrating rollers available as per different machines with same connection size and design.


Product Specification

 Model  Grit  Thickness(mm)  Hole Size(mm) Diameter(mm)
 BW-DMW-01

 24#  60  70  190
 36#  60  70  190
 46#  60  70  190
  BW-DMW-02   36#  60  120  200
 46#  60  120  200
 60#  60  120  200


D190mm Sharp And Stable Diamond Calibration Wheel for Suppliers,Use for engineered stone, quartz or other allomerated stone.

the innovative product and tools high quality to make customers process more efficient for different engineered stone.

calibration roller heads: entering calibration, high removal calibration , calibration , pre-finishing, finishing etc wheel as well as the diamond fickert .

Wet use only with sufficient water, Fast & Easy grinding, long life, perfect performance.

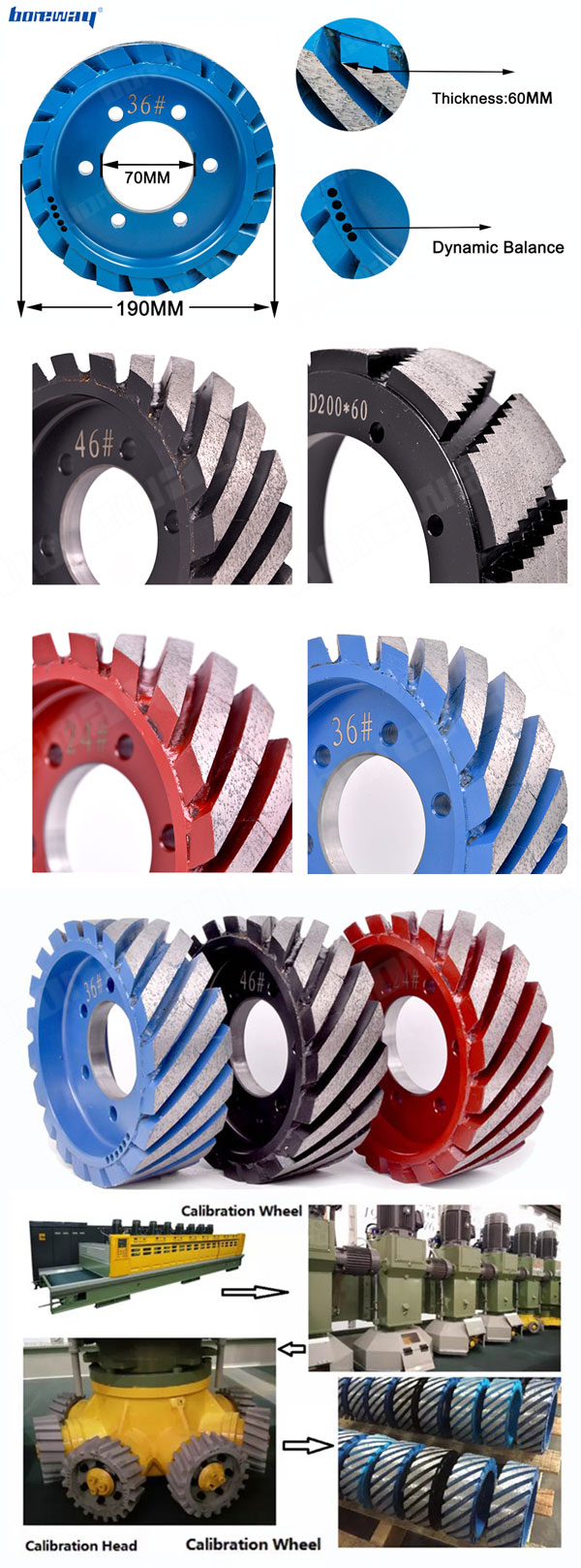

Product Show




Advantages:

1. Fast aggressive stock removal and thickness calibration;

2. High processing efficiency and long life for quartz stone calibration;


Application:

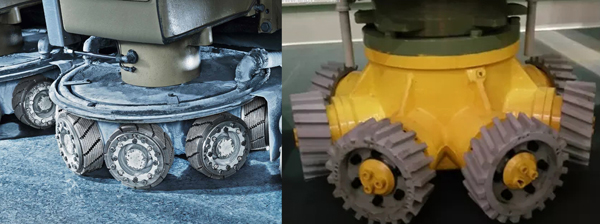

Diamond Calibration Wheel For Profiling Machine

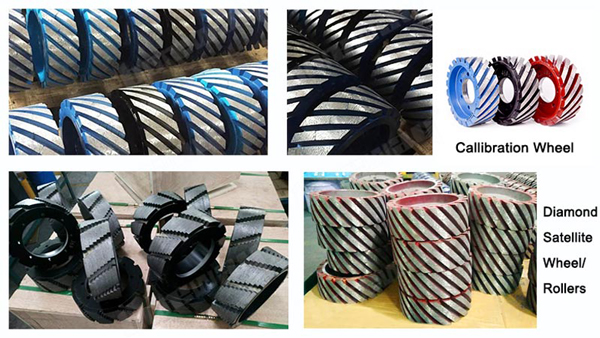

Factory & Exhibition





Logistics

Sample order ship by DHL, UPS, FedEx, TNT, EMS etc

For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours




FAQ


1.How could we know the quality, if we want to order your products?

Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.

2.Can you offer free samples?

We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.

3.Does your company accept custom-made?

Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.
