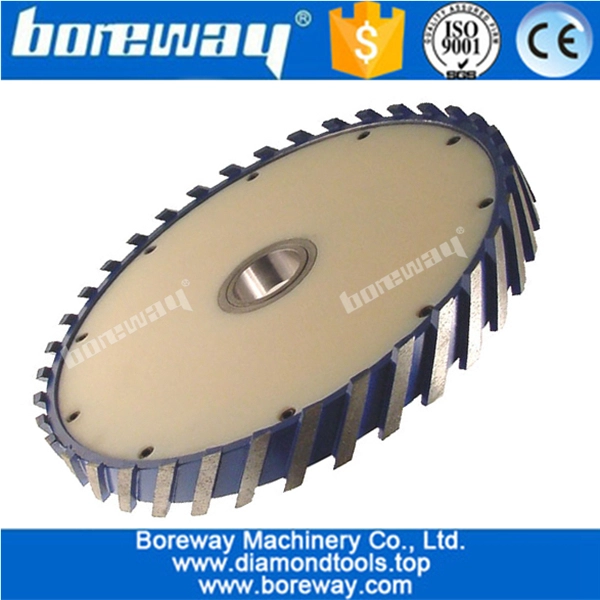

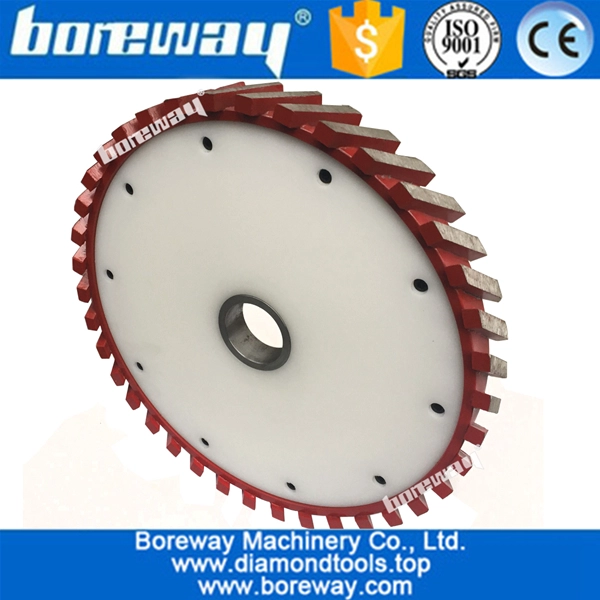

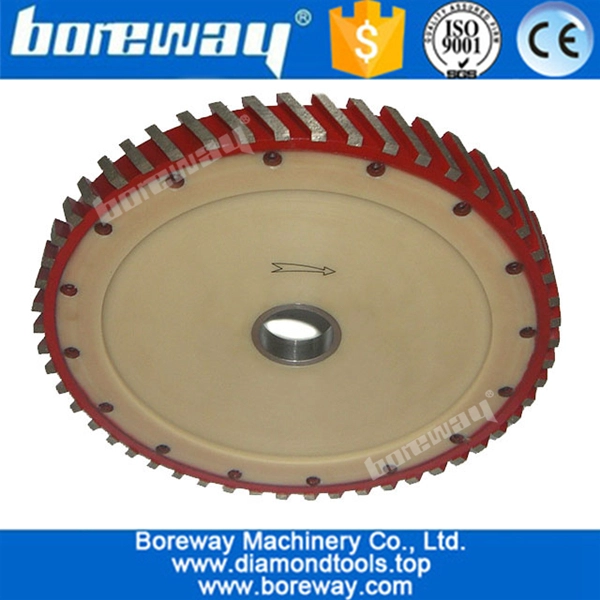

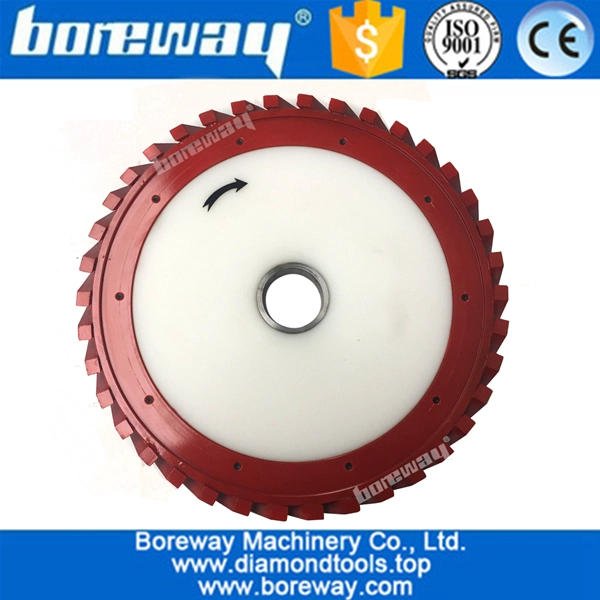

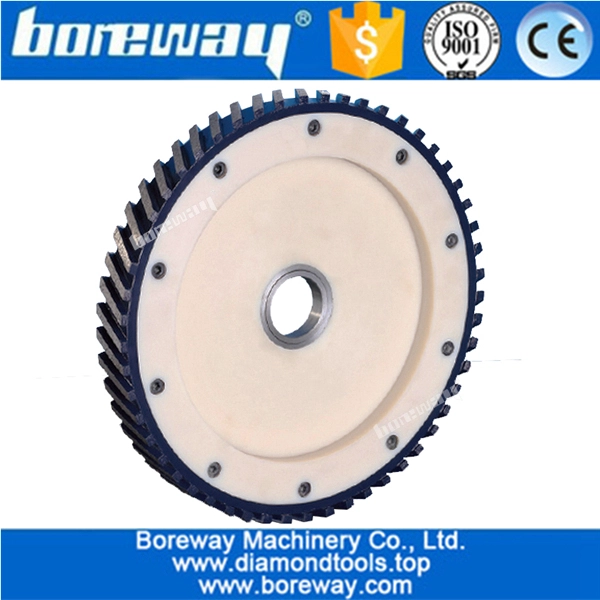

Silent Round Grinding Wheel With Straight or Oblique Segment For Milling Granite
- Type: Wet Use
- Size: 12 inch 14inch
- Outer Diameter: 300mm 350mm
- Segment Size: 10 to 50mm
- Inner hole: 50mm,60mm
- Industry: Diamond Milling Tools
- Advantage: Good sharpness and long lifespan.
- Machine: Milling machine and bridge cutting machines.
- Applications: Boreway sintered flat diamond forming milling wheel is wet use for milling surface of stone and granite
| Introduction: |
Diamond milling wheel is been applied to router machines or CNC machines.It is used to level off your slab before running your profile wheels.Diamond silent milling wheels are widely used for grinding surface of granite and marble. With special material,it save lots of weights and make no any noise when working.
D300mm CNC segment wide 40mm diamond silent core milling wheel for grinding granite and marble are used for surface milling and material removal for various granite and marble stone.
| Feature: |
1.Good performance and long lifespan.
2.With feature of high efficiency,accuracy in shape and size.
3.Wet cutting; Nylon body with lightweight; Aebor 50 or 60mm available
2.With feature of high efficiency,accuracy in shape and size.
3.Wet cutting; Nylon body with lightweight; Aebor 50 or 60mm available
4. The diamond silent milling wheel was designed for stationary saws and milling.
5. The unique design with good sharpness allows easy dust removal, low noise and safety.machine. It is available in a granite and a marble surface, both options feature an ultra quiet core and high quality segment.
| Specification: |
| Diameter / mm | Segment Width / mm |
Inner Hole / mm | Connection | Grit NO. | Machine |
| 250 300 350 400 |
20 25 30 35 40 |
50 60 |
25.4 50 60 |
30/40 # 60 # 100 # 200 # |
CNC machine and radial arm machine |
| RPM | Feed rate | Recommended depth |
| 4500 | 400-600mm / min | 2mm 3mm |
| Picture: |
Designed for grinding or milling surface of stone
| Packing & Delivery: |
1. Tools packing in carton cases;
2. When tools are in large quantities, they are packing in wooden cases.
| Kindly Noted: |
When place order for diamond Milling Wheel please inform the following:
Grit No.
Order Quantity
Dry or Wet Use
Diameter (Inch or mm)
Expected Shipping Date
Special Requirements (If)
Code No. of Diamond Milling Wheel
Diameter or Specifications (Inch or mm)
Material Milling:For Granite, Marble, or other material?
