Polishing machine for diamond saw bladePolishing machine for diamond saw blade

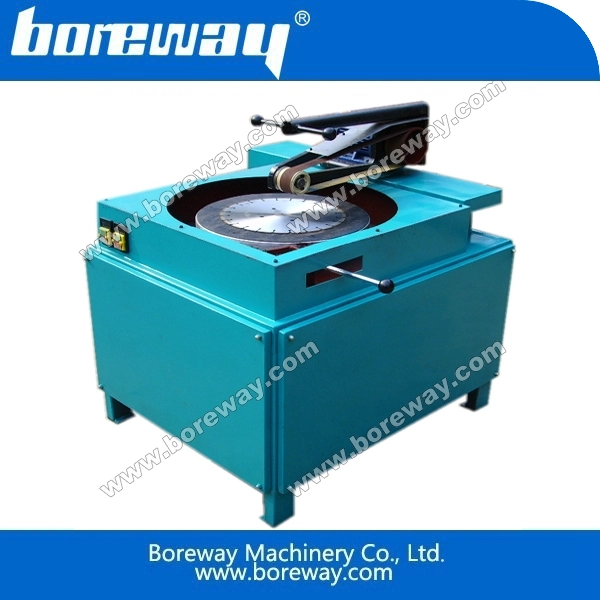

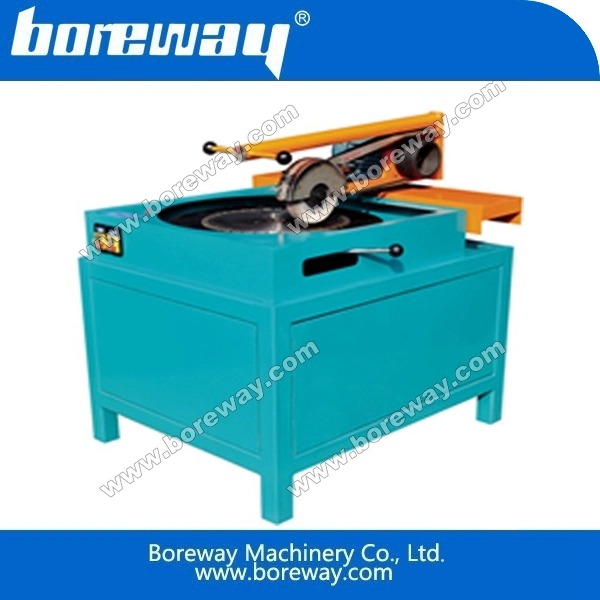

Polishing machine for diamond saw blade

  • Model Number: BWM-DS-DB-C06
  • Polishing range: 200mm to 600mm
  • Dimension : 1000mm * 850mm * 900mm
  • Belt speed: 18-21 m/s
  • Power   : 3KW
  • Applications: The boreway BWM-SBPM01 Polishing machine for diamond saw blade is designed for polishing the base of diamond saw blades to get a brand new appearance,and the blade can be easier to be spraied paint.
  • Industry: Boreway machine
  • Advantage: High speed and Long lifespan.

Introduction:

The BWM-SBPM01 Polishing machine for diamond saw blade is designed for polishing the base of diamond saw blades to get a brand new appearance,and the blade can be easier to be spraied paint.



Features:

1.Cold grinding, heating the substrate to effectively reduce the distortion.

2.Adaptable, easy to operate.

3.Belt grinding contact with the substrate is flexible, has a good run together and polished effect.

4.Processing of high, high surface finish.



Specifications:

The followings are the normal specifications of our polishing machine for diamond saw blade:

Parameters

Numerical

Type

BWM-SBPM01

Polishing range

Ø200mm - Ø600mm

Dimension

1000mm * 850mm * 900mm

Belt Size

1310mm * 30mm

Belt speed

18-21 m/s

Sucker speed

300 r/min

Surface roughness

0.8 um

Face runout

±0.02 mm

Power supply

380V, 50HZ

Power

3 KW

Weight

180 Kg

The above specifications are for reference, other or special specifications can be ordered by customers.
